Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your 8TEN Power Train Drive Belt. This belt is designed for specific John Deere and Sabre lawn tractor models, ensuring reliable power transmission for your equipment.
The 8TEN Power Train Drive Belt features a 1/2 inch width and 105 inch length, constructed with NR Rubber, Polyester Cord, and Type 1 Fabric Cotton for durability and performance. It is compatible with OEM numbers M74747 for John Deere and Sabre.
Video: An overview of 8TEN aftermarket lawn and garden replacement parts, showcasing various products and their applications.
Safety Information
- Always disconnect the spark plug wire or remove the battery before performing any maintenance or installation on your lawn tractor.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Ensure the tractor is on a flat, stable surface and the parking brake is engaged.
- Refer to your tractor's original service manual for specific disassembly and reassembly procedures.
Product Overview
The 8TEN Power Train Drive Belt is engineered for durability and precise fitment, ensuring efficient power transfer from your engine to the drive system. Key features include:
- Fabric Covering: Provides endurance against operational heat and abrasion.
- Molded Rubber: Offers high strength and flexibility.
- Internal Polyester Cords: Adds flexibility and strength for prolonged life.
Image: The 8TEN V-Belt packaging, clearly indicating its length of 105 inches and width of 1/2 inch, designed for outdoor power equipment.
Image: A detailed view of the 8TEN V-Belt's cross-section, highlighting the internal polyester cords that provide added flexibility and strength.
Installation (Setup)
Replacing a drive belt requires careful attention to detail. Follow these general steps, but always consult your specific tractor's service manual for precise instructions and diagrams.
- Prepare the Tractor: Ensure the tractor is turned off, the engine is cool, and the spark plug wire is disconnected or battery removed. Engage the parking brake.
- Access the Drive System: Depending on your model, you may need to remove the mower deck, footrests, or other covers to access the drive belt pulleys.
- Remove Old Belt: Carefully note the routing of the old belt before removing it. Use a camera to take pictures if necessary. Release any tensioners or idler pulleys to remove the worn belt.
- Install New Belt: Route the new 8TEN drive belt according to the original path. Ensure the belt is seated correctly in all pulley grooves.
- Orient the Belt: It is recommended to install the belt with the label facing forward for proper identification and optimal performance.

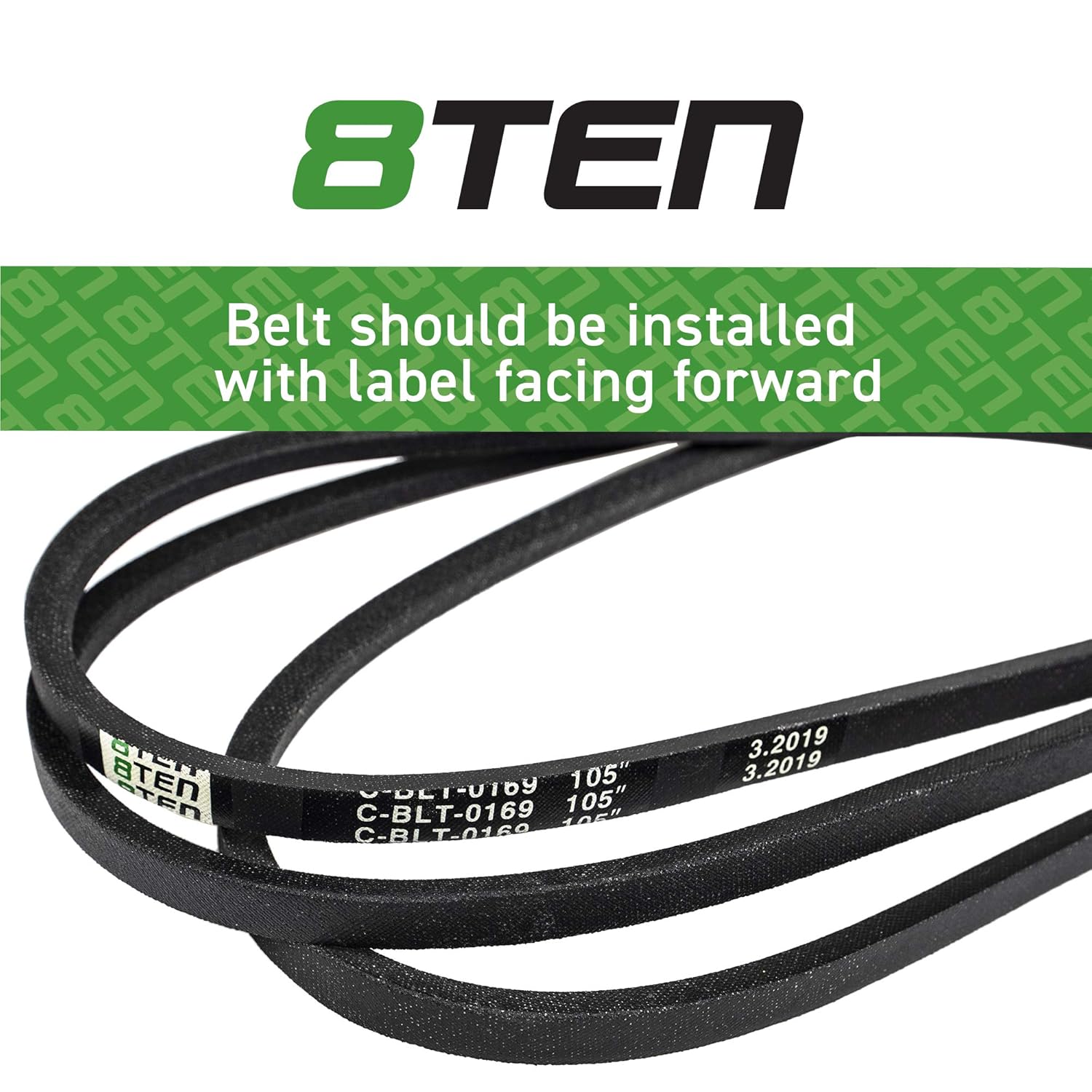

Image: A close-up of the 8TEN V-Belt, illustrating the recommendation that the belt should be installed with its label facing forward.
- Tension the Belt: Re-engage any tensioners or idler pulleys. Verify proper belt tension as specified in your tractor's manual.
- Reassemble: Reinstall any covers, footrests, or the mower deck that were removed.
- Test Operation: Reconnect the spark plug wire or battery. Start the tractor and slowly engage the drive system to ensure the belt operates smoothly without slipping or unusual noises.
Operating Guidelines
Once the new drive belt is installed, observe the following for optimal performance and longevity:
- Smooth Engagement: Engage the drive system smoothly to avoid sudden shocks to the belt, which can cause premature wear.
- Avoid Overloading: Do not operate the tractor beyond its recommended load capacity, as this can strain the drive belt.
- Regular Cleaning: Keep the area around the drive belt and pulleys free from grass clippings, dirt, and debris, which can cause friction and wear.
Maintenance
Regular inspection and maintenance will extend the life of your 8TEN Power Train Drive Belt.
- Visual Inspection: Periodically inspect the belt for signs of wear, such as cracks, fraying, glazing, or missing chunks. Check for proper tension.
- Check Pulleys: Ensure all pulleys are clean, free of rust, and spin freely. Worn or damaged pulleys can accelerate belt wear.
- Replace When Worn: Replace the belt immediately if any significant signs of wear are observed to prevent unexpected breakdowns and potential damage to other components.
Troubleshooting
If you experience issues with your drive system after installing the new belt, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Belt slipping | Incorrect tension, glazed belt, worn pulleys, oil/grease on belt | Adjust tension, clean belt/pulleys, replace worn pulleys or belt |
| Unusual noise (squealing, grinding) | Misaligned pulleys, worn bearings in pulleys, incorrect belt type | Check pulley alignment, inspect/replace bearings, ensure correct belt model |
| Belt breaking prematurely | Improper installation, sharp edges on pulleys, excessive load, incorrect belt type | Re-check installation, inspect pulleys for damage, avoid overloading, verify belt compatibility |
| Tractor not moving | Broken belt, severely slipped belt, transmission issue | Inspect and replace belt if broken, check belt tension, consult tractor manual for transmission issues |
Specifications
| Feature | Detail |
|---|---|
| Brand | 8TEN |
| Part Number (OEM Equivalent) | M74747 |
| Belt Width | 1/2 inch (0.5") |
| Belt Length | 105 inches |
| Material | NR Rubber, Polyester Cord, Type 1 Fabric Cotton |
| Compatible Devices | Ride-On Tractor |
| Compatible Models | John Deere STX30, STX38, STX46; Sabre 1338G, 1538H, 1546G, 1638HS, 1646H; Europro 1338GS, 1538HX, 1546GS, 1646HS |
| UPC | 803467005171 |
Warranty
8TEN products are backed by an 810-Day Limited Warranty. This warranty covers defects in material and workmanship under normal use and service. For specific terms and conditions, please refer to the official 8TEN warranty policy or contact customer support.
Image: The 8TEN logo with text indicating an 810-Day Warranty, symbolizing product assurance.
Customer Support
For further assistance, technical questions, or warranty claims, please visit the official 8TEN store or contact their customer service department.
8TEN Store: Visit the 8TEN Store on Amazon
