1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Kohler 78383-BN Components Vertical Toilet Paper Holder. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your product.
2. Safety Information
- Always wear safety glasses during installation to protect your eyes.
- Exercise caution when using power tools.
- Ensure the mounting surface is structurally sound and capable of supporting the product.
- Keep small parts away from children.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact Kohler customer service.
- 1 x Kohler 78383-BN Components Vertical Toilet Paper Holder Assembly
- Mounting Hardware (screws, anchors)
4. Tools Required
- Pencil
- Measuring Tape
- Level
- Drill
- Drill Bit (appropriate size for anchors/screws)
- Phillips Head Screwdriver
5. Installation
Follow these steps for proper installation of your toilet paper holder.
5.1. Prepare the Mounting Location
- Determine the desired height and location for the toilet paper holder. Ensure it is easily accessible.
- Using a pencil and level, mark the precise drilling points for the mounting bracket on the wall.
5.2. Mount the Bracket
- Drill pilot holes at the marked locations using the appropriate drill bit.
- If installing into drywall, insert the provided wall anchors into the drilled holes until flush with the wall surface.
- Align the mounting bracket with the drilled holes and secure it to the wall using the provided screws. Ensure the bracket is firmly attached and level.
5.3. Attach the Toilet Paper Holder
- Position the toilet paper holder assembly onto the mounted bracket.
- Secure the holder to the bracket using the set screw, typically located on the underside of the holder base. Tighten the set screw with a Phillips head screwdriver until the holder is stable and does not wobble.

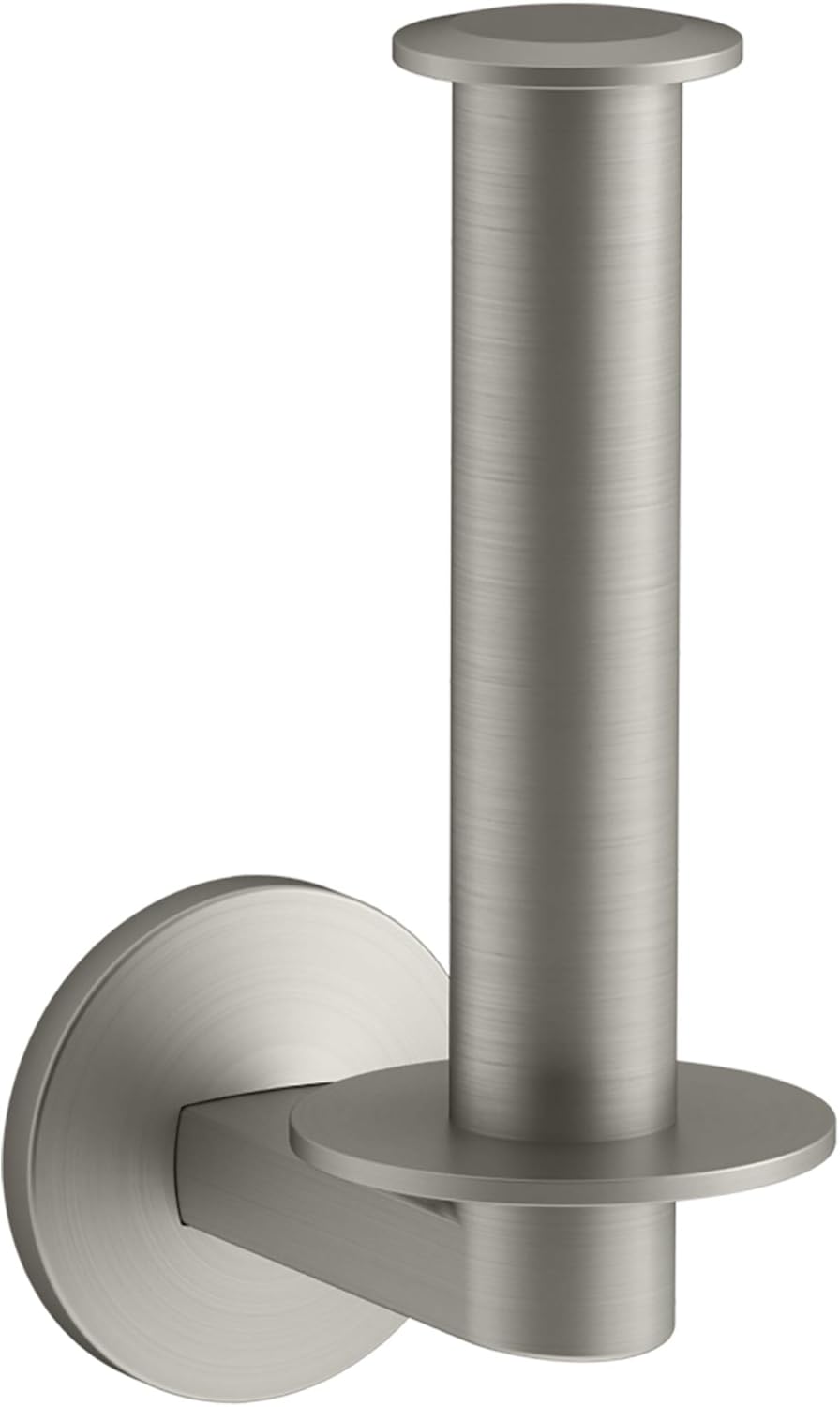

Figure 1: Close-up of the Kohler 78383-BN Components Vertical Toilet Paper Holder, showcasing its design and Vibrant Brushed Nickel finish.
Figure 2: The Kohler 78383-BN Components Vertical Toilet Paper Holder seamlessly integrated into a contemporary bathroom environment, demonstrating its functional placement.
6. Operation
The Kohler 78383-BN Components Vertical Toilet Paper Holder is designed for simple and convenient use.
- Loading Toilet Paper: Simply slide a new roll of toilet paper onto the vertical post. The open-ended design allows for easy replacement.
- Removing Toilet Paper: When the roll is empty, slide the cardboard core off the vertical post.
The vertical orientation provides easy access for changing toilet paper rolls.
7. Maintenance
To maintain the finish and appearance of your Kohler toilet paper holder, follow these cleaning guidelines:
- Clean regularly with a soft, damp cloth.
- Use only mild soap and water for cleaning.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Dry the holder thoroughly after cleaning to prevent water spots.
8. Troubleshooting
If you encounter any issues with your toilet paper holder, refer to the following common solutions:
- Issue: The toilet paper holder feels loose or wobbly.
Solution: Check the set screw located on the underside of the holder base and tighten it with a Phillips head screwdriver. If the issue persists, ensure the mounting bracket screws are securely fastened to the wall. - Issue: The finish appears dull or stained.
Solution: Refer to the maintenance section (Section 7) for proper cleaning instructions. Ensure you are not using abrasive cleaners.
9. Specifications
| Brand | Kohler |
| Model | 78383-BN |
| Product Type | Vertical Toilet Paper Holder |
| Material | Metal |
| Finish Type | Brushed |
| Color | Vibrant Brushed Nickel |
| Installation Type | Wall Mounted |
| Item Package Dimensions (L x W x H) | 9.13L x 5.59W x 2.91H inches |
| Item Package Weight | 1.19 Pounds |
10. Warranty and Support
Kohler products are manufactured to the highest standards of quality and performance. For specific warranty information regarding your Kohler 78383-BN Components Vertical Toilet Paper Holder, please refer to the warranty documentation included with your purchase or visit the official Kohler website.
For technical assistance, replacement parts, or any other inquiries, please contact Kohler Customer Service:
- Website: www.kohler.com
- Phone: Refer to the Kohler website for regional contact numbers.
