User Manual: Garden Gear Heavy Duty Portable Shed/Garage

1. Introduction

Thank you for choosing the Garden Gear Heavy Duty Portable Shed/Garage. This versatile and durable storage solution is designed to protect your garden tools, equipment, and other outdoor items from the elements. Its robust galvanised steel frame and weatherproof triple-layer woven polyethylene cover provide reliable shelter. This manual will guide you through the assembly, operation, maintenance, and troubleshooting of your new portable shed.

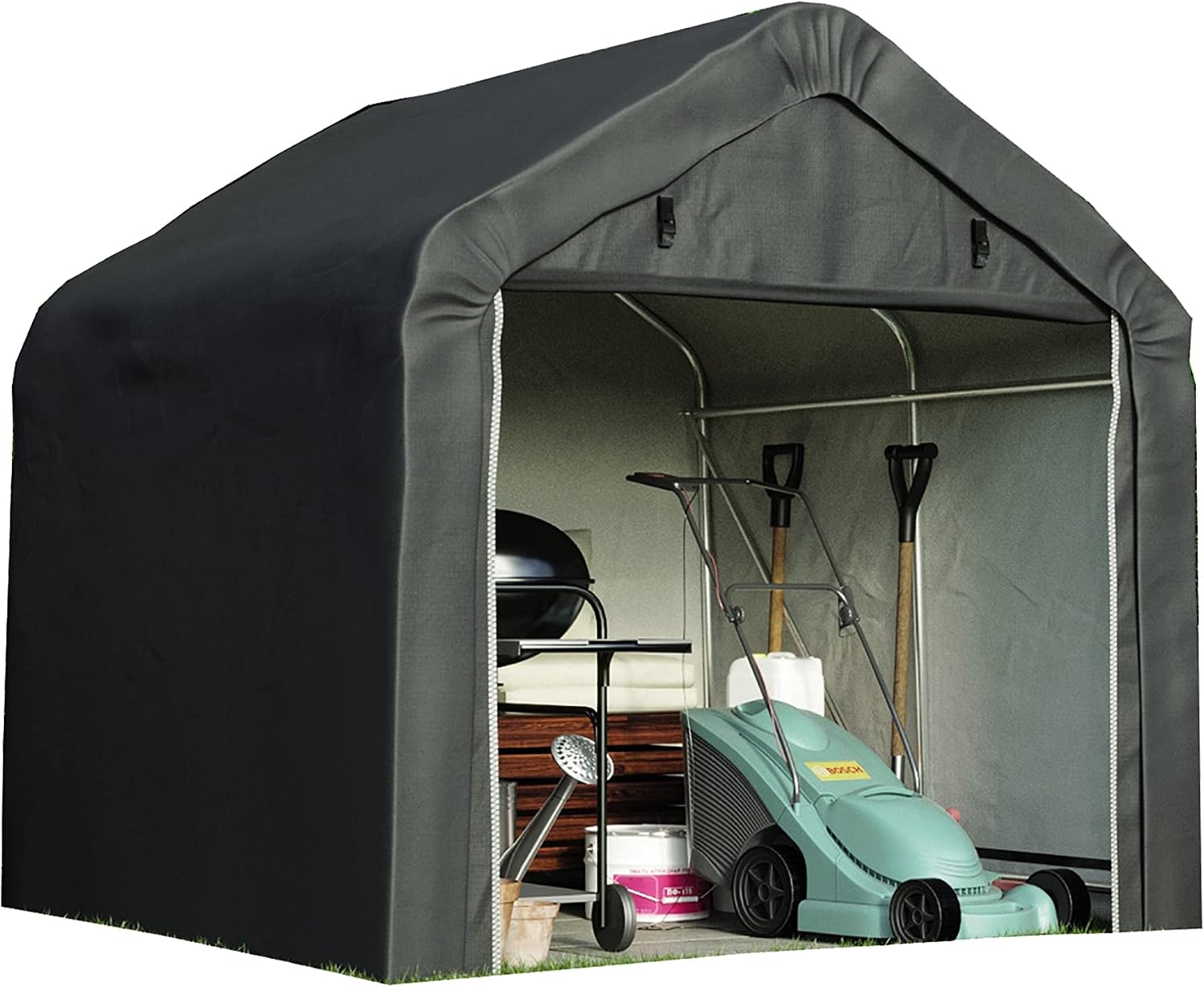

Image: The Garden Gear Portable Shed with its front panel open, revealing a lawnmower, barbecue, and various garden tools stored neatly inside. The shed features an apex roof design.

2. Safety Information

Please read and understand all safety warnings before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Assembly Required: This product requires assembly. Ensure all components are present and undamaged before beginning.
• Heavy Components: Some parts are heavy. Exercise caution during handling and assembly. It is recommended to have at least two people for assembly.
• Proper Installation: Ensure the shed is installed on a level, stable surface and securely anchored to the ground using the provided pegs or additional ground anchors for increased stability, especially in windy conditions.
• Intended Use: Do not use this shed to support heavy loads or vehicles unless specifically designed and rated for such purposes. It is intended for storage of garden tools, equipment, and similar items.
• Weather Conditions: While the cover is weatherproof, extreme weather conditions (e.g., very high winds, heavy snow accumulation) may compromise the structure. Monitor weather forecasts and take appropriate precautions, such as temporarily disassembling or reinforcing the shed, if severe weather is anticipated.
• Ventilation: Ensure adequate ventilation if storing items that may produce fumes or require air circulation.

3. Assembly Instructions

Assembly of your portable shed typically requires two people. Follow the steps below for a smooth setup. Refer to the included diagram for component identification.

3.1. Unpacking and Component Check

• Carefully unpack all components from the packaging.
• Verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

3.2. Frame Assembly

The frame is constructed from galvanised steel tubes that connect using push-button connectors or bolts. Lay out all frame components on a flat, clear surface.

• Begin by assembling the base frame. Connect the horizontal and vertical base tubes according to the diagram.
• Attach the upright support poles to the base frame. Ensure all connections are secure.
• Assemble the apex roof structure by connecting the roof arches and ridge poles.
• Lift and secure the roof structure onto the upright support poles. Ensure all push-button connectors click into place or all bolts are tightened.

Image: The robust galvanised steel frame of the portable shed, shown without its polyethylene cover, highlighting the structural integrity.

3.3. Cover Installation

The triple-layer woven polyethylene cover is designed to fit snugly over the frame.

• Carefully unfold the cover and identify the front, back, and side panels.
• Drape the main cover over the assembled frame, ensuring the apex roof aligns correctly.
• Pull the cover down over the sides, ensuring it is evenly distributed.
• Secure the cover to the frame using any integrated straps, buckles, or elasticated fasteners. Ensure the cover is taut to prevent water pooling and wind damage.
• Install the front and back panels, securing them with zippers, ties, or elasticated marble fasteners as per the design.

Image: The Garden Gear Portable Shed situated in a lush green garden, with its front open to display various garden items, including a wheelbarrow nearby.

3.4. Anchoring the Shed

Proper anchoring is crucial for stability and safety.

• Use the provided ground pegs to secure the shed's base to the ground. Hammer them firmly into the soil through the designated anchor points.
• For enhanced stability, especially in areas prone to high winds, consider purchasing additional heavy-duty ground anchors or securing the shed to a concrete base.

4. Operating Instructions

Using your portable shed is straightforward, designed for convenient access and secure storage.

4.1. Accessing the Shed

• The shed features a zippered front panel for easy access. Unzip the panel completely to open the entrance.
• Roll up the opened panel and secure it using the integrated ties or buckles to keep the entrance clear.

4.2. Securing the Shed

• To close the shed, unroll the front panel and zip it down completely.
• Ensure the zippers are fully closed to provide maximum protection against weather and dust.
• For added security, some models may feature loops for padlocks (padlock not included).

Image: The Garden Gear Portable Shed with its front panel fully closed, demonstrating its compact and discreet presence in a garden setting.

5. Maintenance

Regular maintenance will extend the life of your portable shed and ensure its continued performance.

• Cleaning the Cover: Periodically clean the polyethylene cover with mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these can damage the material. Rinse thoroughly and allow to air dry completely before closing the shed for extended periods.
• Checking the Frame: Inspect the galvanised steel frame regularly for any signs of rust, bending, or loose connections. Tighten any bolts or re-engage push-button connectors as needed.
• Cover Integrity: Check the cover for any tears, punctures, or signs of wear, especially around stress points like zippers and seams. Small tears can often be repaired with a suitable patch kit for polyethylene materials.
• Anchoring System: Verify that the ground pegs or anchors remain firmly in place. Re-secure them if they have loosened due to ground movement or weather.
• Snow and Ice: In snowy conditions, regularly remove snow accumulation from the roof to prevent excessive weight from damaging the frame or cover.

6. Troubleshooting

Here are some common issues and their potential solutions:

7. Specifications

Key technical specifications for the Garden Gear Heavy Duty Portable Shed/Garage (6ft x 6ft):

Image: A visual representation of the Garden Gear Portable Shed with its key dimensions (183cm depth, 183cm width, 181.5cm height) clearly marked.

8. Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the retailer from whom you purchased the product. You may also visit the official Garden Gear website for further assistance.

Manufacturer: Clifford James

Brand: Garden Gear
