Meter Star Metal Gas Grill Control Knobs (Set of 2) for 8mm D-Type Shafts

Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Meter Star metal gas grill control knobs. These knobs are designed for compatibility with various appliances featuring an 8mm D-type shaft. Constructed from durable metal with a polished silver finish, they are built for longevity and include a rubber ring for enhanced heat resistance. Please read this manual thoroughly before use to ensure safe and effective operation.

Product Overview

The Meter Star control knobs are designed as replacement parts for gas grills and other appliances. Key features include:

• Durable Construction: Made from solid metal with a brilliant silver surface treatment.
• Standard Dimensions: Knob outer diameter of 38 mm and height of 25 mm.
• Heat Resistance: Features a rubber ring in the middle to prevent high temperatures from affecting the knob.
• Precise Fit: Designed for appliances with an 8.0 to 8.1 mm 'D' type shaft.
• Clear Indication: Hole direction is +0 degrees with the 'ON' panel indicator.

Setup and Installation

These control knobs are designed for easy installation. Follow these steps to replace or install your Meter Star control knobs:

1. Safety First: Ensure the gas supply to the appliance is turned off and the appliance is cool before beginning installation.
2. Remove Old Knob (if applicable): Gently pull the existing knob straight off the control shaft. Avoid twisting or prying forcefully, as this may damage the shaft.

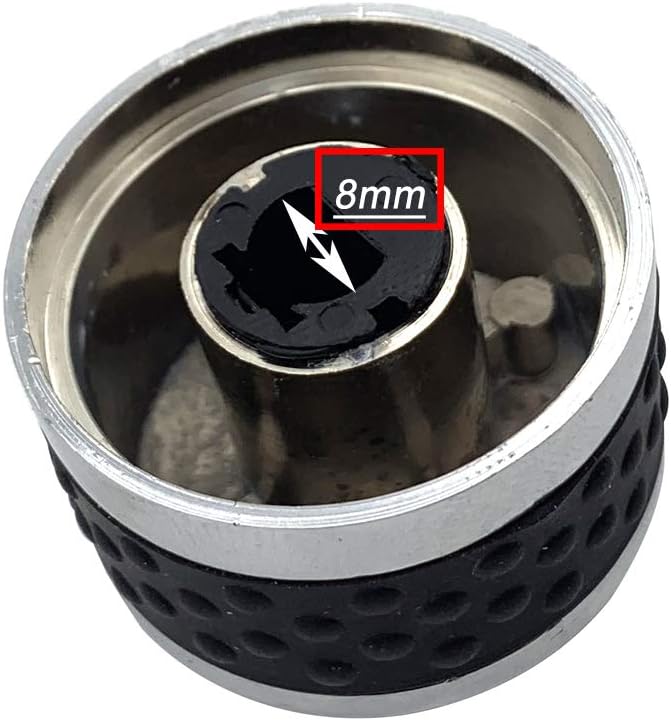

3. Verify Shaft Type: Confirm that your appliance has an 8mm D-type shaft. The Meter Star knobs are specifically designed for this shaft profile.
4. Install New Knob: Align the D-shaped opening on the back of the Meter Star knob with the D-shaped shaft on your appliance. Push the knob firmly onto the shaft until it is securely seated. Ensure the 'ON' indicator on the knob aligns with the corresponding marking on your appliance panel.
5. Test Functionality: Once installed, carefully turn the gas supply back on and test the knob's rotation and control over the burner. Check for any gas leaks if applicable.

Operating Instructions

Once installed, operating the Meter Star control knobs is straightforward:

• Turning On: Push the knob in slightly and rotate it to the 'ON' position or desired heat setting, as indicated on your appliance's control panel.
• Adjusting Heat: Rotate the knob clockwise or counter-clockwise to adjust the flame intensity or temperature according to your appliance's markings.
• Turning Off: Rotate the knob back to the 'OFF' position. Ensure the gas supply is fully closed when the appliance is not in use.

Maintenance

To ensure the longevity and proper function of your Meter Star control knobs, follow these maintenance guidelines:

• Cleaning: Wipe the knobs with a soft, damp cloth. For stubborn stains, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• Inspection: Periodically check the knobs for any signs of wear, damage, or looseness. Ensure the rubber ring is intact and providing proper heat resistance.
• Heat Exposure: While the knobs feature a heat-resistant ring, prolonged exposure to extreme direct heat should be avoided to preserve their appearance and integrity.

Troubleshooting

If you encounter issues with your Meter Star control knobs, consider the following:

• Knob Does Not Fit: Ensure your appliance's shaft is an 8mm D-type. These knobs are not universally compatible with all shaft sizes or shapes. Double-check the shaft dimensions.
• Knob is Loose: Re-install the knob, ensuring it is pushed firmly onto the shaft until it clicks or feels secure. If the shaft itself is worn, the knob may not fit tightly.
• Knob is Stiff: Ensure the shaft is clean and free of debris. Do not force the knob; if resistance persists, the issue may be with the appliance's valve mechanism, not the knob itself.

Specifications

Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For any support inquiries or further assistance, please refer to the retailer or the Meter Star official channels where the product was purchased.
