FamYun Leather Sewing Machine Model FY-0014 Instruction Manual

Product Overview

This manual provides instructions for the FamYun Leather Sewing Machine, Model FY-0014. This manual leather stitcher is designed for heavy-duty sewing tasks, suitable for various materials including leather, canvas, and other thick fabrics. It is ideal for shoe repair, bag and belt mending, and crafting projects.

Key Features:

• Versatile Thread Compatibility: Can be used with nylon and cotton lines, including Prince line.
• High Sewing Thickness: Capable of sewing materials up to 5mm thick.
• Multi-Material Application: Suitable for cloth shoes, rubber shoes, leather shoes, sneakers, high heels, raincoats, leather bags, cloth, trousers, and other leather products.
• Adjustable Stitch Width: The distance between needles can be regulated, with a maximum width of approximately 6mm.
• Durable Construction: Hand-made by master blacksmiths, ensuring robust performance.

Image: The FamYun Leather Sewing Machine, Model FY-0014, showcasing its robust construction and key components.

Setup Instructions

Before operating the machine, ensure it is properly assembled and threaded. The machine may arrive with some assembly required.

1. Unpacking and Initial Inspection

Carefully unpack all components. Inspect for any visible damage. Due to its handmade nature, minor cosmetic marks may be present.

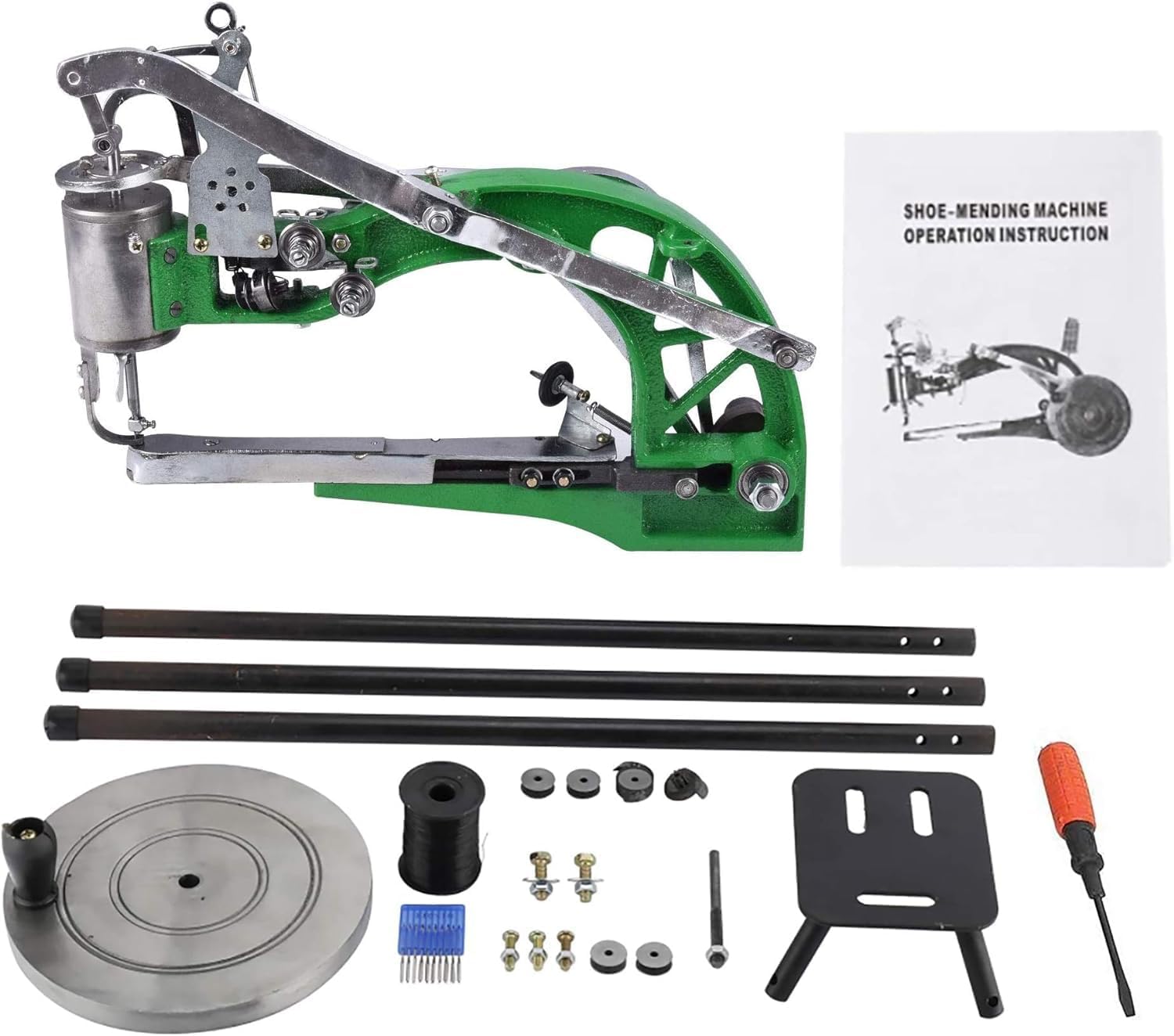

Image: All components included with the FamYun Leather Sewing Machine, including the main unit, stand parts, thread, and tools.

2. Assembling the Stand

Attach the three legs to the main body of the machine using the provided bolts and washers. Ensure the stand is stable on a flat surface.

Image: The FamYun Leather Sewing Machine fully assembled on its tripod stand.

3. Threading the Machine

The machine comes pre-threaded for initial inspection. Observe the existing thread path before removing it. The top thread runs from the spool, through tensioners, and down to the needle. The bobbin thread is located in the shuttle mechanism below the needle plate.

Image: A close-up view of the machine's threading path, showing the thread spool, tension discs, and needle area.

4. Adjusting Tension

Proper thread tension is crucial for consistent stitching. Adjust the tensioners (spring-loaded discs) to achieve a balanced stitch. Test on a scrap piece of material.

Image: Detail of the thread tension adjustment mechanism on the FamYun Leather Sewing Machine.

5. Winding the Bobbin

The bobbin winder is integrated into the machine. Place an empty bobbin onto the winder spindle and guide the thread from the main spool to the bobbin. Turn the crank to wind the bobbin, ensuring even tension.

Image: The hand crank and large wheel of the machine, used for manual operation and bobbin winding.

Operating Instructions

1. Preparing Material

Place the material to be sewn under the presser foot. Ensure the material lies flat and is positioned correctly for your desired stitch line.

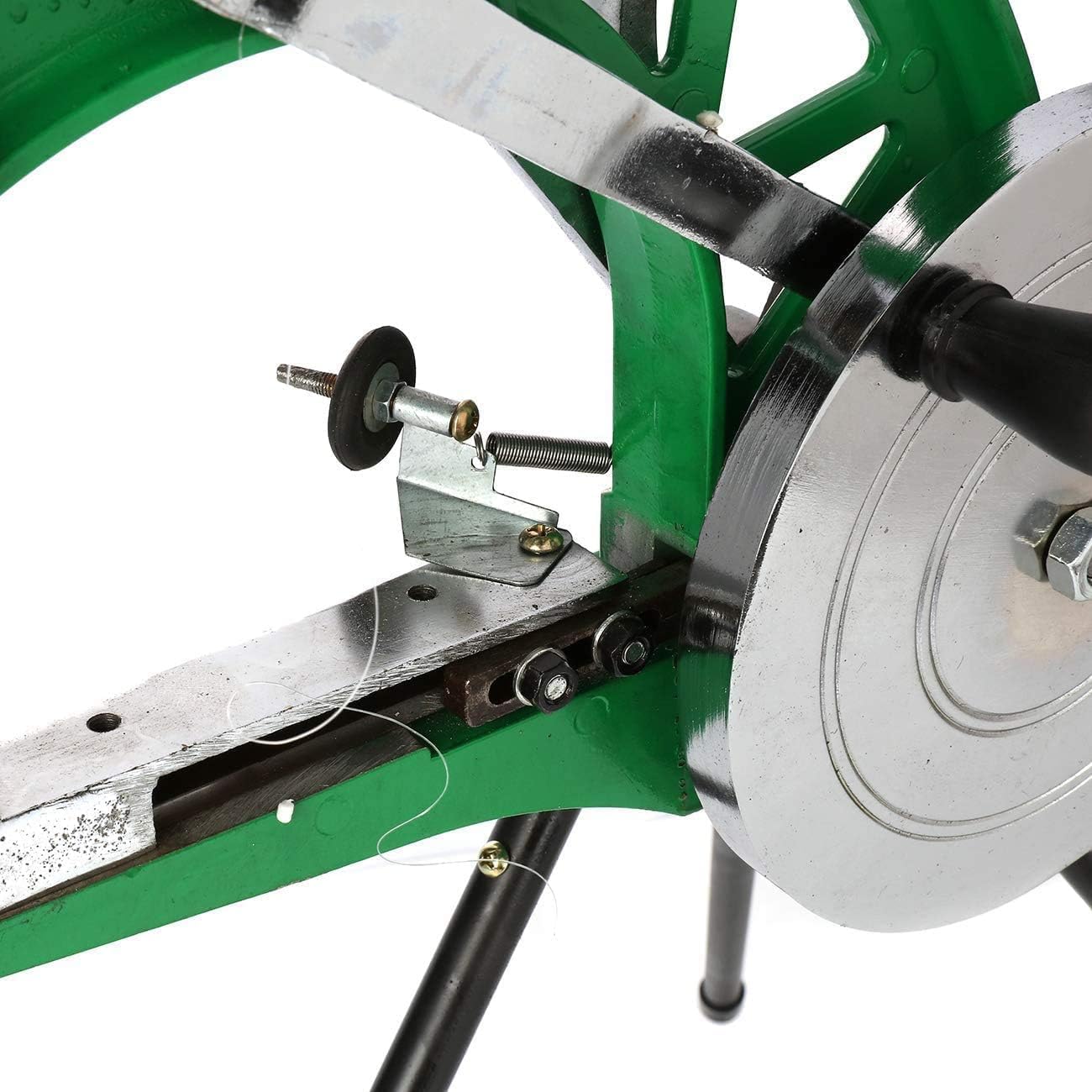

Image: A close-up of the needle and presser foot, showing the area where material is placed for sewing.

2. Starting to Sew

Lower the presser foot onto the material. Begin turning the hand crank slowly and steadily. The needle will penetrate the material, and the shuttle mechanism will pick up the bobbin thread to form a lockstitch.

Video: A demonstration of the FamYun Leather Sewing Machine in operation, showing the hand crank mechanism and the stitching process on a piece of material.

3. Guiding the Material

As you turn the crank, gently guide the material to maintain a straight stitch line. The machine's walking foot mechanism will help feed the material evenly.

4. Adjusting Stitch Length

The stitch length can be adjusted to suit different materials and project requirements. Refer to the stitch adjustment mechanism on the machine to modify the length.

Image: A close-up of the stitch adjustment mechanism, allowing users to control the length of each stitch.

5. Finishing a Stitch Line

Once you reach the end of your stitch, raise the needle to its highest position, lift the presser foot, and pull the material away. Cut the threads, leaving sufficient length to tie off if necessary.

Maintenance

1. Cleaning

Regularly clean lint and thread debris from the needle plate, shuttle area, and tension discs. Use a small brush or compressed air.

2. Oiling

Apply a small amount of sewing machine oil to all moving parts, especially the shuttle hook, needle bar, and crank mechanism, as indicated in the manual or by visible wear points. This machine may arrive with excess grease from manufacturing; clean and re-lubricate as needed.

3. Needle Replacement

Replace needles regularly, especially when sewing thick or tough materials, or if the needle becomes bent or dull. Using a damaged needle can lead to skipped stitches or thread breakage.

Troubleshooting Common Issues

1. Bobbin Not Picking Up Thread

If the bobbin thread is not being picked up by the needle, check the following:

• Ensure the bobbin is correctly inserted into its casing and that the thread is properly routed through the tension spring.
• Verify that the top thread is correctly threaded through all guides and tension discs.
• Confirm the needle is inserted correctly, with the flat side facing the back of the machine, and is not bent or dull.
• Adjust the timing of the shuttle hook if necessary (this is an advanced adjustment and may require professional assistance).

Product Specifications

Warranty and Support

For customer satisfaction, if you encounter any issues with your FamYun Leather Sewing Machine, please contact us directly via email through the "Ask a question" button on the product page. We are committed to resolving any concerns you may have.
