1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Beck/Arnley 0729943 Clutch Master Cylinder. This unit is designed to match original equipment (OE) specifications for form, fit, and function, ensuring reliable performance. It features premium seals and materials for durability and is a complete new assembly.
2. Safety Information
Always prioritize safety when working on vehicle systems. Failure to follow safety precautions can result in serious injury or damage to the vehicle.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands before beginning any work. Do not rely solely on a jack.
- Disconnect the vehicle's battery before working on electrical components or systems.
- Clutch fluid is corrosive. Avoid contact with skin and eyes. If contact occurs, flush immediately with water.
- Dispose of old clutch fluid and components according to local environmental regulations.
- If you are unsure about any step, consult a qualified automotive technician.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 x Beck/Arnley 0729943 Clutch Master Cylinder
4. Setup and Installation
The following steps provide a general guide for replacing a clutch master cylinder. Specific procedures may vary depending on your vehicle's make and model. Refer to your vehicle's service manual for detailed instructions.
4.1 Preparation
- Park the vehicle on a level surface and engage the parking brake.
- Place wheel chocks behind the rear wheels.
- Locate the clutch master cylinder, typically mounted on the firewall near the brake master cylinder.
- Place a drain pan beneath the clutch master cylinder to catch fluid.
4.2 Removal of Old Unit
- Disconnect the clutch fluid reservoir hose from the master cylinder.
- Disconnect the hydraulic line leading to the clutch slave cylinder. Cap the line to prevent excessive fluid loss and contamination.
- Inside the vehicle, disconnect the pushrod from the clutch pedal.
- Unbolt the clutch master cylinder from the firewall.
- Carefully remove the old master cylinder.

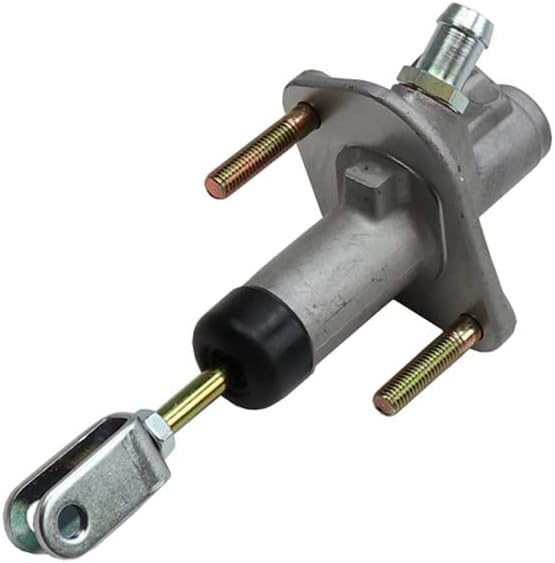

Figure 1: Front view of the Beck/Arnley 0729943 Clutch Master Cylinder.
4.3 Installation of New Unit
- Position the new Beck/Arnley 0729943 Clutch Master Cylinder onto the firewall.
- Secure it with the mounting bolts, tightening to the manufacturer's specified torque.
- Reconnect the pushrod to the clutch pedal inside the vehicle.
- Reconnect the hydraulic line to the clutch slave cylinder.
- Reconnect the clutch fluid reservoir hose.
Figure 2: View of the clutch master cylinder showing the pushrod connection point.
4.4 Bleeding the Clutch System
After installation, the clutch hydraulic system must be properly bled to remove any air. Air in the system will result in a spongy or non-functional clutch pedal.
- Fill the clutch fluid reservoir with new, recommended clutch fluid.
- Locate the bleed screw on the clutch slave cylinder.
- Attach a clear hose to the bleed screw and place the other end into a container with some fresh clutch fluid.
- Have an assistant slowly depress the clutch pedal and hold it down.
- Open the bleed screw briefly to allow fluid and air to escape, then close it.
- Instruct the assistant to release the clutch pedal.
- Repeat this process until no air bubbles are visible in the fluid exiting the hose.
- Maintain the fluid level in the reservoir throughout the bleeding process.
- Once bleeding is complete, tighten the bleed screw, remove the hose, and top off the reservoir to the correct level.
Figure 3: A mechanic performing automotive work, illustrating the environment where installation may occur.
5. Operating Instructions
The clutch master cylinder converts mechanical force from the clutch pedal into hydraulic pressure, which then actuates the clutch slave cylinder to disengage the clutch. Proper operation relies on a fully bled system and correct fluid levels.
- Depress the clutch pedal smoothly and fully to ensure complete clutch disengagement.
- Release the clutch pedal smoothly to engage the clutch without excessive wear.
- Avoid riding the clutch pedal, as this can cause premature wear to clutch components.
6. Maintenance
Regular inspection and maintenance can extend the life of your clutch system.
- Fluid Level Check: Periodically check the clutch fluid level in the reservoir. It should be between the 'MIN' and 'MAX' marks. Use only the fluid type specified by your vehicle manufacturer.
- Leak Inspection: Visually inspect the clutch master cylinder, hydraulic lines, and slave cylinder for any signs of fluid leaks. Address any leaks promptly.
- Fluid Condition: Observe the color of the clutch fluid. If it appears dark or contaminated, it may be time for a fluid flush and replacement. Consult your vehicle's service schedule.
7. Troubleshooting
Common issues related to the clutch master cylinder and potential solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Spongy or soft clutch pedal | Air in the hydraulic system | Bleed the clutch hydraulic system (refer to Section 4.4). |
| Low or no clutch pedal pressure | Low clutch fluid level, internal master cylinder leak, external leak | Check fluid level and add if necessary. Inspect for leaks. If no external leaks, internal failure may require replacement. |
| Clutch pedal stays on the floor | Master cylinder failure, severe fluid leak | Inspect for leaks. If no external leaks, the master cylinder likely needs replacement. |
| Difficulty shifting gears | Incomplete clutch disengagement due to air in system or master cylinder issue | Bleed the clutch system. Inspect master cylinder for proper function. |
8. Specifications
Key specifications for the Beck/Arnley 0729943 Clutch Master Cylinder.
| Attribute | Value |
|---|---|
| Manufacturer | Beck/Arnley |
| Brand | Beck/Arnley |
| Item Weight | 2.08 ounces |
| Product Dimensions | 8.5 x 4.5 x 4.25 inches |
| Item Model Number | 072-9943 |
| Exterior Finish | Machined |
| Manufacturer Part Number | 0729943 |
| ASIN | B07T4DBS2P |
9. Warranty Information
Beck/Arnley products are manufactured to meet or exceed OE specifications. For specific warranty terms and conditions, please refer to the official Beck/Arnley warranty policy available on their website or contact their customer service. Generally, warranty coverage addresses defects in materials and workmanship under normal use and service.
10. Support
If you require further assistance, have questions regarding installation, or need to report an issue, please contact Beck/Arnley customer support through their official website or authorized distributors. When contacting support, please have your product model number (0729943) and purchase information readily available.
