1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your FITUEYES TV Floor Stand. This stand is designed to securely hold televisions ranging from 32 to 60 inches, with a maximum weight capacity of 30kg (66lbs). It features a sturdy tempered glass base, a height-adjustable pole, and a swivel bracket for optimal viewing angles. Please read this manual thoroughly before assembly and use to ensure safe and correct installation.
2. Safety Information
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Do not exceed the maximum weight capacity of 30kg (66lbs) or the recommended TV size range of 32-60 inches.
- Always assemble the stand on a soft, clean surface to prevent scratches to the glass base or other components.
- Ensure the stand is placed on a stable, level surface to prevent tipping.
- Keep children and pets away from the assembly area.
- Tighten all screws firmly, but do not overtighten to avoid stripping threads or damaging components.
- Periodically check all connections and fasteners to ensure they remain secure.
- Do not hang or climb on the TV stand.
3. Package Contents
Before beginning assembly, verify that all parts listed below are included in your package. Refer to the assembly diagram for visual identification of parts.
- Tempered Glass Base
- Main Support Pole
- TV Mounting Bracket (with VESA arms)
- Cable Management Clips/System
- Hardware Kit (screws, bolts, washers, spacers, Allen wrench, etc.)
- Non-slip Rubber Feet
- Instruction Manual
4. Assembly Instructions
Follow these steps carefully for proper assembly. It is recommended to have a second person assist with mounting the TV.
Step 1: Attach the Main Support Pole to the Base
Carefully attach the main support pole to the tempered glass base using the provided screws and tools. Ensure the pole is securely fastened and aligned correctly.

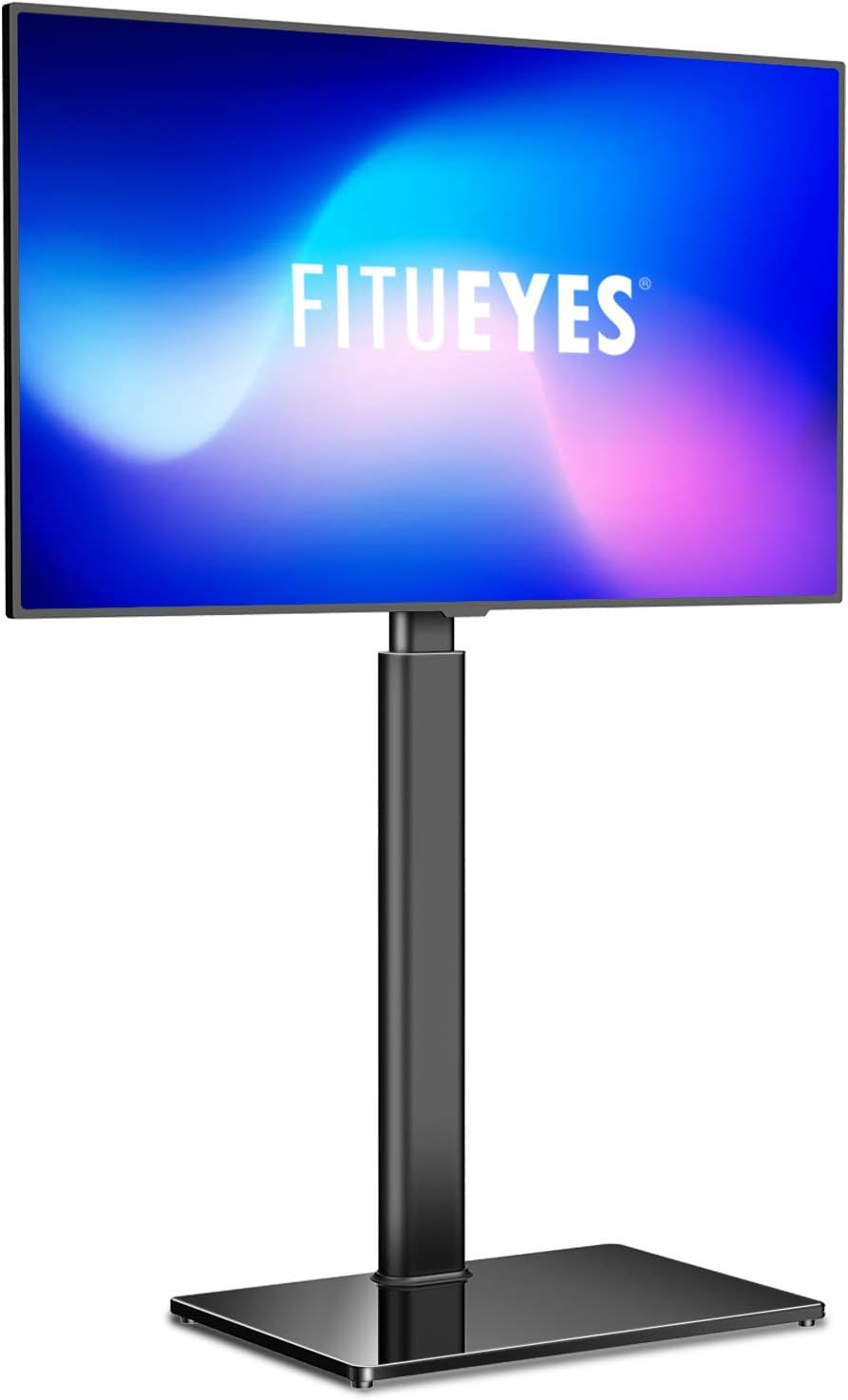

Image: Fully assembled FITUEYES TV Floor Stand with a television mounted, showcasing its sleek design.
Step 2: Assemble the TV Mounting Bracket
Assemble the TV mounting bracket components, including the vertical arms, according to the diagrams in your package. These arms will attach to the back of your TV.

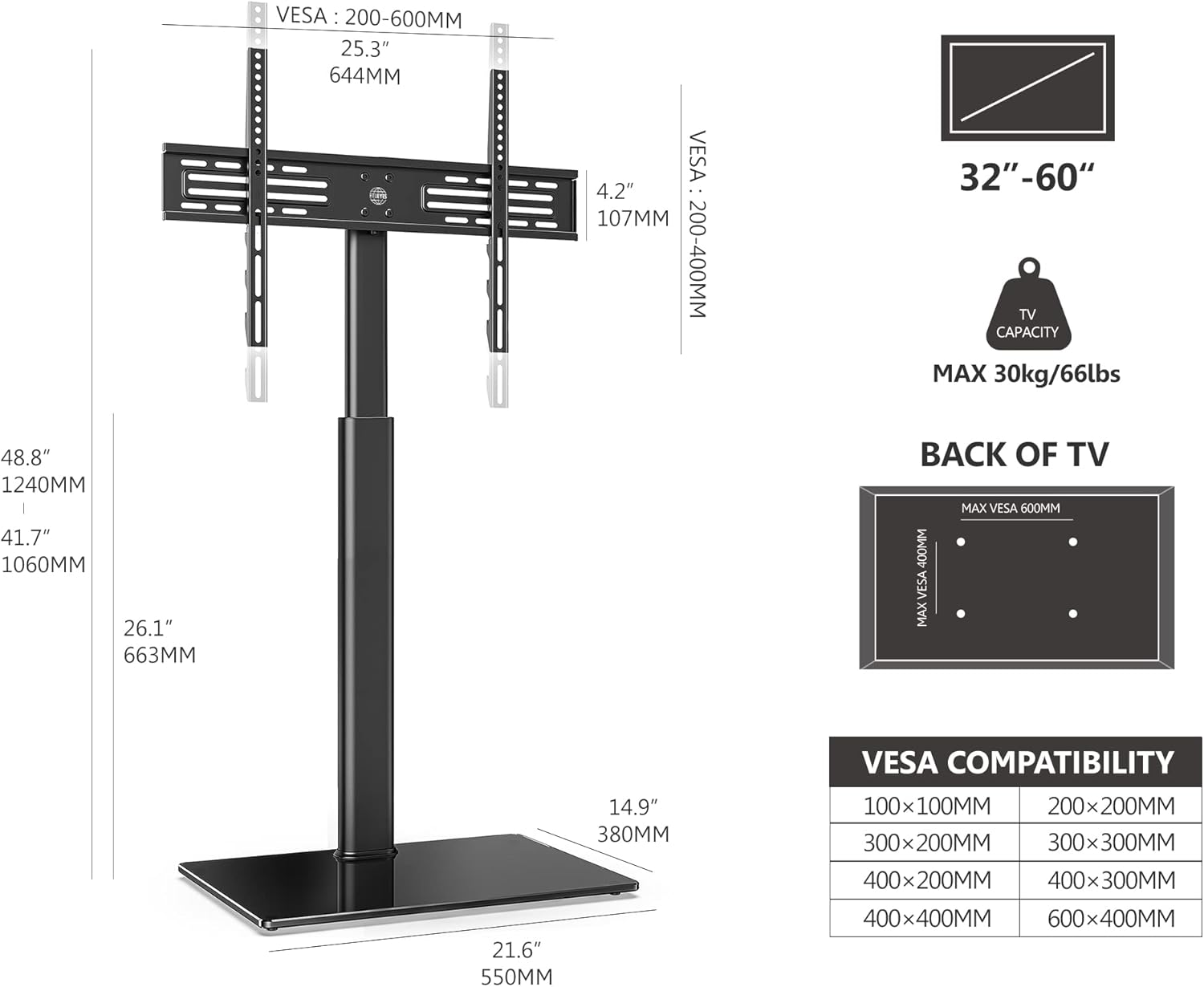

Image: Detailed diagram illustrating the dimensions of the TV stand and various VESA mounting patterns supported (200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400mm).
Step 3: Attach Bracket to TV and Mount TV to Stand
Attach the assembled TV mounting bracket to the back of your television using the appropriate screws and spacers from the hardware kit. Ensure the VESA pattern matches your TV. Once the bracket is securely attached to the TV, carefully lift the TV and hook it onto the main support pole's mounting plate. Secure it with the safety lock mechanism.
Image: Close-up view highlighting the integrated cable management system, the safety lock mechanism for securing the TV, and the non-slip rubber feet on the base.
Step 4: Cable Management
Utilize the integrated cable management system to route and conceal your TV and device cables. This helps maintain a clean and organized appearance.
Image: Visual representation of how cables can be neatly routed through the stand's integrated cable management system for a tidy setup.
5. Operating Instructions
Height Adjustment
The FITUEYES TV stand offers 8 height settings, allowing you to adjust the TV's position for an optimal viewing experience. The center pole has 4 adjustable levels, and the TV bracket itself provides 2 gears for fine-tuning height. To adjust, carefully loosen the securing mechanisms, slide the TV to the desired height, and re-secure firmly.
Image: Visual representation of the TV stand's 8 height adjustment levels, allowing users to set the TV at their preferred viewing height.
Swivel Function
The TV bracket can swivel up to 35 degrees to the left or right, providing a total swivel range of 70 degrees. This allows you to easily adjust the viewing angle to suit different seating positions in your room. Gently push the TV to the desired angle.
Image: Illustration demonstrating the TV stand's ability to swivel the television 35 degrees to either side, offering flexible viewing angles.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the stand. For the tempered glass base, a glass cleaner can be used, but avoid abrasive cleaners.
- Inspection: Periodically check all screws and bolts to ensure they are tight and secure. Loose connections can compromise stability.
- Relocation: If moving the stand, always lift it carefully. Do not drag it, especially if a TV is mounted, as this can damage the stand or your flooring.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand is wobbly or unstable. | Screws are loose; stand is on an uneven surface; weight capacity exceeded. | Ensure all screws are tightened; move stand to a level surface; verify TV weight is within limits. |
| TV does not fit the bracket. | Incorrect VESA pattern; TV size/weight exceeds limits. | Check your TV's VESA pattern against the stand's compatibility (200x200 to 600x400mm); confirm TV size (32-60 inches) and weight (max 30kg/66lbs). |
| Difficulty adjusting height or swivel. | Mechanism is stiff; TV is too heavy to adjust easily. | Ensure no cables are obstructing movement; apply gentle, even pressure; ensure TV weight is within limits. |
8. Specifications
- Model: TT106002GB
- Compatible TV Sizes: 32 to 60 inches
- Maximum Weight Capacity: 30 kg (66 lbs)
- VESA Compatibility: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400mm
- Height Adjustment: 8 settings, from 41.7" to 48.8" (106cm to 123.7cm)
- Swivel Range: ±35° (70° total)
- Materials: Alloy Steel, Tempered Glass
- Product Dimensions: 54.99 x 38 x 123.7 cm (L x W x H)
- Item Weight: 12 kg
- Mounting Type: Floor Mount
