1. Introduction
Welcome to the AWANFI 8.4V NiMH 7-Cell 3600mAh Hump Pack RC Battery user manual. This guide provides essential information for the safe and effective use, maintenance, and storage of your battery. This battery is designed for most 1/10 scale RC car models, offering reliable power for your remote control vehicles.
2. Safety Precautions
To ensure safe operation and prolong the life of your battery, please observe the following safety guidelines:
- Do not short circuit: Avoid connecting the positive and negative terminals directly.
- Use a compatible charger: Only use a charger specifically designed for NiMH batteries.
- Avoid overcharging/over-discharging: Follow recommended charging times and avoid completely draining the battery.
- Keep away from heat and moisture: Store and operate the battery in a cool, dry environment.
- Do not puncture or disassemble: Tampering with the battery can lead to hazards.
- Proper disposal: Dispose of old or damaged batteries according to local regulations.
- Supervise charging: Never leave a charging battery unattended.
3. Setup and First Use
3.1 Charging the Battery
Before first use, fully charge your AWANFI NiMH battery. Use a dedicated NiMH battery charger and follow its instructions. Ensure the charger settings match the battery's voltage (8.4V) and capacity (3600mAh).
- Connect the battery's Deans plug to the corresponding output on your NiMH charger.
- Set the charger to the appropriate NiMH charging mode and current (e.g., 3.6A for a 1C charge rate).
- Initiate the charging process. Charging time will vary based on the charger's output and the battery's state of charge.
- Once charging is complete, disconnect the battery from the charger.

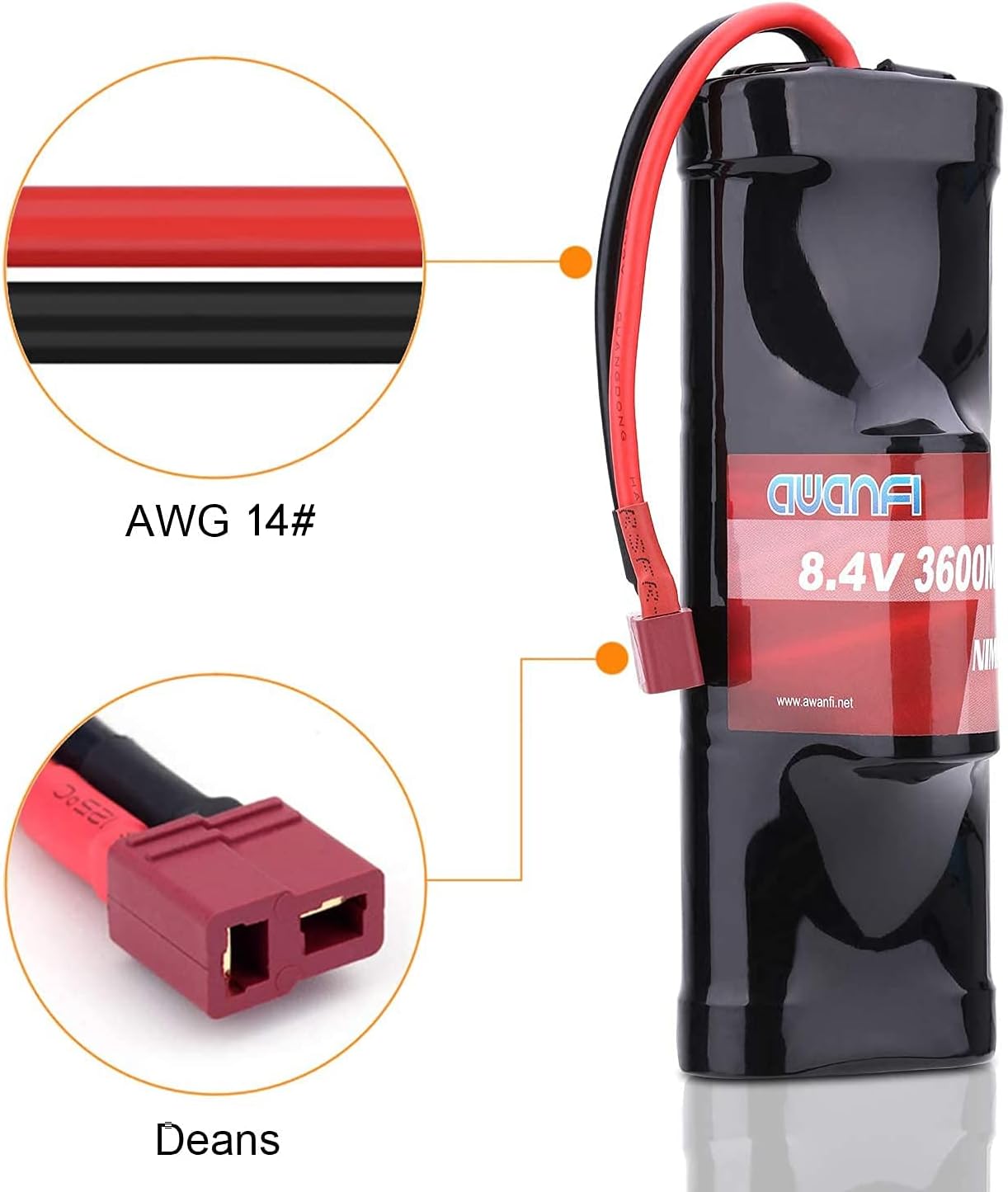

This image highlights the battery's 14 AWG silicone wire, known for its low resistance and flexibility, and the Deans (T-plug) connector, which is commonly used in RC applications for secure power transfer.
4. Operating Instructions
4.1 Connecting to Your RC Vehicle
Ensure your RC vehicle is powered off before connecting the battery.
- Locate the battery compartment in your RC vehicle.
- Carefully insert the AWANFI 8.4V NiMH battery, ensuring a snug fit. The dimensions of the battery are 143x50x45mm (5.63x1.97x1.77 inches).
- Connect the Deans plug from the battery to the corresponding connector on your RC vehicle's Electronic Speed Controller (ESC). Ensure the connection is firm and secure.
- Secure the battery in place, often using a velcro strap or battery tray cover.

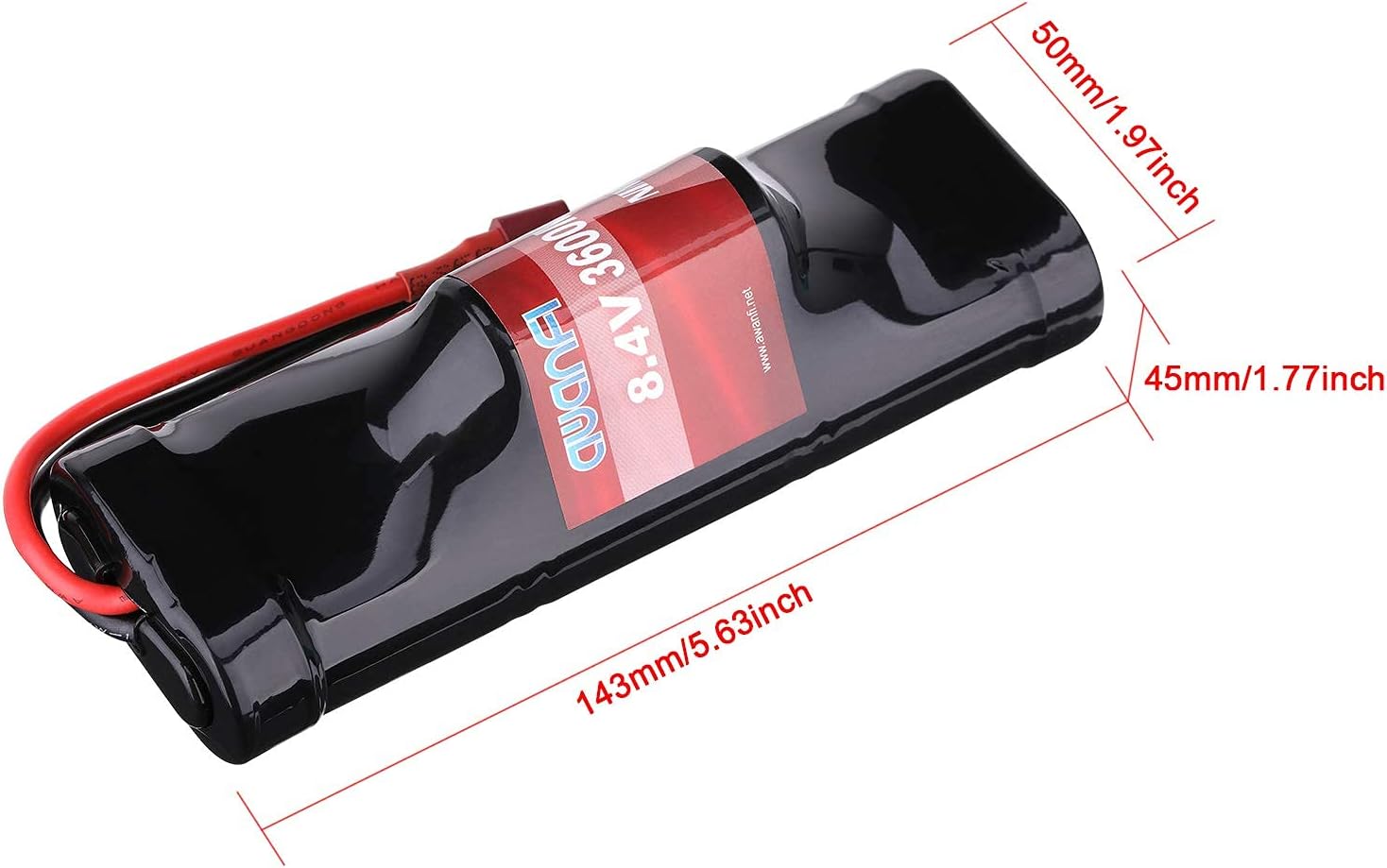

This image provides a visual representation of the battery's physical dimensions, indicating a length of 143mm (5.63 inches), a width of 50mm (1.97 inches), and a height of 45mm (1.77 inches). These measurements are crucial for ensuring compatibility with your RC vehicle's battery compartment.
4.2 Usage Tips
- Monitor performance: If you notice a significant drop in power, it's time to recharge the battery.
- Avoid overheating: Continuous high-drain usage can cause the battery to heat up. Allow the battery to cool down between runs.
- Environmental conditions: Extreme cold can temporarily reduce battery performance.
This image demonstrates the AWANFI 8.4V NiMH battery's intended use, showing it compatible with a range of 1:10 scale brushed RC models, including trucks and cars. It visually confirms the battery's application in popular RC vehicles.
5. Maintenance and Storage
5.1 Regular Maintenance
- Clean connectors: Periodically inspect and clean the Deans plug to ensure good electrical contact.
- Inspect for damage: Check the battery casing and wires for any signs of wear, cuts, or swelling. Discontinue use if damage is found.
5.2 Storage Guidelines
Proper storage is crucial for maintaining battery health and longevity:
- Temperature: Store the battery in a cool, dry place, ideally between 10°C and 25°C (50°F and 77°F). Avoid direct sunlight or extreme temperatures.
- Charge level: For long-term storage (more than a few weeks), it is recommended to discharge the battery to approximately 50% of its capacity.
- Protection: Store the battery in a protective bag or container to prevent accidental short circuits or physical damage.
This image displays the AWANFI 8.4V NiMH battery along with a complimentary velcro strap. The strap can be used to secure the battery within the RC vehicle's battery compartment or for organized storage.
6. Troubleshooting
If you encounter issues with your AWANFI NiMH battery, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger malfunction, incorrect settings, poor connection, damaged battery. | Verify charger functionality and settings. Check all connections. Inspect battery for visible damage. |
| Short run time | Battery not fully charged, battery degradation, high power draw from RC vehicle, cold temperatures. | Ensure full charge. Consider battery age. Reduce vehicle load if possible. Operate in warmer conditions. |
| Battery overheating during use/charge | Excessive discharge rate, short circuit, faulty charger, internal battery issue. | Reduce load on RC vehicle. Check for short circuits in vehicle wiring. Use a reliable charger. Discontinue use if overheating persists. |
| RC vehicle not powering on | Battery not connected, battery discharged, faulty vehicle electronics. | Ensure battery is securely connected and charged. Test with another known-good battery if available. |
7. Specifications
Detailed specifications for the AWANFI 8.4V NiMH 7-Cell 3600mAh Hump Pack RC Battery:
| Feature | Detail |
|---|---|
| Configuration | 7-cell Hump Pack |
| Capacity | 3600 mAh |
| Voltage | 8.4 Volts |
| Battery Cell Composition | NiMH (Nickel Metal Hydride) |
| Amperage | 3.6 Amps |
| Dimensions (L x W x H) | 143 x 50 x 45 mm (5.63 x 1.97 x 1.77 inches) |
| Weight | 0.44 Kilograms |
| Connector Type | Deans Plug |
| Recommended Uses | Remote Control Vehicle (most 1/10 scale RC car models) |
| Model Number | 84-BT-3600 |
This image displays the key specifications of the AWANFI 8.4V NiMH battery, detailing its 3600mAh capacity, 8.4V voltage, 7-cell Hump Pack configuration, 433.6g net weight, and dimensions of 143x50x45mm (5.63x1.97x1.77 inches).
8. Warranty Information
AWANFI products are manufactured to high-quality standards. This battery comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation included with your purchase or visit the official AWANFI website.
9. Customer Support
If you have any questions, concerns, or require technical assistance regarding your AWANFI 8.4V NiMH battery, please contact our customer support team. You can typically find contact information on the product packaging or by visiting the official AWANFI brand store on Amazon or their corporate website.
Online Resources: For additional information and FAQs, please visit the AWANFI Store on Amazon.
10. Video Resources
No relevant official product videos from the seller were found in the provided data for this product.
