SPEEDWOLF MPO-MPO Fiber Optic Patch Cord User Manual

Introduction

This manual provides essential information for the proper setup, operation, and maintenance of your SPEEDWOLF MPO-MPO Fiber Optic Patch Cord. This high-performance cable is designed for high-speed broadband and data networks, supporting applications such as 10G QSFP+ and 100G QSFP28 transceivers.

The SPEEDWOLF MPO-MPO Patch Cord features 12 fibers, OM3 (50/125µm) multimode specification, and Type B polarity. It is equipped with MPO female connectors and an LSZH (Low Smoke Zero Halogen) jacket, ensuring reliable and safe operation in various environments.

Image: The SPEEDWOLF MPO-MPO Fiber Optic Patch Cord, showing its aqua-colored cable and black MPO connectors with light blue pull tabs.

Setup

Proper installation is crucial for optimal performance of your fiber optic patch cord. Follow these guidelines for setup:

• Inspect Connectors: Before connecting, always inspect the MPO connectors for any dust or debris. Even microscopic particles can significantly degrade performance. Use a fiber optic cleaning kit if necessary.
• Align Connectors: The MPO connectors are designed with precision molded MT ferrules and metal guide pins to ensure correct fiber alignment. Carefully align the connectors before insertion.
• Secure Connection: The MPO connector utilizes a spring-loaded sliding mechanism. Push the connector firmly into the adapter until you hear or feel a click, indicating a secure and reliable connection.
• Manage Cable: Avoid sharp bends or kinks in the fiber optic cable, as this can damage the internal fibers and impair signal transmission. Maintain a minimum bend radius appropriate for fiber optic cables.
• Utilize Pull Tab: The MPO connectors feature a high-quality pull tab for easy and safe disconnection. Always use the pull tab to disengage the connector, avoiding stress on the cable itself.

Image: A close-up view of the MPO connector, highlighting the integrated pull tab designed for easy and secure handling during connection and disconnection.

Image: Detailed view of the MPO connector face, showing the multiple fiber ports and the precision ferrule design.

Operating

The SPEEDWOLF MPO-MPO Fiber Optic Patch Cord is designed for seamless integration into various high-speed network environments. It facilitates reliable data transmission between compatible devices.

• Connectivity: This cable is primarily used to connect MPO/MTP cases, QSFP+ (40GbE), and QSFP28 (100GbE) transceivers.
• Applications: Ideal for enterprise data centers, MPO trunk backbone installations, colocation facilities, server farms, cloud storage networks, and telecommunication rooms.
• High Density: The MPO connector offers up to 12 times the density of standard fiber optic connectors, providing significant space and cost savings in high-density cabling environments.

Image: Diagram illustrating common applications for the MPO-MPO fiber optic patch cord, including connections to media converters, firewalls, machine rooms, switches, optical network cards, servers, and storage devices.

Maintenance

To ensure the longevity and optimal performance of your SPEEDWOLF fiber optic patch cord, adhere to the following maintenance practices:

• Keep Connectors Clean: Fiber optic connectors are highly sensitive to dust and dirt. Always use appropriate fiber optic cleaning tools (e.g., lint-free wipes, cleaning pens, or compressed air) to clean the connector end-faces before each connection.
• Protect Connectors: When not in use, always cover the MPO connectors with their protective caps to prevent contamination and physical damage.
• Avoid Excessive Bending: Do not bend the fiber optic cable beyond its specified minimum bend radius. Excessive bending can cause micro-fractures in the optical fibers, leading to signal loss or complete failure.
• Proper Storage: Store the cable in a clean, dry environment, ideally coiled loosely to prevent stress on the fibers. Avoid exposing the cable to extreme temperatures or direct sunlight for prolonged periods.
• Handle with Care: Fiber optic cables are delicate. Avoid pulling, twisting, or stepping on the cable. Always handle it by the connector housing, not the cable itself, when connecting or disconnecting.

Troubleshooting

If you encounter issues with your SPEEDWOLF MPO-MPO Fiber Optic Patch Cord, consider the following troubleshooting steps:

• No Signal or Intermittent Connection:
  • Check Connections: Ensure both ends of the patch cord are fully and securely seated in their respective ports. Listen for the "click" sound when inserting MPO connectors.
  • Clean Connectors: Disconnect the cable and thoroughly clean both MPO connector end-faces using a proper fiber optic cleaning tool. Reconnect the cable.
  • Inspect Cable: Visually inspect the entire length of the cable for any visible damage, such as cuts, kinks, or severe bends. Damaged cables should be replaced.
  • Verify Polarity: Ensure the Type B polarity is correctly maintained throughout your fiber optic link, especially when connecting to other MPO components.
• Reduced Performance (e.g., lower data rates):
  • Check for Contamination: Even minor contamination on connector end-faces can cause increased insertion loss. Clean connectors as described above.
  • Verify Compatibility: Ensure all connected equipment (transceivers, switches, etc.) are compatible with OM3 multimode fiber and the specified data rates (40GbE/100GbE).
  • Test with Known Good Cable: If possible, swap the cable with a known working MPO patch cord to isolate whether the issue lies with the cable or other network equipment.
• Environmental Factors: Ensure the cable is not exposed to extreme temperatures, excessive humidity, or physical stress that could affect its performance.

If issues persist after performing these steps, consult the documentation for your connected network equipment or contact SPEEDWOLF customer support for further assistance.

Specifications

Key technical specifications for the SPEEDWOLF MPO-MPO Fiber Optic Patch Cord (Model: MPO-8B3-1):

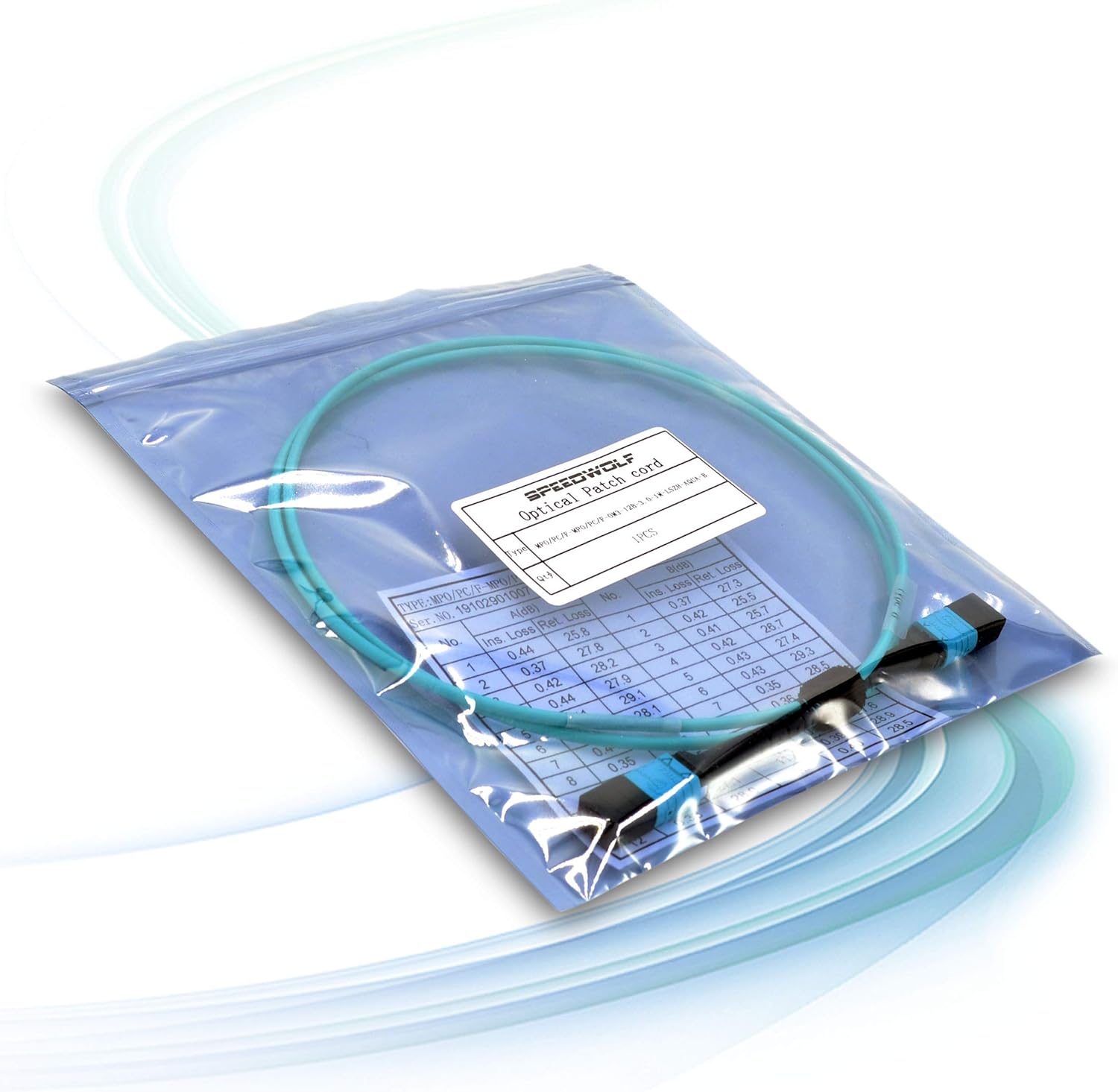

Image: The SPEEDWOLF MPO-MPO Fiber Optic Patch Cord packaged, often including a test report to verify performance specifications.

Warranty and Support

SPEEDWOLF is committed to providing high-quality products and excellent customer service. Your MPO-MPO Fiber Optic Patch Cord comes with the following assurances:

• Money-Back Guarantee: A 60-day money-back guarantee is offered if the product fails to meet your expectations or is not as described.
• Lifetime Free Replacement: The product is covered by a lifetime free replacement policy.
• Lifetime Friendly Customer Service: Dedicated customer support is available to assist you with any inquiries or issues.

For any support needs, questions, or to claim warranty services, please contact SPEEDWOLF customer service directly. Refer to your purchase documentation for specific contact details or visit the official SPEEDWOLF website.
