1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Carus Tool SMC AKH06-00 Check Valve. This check valve is designed for pneumatic systems to allow fluid (air) flow in one direction only, preventing backflow. It is a straight-type valve suitable for tubing with an outer diameter of 6mm.
2. Safety Information
Always observe the following safety precautions to prevent accidents and ensure proper operation:
- Ensure the system pressure is completely relieved before installing or removing the valve.
- Wear appropriate personal protective equipment (PPE) such as safety glasses.
- Do not use the valve for applications exceeding its specified pressure or temperature limits.
- Verify that the tubing material is compatible with the fluid being used and the operating conditions.
- Install the valve with the correct flow direction as indicated on the valve body.
- Avoid applying excessive force during installation, which could damage the valve or tubing.
3. Product Components
The Carus Tool SMC AKH06-00 Check Valve is a compact, straight-type pneumatic component. Each unit consists of a valve body with push-to-connect fittings on both ends, designed for 6mm outer diameter tubing.
Figure 3.1: A single Carus Tool SMC AKH06-00 check valve, showing its straight design and push-to-connect ends. This valve is designed to allow fluid flow in one direction only.
Figure 3.2: Multiple Carus Tool SMC AKH06-00 check valves in their original packaging, displaying the model number label.
4. Setup and Installation
Follow these steps for proper installation of the AKH06-00 check valve:
- Prepare Tubing: Ensure the tubing to be connected has an outer diameter of 6mm. Cut the tubing squarely and remove any burrs.
- Identify Flow Direction: Locate the flow direction arrow marked on the body of the check valve. This arrow indicates the direction of permissible flow.
- Connect Tubing: Insert the prepared tubing firmly into the push-to-connect fitting until it bottoms out. A slight tug will confirm a secure connection. Repeat for the other end, ensuring the tubing is connected according to the desired flow direction.
- Verify Connection: After installation, slowly apply pressure to the system and check for any leaks around the connections.
For detailed dimensions, refer to the specifications section.
5. Operating Principles
The Carus Tool SMC AKH06-00 check valve operates automatically based on pressure differentials. When fluid pressure from the inlet side (in the direction of the arrow) exceeds the cracking pressure of the valve, the internal mechanism opens, allowing flow. If the pressure on the outlet side becomes higher than the inlet side, or if inlet pressure drops below the cracking pressure, the valve closes, preventing backflow. This passive operation requires no external control.
6. Maintenance
The AKH06-00 check valve is designed for minimal maintenance. Regular inspection is recommended to ensure optimal performance:
- Visual Inspection: Periodically check the valve body and tubing connections for any signs of damage, cracks, or wear.
- Leak Detection: Inspect for air leaks around the tubing connections. Leaks can indicate improper installation or damaged tubing/fittings.
- Flow Verification: Confirm that the valve is allowing flow in the intended direction and effectively preventing backflow.
- Cleaning: If the valve is exposed to dusty or dirty environments, ensure the exterior is kept clean to prevent contamination from entering the system during tubing changes.
If any issues are detected, replace the valve as necessary. Do not attempt to disassemble or repair the valve, as it is not designed for field servicing.
7. Troubleshooting
Refer to the table below for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No flow through valve | Incorrect installation (reversed flow direction), valve clogged, insufficient inlet pressure. | Verify flow direction arrow. Check for obstructions in tubing or valve. Ensure adequate inlet pressure. Replace valve if clogged. |
| Backflow occurring | Valve malfunction, debris preventing valve closure. | Inspect valve for debris. Replace valve if it fails to prevent backflow. |
| Air leakage at connections | Improperly inserted tubing, damaged tubing, damaged O-ring in fitting. | Re-insert tubing firmly. Inspect tubing for damage and replace if necessary. Replace valve if fitting is damaged. |
8. Specifications
Key specifications for the Carus Tool SMC AKH06-00 Check Valve:
- Model Number: AKH06-00
- Brand: Carus Tool
- Valve Type: Check Valve
- Applicable Tubing O.D.: 6mm
- Inlet Connection Type: Socket Weld (Push-to-Connect)
- Number of Ports: 2
- Item Weight: 0.27 g
- UPC/GTIN: 768894041560
For detailed dimensions, refer to the diagram below:

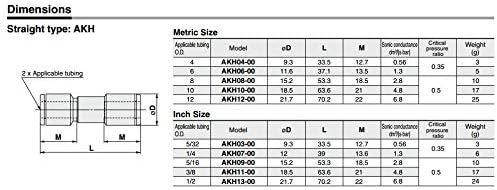

Figure 8.1: Dimensional drawing and specification table for SMC AKH series check valves, including metric and inch sizes. The AKH06-00 model is highlighted in the metric size section, showing its specific dimensions (eOD, L, M) and weight.
Note: The table in Figure 8.1 provides dimensions for various AKH models. For AKH06-00, refer to the row with "Applicable tubing O.D. 6mm" under "Metric Size".
9. Warranty and Support
Specific warranty information for the Carus Tool SMC AKH06-00 Check Valve may vary depending on the point of purchase. Please refer to your purchase documentation or contact your supplier for details regarding warranty coverage.
For technical support or inquiries, please contact Carus Tool customer service or your authorized distributor. Keep your product model number (AKH06-00) and purchase details readily available when seeking support.
