Y YUEGANG Christmas Projector Lights Instruction Manual

1. Introduction

Thank you for choosing the Y YUEGANG Christmas Projector Lights. This device is designed to project festive red and green laser patterns, including snowflakes, jingling bells, Christmas trees, Santa Claus, and starry effects, onto various surfaces. It is suitable for both indoor and outdoor holiday decoration, offering an easy and efficient way to enhance your festive ambiance.

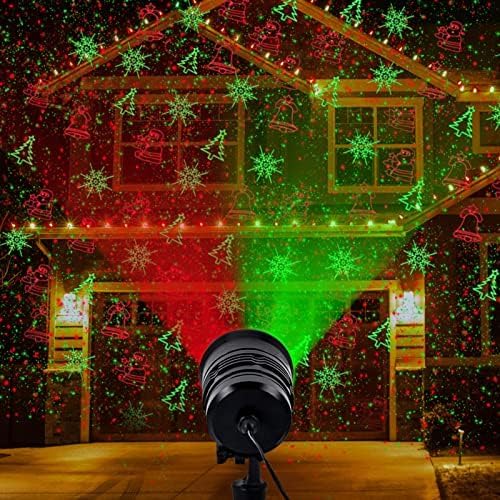

Image 1: Y YUEGANG Christmas Projector Lights in operation, displaying patterns on a house.

2. Important Safety Information

• Laser Safety: This product contains laser components. Avoid direct eye exposure to the laser beam. Do not look directly into the light source.
• Installation: Ensure the projector is installed securely to prevent it from falling or being dislodged.
• Electrical Safety: The main body of this Christmas light is rated IP65 waterproof, and the adapter is rated IP44 waterproof. While designed for outdoor use, ensure all electrical connections are protected from direct water exposure and are properly sealed.
• Temperature: The device features a high-temperature sensing system that will automatically power off if the temperature becomes too high. Do not obstruct ventilation.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

3. Package Contents

Verify that all components are present in the package:

• LED Projector Light
• Power Adapter
• Remote Control
• Round Base
• Ground Stake
• Instruction Manual

Image 2: All components included in the product package.

4. Setup

4.1. Assembly

1. Choose Mounting Option: Decide whether to use the ground stake for outdoor placement or the round base for indoor or flat surface placement.
2. Attach Base/Stake: Securely screw the projector light onto your chosen base (ground stake or round base).
3. Positioning: For outdoor use, insert the ground stake firmly into the soil. For indoor use, place the round base on a stable, flat surface. The projector head is 300° adjustable, allowing you to aim the light precisely.
4. Power Connection: Connect the power adapter to the projector light's power cord. The power cord is 16.4ft long for flexible placement. Plug the adapter into a suitable outdoor-rated power outlet.

Image 3: The projector light shown with both the ground stake and round base for versatile installation.

Image 4: Visual guide for various installation scenarios.

4.2. Remote Control Pairing

When using the remote control for the first time, it needs to be paired with the projector light:

1. Ensure the projector light is powered on.
2. Press and hold the ON/OFF button on the remote control for 3 seconds.
3. The remote and projector should now be paired. If pairing fails, please try again.

Note: Remote controls are not cross-compatible. Each remote is designed to work with its corresponding projector light.

Image 5: Remote control pairing instructions.

5. Operating Instructions

The projector light is controlled via the included RF wireless remote control. The remote offers a 65ft barrier-free control range.

5.1. Remote Control Functions

• ON/OFF: Powers the unit on or off.
• MODE: Cycles through different projection patterns (e.g., snowflakes, bells, Christmas trees, Santa Claus, starry).
• FLASH: Activates or deactivates the flashing effect for the projected patterns.
• SPEED +/-: Adjusts the rotation speed of the projected patterns.
• TIMER (2H, 4H, 6H, 8H): Sets the projector to automatically turn off after 2, 4, 6, or 8 hours. The timer will then repeat daily (on at dusk, off after set hours).

Image 6: The wireless remote control for the projector light.

5.2. Projection Coverage

The projector can cover an area of up to 3800 square feet from a distance of 33 feet. Adjust the distance and angle to achieve your desired projection size and density.

Image 7: Light coverage at various distances.

5.3. Demonstration Video

Video 1: A demonstration of the Y YUEGANG Christmas Projector Lights displaying various patterns and colors on a house, highlighting its ease of use for holiday decoration.

6. Key Features

• Multiple Patterns: Features 5 distinct Christmas patterns: snowflake, jingling bell, Christmas tree, Santa Claus, and starry effects.
• Red and Green Lasers: Projects vibrant red and green laser lights.
• Wide Coverage: Capable of covering up to 3800 square feet from a distance of 33 feet.
• Adjustable Head: A 300° adjustable projector head allows for precise aiming.
• Durable Construction: Made from aluminum alloy for enhanced heat dissipation and durability.
• Weatherproof Design: Main body is IP65 waterproof, and the adapter is IP44 waterproof, suitable for various outdoor weather conditions.
• Energy Efficient: Utilizes laser technology for lower energy consumption compared to traditional string lights.

Image 8: Various festive patterns projected by the light.

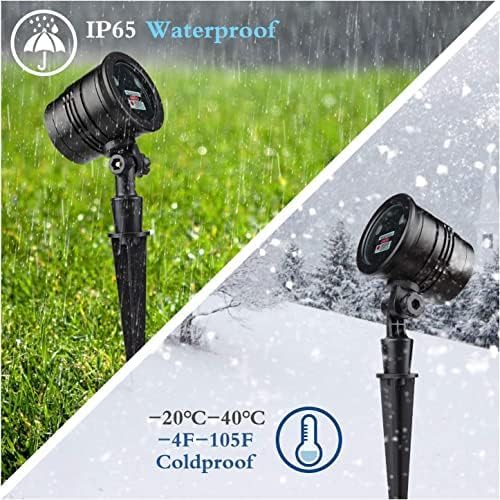

Image 9: The projector light is designed to withstand rain and snow.

7. Maintenance

• Cleaning: Gently wipe the lens and exterior with a soft, dry cloth to remove dust or debris. Do not use abrasive cleaners or solvents.
• Storage: When not in use, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cable Care: Regularly inspect the power cord and adapter for any signs of damage. If damaged, discontinue use and replace with an approved component.

8. Troubleshooting

• Projector Not Turning On:
  - Ensure the power adapter is securely connected to both the projector and a working power outlet.
  - Check if the remote control is properly paired with the projector (refer to Section 4.2).
• Remote Control Not Responding:
  - Verify the remote control's battery is functional.
  - Ensure there are no obstructions between the remote and the projector.
  - Re-pair the remote control if necessary (refer to Section 4.2).
• Settings Not Persistent After Power Cycle:
  - The projector may default to a 6-hour on/18-hour off timer cycle and a medium pattern speed upon power-up. This is a known characteristic; settings made via the remote are not always saved after the unit is unplugged or loses power.
• Projector Shuts Off Unexpectedly:
  - The device has a high-temperature sensing system. If it overheats, it will automatically power off. Ensure the projector is not covered and has adequate ventilation. Allow it to cool down before restarting.

9. Specifications

10. Warranty and Support

This product comes with a 1-year warranty from the date of purchase. For warranty claims, technical support, or any inquiries regarding your Y YUEGANG Christmas Projector Lights, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
