RG6 Aerial Messenger Coaxial Cable User Manual

1. Product Overview

The PHAT SATELLITE 1000ft Black Enhanced 3X Shields RG6 Aerial Messenger Coaxial Cable is engineered for robust outdoor and aerial telecommunication applications. This cable features an 18AWG solid core, 75 Ohm impedance, and enhanced triple shielding (77% braided, two-layer 100% foil shield) to effectively mitigate interference, including modern LTE signals. Its UL ETL Certified FIRE RETARDANT PVC JACKET ensures durability and safety.

Key Features:

• Solid Core 18AWG RG-6 Coaxial Cable with Messenger Wire.
• Enhanced Triple Shields: 77% Braided, Two Layer 100% Foil Shield.
• 75 Ohm Swept Tested for optimal signal integrity.
• UL ETL Fire Retardant PVC Jacket for safety and outdoor resilience.
• Integrated steel aerial messenger wire to prevent sagging in aerial installations.

Figure 1.1: Illustrative cross-section of a standard coaxial cable, highlighting its layered construction for signal protection.

2. Cable Structure and Components

Understanding the internal structure of the RG6 Aerial Messenger Coaxial Cable is crucial for proper handling and installation. This cable is designed with multiple layers to ensure signal quality and durability, especially in outdoor and aerial environments.

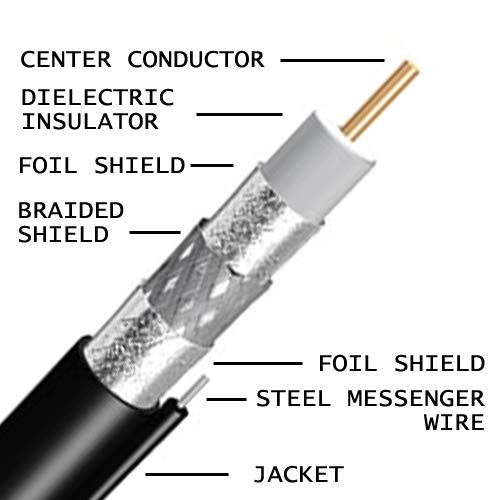

Figure 2.1: Detailed diagram showing the components of the RG6 Aerial Messenger Coaxial Cable, including the center conductor, dielectric insulator, foil shields, braided shield, outer jacket, and the integrated steel messenger wire.

• Center Conductor: The primary path for the electrical signal.
• Dielectric Insulator: A non-conductive layer surrounding the center conductor, maintaining its position and preventing signal loss.
• Foil Shield: One or more layers of metallic foil that provide 100% coverage against high-frequency interference.
• Braided Shield: A woven mesh of copper or aluminum wires that provides additional shielding against low-frequency interference and adds mechanical strength.
• Jacket: The outer protective layer, made of UL ETL Certified fire-retardant PVC, designed for outdoor exposure.
• Steel Messenger Wire: A separate, integrated steel wire running parallel to the coaxial cable, used for supporting the cable in aerial installations to prevent sagging.

3. Setup and Installation Guidelines

This RG6 Aerial Messenger Coaxial Cable is specifically designed for outdoor and aerial applications. Proper installation is critical for optimal performance and longevity.

Aerial Installation Considerations:

• Messenger Wire Utilization: The integrated steel messenger wire is intended to bear the cable's weight. Securely attach the messenger wire to support structures (poles, buildings) using appropriate hardware (e.g., J-hooks, pole clamps).
• Tensioning: Ensure the messenger wire is pulled taut enough to eliminate drooping and sagging between support points, but avoid excessive tension that could damage the cable or structures.
• Clearance: Maintain adequate clearance from power lines, trees, and other obstructions as per local electrical codes and safety regulations.
• Drip Loops: Form drip loops at entry points to buildings to prevent water from running along the cable into the structure.
• Connectorization: Use high-quality, weather-sealed F-connectors or other appropriate coaxial connectors designed for outdoor use. Ensure connections are tight and properly sealed to prevent moisture ingress.
• Grounding: Properly ground the coaxial cable at the point of entry to a building to protect against lightning strikes and electrical surges. Consult local electrical codes for grounding requirements.

Figure 3.1: The RG6 coaxial cable with its parallel steel messenger wire, ready for aerial installation. The messenger wire provides structural support, preventing the cable from sagging over long spans.

4. Operating Applications

This versatile RG6 Aerial Messenger Coaxial Cable is suitable for a wide range of telecommunication and video applications:

• HD Over-the-Air (OTA) Antenna systems.
• DirecTV / Dish Network and other Satellite TV installations.
• Ham radio and short wave antenna usage.
• Cable Modem Internet connections.
• HD Digital Cable TV distribution.
• Cellular Boost Antenna systems.
• General TV/Video Applications.
• Security and Surveillance Video Camera Systems.

5. Maintenance and Care

While designed for durability, proper maintenance can extend the lifespan and ensure consistent performance of your coaxial cable:

• Regular Inspection: Periodically inspect the cable for any visible damage, such as cuts, abrasions, or signs of animal chewing. Check for loose connections or corrosion at termination points.
• Connection Integrity: Ensure all connectors remain tight and free of moisture. Re-seal or replace weatherproofing as needed.
• Environmental Factors: While the PVC jacket is UV resistant, prolonged exposure to extreme weather conditions (e.g., intense sun, ice storms) can eventually degrade any outdoor cable. Address any issues promptly.
• Avoid Sharp Bends: Do not bend the cable beyond its minimum bend radius to prevent damage to the internal conductors and shielding.

6. Troubleshooting

If you experience signal issues, consider the following troubleshooting steps:

• No Signal or Poor Signal Quality:
  • Check all cable connections at both ends (device and source) to ensure they are tight and secure.
  • Inspect the cable for any visible damage, kinks, or sharp bends.
  • Verify that the correct type of cable (RG6) is being used for your application.
  • Ensure proper grounding is in place.
• Intermittent Signal:
  • This can often be caused by loose connections or minor damage to the cable. Re-tighten connections and inspect the cable path.
  • Check for environmental interference sources (e.g., new electronic devices, nearby power lines). The enhanced shielding of this cable is designed to minimize such issues, but extreme cases may still occur.
• Corrosion at Connectors:
  • If corrosion is present, disconnect power to the system, clean the connectors with a suitable electronic cleaner, and re-seal them with weatherproofing tape or boots. If corrosion is severe, replace the connectors.

7. Technical Specifications

8. Warranty and Support

For any questions, technical assistance, or support regarding your PHAT SATELLITE RG6 Aerial Messenger Coaxial Cable, please contact the manufacturer or seller directly.

• Manufacturer: PHAT SATELLITE INTL
• Seller: Phat Satellite (via Amazon)

Please refer to your purchase documentation or the seller's information on Amazon for specific warranty details and contact methods.
