Hayward Super Pump Instruction Manual

1. Product Overview

The Hayward Super Pump W3SP2605X7 is a high-efficiency pool pump designed for in-ground pools. It features a 0.75 total HP motor engineered for cooler and quieter operation, combining robust construction with advanced performance.

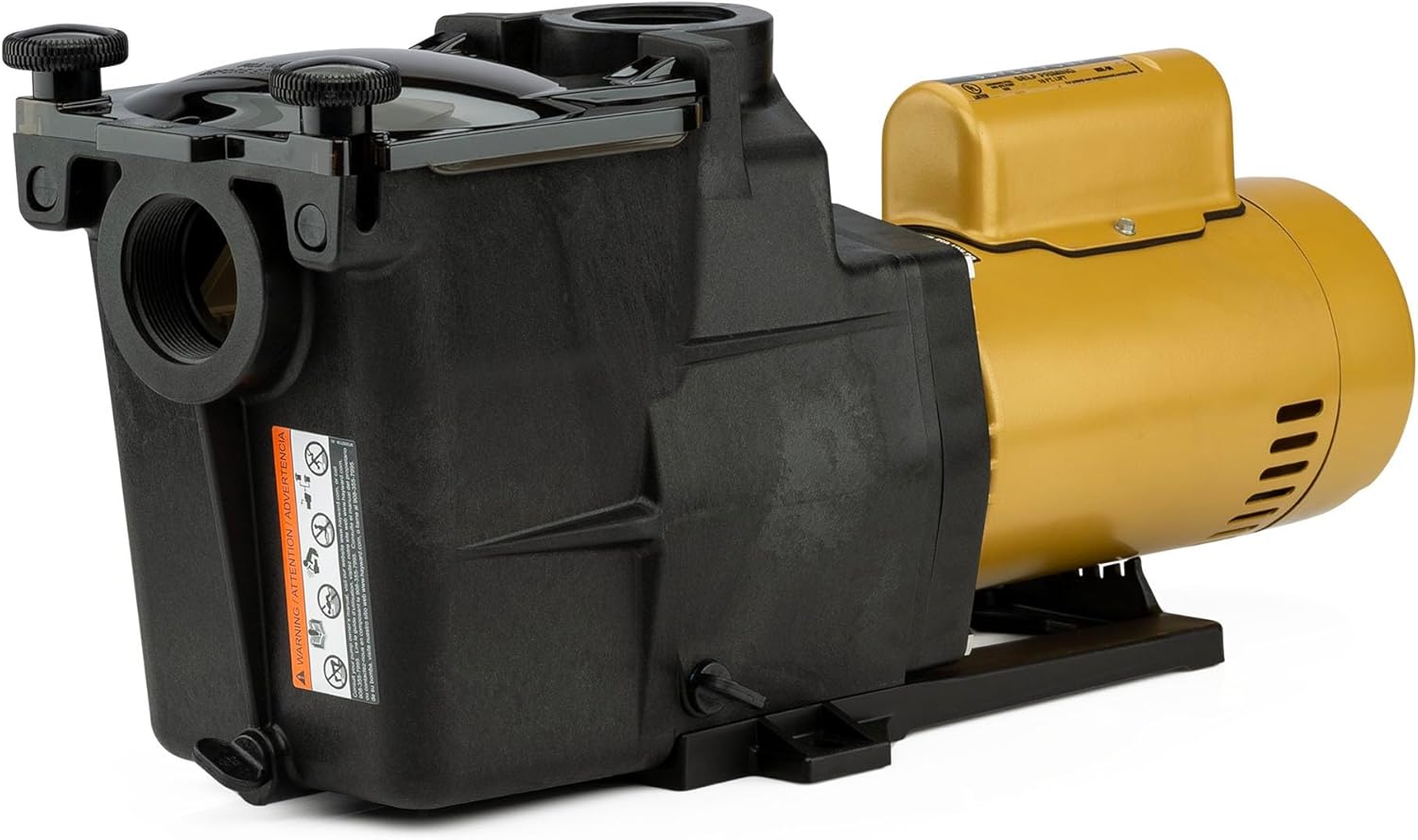

Image 1.1: Side view of the Hayward Super Pump, showcasing its black housing and gold motor unit.

Key Features:

• High-Efficiency Motor: 0.75 total HP motor designed for optimal performance with reduced noise and heat.
• Tool-Free Maintenance: Equipped with exclusive swing-away hand knobs for easy and quick removal of the strainer cover without the need for tools.
• Visible Cleaning: A transparent strainer cover allows for easy monitoring of the debris basket, indicating when cleaning is required.
• Large Debris Basket: An extra-large basket capacity reduces the frequency of maintenance.
• User-Friendly Design: Service-ease functionality provides convenient access to internal components via a simple 4-bolt design.

2. Safety Information

Read and follow all instructions in this manual and on the equipment. Failure to follow instructions can cause severe injury and/or death. This equipment must be installed and serviced by a qualified pool professional in accordance with all applicable local and national codes and ordinances.

• Electrical Safety: Always disconnect power to the pump at the circuit breaker before performing any service or maintenance. Ensure proper grounding and bonding.
• Water Safety: Do not operate the pump if the water level is below the skimmer or if the pump is not primed. Running the pump dry can cause severe damage and void warranty.
• Pressure Safety: Do not attempt to open the strainer cover or service the pump while it is operating under pressure.
• Chemical Safety: Be aware of pool chemicals and their interaction with pump components. Always follow chemical manufacturer's instructions.

3. Setup and Installation

Proper installation is crucial for the pump's performance and longevity. It is recommended that installation be performed by a qualified professional.

3.1 Unpacking and Inspection

Carefully remove the pump from its packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.

Image 3.1: Side view of the pump, showing the motor and its electrical label.

3.2 Electrical Connections

The Hayward Super Pump is designed for dual voltage operation (115V/230V). Verify the factory wiring configuration on the motor label before connecting to power. If the pump is not wired for your intended voltage, consult the wiring diagram on the motor or in the full product manual for instructions on how to reconfigure the wiring. Electrical connections typically use spade connectors; ensure you have appropriate connectors if your existing wiring differs.

All electrical wiring must comply with local and national electrical codes. Ensure a dedicated circuit breaker is used for the pump.

3.3 Plumbing Connections

The pump features 2-inch female molded threads for inlet and outlet ports. Two 2-inch x 1.5-inch threaded reducer bushings are included to accommodate common 1.5-inch PVC piping. When connecting plumbing, it is critical to ensure a watertight seal.

• Thread Sealing: For a secure, leak-free connection, apply at least four layers of high-quality PTFE (Teflon) tape to all threaded connections. Additionally, applying a PVC-compatible thread sealant (such as Megaloc Thread Sealant) into the thread grooves before installation is highly recommended to prevent leaks.
• Adapters: Be aware that using the provided adapters may add length to your plumbing, potentially requiring minor adjustments to your existing pipe layout. Flexible couplings can assist in aligning connections if needed.
• Unions: Ensure unions are tightened securely but avoid over-tightening, as plastic components can be damaged.

Image 3.2: Top view of the pump, illustrating the inlet and outlet ports.

4. Operation

4.1 Priming the Pump

1. Ensure all valves are open to allow water flow to the pump.
2. Remove the strainer cover by unscrewing the swing-away hand knobs.
3. Fill the strainer housing with water until it overflows.
4. Replace the strainer cover and tighten the hand knobs securely.
5. Turn on the power to the pump. The pump should prime within a few minutes. If not, turn off power, re-prime, and check for air leaks in the suction line.

4.2 Normal Operation

Once primed, the pump will circulate water through your pool system. Monitor the transparent strainer cover to visually check the debris basket for accumulation. Clean the basket as needed to maintain optimal flow and pump efficiency.

5. Maintenance

5.1 Strainer Basket Cleaning

The extra-large debris basket reduces the frequency of cleaning, but regular inspection is recommended.

1. Turn off the pump and disconnect power at the circuit breaker.
2. Unscrew the swing-away hand knobs and remove the strainer cover.
3. Lift out the debris basket.
4. Empty debris and rinse the basket thoroughly with water.
5. Inspect the basket for cracks or damage. Replace if necessary.
6. Return the basket to the housing, ensuring it is seated correctly.
7. Fill the housing with water to assist with priming.
8. Replace the strainer cover and tighten the hand knobs.
9. Restore power and re-prime the pump.

5.2 Winterization

For regions experiencing freezing temperatures, proper winterization is essential to prevent damage to the pump.

• Drain all water from the pump by removing the drain plugs.
• Store the pump in a dry, protected area if possible, or cover it to protect from elements.
• Consult a pool professional for comprehensive winterization procedures for your entire pool system.

6. Troubleshooting

This section addresses common issues you might encounter with your Hayward Super Pump.

6.1 Pump Not Priming or Losing Prime

• Check Water Level: Ensure pool water level is adequate for skimmer operation.
• Strainer Basket/Cover: Verify the strainer basket is clean and the strainer cover is securely tightened. Inspect the O-ring for cracks or dryness; lubricate or replace if necessary.
• Air Leaks: Inspect all suction side plumbing connections for air leaks. Even small leaks can prevent priming.
• Valve Positions: Ensure all necessary valves are open to allow water flow to the pump.

6.2 Leaks at Plumbing Connections

• Insufficient Thread Sealant: Many leaks at threaded connections are due to insufficient application of PTFE tape or thread sealant. Re-apply at least 4-5 wraps of high-quality PTFE tape and a generous amount of PVC-compatible thread sealant to the threads.
• Cracked Fittings: Inspect plastic fittings for cracks, especially if over-tightened during installation. Replace any damaged fittings.
• Union Gaskets: Check the rubber gaskets within the unions for proper seating and condition.

6.3 Pump Not Starting or Tripping Breaker

• Power Supply: Verify the circuit breaker is on and there is power to the pump.
• Voltage Setting: Confirm the pump motor is wired for the correct voltage (115V or 230V) matching your electrical supply. An incorrect voltage setting can prevent starting or cause damage.
• Motor Overload: Allow the motor to cool if it has tripped due to overheating. Check for proper ventilation around the motor.
• Impeller Obstruction: Turn off power and check if the impeller is free from debris.

For persistent issues or problems not listed here, contact a qualified pool service professional or Hayward customer support.

7. Specifications

Image 7.1: Front view of the Hayward Super Pump.

8. Warranty and Support

Hayward products are manufactured to the highest standards of quality and reliability. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Hayward website. Keep your proof of purchase for warranty claims.

For technical assistance, troubleshooting beyond this manual, or to locate authorized service centers, please contact Hayward customer support directly. Contact information can typically be found on the Hayward website or in the full product documentation.
