Introduction
This manual provides instructions for the installation, operation, and maintenance of your Lumen Logic 12V Brass In-Ground Well Light with Shielded Top. Please read these instructions carefully before installation and retain them for future reference. This fixture is designed for low voltage landscape lighting applications.
Safety Information
- Always disconnect power at the transformer before installing or servicing the fixture.
- This fixture operates on 12V AC low voltage current. A low voltage landscape lighting transformer (not included) is required. Do not connect directly to 120V AC power.
- Ensure all wiring connections are secure and protected from moisture.
- Install the fixture in accordance with local electrical codes and ordinances.
- Do not operate the fixture with a damaged cord or if the fixture itself is damaged.
- This product is for outdoor use only.
- The fixture is UL/cUL listed, indicating compliance with safety standards.
Package Contents
Verify that all components are present before beginning installation:
- 1x Brass In-Ground Well Light (Shielded Top) fixture
- 1x 5W 2700K Warm White MR16 LED Bulb
- Mounting hardware (screws, gasket, Allen wrench)
Image: The Lumen Logic In-Ground Well Light disassembled, showing the main housing, brass shielded top, MR16 bulb, wiring, gasket, and mounting screws with an Allen wrench.
Installation Instructions
- Prepare the Installation Site: Dig a hole in the desired location large enough to accommodate the fixture's body. Ensure proper drainage by adding a layer of gravel or crushed stone at the bottom of the hole. This helps prevent water accumulation around the fixture.
- Install the MR16 Bulb:
- Carefully remove the brass shielded top from the fixture by unscrewing the retaining screws.
- Insert the included 5W MR16 LED bulb into the GU5.3 socket. Ensure it is seated firmly.
- Reattach the brass shielded top, ensuring the rubber gasket is properly seated to create a watertight seal. Tighten the screws securely using the provided Allen wrench.
Image: A close-up view of the Lumen Logic 12V Brass In-Ground Well Light with its shielded top, showing the MR16 bulb inside.
- Position the Fixture: Place the well light fixture into the prepared hole. The top of the fixture should be flush with or slightly above ground level to prevent debris from covering the light output.
- Wire Connections:
- Route the 4-foot lead wire from the fixture to your low voltage landscape lighting main cable.
- Using appropriate low voltage wire connectors (not included), securely connect the fixture's lead wire to the main landscape lighting cable. Ensure connections are watertight and buried safely. The pressure fitting at the wire exit prevents water intrusion from the bottom.
- Important: A low voltage transformer (not included) is required to power this fixture. Do not connect directly to high voltage power.
- Adjust Light Angle: The MR16 bulb socket is mounted on a gimbal, allowing for adjustment of the lamp angle. Once installed, you can adjust the bulb to direct light as desired.
- Test the System: Once all fixtures are installed and wired, turn on the low voltage transformer to test the lighting system.
Operation
The Lumen Logic 12V Brass In-Ground Well Light operates as part of a low voltage landscape lighting system. Once connected to a compatible 12V AC transformer and powered on, the included 5W 2700K Warm White MR16 LED bulb will illuminate, providing 315 lumens of light.
- Power Control: The light is controlled by the low voltage transformer it is connected to. This typically involves a timer, photocell, or manual switch on the transformer.
- Light Direction: The internal gimbal allows for precise aiming of the light. Adjust the bulb's position to highlight specific features such as pathways, garden elements, shrubs, columns, or trees.
Image: The Lumen Logic In-Ground Well Light installed in a garden bed, casting warm white light upwards to illuminate surrounding plants at night.
Maintenance
Regular maintenance ensures optimal performance and longevity of your well light.
- Cleaning: Periodically clean the brass top and glass lens to remove dirt, leaves, and debris that may obstruct light output. Use a soft cloth and mild soap if necessary. Avoid abrasive cleaners.
- Inspect Seals: Annually inspect the rubber gasket between the brass top and the fixture body to ensure it remains intact and provides a watertight seal. Replace if damaged.
- Bulb Replacement: While LED bulbs have a long lifespan, if replacement is needed, ensure the power is off at the transformer. Unscrew the brass top, carefully remove the old MR16 bulb, and insert a new 12V MR16 LED bulb. Reassemble, ensuring the watertight seal.
- Wiring Inspection: Check wiring connections periodically for any signs of wear or damage. Ensure all connections remain secure and buried.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power from transformer, faulty bulb, loose wiring connection, faulty transformer. | Check transformer power and settings. Ensure bulb is properly seated. Inspect all wire connections. Test bulb in another fixture or replace. Check transformer output. |
| Light flickers. | Loose bulb, unstable power, poor wire connection. | Ensure bulb is firmly seated. Check wire connections for tightness. Verify stable 12V AC power from transformer. |
| Water inside fixture. | Improperly sealed top, damaged gasket, water intrusion from bottom (rare due to pressure fitting). | Turn off power. Remove top, inspect and reseat gasket, tighten screws. If gasket is damaged, replace it. Ensure proper drainage around the fixture. |
| Light output is dim. | Dirty lens, aging bulb, voltage drop. | Clean the glass lens. Replace the MR16 LED bulb. Check for excessive cable length or too many fixtures on one run causing voltage drop. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Lumen Logic |
| Model Number | BDL-554-4-BBZ-MR16-LL |
| Type | In-Ground Well Light (Shielded Top) |
| Material | Brass, Metal |
| Color | Bronze |
| Voltage | 12 Volts AC (Low Voltage) |
| Light Source Type | LED (MR16 Bulb) |
| Included Bulb Wattage | 5 Watts |
| Brightness | 315 Lumens |
| Light Color Temperature | 2700K Warm White |
| Color Rendering Index (CRI) | 80.00 |
| Product Dimensions | 5"L x 5"W x 5.7"H |
| Item Weight | 2.75 Pounds |
| Water Resistance Level | Water Resistant (Watertight seal) |
| Certifications | UL, cUL Listed |
| Special Features | Energy Efficient, Low Voltage, Water Resistant, Adjustable Lamp Angle (Gimbal) |

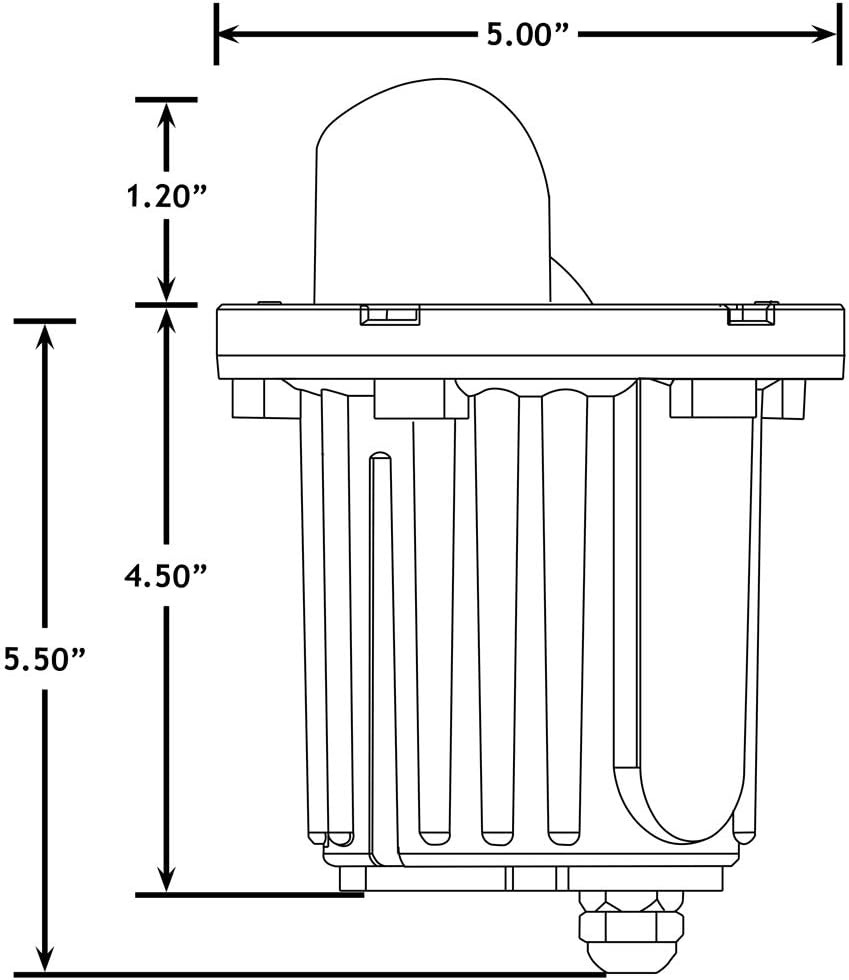

Image: A technical drawing illustrating the dimensions of the Lumen Logic In-Ground Well Light, showing a total height of 5.7 inches and a top diameter of 5 inches.
Warranty & Support
Warranty: The Lumen Logic 12V Brass In-Ground Well Light is backed by a Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For warranty service or technical support, please contact Lumen Logic directly. Refer to the brand's official website or your purchase documentation for contact information.
Note: The warranty does not cover damage caused by improper installation, misuse, abuse, or acts of nature.
