Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Fette Filter replacement vacuum filters. These filters are designed to maintain the optimal performance of your compatible Bissell 3-in-1 Stick Vacuum. Regular filter replacement and cleaning are crucial for efficient vacuum operation and air quality.
Product Overview

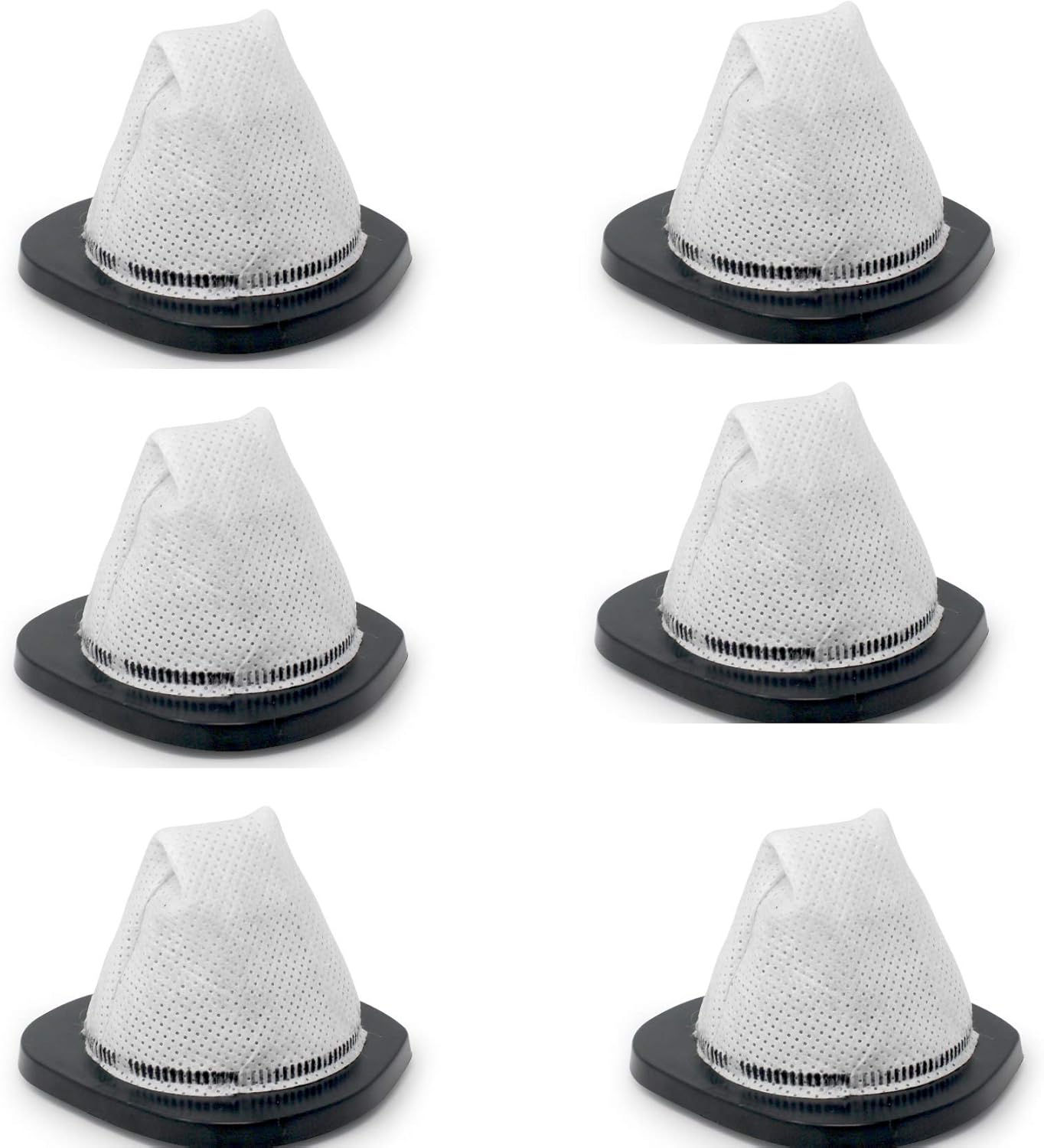

Figure 1: A pack of six Fette Filter replacement vacuum filters, designed for compatible Bissell 3-in-1 Stick Vacuums.
Each package contains six (6) filter assemblies, providing a convenient supply for multiple replacements. These filters are constructed from durable paper material, designed for effective dust and debris capture.

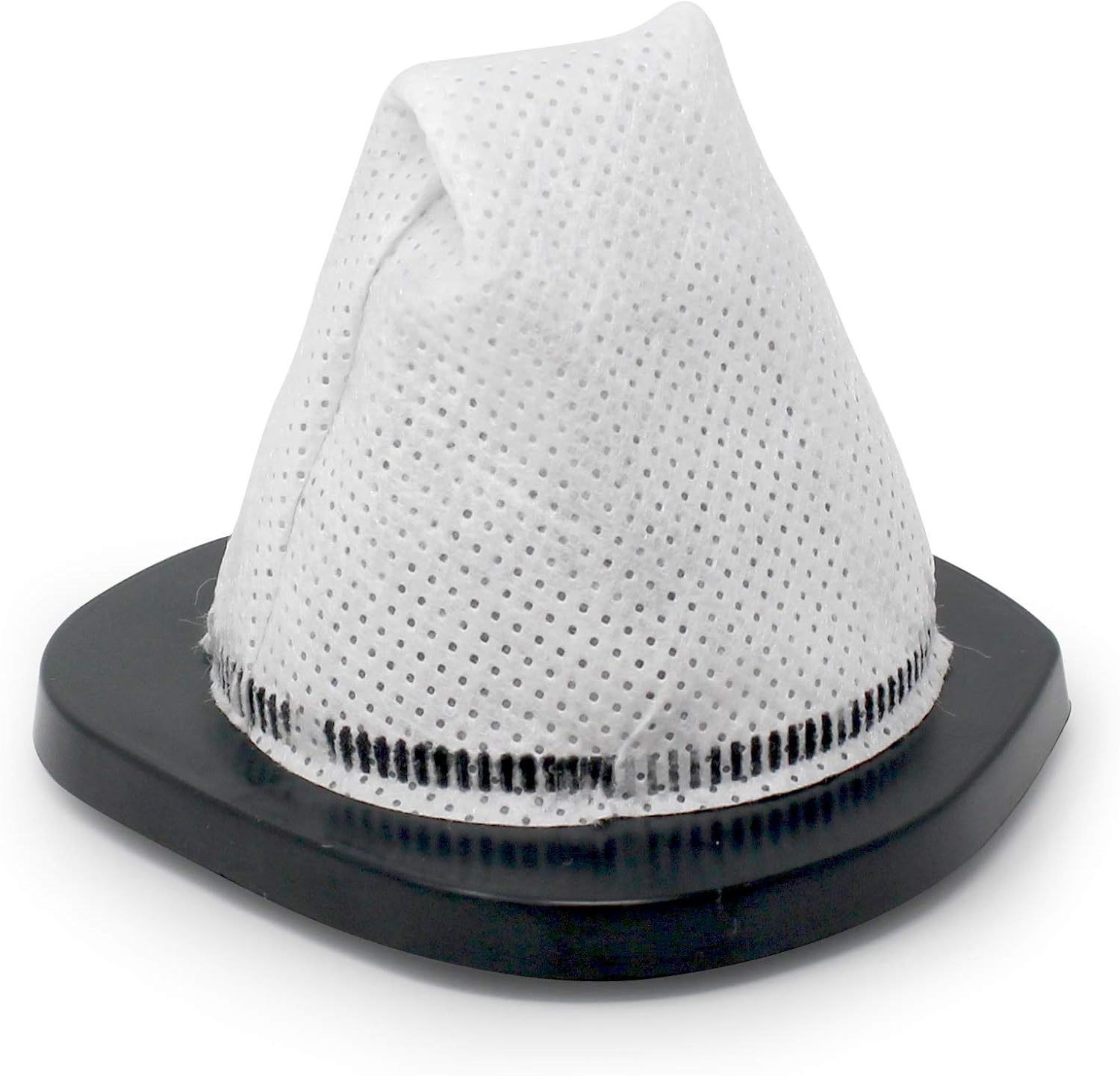

Figure 2: Close-up view of a single Fette Filter vacuum filter, highlighting its design and construction.
Compatibility
These Fette Filter vacuum filters are compatible with specific Bissell 3-in-1 Lightweight Stick Vacuum models. It is essential to verify your vacuum's model number to ensure proper fit and function. These filters are designed to replace Bissell Part # 1611501.
Compatible Bissell 3-in-1 Lightweight Stick Vacuum Models:
- Model 2030
- Model 20301
- Model 20303
- Model 20304
- Model 20306
- Model 20307
- Model 20309
- Model 2030B
- Model 2030H
- Model 2030J
- Model 2030K
- Model 2030L
- Model 2030U
- Model 2030V
- Model 2030X
- Model 2030Z
- Model 3346
- Model 3346W
Important: Always compare the filter part number to your vacuum's model number to ensure you have the correct replacement part. Filters for other Bissell models, such as those replacing Part # 2037423, are not compatible.
Figure 3: Visual guide for ordering the correct part, emphasizing the difference between compatible and incompatible filter types.
Installation Instructions
- Power Off and Unplug: Before attempting any maintenance or installation, ensure your Bissell 3-in-1 Stick Vacuum is turned off and unplugged from the power outlet to prevent accidental activation.
- Locate Filter Compartment: Refer to your original Bissell vacuum manual to locate the filter compartment. This is typically found within the dirt cup or dust bin assembly.
- Remove Old Filter: Carefully remove the existing filter. Dispose of the old filter responsibly.
- Insert New Filter: Place the new Fette Filter replacement filter into the designated compartment. Ensure it is seated firmly and correctly. The filter should fit snugly without excessive force.
- Reassemble Vacuum: Reattach the dirt cup or dust bin assembly to the vacuum cleaner, ensuring all components are securely fastened.
- Test Operation: Plug in the vacuum and perform a brief test to ensure proper suction and operation.
If the filter does not fit perfectly or the vacuum does not close properly after installation, double-check the filter's orientation and ensure it is the correct part number for your specific vacuum model. Refer to the "Troubleshooting" section for further assistance.
Maintenance and Care
Regular maintenance of your vacuum filter is essential for maintaining cleaning efficiency and extending the life of your vacuum. While these filters are disposable, they can often be cleaned for extended use between replacements.
Cleaning the Filter:
- Tap Clean: Gently tap the filter over a waste bin to dislodge loose dirt and debris.
- Brush Clean: Use a soft brush (like an old toothbrush) to carefully brush away embedded dust from the filter pleats.
- Rinse (if applicable): While some filters are washable, the primary material for these filters is paper. Avoid rinsing with water unless explicitly stated in your original vacuum manual for this filter type, as water can damage paper filters. If rinsing is permitted, ensure the filter is completely dry before reinstallation.
Replacement Frequency:
The frequency of filter replacement depends on usage and the type of debris being vacuumed. For optimal performance, it is recommended to replace your vacuum filter every 3 to 6 months, or more frequently if you notice a decrease in suction power, increased motor noise, or if the filter appears visibly dirty or damaged. Regular replacement ensures your vacuum operates at peak efficiency and maintains healthy air quality.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Filter does not fit or vacuum won't close. | Incorrect filter model; filter not seated correctly; debris obstructing compartment. | Verify your vacuum model number against the compatible list. Ensure the filter is inserted in the correct orientation and fully seated. Check for any debris in the filter compartment. |
| Reduced suction power after filter replacement. | New filter is not fully sealed; other vacuum components are clogged (hose, brush roll); dirt cup is full. | Ensure the filter is securely in place and the dirt cup is properly sealed. Check other parts of the vacuum for blockages. Empty the dirt cup. |
| Unusual noise from vacuum. | Filter not installed correctly; foreign object in vacuum; motor issue. | Re-check filter installation. Inspect the vacuum for any foreign objects. If the noise persists, consult a qualified technician. |
Specifications
- Brand: Fette Filter
- Model Number: FF1188
- Compatible Part Number: Bissell 1611501
- Material: Paper
- Reusability: Disposable (can be cleaned for extended use)
- Number of Pieces: 6 per pack
- Approximate Parcel Dimensions: 26.03 x 19.05 x 5.59 cm
- Approximate Item Weight: 91 g
Disclaimer
This product is a replacement part manufactured by Fette Filter. It is not a Bissell OEM (Original Equipment Manufacturer) product. The Bissell brand names and logos are registered trademarks of their respective owners. Any use of the Bissell brand name or model designation for this product is made solely for purposes of demonstrating compatibility.
