Haoge LH-X50 Bayonet Square Metal Lens Hood Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, use, and maintenance of your Haoge LH-X50 Bayonet Square Metal Lens Hood. A lens hood is a crucial accessory designed to prevent unwanted stray light from entering the lens, which can cause lens flare and reduce image contrast. It also offers additional physical protection to the front element of your lens from accidental impacts or scratches.

2. Product Features

• Bayonet-Mount Design: Ensures a secure and precise fit onto compatible lenses, allowing for quick attachment and removal.
• Stray Light Reduction: Effectively shades the lens from stray light, minimizing lens flare and ghosting for improved image quality and contrast.
• Enhanced Lens Protection: Provides an extra layer of physical protection against accidental bumps, drops, and scratches to the lens's front element.
• Durable Construction: Crafted from 6061 T6 lightweight aluminum alloy material, featuring CNC precision machining and surface anodic oxidation for long-lasting durability.
• Non-Glare Finish: The internal special matte coating and non-glare matte finish prevent reflections, further enhancing optical performance.

3. Compatibility

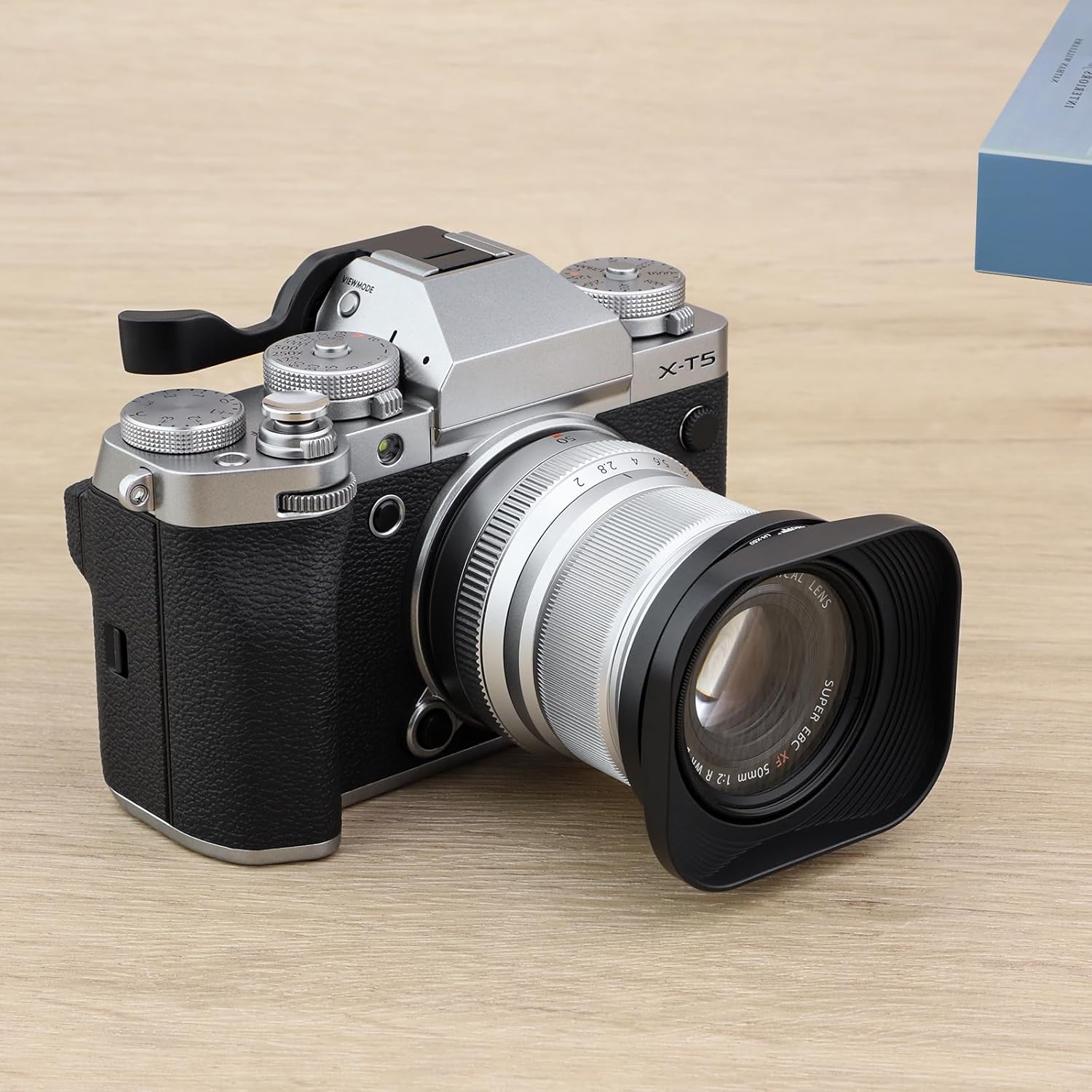

The Haoge LH-X50 Bayonet Square Metal Lens Hood is specifically designed for the following lens:

• Fujifilm Fujinon XF 50mm F2 R WR Lens

This lens hood is compatible with Fujifilm cameras that use the specified lens, including but not limited to:

• Fujifilm X-Pro2, X-Pro1
• Fujifilm X-T2, X-T1, X-T20, X-T10
• Fujifilm X-E2S, X-E3
• Fujifilm X-A5, X-A20
• Fujifilm X-H1

4. Setup and Installation

Follow these steps to correctly install the Haoge LH-X50 lens hood onto your compatible lens:

1. Align the bayonet mount of the lens hood with the corresponding grooves on the front of your Fujifilm Fujinon XF 50mm F2 R WR lens.
2. Gently push the lens hood onto the lens.
3. Rotate the lens hood clockwise until it clicks into place, indicating a secure attachment. Ensure it is firmly seated and does not wobble.

5. Operating Instructions

Once installed, the Haoge LH-X50 lens hood operates passively to improve your photography. Its primary functions are:

• Flare Prevention: The square shape and extended design are optimized to block stray light from entering the lens, especially when shooting towards bright light sources or in harsh lighting conditions.
• Contrast Enhancement: By reducing flare, the lens hood helps maintain the contrast and color saturation in your images, leading to clearer and more vibrant photographs.
• Physical Protection: The robust metal construction acts as a buffer, protecting the front element of your lens from accidental impacts, dust, and moisture.

The bayonet mount allows for easy reversal of the hood for compact storage when not in use. To reverse, simply detach the hood by rotating it counter-clockwise, then reattach it in the reverse orientation.

6. Maintenance

To ensure the longevity and optimal performance of your Haoge LH-X50 lens hood, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the exterior of the lens hood. For stubborn smudges, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents.
• Storage: When not in use, store the lens hood in a clean, dry environment. It can be reversed on the lens for more compact storage.
• Inspection: Periodically check the bayonet mount for any signs of wear or damage. Ensure the internal matte coating remains intact to effectively prevent reflections.

7. Troubleshooting

If you encounter any issues with your Haoge LH-X50 lens hood, consider the following:

• Difficulty Attaching/Detaching: Ensure the lens hood is correctly aligned with the bayonet mount on the lens. Do not force it. A gentle push and twist should secure it. If it feels too tight, check for any debris in the mounting grooves.
• Lens Hood Wobbles: If the lens hood feels loose after installation, ensure it has been rotated fully until it clicks into its locked position. If the issue persists, inspect the bayonet tabs on both the hood and the lens for any damage.
• Increased Flare: While designed to reduce flare, extreme lighting conditions can still cause it. Ensure the hood is correctly installed and that no external light sources are directly hitting the front element from outside the hood's coverage.
• Scratches on Lens Hood: The metal construction is durable, but scratches can occur. These are typically cosmetic and do not affect performance unless they are on the internal matte surface and cause reflections.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your Haoge LH-X50 lens hood, please contact the manufacturer directly. Details can typically be found on the product packaging or the official Haoge website.

Manufacturer: Haoge
