Maratodd Egon Series Modern Drum Pendant Light User Manual

Introduction

Thank you for choosing the Maratodd Egon Series Modern Drum Pendant Light. This fixture is designed for easy installation and provides exceptional quality illumination with its triple-socket, dimmable LED compatibility. It features a sleek design and includes a white acrylic diffuser for optimal light distribution. This manual provides detailed instructions for safe installation, operation, maintenance, and troubleshooting to ensure you get the most out of your new lighting fixture.

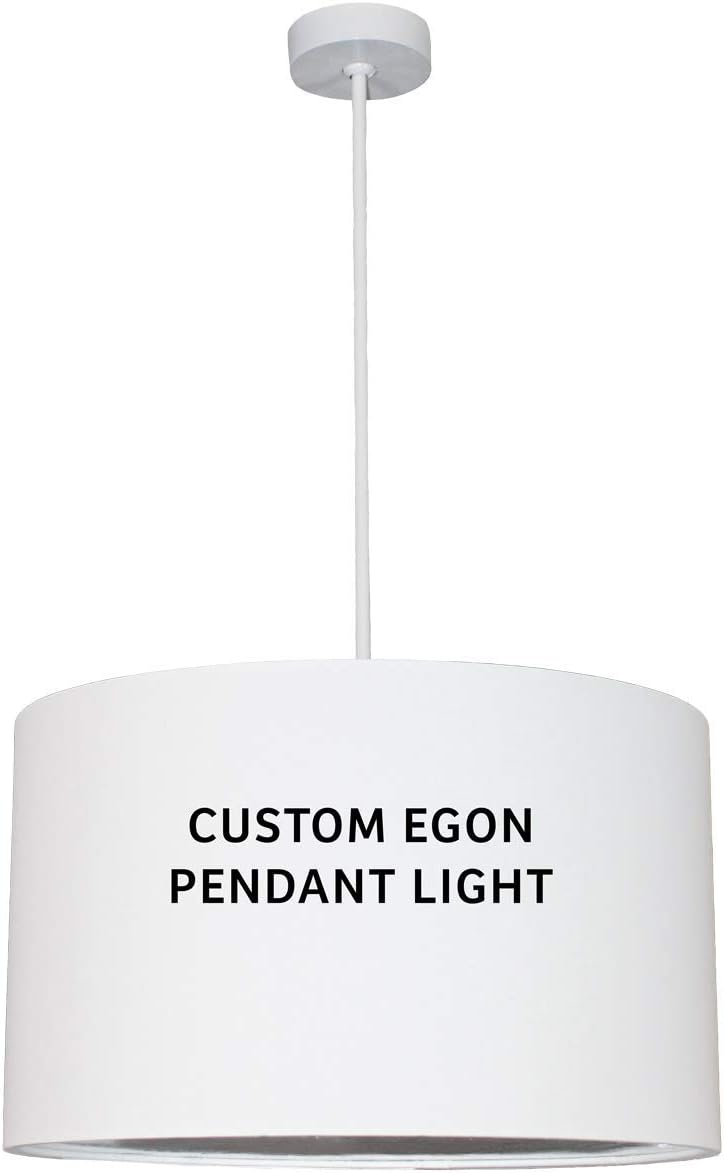

Image: Front view of the Maratodd Egon Series Modern Drum Pendant Light, showcasing its drum shade and pendant design.

Important Safety Information

Please read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause serious damage to the product and property.

• Always disconnect power at the main circuit breaker before installing, servicing, or cleaning this fixture.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
• Use only UL/ETL listed wire connectors.
• Ensure all electrical connections are secure and comply with local codes and ordinances.
• Do not exceed the maximum wattage specified for the bulbs.
• Keep flammable materials away from the light fixture.

Package Contents

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact customer support immediately.

• 1 x Maratodd Egon Series Drum Pendant Light Fixture
• 1 x White Acrylic Diffuser
• 1 x Mounting Hardware Kit (includes screws, wire nuts, mounting bracket)
• 1 x Instruction Manual

Setup and Installation

Before You Begin

Tools you may need (not included):

• Phillips head screwdriver
• Flathead screwdriver
• Wire strippers
• Electrical tape
• Ladder

Installation Steps

1. Turn off power: Locate the circuit breaker that supplies power to the light fixture location and turn it off. Verify power is off using a voltage tester.
2. Prepare mounting bracket: Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure it is securely fastened.
3. Make electrical connections: Carefully connect the fixture's wires to the corresponding wires from the junction box. Connect the black wire (live) from the fixture to the black wire from the junction box, the white wire (neutral) from the fixture to the white wire from the junction box, and the green or bare copper wire (ground) from the fixture to the ground wire from the junction box. Secure connections with wire nuts and wrap with electrical tape for added safety.
4. Mount the fixture: Carefully lift the fixture and align the canopy with the mounting bracket. Secure the fixture to the mounting bracket using the provided screws.
5. Install bulbs: Screw in the appropriate LED bulbs (not included, or as per your selected option) into the fixture's sockets.
6. Attach diffuser: Place the white acrylic diffuser into the bottom of the drum shade.
7. Restore power: Turn the power back on at the circuit breaker. Test the light fixture.

Image: The Maratodd Egon Series Modern Drum Pendant Light installed on a ceiling, with the light turned off.

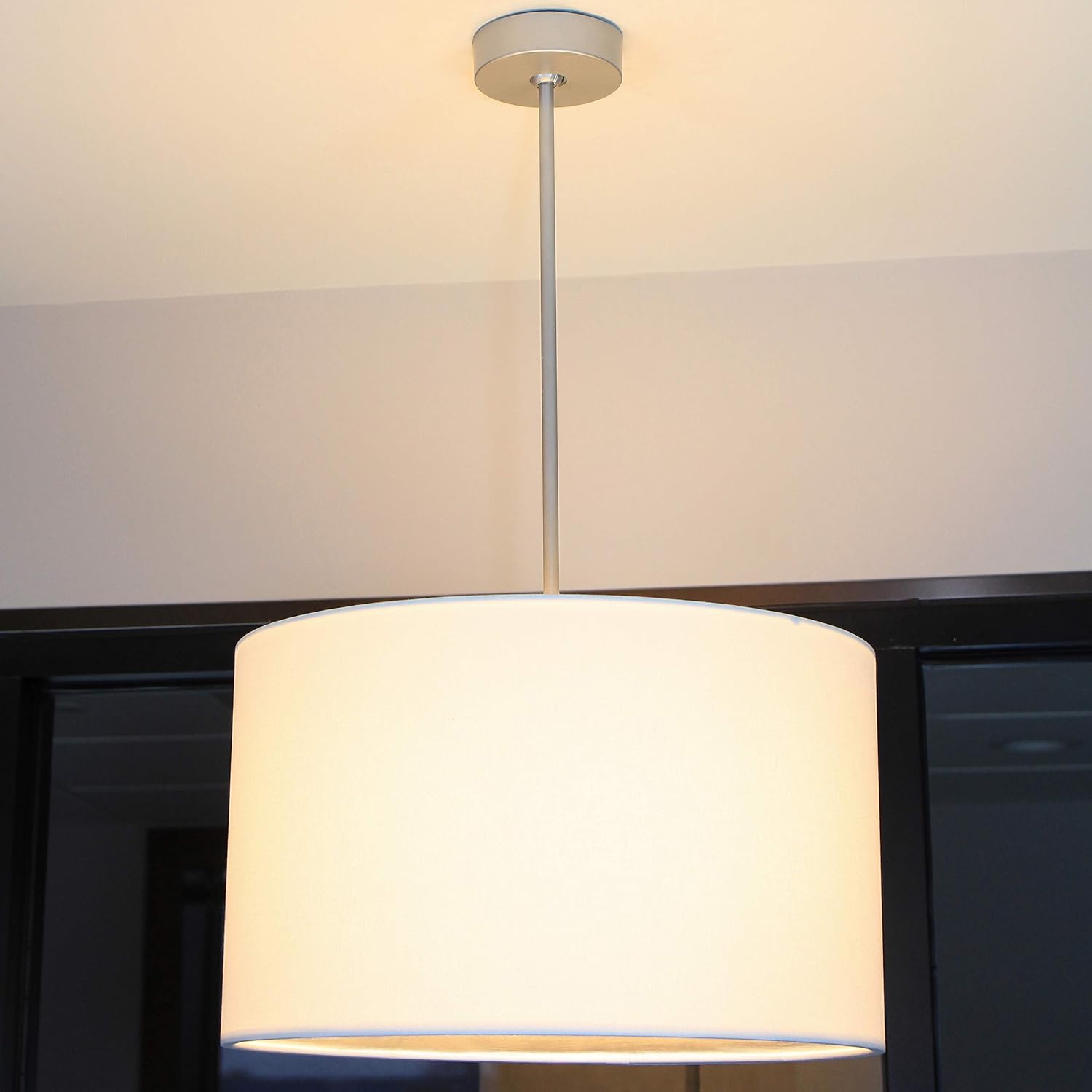

Image: The Maratodd Egon Series Modern Drum Pendant Light installed on a ceiling, with the light turned on, illuminating the room.

Operating Instructions

Powering On/Off

The Maratodd Egon Series Pendant Light is operated via a standard wall switch connected to the fixture's circuit. Simply toggle the wall switch to turn the light on or off.

Dimmable Feature

This fixture is designed to be dimmable. To utilize the dimming feature, ensure you have installed dimmable LED bulbs and connected the fixture to a compatible LED dimmer switch (sold separately). Follow the dimmer switch manufacturer's instructions for operation.

Bulb Replacement

To replace bulbs:

1. Turn off power to the fixture at the circuit breaker.
2. Allow bulbs to cool completely if they have been recently in use.
3. Carefully unscrew the old bulbs from their sockets.
4. Screw in new, compatible LED bulbs (e.g., 9 Watt (2,700K/800 Lumens) or 15 Watt (2,700K/1,600 Lumens)).
5. Restore power and test the light.

Maintenance and Care

Cleaning

To maintain the appearance and performance of your light fixture:

• Always disconnect power before cleaning.
• Wipe the metal and fabric surfaces with a soft, dry cloth.
• For stubborn spots, a slightly damp cloth can be used, followed by a dry cloth.
• Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.

General Care

Regularly check all connections and mounting hardware to ensure they remain secure. Avoid exposing the fixture to excessive moisture or direct water spray.

Troubleshooting

If you experience issues with your Maratodd Egon Series Pendant Light, refer to the table below for common problems and solutions.

Specifications

Detailed technical specifications for the Maratodd Egon Series Modern Drum Pendant Light.

Warranty and Customer Support

Maratodd products are manufactured to the highest quality standards and are backed by a limited warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Maratodd customer support:

• Website: [Insert Maratodd Official Website Here]
• Email: [Insert Maratodd Support Email Here]
• Phone: [Insert Maratodd Support Phone Number Here]

Please have your model number (MT-EGON-CUSTOM) and proof of purchase ready when contacting support.
