WayEee 450ML Insulated Food Jar User Manual

1. Introduction

Thank you for choosing the WayEee 450ML Insulated Food Jar. This manual provides essential information for the safe and effective use, maintenance, and care of your new food jar. Please read these instructions carefully before first use and retain them for future reference.

Figure 1: WayEee 450ML Insulated Food Jar. This image displays the WayEee 450ML insulated food jar in a vibrant blue color, featuring its sleek design and the integrated folding spoon conveniently attached to the side.

2. Safety Information

• Hot Contents: Always handle with care when filled with hot liquids or food to prevent burns.
• Not for Microwave: Do not place the food jar in a microwave oven, as this can damage the product and pose a safety risk.
• Dishwasher Warning: While the stainless steel interior is dishwasher safe, the exterior paint may peel if washed in a dishwasher. Hand washing is recommended for longevity of the exterior finish.
• Children: Keep out of reach of small children, especially when containing hot food.
• Cleaning: Ensure all components are thoroughly cleaned before first use and after each subsequent use.
• Do Not Overfill: Do not fill past the neck of the jar to ensure a proper seal and prevent spills.

3. Product Features

• Double-Wall Vacuum Insulation: Constructed from durable 304 stainless steel with a double-wall design to maintain food temperature (hot or cold) for up to 12 hours.
• Enhanced Thermal Retention: Features a unique 12-micron copper coating and seamless welding technology for superior insulation performance.
• Double Leak-Proof Lids: Includes an outer lid and an inner lid, ensuring a complete seal to prevent leaks. The outer lid can also be used as a small serving bowl.
• Integrated Folding Spoon: The inner lid conveniently stores a foldable stainless steel spoon, making it ideal for on-the-go meals.
• Air Pressure Release Button: Located on the inner lid, this button helps release built-up pressure, making the jar easier to open, especially after storing hot food.
• Wide Mouth Design: The wide opening allows for easy filling, eating directly from the jar, and thorough cleaning.
• Food-Grade Materials: All materials are food-safe, BPA-free, and PVC-free.
• Non-Slip Base: Equipped with a non-slip silicone mat on the bottom for stability.

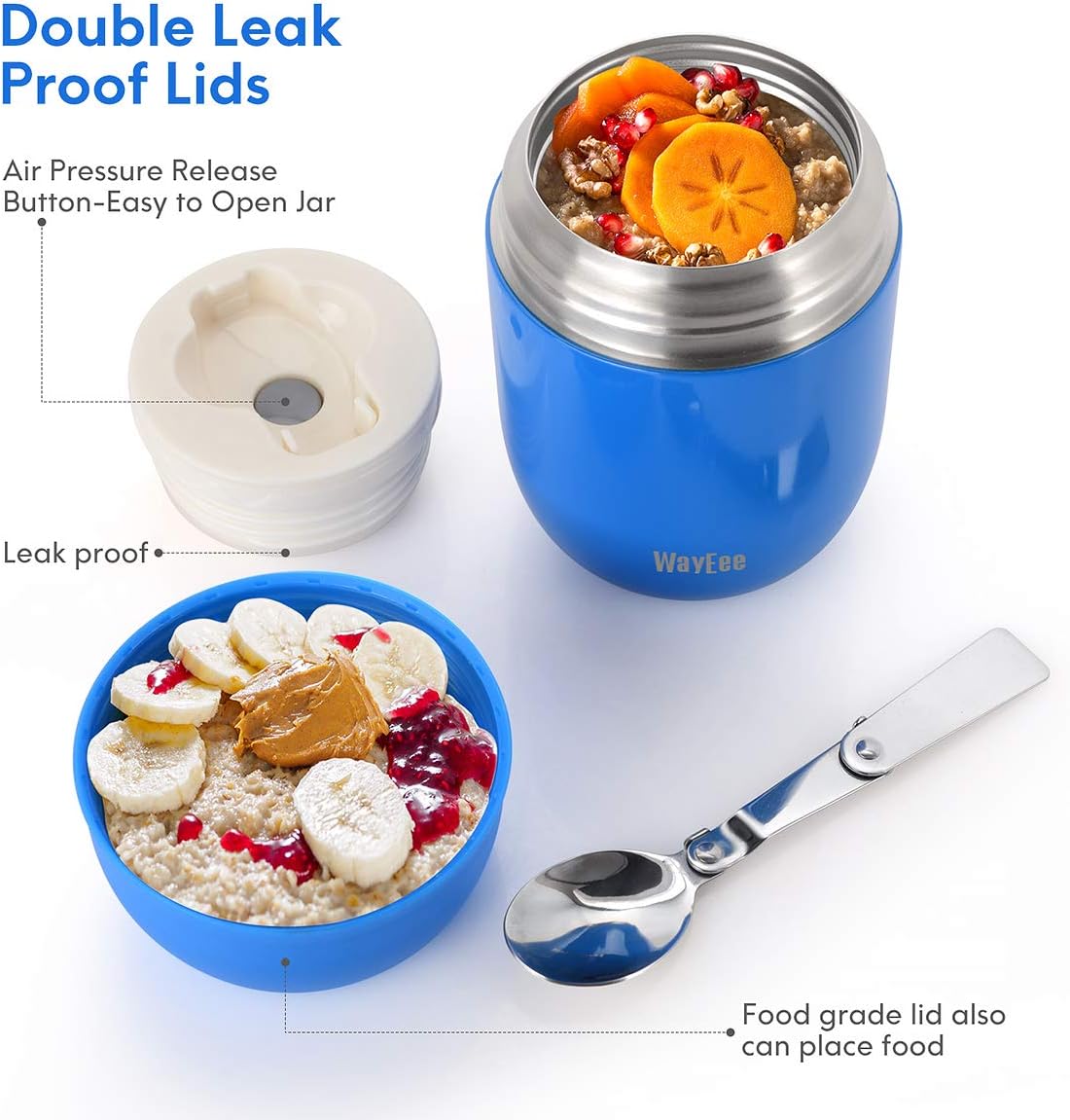

Figure 2: Double Leak-Proof Lids and Air Pressure Release. This diagram illustrates the advanced leak-proof design of the WayEee food jar. It highlights the inner lid with an air pressure release button for easy opening and the outer lid, which can also serve as a small bowl for food.

Figure 3: Convenient Folding Spoon. A detailed view of the inner lid, demonstrating how the stainless steel folding spoon is stored and deployed, emphasizing its convenience and space-saving design.

Figure 4: Unique 12 Micron Copper Plate for Thermal Insulation. A detailed cross-section diagram revealing the sophisticated multi-layer construction of the WayEee food jar, highlighting the 304 stainless steel inner tank, 12-micron copper coating, vacuum insulation layer, and pearlite finish, all contributing to superior thermal retention.

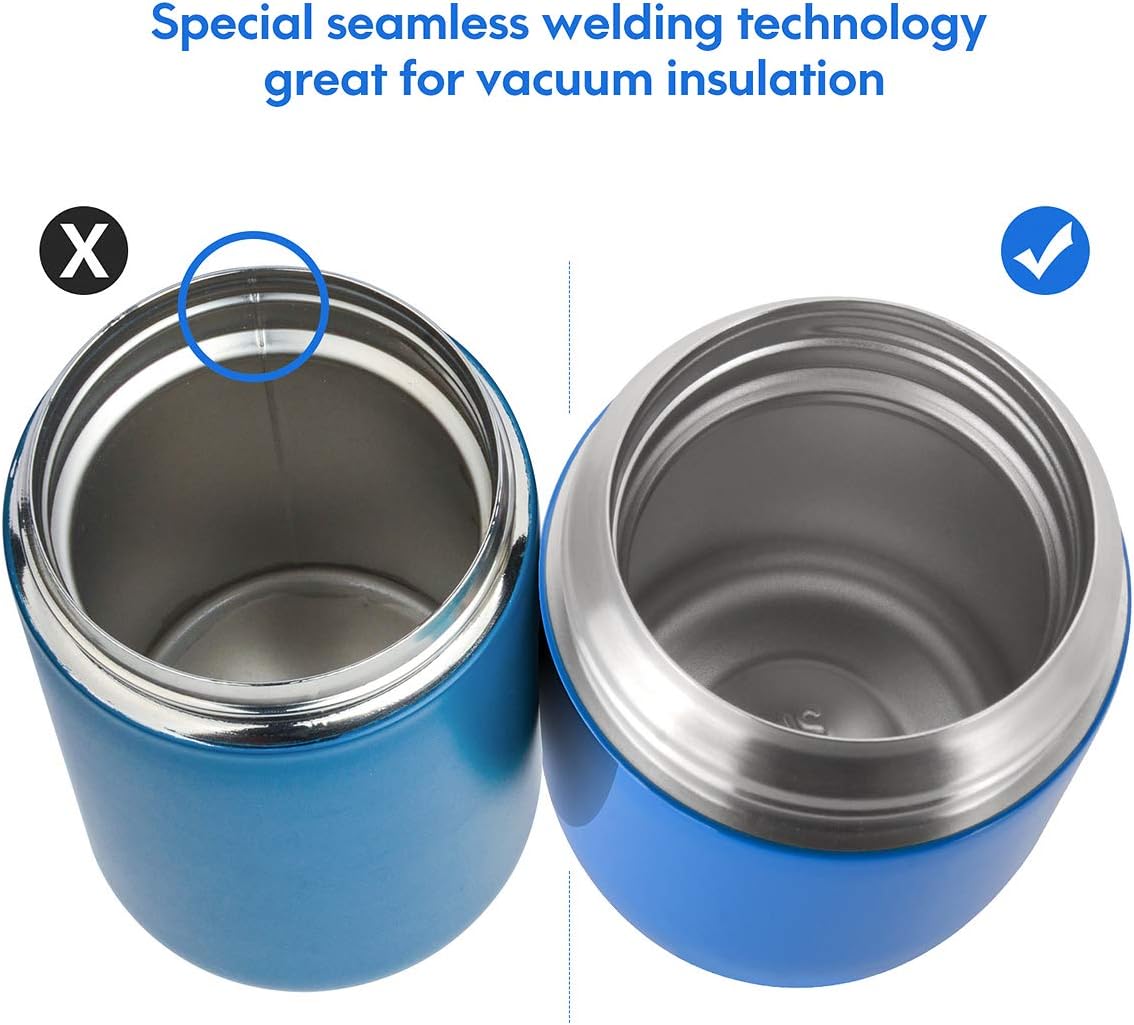

Figure 5: Special Seamless Welding Technology. This comparison image demonstrates the superior seamless welding technology used in the WayEee food jar (right), contrasting it with a jar showing visible seams (left), indicating enhanced durability and insulation performance.

4. Package Contents

Upon unpacking, please ensure all items are present and in good condition:

• 1x WayEee 450ML Insulated Food Jar (Main Body)
• 1x Inner Lid with Integrated Folding Stainless Steel Spoon
• 1x Outer Lid (can be used as a bowl)

5. Setup and First Use

1. Unpack: Carefully remove all components from the packaging.
2. Initial Cleaning: Wash all parts (jar, inner lid, outer lid, spoon) with warm soapy water. Rinse thoroughly and dry completely before first use.
3. Pre-heating (for hot food): For optimal heat retention, fill the jar with hot water (not boiling) for 5-10 minutes. Empty the hot water before adding your food.
4. Pre-cooling (for cold food): For optimal cold retention, fill the jar with cold water or ice for 5-10 minutes. Empty before adding your food.

6. Operating Instructions

6.1 Filling the Food Jar

1. After pre-heating or pre-cooling (see Section 5), carefully pour or place your desired hot or cold food into the jar.
2. Do not overfill. Leave some space at the top to allow for the inner lid to seal properly.

6.2 Sealing the Jar

1. Place the inner lid onto the jar and twist clockwise until it is securely tightened. Ensure the silicone seal is properly seated.
2. Place the outer lid over the inner lid and twist clockwise until it is also securely tightened. This provides an additional layer of insulation and leak protection.

6.3 Using the Folding Spoon

1. To access the spoon, remove the outer lid.
2. Gently lift the folding spoon from its compartment on the inner lid.
3. Unfold the spoon until it locks into place.
4. After use, fold the spoon and return it to its compartment on the inner lid.

6.4 Using the Air Pressure Release Button

1. If the jar is difficult to open, especially after storing hot food for an extended period, pressure may have built up inside.
2. Locate the small button on the inner lid, usually beneath where the spoon is stored.
3. Press this button 1-2 times to release the internal pressure. You may hear a slight hiss.
4. Once pressure is released, the inner lid should be easier to twist open.

Figure 6: Usage Scenarios. A collage showcasing the versatility of the WayEee food jar, depicting children enjoying their meals at school and adults using it in an office environment, illustrating its suitability for various users and occasions.

7. Maintenance and Cleaning

7.1 Daily Cleaning

1. After each use, disassemble all parts: main jar, inner lid, outer lid, and spoon.
2. Wash all components with warm water and a mild dish soap. Use a soft brush or sponge to clean the interior of the jar.
3. Rinse thoroughly to remove all soap residue.
4. Dry all parts completely before reassembling or storing to prevent odors and bacterial growth.

7.2 Important Cleaning Notes

• Hand Wash Recommended: To preserve the exterior finish and color of your food jar, hand washing is strongly recommended. Dishwasher use may cause the paint to peel over time.
• Do not use abrasive cleaners, scrubbers, or bleach, as these can damage the stainless steel and exterior finish.
• Ensure the silicone seals on the lids are clean and free of food particles to maintain a leak-proof seal.

8. Troubleshooting

• Lid is difficult to open: If the lid is stuck, especially after storing hot food, press the air pressure release button on the inner lid 1-2 times to equalize pressure.
• Food not staying hot/cold: Ensure the jar was properly pre-heated or pre-cooled before adding food. Verify that both inner and outer lids are securely tightened to maintain the vacuum seal.
• Leaking: Check that both inner and outer lids are tightly secured. Inspect the silicone seals for any damage or misalignment. Ensure the jar is not overfilled.
• Exterior paint peeling: This can occur with dishwasher use. Hand washing is recommended to prevent this.
• Unpleasant odor: Ensure the jar is thoroughly cleaned and dried after each use. For persistent odors, a mixture of baking soda and water can be used for soaking, followed by thorough rinsing.

9. Specifications

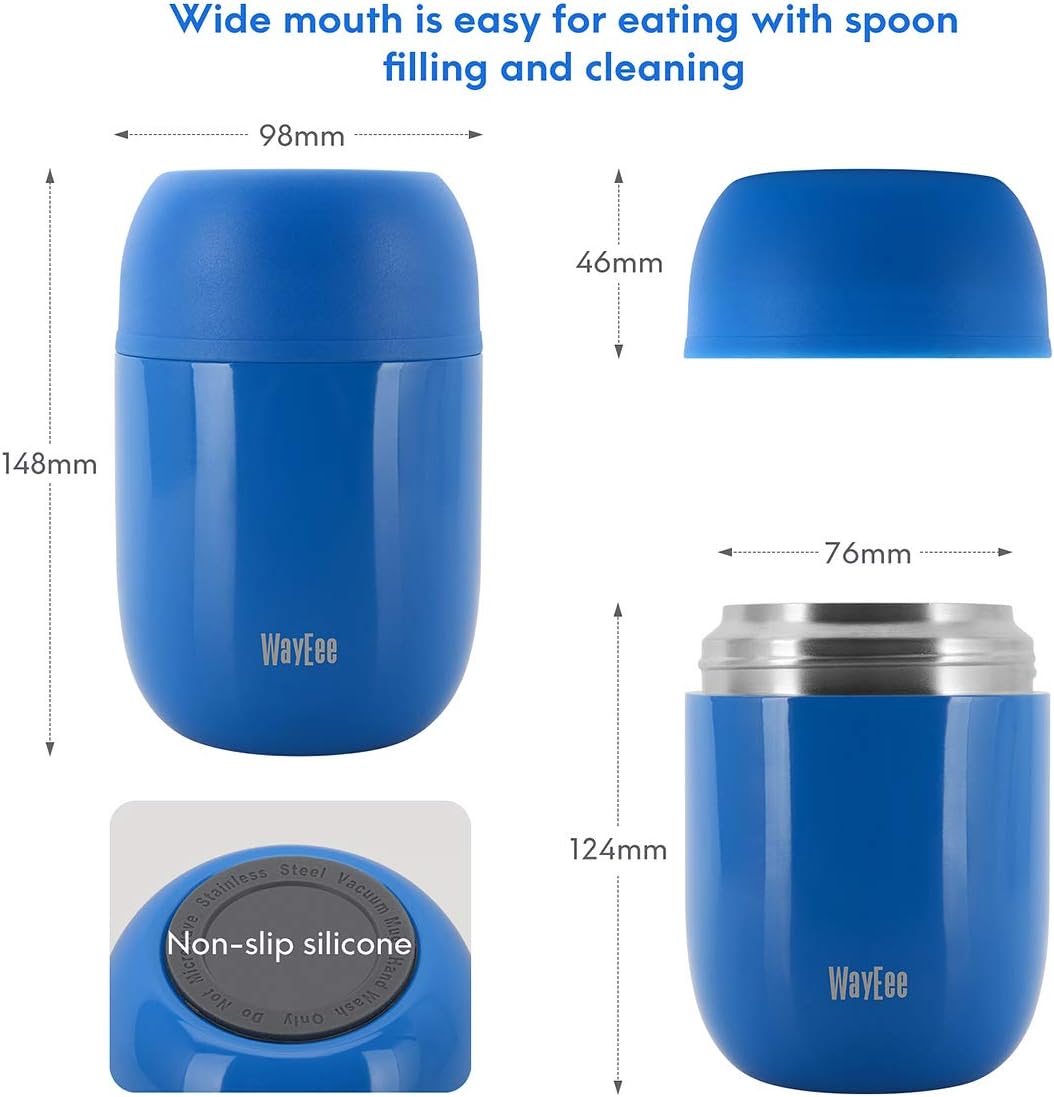

Figure 7: Product Dimensions. This image provides precise dimensions of the WayEee food jar, including its height, width, and the wide mouth opening, which facilitates easy filling, eating, and cleaning.

10. Warranty and Support

WayEee provides after-sales service for quality-related issues. For any problems you encounter or questions you may have regarding your WayEee 450ML Insulated Food Jar, please do not hesitate to contact WayEee customer service. Please refer to your purchase documentation for specific warranty terms and contact information.
