Bodytone DT18 Treadmill User Manual

1. Product Overview

The Bodytone DT18 Treadmill is designed to provide a professional-grade workout experience in the comfort of your home. It combines advanced engineering with an attractive design, maximizing your training sessions. Featuring integrated REACT technology, the running platform reduces joint strain by cushioning the impact of each stride. The unique orthopedic running belt is made from a dense, grippy material, ensuring comfort and stability during your run.

This treadmill boasts a powerful 3.5 HP DC motor, a maximum speed of 18 km/h, and electronic incline control with 15 positions. It includes a large LED display, integrated heart rate sensors, MP3 connectivity with high-definition speakers, and compatibility with the HK APP (available for Android and iOS).

Figure 1.1: Side view of the Bodytone DT18 Treadmill, showcasing its sleek design.

2. Setup and Assembly

The Bodytone DT18 Treadmill features a Plug&Train system, meaning it comes largely pre-assembled for quick and easy setup. Follow these steps for initial installation:

1. Unboxing: Carefully remove the treadmill from its packaging. It is recommended to have two people for this process due to the unit's weight (81 kg).
2. Placement: Choose a flat, stable surface for the treadmill. Ensure there is adequate space around the unit for safe operation and maintenance. The assembled dimensions are approximately 77 cm (width) x 114 cm (length) x 138 cm (height).
3. Unfolding (if applicable): If the treadmill is in a folded position for transport, carefully follow the instructions to unfold it. The folded dimensions are approximately 114 cm (length) x 77 cm (width) x 139 cm (height). The integrated transport wheels allow for easier movement before unfolding.
4. Power Connection: Connect the power cable to a suitable electrical outlet.
5. Safety Key: Ensure the safety key (often a red clip) is properly attached to the console and to your clothing during operation. The treadmill will not start without the safety key in place.

Figure 2.1: The treadmill's structure, highlighting its folding mechanism and robust frame.

Figure 2.2: Dimensions of the Bodytone DT18 Treadmill for proper space planning.

3. Operating Instructions

Familiarize yourself with the control panel and features before beginning your workout.

3.1 Control Panel and Display

The DT18 features a minimalist, super-equipped LED display. This display shows key workout metrics such as speed, time, distance, calories burned, and heart rate.

Figure 3.1: Front view of the treadmill, highlighting the LED control panel.

3.2 Starting a Workout

1. Step onto the treadmill belt.
2. Attach the safety key clip to your clothing.
3. Press the "Start" button on the console. The belt will begin to move at a low speed.
4. Adjust the speed using the speed control buttons (usually '+' and '-'). The maximum speed is 18 km/h.
5. Adjust the incline using the incline control buttons. The treadmill offers 15 electronic incline positions.

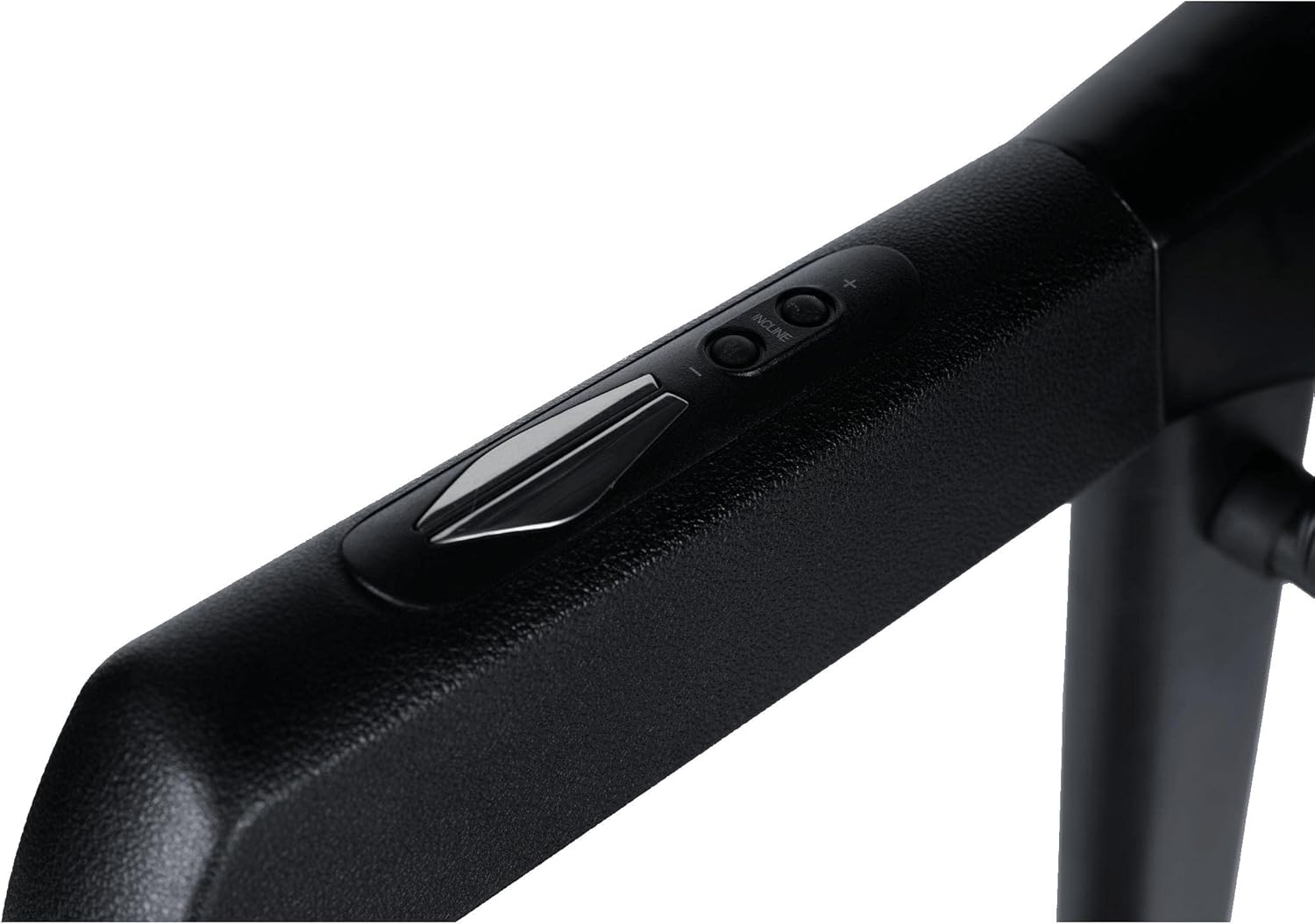

Figure 3.2: Close-up of the incline and speed adjustment buttons on the handrail.

3.3 Heart Rate Monitoring

Integrated heart rate sensors are located on the handlebars. Grip these sensors firmly to display your heart rate on the LED screen.

3.4 Multimedia Features

The treadmill includes MP3 connectivity and integrated high-definition speakers. Connect your device to enjoy music during your workout. It is also compatible with the HK APP, available for Android and iOS devices, which can enhance your training experience.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Bodytone DT18 Treadmill. The maximum recommended usage is 20 hours per week.

4.1 Running Belt Maintenance

The DT18 features a BODYTONE self-lubricating belt. This anti-static belt eliminates annoying small electrical discharges and self-lubricates to prevent irreparable damage to the motor. While self-lubricating, it is still advisable to periodically check the belt for any signs of wear or debris and clean it as needed.

4.2 General Cleaning

• After each use: Wipe down the console and handlebars with a soft, damp cloth to remove sweat and dust.
• Weekly: Vacuum underneath the treadmill to remove dust and debris that could accumulate and affect performance.
• Monthly: Inspect all bolts and screws to ensure they are tight. Retighten if necessary.

4.3 REACT Cushioning Technology

The integrated REACT cushioning technology adapts to each stride, reducing impact on joints. While this system is designed for durability, avoid placing heavy objects on the running deck when not in use.

Figure 4.1: Detail of the REACT cushioning system, designed to absorb impact.

5. Troubleshooting

If you encounter issues with your Bodytone DT18 Treadmill, refer to the following common troubleshooting tips:

• Treadmill does not power on:
  • Ensure the power cable is securely plugged into both the treadmill and the wall outlet.
  • Check the circuit breaker in your home.
  • Verify that the safety key is correctly inserted into the console.
• Belt stops or slips during use:
  • Check if the running belt requires lubrication (though it is self-lubricating, extreme conditions might warrant a check).
  • Ensure the belt tension is correct. Refer to the full manual for adjustment procedures if necessary.
  • Verify that the treadmill is on a level surface.
• Unusual noises:
  • Inspect the area around and under the belt for any foreign objects.
  • Check if any bolts or screws have become loose and tighten them.
• Display not working correctly:
  • Turn off the treadmill, unplug it, wait 60 seconds, then plug it back in and restart.
  • Ensure all cable connections to the console are secure.

For issues not resolved by these steps, please contact customer support.

6. Specifications

7. Warranty and Support

For detailed warranty information regarding your Bodytone DT18 Treadmill, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary by region and seller.

Should you require technical assistance, spare parts, or have any questions not covered in this manual, please contact BT BODYTONE customer support. You can often find contact information on the manufacturer's official website or through the point of purchase.

For more information about BT BODYTONE products, visit their official store: BT BODYTONE Store
