Introduction
This instruction manual provides important information regarding the installation, operation, and maintenance of your LotFancy SL06-07-11 6V Battery Charger. Please read this manual thoroughly before using the product to ensure safe and efficient charging of your 6V ride-on toy batteries. Retain this manual for future reference.
Product Overview
The LotFancy SL06-07-11 is a Class 2 power supply designed specifically for 6V lead-acid batteries commonly found in children's ride-on toys. It features a square-type plug connector and a 6-foot cable for convenient use. The charger incorporates multiple safety features and an indicator light to show charging status.
Image: The LotFancy SL06-07-11 6V Battery Charger, showing the main unit and its square-type output connector.
Safety Information
Your LotFancy charger is designed with safety in mind and is UL Listed and BC certified. It includes the following protection features:
- Over Voltage Output Protection: Prevents damage from excessive voltage.
- Over Current Output Protection: Safeguards against excessive current flow.
- Short Circuit Output Protection: Protects the charger and battery from short-circuit conditions.
Important Safety Warnings:
- Use this charger only for 6V lead-acid batteries.
- Ensure the charger is used in a dry location.
- Always check the compatibility and connector type before purchasing and using.
- Do not attempt to open or modify the charger.
- Keep out of reach of children.
Image: The charger displaying UL approval and symbols indicating short circuit, surge, and overcharging protection.
Setup & Installation
- Verify Compatibility: Before connecting, ensure your ride-on toy uses a 6V lead-acid battery and has a compatible square-type charging port. Compare the charger's connector with your old charger or the battery outlet.
- Connect to Power Outlet: Plug the charger's AC plug into a standard AC 120V wall outlet.
- Connect to Battery: Carefully connect the charger's square-type output plug to the charging port of your 6V ride-on toy battery. Ensure a secure connection.

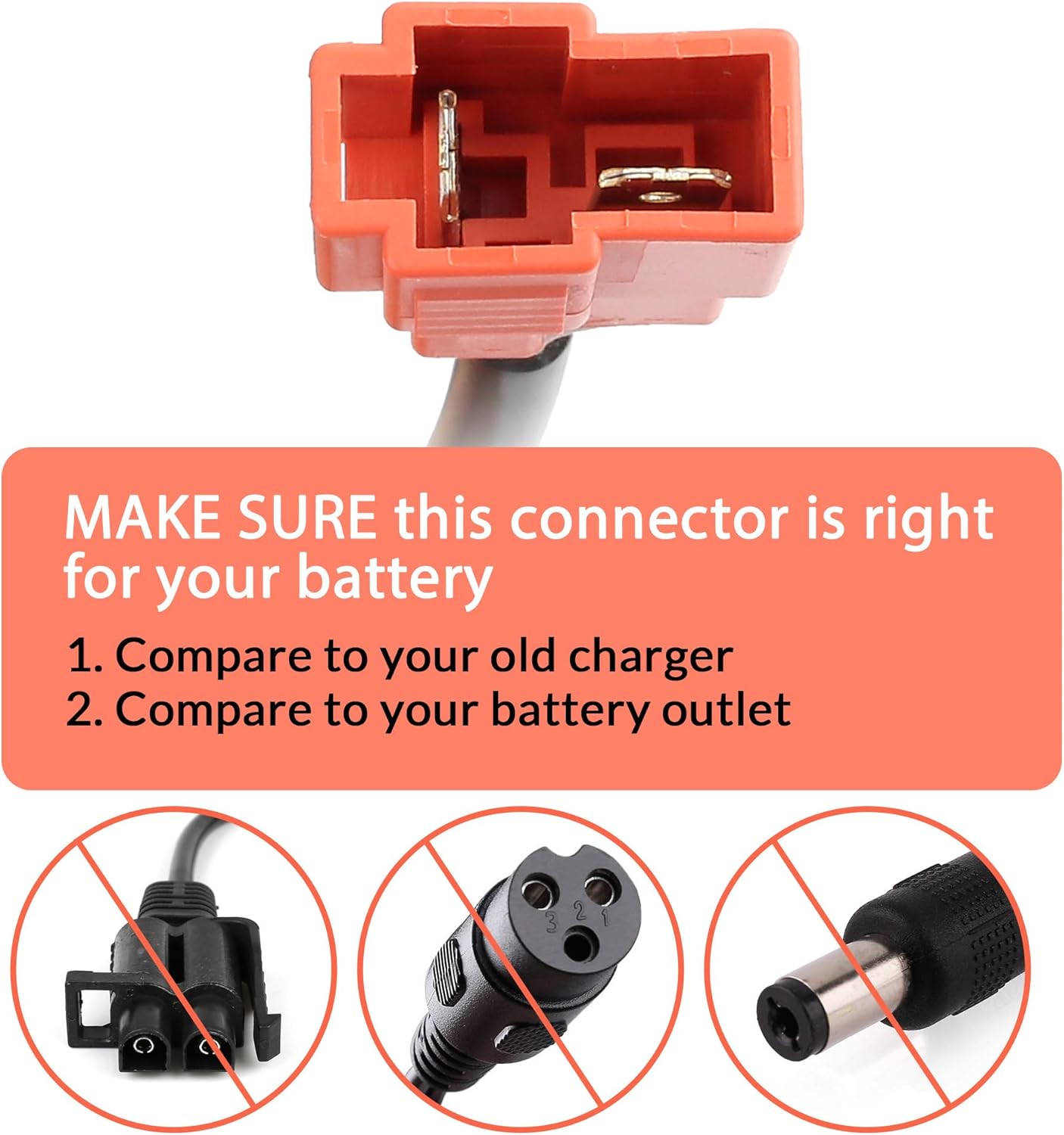

Image: Visual guide to ensure the square-type connector matches your battery, explicitly showing incompatible connector types.
Visual Guide for Connection
The following videos demonstrate the connection process for various ride-on toys. Please ensure your battery's polarity matches the charger's output. If polarity reversal is needed, use an SAE polarity reverse adapter (not included with this specific model, but shown in some videos for general understanding of polarity).
Video: Demonstrates connecting a 6V charger with an SAE connector to a ride-on car battery. Note: This charger uses a square-type plug, but the connection principle is similar.
Video: Shows the connection of a ride-on car charger with a red square-type plug, similar to the LotFancy charger.
Video: Illustrates the charging process for a 6V battery in a ride-on toy.
Video: A demonstration of using a 6V battery charger for a kids' ride-on car toy.
Operating Instructions
Once the charger is properly connected to both the wall outlet and the ride-on toy battery, the charging process will begin. Observe the indicator light on the charger:
- Red Light: Indicates that the battery is currently charging.
- Green Light: Indicates that the battery is fully charged.
Disconnect the charger from the battery and the wall outlet once the green light appears to prevent overcharging and prolong battery life.
Image: Close-up of the charger's indicator light, showing red for charging and green for fully charged.
Compatibility
This charger is compatible with many children's 6V ride-on cars that use a square-type plug connector. Known compatible brands and models include, but are not limited to:
- Kid Trax ride-on toys
- Rollplay ride-on toys
- Disney Princess Mickey Mouse Quad
- GMC Sierra
- Walmart Mossy Oak Quad
- VW Bus
- BMW X5
- Chevy Silverado Police Truck
Always verify the connector type and voltage requirements of your specific ride-on toy before use.
Image: The charger displayed alongside several types of 6V ride-on toys, illustrating broad compatibility.
Specifications
| Feature | Detail |
|---|---|
| Model Number | SL06-07-11 |
| Input | AC 120V 0.2A 50/60Hz |
| Output | 7.0V 0.8A |
| Connector Type | Square-Type Plug |
| Cable Length | 6 feet (approx. 1.8 meters) |
| Safety Certifications | UL Listed, BC Certified, EFFICIENCY VI |
| Protection Features | Over Voltage, Over Current, Short Circuit |
| Indication Light | Red (Charging), Green (Fully Charged) |
| Item Weight | 6.4 ounces |
| Package Dimensions | 6.3 x 2.8 x 2.5 inches |
Image: The charger highlighting its 6-foot cable length for extended reach.
Troubleshooting
- Charger Light Not On: Ensure the charger is securely plugged into a working wall outlet and the battery. Check if the wall outlet has power.
- Battery Not Charging (Light Remains Red for Extended Period): Verify that the battery is a 6V lead-acid type and that the connector is correctly inserted. The battery might be deeply discharged or faulty. Consult your ride-on toy's manual for battery-specific troubleshooting.
- Charger Light Stays Green Immediately: The battery may already be fully charged, or there might be an issue with the battery not accepting a charge.
- Incorrect Connector Fit: This charger uses a square-type plug. If your toy requires a different connector (e.g., round, two-prong), this charger is not compatible.
Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact LotFancy customer service directly. Keep your purchase receipt as proof of purchase.
