Retro-Bit Official SEGA Mega Drive USB 6-Button Controller Instruction Manual

Introduction

Thank you for purchasing the Retro-Bit Official SEGA Mega Drive USB 6-Button Controller. This controller is designed to provide an authentic classic gaming experience with modern compatibility. It features a classic 6-button layout, a durable 3-meter cable, and is officially licensed by SEGA.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your controller. Please read it thoroughly before use.

Image: Angled view of the Retro-Bit Official SEGA Mega Drive USB 6-Button Controller in clear blue.

Setup

Package Contents

• 1 x Retro-Bit Official SEGA Mega Drive USB 6-Button Controller

Connecting the Controller

1. Locate an available USB port on your compatible device (SEGA Mega Drive Mini, PC, Mac, Steam, PS3, or Nintendo Switch).
2. Insert the USB connector of the controller firmly into the USB port.
3. For most systems (e.g., Windows 10), the controller will be automatically detected as a 'USB Gamepad' without requiring additional drivers.
4. Once detected, the controller is ready for use.

Image: Close-up of the USB connector for the controller.

Compatibility

The Retro-Bit Official SEGA Mega Drive USB 6-Button Controller is compatible with the following platforms:

• SEGA Mega Drive Mini
• PC (Windows)
• Mac
• Steam
• PlayStation 3 (PS3)
• Nintendo Switch
• RetroPie
• Raspberry Pi

Operating Instructions

Controller Layout

Image: Top view of the controller, highlighting the D-pad, Start button, and six action buttons.

• Directional Pad (D-Pad): Located on the left, used for movement and menu navigation.
• Start Button: Red button in the center, typically used to pause games or confirm selections.
• Action Buttons (A, B, C, X, Y, Z): Six buttons on the right side for in-game actions.
• MODE Button: Located on the top right edge of the controller. This button is specifically designed for the SEGA Mega Drive Mini to return to the system menu.

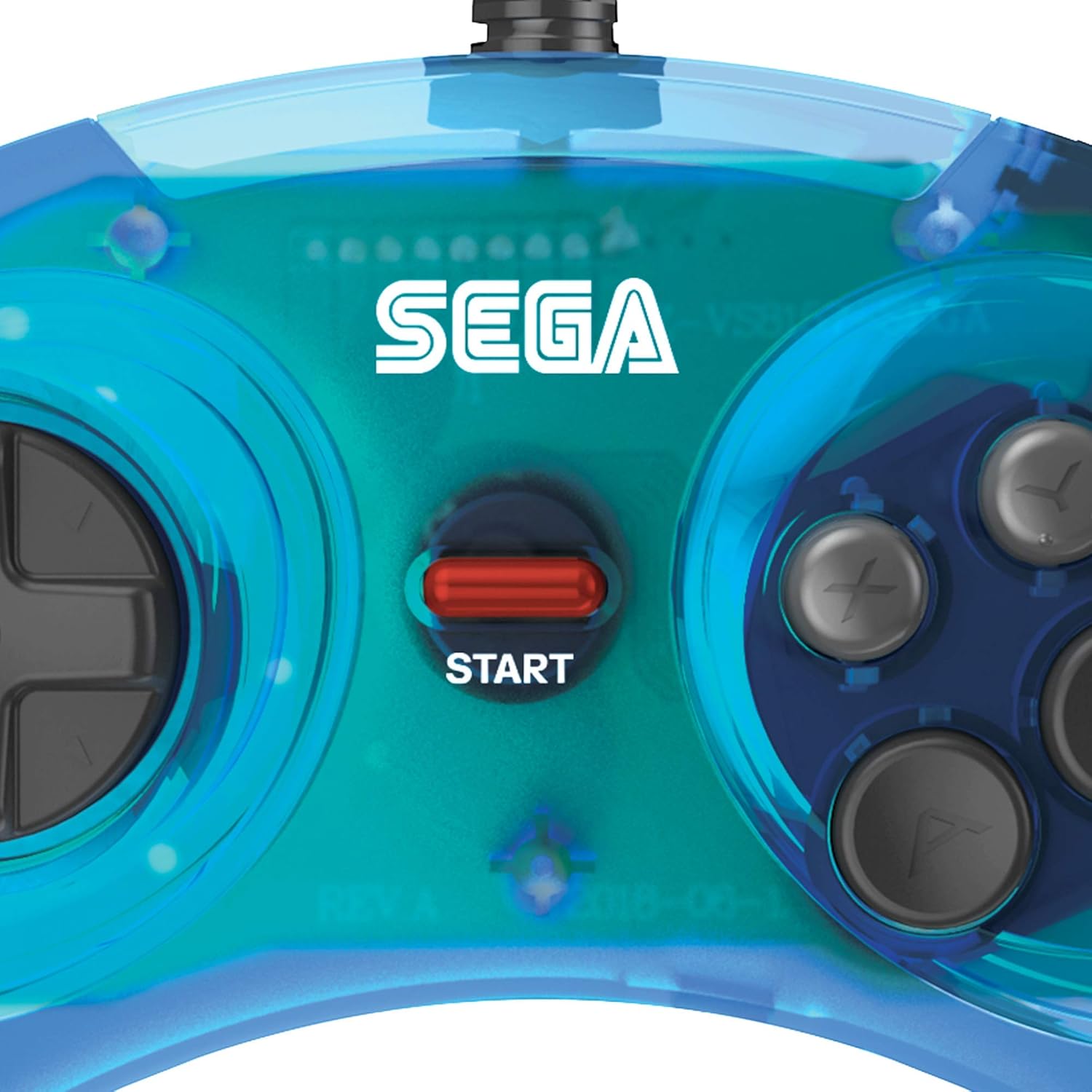

Image: Close-up of the SEGA logo and the red Start button.

Image: Close-up of the directional pad (D-pad).

Image: Close-up of the six action buttons (A, B, C, X, Y, Z).

General Usage

• Ensure the controller is securely connected to your device's USB port.
• For PC and Mac, you may need to configure controller settings within your game or emulator software.
• The controller is designed for optimal performance with classic 2D games that utilize a 6-button layout.
• The 3-meter cable provides ample length for comfortable gaming distances.

Maintenance

Cleaning

• To clean the controller, use a soft, dry cloth.
• For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive cleaners.
• Ensure no liquid enters the controller's internal components.

Storage

• Store the controller in a cool, dry place away from direct sunlight and extreme temperatures.
• Avoid wrapping the cable too tightly around the controller to prevent damage.

Troubleshooting

Controller Not Recognized

• Check USB Connection: Ensure the USB cable is fully inserted into the port on both the controller and the device. Try a different USB port.
• Restart Device: Sometimes, restarting your PC, Mac, or console can resolve recognition issues.
• Test on Another Device: If possible, test the controller on another compatible device to determine if the issue is with the controller or the original device.
• Check Device Manager (PC): On Windows, open Device Manager and look under 'Human Interface Devices' or 'Game Controllers' to see if the controller is listed. If there's a yellow exclamation mark, try updating or reinstalling the driver (though typically not required for this plug-and-play device).

Buttons Not Responding Correctly

• In-Game Settings: Verify that the controller is properly configured within the game or emulator settings. Some games may require manual button mapping.
• Calibration: On PC, you can often calibrate game controllers through the operating system's control panel or settings.
• Physical Inspection: Check for any visible debris or damage around the buttons.

Issues with Specific Game Platforms (e.g., Steam)

• Steam Big Picture Mode: For Steam, try launching games through Big Picture Mode and ensure controller support is enabled and configured.
• Emulator Configuration: When using emulators like Kega Fusion, ensure the controller's buttons are correctly mapped within the emulator's input settings.

Specifications

Warranty and Support

Warranty Information

Retro-Bit products typically come with a limited warranty. For specific details regarding the warranty period and terms for your controller, please refer to the warranty card included with your product or visit the official Retro-Bit website.

Customer Support

If you encounter any issues or have questions not covered in this manual, please contact Retro-Bit customer support. You can find contact information and additional resources on the official Retro-Bit website:

www.retro-bit.com/support
