Secura Ball Joint for MTD LE 135 13AH773E400 Lawn Tractor Steering Rod

1. Introduction

This manual provides essential information regarding the Secura replacement ball joint, designed for the steering rod of specific MTD ride-on lawn tractors. It covers product overview, compatibility, safety guidelines, installation procedures, functional description, maintenance tips, and specifications. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

The Secura ball joint is a critical component of your lawn tractor's steering system. It facilitates smooth and precise movement of the steering rod, allowing for effective control of the vehicle. This part is manufactured to meet the specifications required for compatible MTD models.

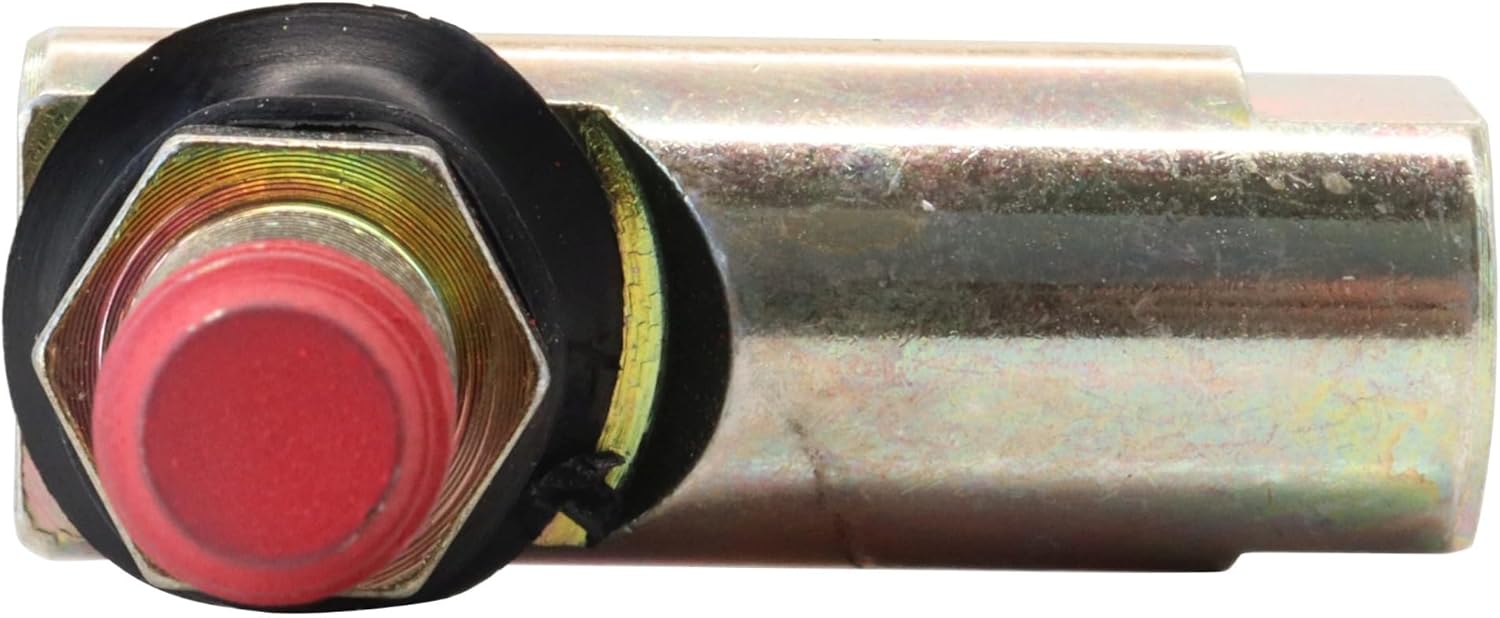

Figure 2.1: Side view of the Secura ball joint, showing the threaded shaft with a protective red cap and the main body.

Figure 2.2: Top view of the ball joint, illustrating the opening where the steering rod connects, and the hexagonal nut for secure fastening.

Figure 2.3: Angled view of the ball joint, providing a comprehensive look at its structure, including the pivot point and attachment mechanism.

3. Compatibility

This Secura ball joint is compatible with the following ride-on lawn tractor model:

• MTD LE 135 (Model Number: 13AH773E400)

It is specifically designed for models manufactured in the year 2008. Please verify your tractor's model number and manufacturing year before purchasing and installing this part. This is a replacement part and not an original equipment manufacturer (OEM) part.

4. Safety Instructions

Always prioritize safety when working with machinery. Failure to follow these instructions may result in injury or damage to equipment.

• Disconnect Power: Before performing any maintenance or installation, ensure the lawn tractor's engine is off, the spark plug wire is disconnected, and the parking brake is engaged.
• Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Secure the Tractor: Use jack stands or other stable supports to secure the tractor if lifting it. Never rely solely on a jack.
• Consult Tractor Manual: Refer to your MTD lawn tractor's original owner's manual for specific disassembly and assembly procedures related to the steering system.
• Professional Assistance: If you are unsure about any step, seek assistance from a qualified technician.
• Use Correct Tools: Ensure you have the correct tools for the job to prevent damage to the part or injury.

5. Installation

The following are general steps for replacing a ball joint on a steering rod. Specific procedures may vary depending on your MTD tractor model. Always consult your tractor's service manual for detailed instructions.

1. Preparation: Park the tractor on a level surface, engage the parking brake, turn off the engine, and disconnect the spark plug wire.
2. Access the Steering Rod: Depending on your tractor's design, you may need to remove panels or lift the front end to gain access to the steering rod and the existing ball joint.
3. Remove Old Ball Joint:
   • Loosen and remove any retaining nuts or cotter pins securing the old ball joint to the steering arm or spindle.
   • Use a ball joint separator tool or a suitable pry bar to carefully separate the ball joint from its connection point.
   • Unthread the old ball joint from the steering rod. Note the number of turns or measure the exposed thread to ensure the new ball joint is installed at a similar length for proper steering alignment.
4. Install New Ball Joint:
   • Thread the new Secura ball joint onto the steering rod. Ensure it is threaded to approximately the same position as the old one to maintain steering geometry.
   • Insert the ball joint stud into the steering arm or spindle.
   • Secure it with the appropriate washer, nut, and cotter pin (if applicable). Tighten the nut to the torque specifications provided in your tractor's manual.
5. Reassembly and Testing:
   • Reassemble any removed panels or components.
   • Reconnect the spark plug wire.
   • Start the tractor and slowly test the steering in a safe, open area. Check for smooth operation and proper alignment.

Important: Proper steering alignment is crucial for safe operation. If you notice any issues after installation, consult a professional.

6. Function and Operation

The ball joint acts as a flexible pivot point, connecting the steering rod to the steering arm or spindle. This connection allows the steering components to move freely while maintaining a secure link, enabling the wheels to turn left and right in response to steering wheel input. A properly functioning ball joint ensures responsive and accurate steering control for your lawn tractor.

7. Maintenance

Regular inspection of your lawn tractor's steering components, including the ball joint, is recommended to ensure safe and efficient operation.

• Visual Inspection: Periodically check the ball joint for signs of wear, damage, or corrosion. Look for cracks in the rubber boot, excessive play, or loose connections.
• Lubrication: If the ball joint is equipped with a grease fitting (zirc fitting), lubricate it according to your tractor's maintenance schedule using appropriate grease. This particular ball joint does not appear to have a grease fitting, indicating it is likely a sealed unit.
• Tightness Check: Ensure all nuts and bolts associated with the steering linkage are securely tightened.
• Replacement: Replace the ball joint immediately if any signs of significant wear, damage, or excessive play are detected. A worn ball joint can compromise steering control and safety.

8. Troubleshooting

If you experience steering issues after installing or during operation, consider the following:

• Loose Steering: Excessive play in the steering wheel or difficulty maintaining a straight line may indicate a worn ball joint or other loose steering components. Inspect the ball joint for movement.
• Noisy Steering: Squeaking, clunking, or grinding noises during steering can be a symptom of a failing ball joint or lack of lubrication in other steering parts.
• Stiff Steering: While less common for a ball joint, stiff steering could indicate binding in the steering linkage, potentially due to a seized ball joint or other components.
• Improper Alignment: If the steering wheel is not centered or the tractor pulls to one side after installation, the ball joint may not have been threaded to the correct length, or other alignment issues exist.

Note: Always address steering issues promptly. A faulty steering system can lead to loss of control and serious accidents.

9. Specifications

10. Warranty and Support

As this is a replacement part, specific warranty information should be obtained directly from the retailer or Secura, the manufacturer of this part. Please retain your proof of purchase for any warranty claims. For technical support or further inquiries, please contact the Secura customer service department.
