ARCANE INDUSTRIES REVEPOXY AL Self-Leveling Epoxy Resin Floor Paint

1. Product Overview

The ARCANE INDUSTRIES REVEPOXY AL is a two-component, self-leveling epoxy resin floor paint designed for interior applications. This product provides a highly durable, smooth, and seamless finish, offering superior resistance to chemical agents and heavy mechanical traffic compared to standard paints. It is ideal for various interior surfaces requiring significant hygiene and regular maintenance, such as workshops, garages, warehouses, showrooms, and other industrial or commercial spaces.

This specific product is a 5 kg unit in Beige (RAL 1001).

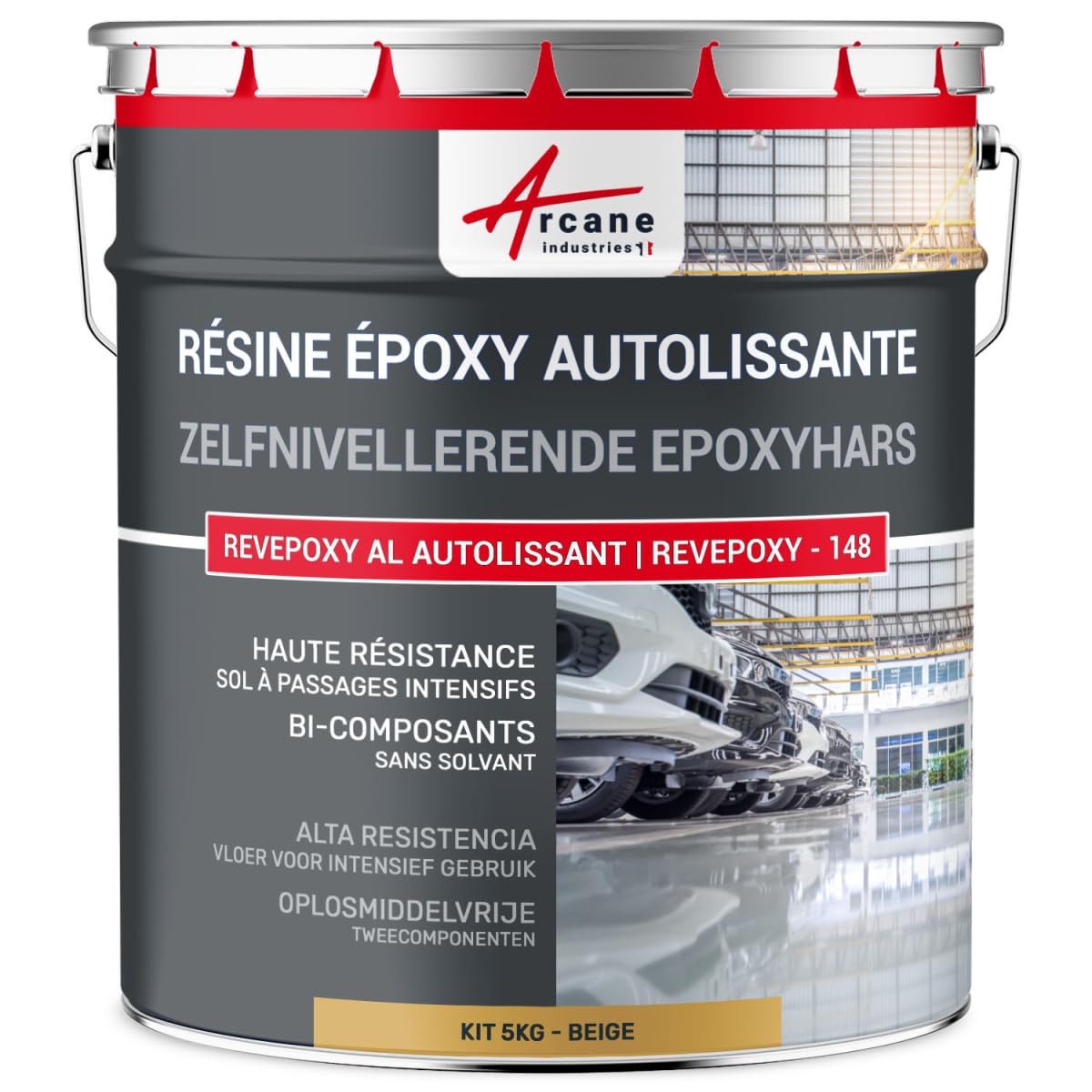

Image 1.1: ARCANE INDUSTRIES REVEPOXY AL 5 kg Beige RAL 1001 Epoxy Resin Floor Paint container. This image shows the product packaging, indicating the brand, product type, weight, and color code.

Key Features:

• Self-leveling formula for smooth, even application.
• High resistance to chemical and mechanical stress, suitable for heavy traffic.
• Covers surface imperfections depending on applied thickness.
• Facilitates easy cleaning and maintenance.
• Solvent-free and two-component system.
• Seamless finish.
• Manufactured in France by ARCANE INDUSTRIES.

2. Safety Information

Always read and understand the safety data sheet (SDS) before using this product. Wear appropriate personal protective equipment (PPE), including gloves, eye protection, and respiratory protection, especially in poorly ventilated areas. Ensure adequate ventilation during application and curing. Avoid contact with skin and eyes. In case of contact, rinse immediately with plenty of water and seek medical advice. Keep out of reach of children and pets. Dispose of waste materials according to local regulations.

3. Surface Preparation

Proper surface preparation is crucial for optimal adhesion and performance of the epoxy resin. The surface must be clean, dry, sound, and free from dust, grease, oil, paint, and any other contaminants.

• Cleaning: Thoroughly clean the floor using a suitable degreaser. Rinse with clean water and allow to dry completely.
• Repair: Repair any cracks, holes, or damaged areas in the substrate before application.
• Grinding/Sanding: For very smooth or sealed surfaces, light grinding or sanding may be necessary to create a profile for better adhesion.
• Priming: Apply ARCANE INDUSTRIES REVEPOXY FIXATEUR primer to both porous and non-porous surfaces. Allow the primer to dry according to its specific instructions before applying the self-leveling epoxy.
• Moisture: Ensure the substrate's moisture content is within acceptable limits for epoxy application.

Important Note: This product is not compatible with anhydrite screeds.

4. Mixing Instructions

REVEPOXY AL is a two-component product (Component A and Component B) that must be thoroughly mixed before use. Follow these steps carefully:

1. Ensure both components are at room temperature (15-25°C) for at least 24 hours prior to mixing.
2. Pour the entire contents of Component B (hardener) into the container of Component A (resin).
3. Mix thoroughly using a low-speed drill with a mixing paddle for 3-5 minutes. Scrape the sides and bottom of the container to ensure all material is fully incorporated.
4. Once mixed, the product has a limited pot life. Work quickly and efficiently.

5. Application

Apply the mixed REVEPOXY AL within its pot life, typically around 30 minutes, depending on temperature and humidity.

• Tools: Use a stainless steel trowel, a notched trowel, or a spiked roller (débulleur) for application.
• Pouring: Pour the mixed epoxy directly onto the prepared and primed floor in manageable sections.
• Spreading: Spread the epoxy evenly across the surface using a trowel to achieve the desired thickness. The self-leveling properties will help create a smooth finish.
• De-aeration: Immediately after spreading, use a spiked roller to de-aerate the epoxy. This helps release trapped air bubbles and ensures a perfectly smooth, mirror-like finish. Roll in multiple directions.
• Multiple Coats: If multiple coats are desired for increased thickness or specific effects, ensure proper drying and recoat times are observed between layers.

6. Drying and Curing

Drying and curing times are dependent on ambient temperature and humidity. Higher temperatures generally accelerate the process, while lower temperatures slow it down.

• Light Foot Traffic: Typically possible after 24-48 hours.
• Full Curing Time: The product achieves its full chemical and mechanical resistance after approximately 36 hours. Avoid heavy traffic, chemical exposure, or placing heavy objects on the floor until full cure is reached.

7. Maintenance

Once fully cured, the REVEPOXY AL floor is easy to maintain:

• Regular Cleaning: Sweep or vacuum regularly to remove loose dirt and debris.
• Wet Cleaning: Mop the floor with a mild, pH-neutral cleaner and water. Avoid harsh abrasive cleaners or strong solvents, which can damage the epoxy surface.
• Spills: Clean up spills immediately to prevent staining, especially acidic or corrosive substances.

Tool Cleaning:

Clean all tools immediately after use with an appropriate Epoxy thinner. Once the product has cured on tools, it will be very difficult to remove.

8. Troubleshooting

9. Specifications

• Brand: ARCANE INDUSTRIES
• Model Number: 148_25984
• Product Type: Self-Leveling Epoxy Resin Floor Paint
• Color: Beige (RAL 1001)
• Size: 5 kg
• Finish Type: Smooth, Glossy
• Application Area: Interior floors
• Recommended Surfaces: Concrete, Resin (after priming)
• Waterproof: Yes
• Full Curing Time: 36 hours
• Country of Origin: France
• Shipping Weight: Approximately 9.88 kg (for the 5 kg product unit)

10. Warranty and Support

For specific warranty information, please refer to the documentation provided with your purchase or contact ARCANE INDUSTRIES directly. For technical support, product inquiries, or assistance with application, please visit the official ARCANE INDUSTRIES website or contact their customer service department.

Note: No official product videos were available in the provided data for embedding in this manual.
