1. Introduction
This instruction manual provides essential information for the proper installation and maintenance of your Wadoy ME16K3000AS microwave door handle replacement. Please read this manual thoroughly before proceeding with installation to ensure safe and correct usage. This replacement handle is designed for specific Samsung microwave models.
Image 1.1: The Wadoy ME16K3000AS replacement handle shown alongside a compatible microwave oven.
2. Product Overview
The Wadoy ME16K3000AS is a durable replacement door handle for various Samsung microwave ovens. It is constructed from high-quality materials to ensure longevity and a secure fit. The handle features a smooth silver-colored surface and a robust internal buckle mechanism for attachment.
Image 2.1: Front view of the Wadoy ME16K3000AS replacement microwave door handle.

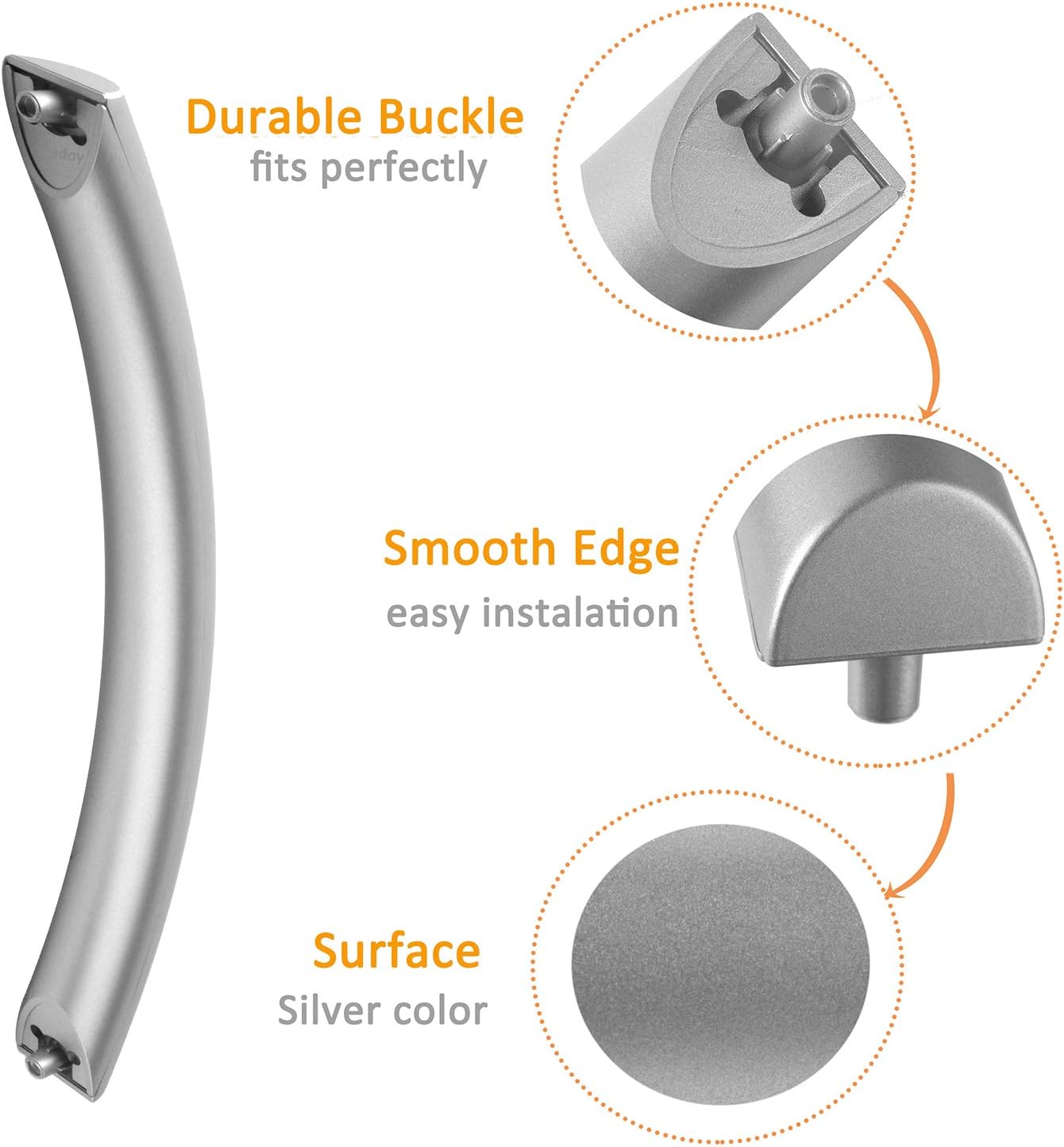

Image 2.2: Exploded view showing the durable buckle, smooth edge, and silver surface of the handle.
3. Compatibility
This replacement door handle is compatible with the following Samsung microwave models and part numbers:
- ME16K3000AS
- DE94-02409C
- SMH1611SE
- SMH1816S
- SMH1713S
- ME26K3000AS
- SMH1622S
- ME18H704SFS
- SMH1926S
- SMH1622W
Please verify your microwave's model number before purchasing and installing to ensure proper fitment.
4. Safety Information
Always prioritize safety when performing any appliance repair. Follow these guidelines:
- Disconnect Power: Before beginning any installation or repair, ensure the microwave oven is unplugged from the electrical outlet to prevent electric shock.
- Use Appropriate Tools: Use only the necessary tools for the job to avoid damage to the appliance or injury.
- Handle with Care: Microwave components can have sharp edges. Wear protective gloves if necessary.
- No Internal Component Disturbance: This installation involves only external components. Do not attempt to open the microwave's internal casing or tamper with electrical components.
5. Installation Instructions
Follow these steps to replace your microwave door handle:
- Prepare for Installation: Ensure the microwave oven is unplugged from the power source. Gather a screwdriver (typically Phillips head) and your new Wadoy replacement handle.
- Remove the Old Handle: The microwave door handle is typically secured by two screws located on the inside edge of the door, often concealed by a trim piece. Carefully locate and remove this trim piece. It may snap off by gently pushing inwards towards the center of the door.
- Unscrew the Old Handle: Once the trim piece is removed, you will see two screws holding the old handle in place. Use a screwdriver to carefully remove these screws. Keep the screws as they will be reused for the new handle.
- Remove the Old Handle: With the screws removed, the old handle can now be detached from the microwave door.
- Attach the New Handle: Align the new Wadoy replacement handle with the screw holes on the microwave door. Insert the original screws through the handle and into the door, tightening them securely but without over-tightening.
- Reattach Trim Piece: Snap the trim piece back into its original position, ensuring it is securely fastened.
- Test the Handle: Gently open and close the microwave door a few times to ensure the new handle is firmly attached and operates correctly.
- Restore Power: Plug the microwave oven back into the electrical outlet.
Image 5.1: The backside of the handle, illustrating the secure fitment points.
Image 5.2: The replacement handle correctly installed on a microwave door.
6. Maintenance
To maintain the appearance and functionality of your Wadoy microwave door handle:
- Cleaning: Wipe the handle regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Inspection: Periodically check the handle for any signs of loosening or damage. If the handle becomes loose, gently tighten the screws (after unplugging the microwave) to ensure a secure fit.

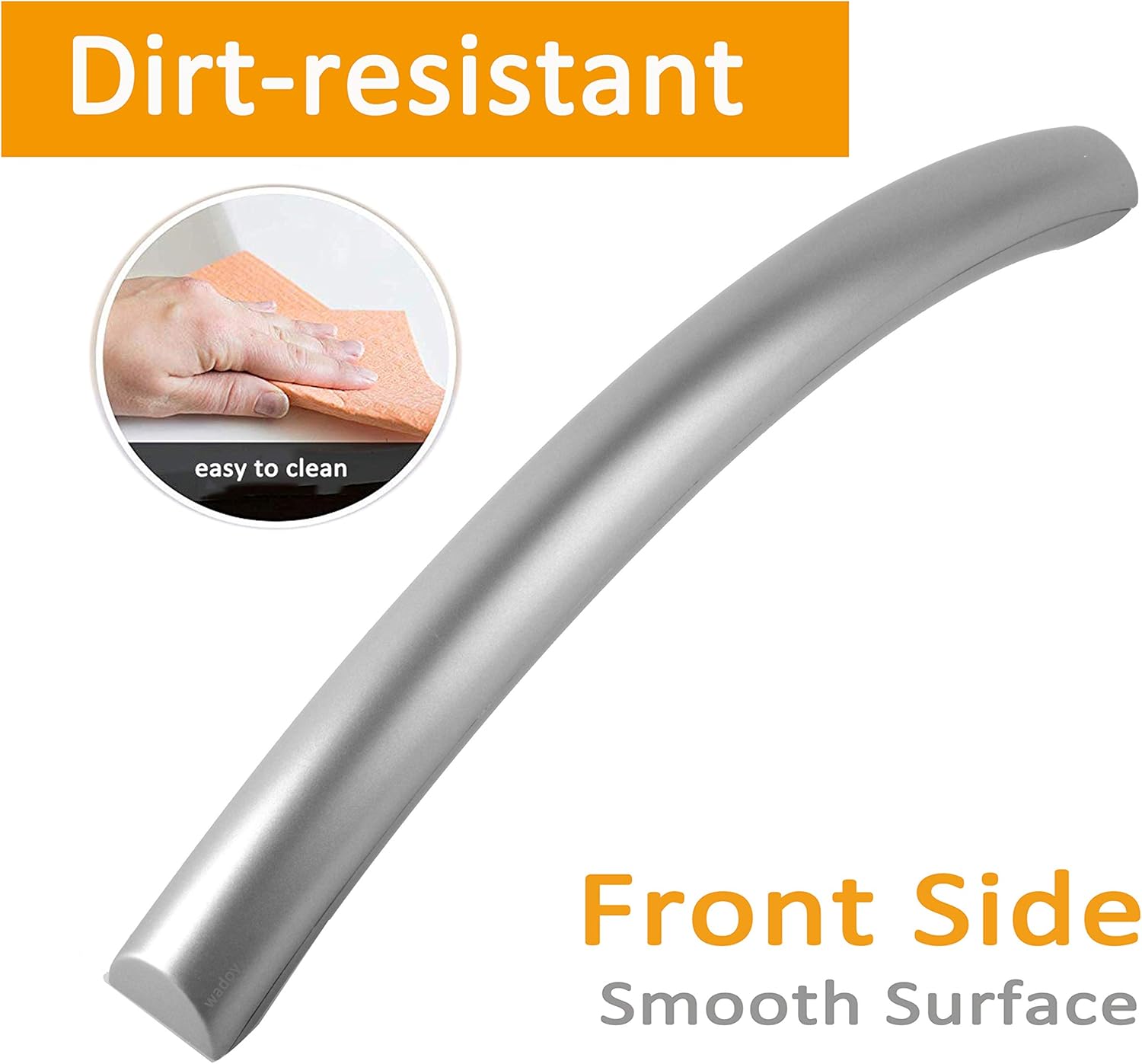

Image 6.1: Cleaning the handle with a soft cloth to maintain its appearance.
7. Troubleshooting
If you encounter issues with your replacement handle, consider the following:
- Handle Does Not Fit: Double-check that your microwave model number is listed in the compatibility section (Section 3). If it is not, the handle may not be compatible.
- Handle Feels Loose: Ensure the screws holding the handle are tightened securely. If the issue persists, inspect the internal buckle mechanism for any damage.
- Difficulty Removing Trim Piece: Refer to online resources or videos specific to your microwave model for detailed instructions on safely removing the door trim.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | ME16K3000AS |
| Brand | Wadoy |
| Compatible Part Numbers | DE94-02409C, 2309804, AP5578389, EAP4239119, PS4239119 |
| Handle Length | Approximately 12.2 inches (31 cm) |
| Material | High-quality plastic (simulated stainless steel finish) |
| Color | Silver |
| Item Weight | Approximately 2.39 ounces |
Image 8.1: Key dimensions of the replacement handle.
9. Warranty and Support
For information regarding warranty coverage or technical support, please refer to the original purchase documentation or contact Wadoy customer service directly. Contact details can typically be found on the product packaging or the seller's official website.
