MG PRIME Car Paint Kit User Manual

Introduction

This manual provides detailed instructions for the proper use and application of the MG PRIME Car Paint Kit. This kit includes a base coat, a 2K clear coat, and a hardener, specifically formulated for Bentley vehicles with color code LO5B Meteor Metallic. Adhering to these instructions will ensure optimal results and durability.

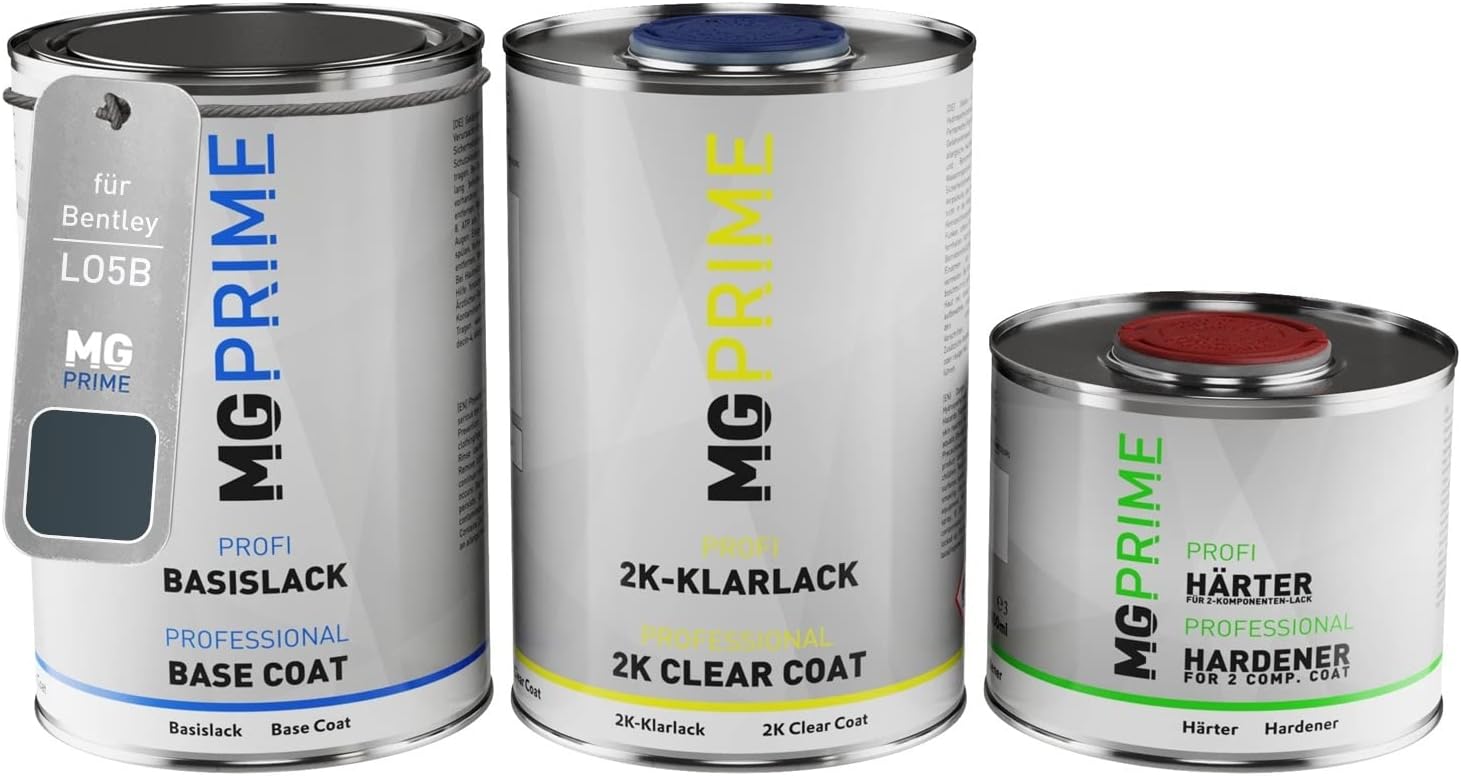

Image: The MG PRIME Car Paint Kit, featuring the base coat, 2K clear coat, and hardener cans.

Product Components

The MG PRIME Car Paint Kit includes the following components:

• 1000 ml / 1 Liter Base Coat Can: Ready-to-use base coat for Bentley LO5B Meteor Metallic.
• 1000 ml / 1 Liter 2K Glossy Clear Coat Can: For a durable, high-gloss finish.
• 500 ml / 0.5 Liter Hardener Can: For use with the clear coat.

Image: A detailed view of the MG PRIME Professional Base Coat can.

Image: A detailed view of the MG PRIME 2K Clear Coat can.

Setup and Preparation

1. Surface Preparation: The surface to be painted must be free of dust, dry, and grease-free. If necessary, clean the surface thoroughly with a silicone remover.
2. Temperature: The target object should have a temperature between 20°C and 25°C for optimal application and drying.
3. Shake Well: Before use, shake and stir the base coat can thoroughly. The paint is ready for spraying and does not need to be diluted.
4. Primer (if applicable): If a primer is included or required for your specific application (e.g., plastic parts), apply it first and allow it to dry completely before proceeding with the base coat.

Image: Label on the base coat can, indicating the color code LO5B Meteor Metallic for Bentley.

Operating Instructions: Application

Base Coat Application

1. Initial Spray: Lightly spray the object with the ready-to-use base coat and allow it to flash off for 30 minutes.
2. Full Coverage: After the initial flash-off, apply 1-2 layers of base coat until full coverage is achieved.
3. Drying: After the last color application, allow the base coat to dry completely (approximately 60 minutes). The drying time depends heavily on the object and ambient temperature. The base coat surface must be completely matte when dry.

Image: Detailed instructions for base coat application.

Clear Coat Application

1. Mix Clear Coat and Hardener: Mix 2 parts clear coat with 1 part hardener (mixing ratio 2:1).
2. Apply Clear Coat: Apply the mixed clear coat following the same procedure as the base coat.
3. Coverage: 1000 ml of clear coat is sufficient for approximately 3.0 sq m.
4. Sealing: After the last clear coat application, the paint must be sealed with 1K or 2K clear coat.

Image: Detailed instructions for clear coat application.

Maintenance and Care

Once the paint has fully cured, it is designed to be highly durable. To maintain the finish:

• Regularly wash the painted surface with mild automotive soap and water.
• Avoid abrasive cleaners or harsh chemicals that could damage the clear coat.
• For long-term protection, consider applying a high-quality car wax or sealant periodically.
• Protect the painted surface from prolonged exposure to extreme weather conditions when possible.

Troubleshooting

Common issues and their potential solutions:

Specifications

Image: Diagram illustrating the typical paint layer structure and approximate thicknesses.

VOC Regulations Compliance

By purchasing this product, you acknowledge compliance with VOC Regulation 2004/42/EC or 199/13/EC.

Warranty and Support

For warranty information and customer support, please contact the manufacturer, MG Colors GmbH, directly. Refer to the product packaging or the seller's information on the purchase platform for specific contact details.

Manufacturer: MG Colors GmbH

First Available: May 11, 2019

For further assistance, please visit the MG PRIME brand page on Amazon.
