1. Introduction
Thank you for choosing the GENERAL TRADE Portable Gas Stove 1500W, Model 506200. This instruction manual provides important information for the safe and efficient use of your new portable gas stove. Please read this manual thoroughly before operating the appliance and keep it for future reference.
2. Safety Information
WARNING: Failure to follow these instructions may result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.
- For outdoor use only. Do not operate this appliance indoors or in an enclosed space.
- Always operate on a firm, level surface.
- Keep children and pets away from the stove during operation.
- Do not leave the operating stove unattended.
- Ensure adequate ventilation.
- Check for gas leaks regularly using a soapy water solution. Never use a flame to check for leaks.
- Use only the specified gas cartridges (Campingaz CV300 plus and CV470 plus).
- Do not modify the appliance.
- Allow the stove to cool completely before handling or storing.
3. Product Overview
The GENERAL TRADE Portable Gas Stove 1500W is a robust and efficient single-burner stove, ideal for camping, backpacking, and outdoor gatherings. It features a compact and lightweight design with instant piezo ignition for convenience.

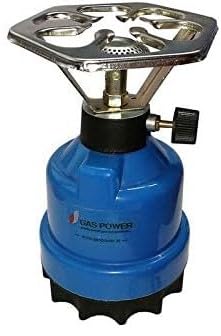

Image 1: GENERAL TRADE Portable Gas Stove 1500W Model 506200. A compact blue and silver portable gas stove with a single burner, designed for outdoor use. It features foldable pot supports and a control knob for gas flow.
Product Features:
- Robust and Efficient: Powerful single burner with 1500W output.
- Easy to Use: Functions with Campingaz CV300 plus and CV470 plus gas cartridges, which are quick to replace even if not completely empty, thanks to the patented Campingaz EasyClic system.
- Compact Design: Lightweight and portable, with instant piezo ignition (no lighter or matches needed). Includes a thermal shield for protection during control knob use.
Product Videos:
Product Summary
Video 1: This video provides a brief overview of the GENERAL TRADE Portable Gas Stove, highlighting its key features and compact design.
How to Use the Product
Video 2: This video demonstrates the step-by-step process of setting up and operating the GENERAL TRADE Portable Gas Stove, including connecting the gas cartridge and igniting the burner.
Practical Product Illustration
Video 3: This video offers a practical demonstration of the GENERAL TRADE Portable Gas Stove in use, showing its stability and flame control during cooking.
4. Package Contents
The package for your GENERAL TRADE Portable Gas Stove 1500W includes:
- GENERAL TRADE Portable Gas Stove 1500W (Model 506200)
- Carrying case (valigetta)
- Instruction Manual
Note: Gas cartridges are sold separately.
5. Setup
- Unpack: Carefully remove the stove and all components from the packaging.
- Choose Location: Select a flat, stable, and well-ventilated outdoor area away from flammable materials.
- Unfold Pot Supports: Gently unfold the pot supports until they are fully extended and locked into place.
- Connect Gas Cartridge: Ensure the control knob is in the OFF position. Align the gas cartridge (Campingaz CV300 plus or CV470 plus) with the stove's connection point. Push and twist the cartridge until it clicks securely into place using the EasyClic system. Do not overtighten.
- Check for Leaks: Apply a soapy water solution to the gas cartridge connection. If bubbles appear, there is a leak. Immediately turn off the gas, disconnect the cartridge, and re-connect it. If the leak persists, do not use the stove and contact customer support.
6. Operating Instructions
- Prepare for Ignition: Place your cooking pot or pan on the unfolded pot supports.
- Ignite the Stove: Slowly turn the control knob counter-clockwise to release a small amount of gas. Simultaneously, press the piezo ignition button. You should hear a click and see the flame ignite.
- Adjust Flame: Once ignited, adjust the flame to your desired intensity by turning the control knob.
- Turn Off: To turn off the stove, turn the control knob clockwise until the flame extinguishes completely.
- Disconnect Gas Cartridge (Optional): If you need to store the stove or replace the cartridge, ensure the stove is completely cool. Then, twist the cartridge counter-clockwise to release it from the EasyClic system.
7. Maintenance
- Cleaning: After each use, ensure the stove is completely cool. Wipe down the burner and pot supports with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners.
- Storage: Store the stove in its carrying case in a cool, dry place, away from direct sunlight and heat sources. Ensure the gas cartridge is disconnected if storing for an extended period.
- Inspection: Periodically inspect the gas connection and hose (if applicable) for any signs of wear, damage, or leaks.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stove does not ignite | No gas flow, empty cartridge, faulty piezo igniter | Ensure gas cartridge is correctly connected and not empty. Check if gas is flowing by listening for a hiss. If piezo fails, use a long-stem lighter. |
| Weak or inconsistent flame | Low gas level, partially blocked burner, cold cartridge | Replace gas cartridge. Clean burner head. Warm the gas cartridge slightly (e.g., by holding it in your hands, never with direct heat). |
| Gas leak detected | Loose connection, damaged seal | Immediately turn off gas. Disconnect and re-connect cartridge. Check seals for damage. If leak persists, discontinue use and seek professional help. |
9. Specifications
- Brand: GENERAL TRADE
- Model: 8015361122898 (also identified as 506200)
- Power Output: 1500W
- Fuel Type: Butane
- Power Source: Gas
- Boil Time (1 liter): Approximately 3 minutes 45 seconds
- Weight: 274 g
- Ignition: Piezo ignition
- Compatibility: Campingaz CV300 plus and CV470 plus gas cartridges
10. Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
