Mopar P5160095AC Jeep Wrangler Winch Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Mopar P5160095AC Jeep Wrangler Winch. This genuine OEM part is designed for robust performance and durability. Please read this manual thoroughly before using the product.

2. Safety Information

Always prioritize safety when operating the winch. Failure to follow these instructions may result in serious injury or property damage.

• Read all instructions: Understand the winch's operation and limitations before use.
• Wear appropriate safety gear: Always wear heavy-duty gloves and eye protection.
• Keep clear: Ensure all bystanders are at a safe distance from the winch and cable during operation.
• Inspect before use: Check the winch, rope, and all connections for damage or wear before each use.
• Do not overload: Never exceed the winch's rated pulling capacity.
• Avoid sharp edges: Protect the synthetic rope from sharp objects or abrasive surfaces.
• Secure vehicle: Always engage the parking brake and block the wheels of the vehicle being winched.
• Maintain control: Use short, controlled pulls. Avoid sudden jerks.
• Electrical safety: Ensure all electrical connections are secure and free from corrosion.

3. Package Contents

Verify that all components are present and undamaged upon unpacking.

• Winch drum assembly
• Warn Spider Synthetic Rope (100 feet)
• Hawse Fairlead
• Remote control with built-in flashlight and 12-foot lead
• Installation hardware (fasteners treated with anti-corrosive Magi 565 coating)

4. Setup and Installation

Proper installation is crucial for the safe and reliable operation of your winch. It is recommended that installation be performed by a qualified technician.

1. Mounting Kit Requirement: A specific winch mounting kit is required for installation on Ram 2500-3500 and Jeep® Wrangler vehicles. Ensure you have the correct kit for your vehicle model.
2. Bumper End Caps: This winch should be paired with the Front Bumper End Caps (P/N 82215115AB) to maintain equivalent airbag performance on compatible vehicles. Consult your vehicle's manual for specific requirements.
3. Positioning: Securely mount the winch to the designated winch plate or bumper using the provided hardware. Ensure all fasteners are tightened to the manufacturer's specifications.
4. Electrical Connections: Connect the winch to the vehicle's electrical system according to the wiring diagram provided with your mounting kit. Ensure all connections are clean, tight, and protected from environmental elements.
5. Rope Installation: Carefully spool the Warn Spider Synthetic Rope onto the winch drum, ensuring it is evenly wound under light tension.
6. Fairlead Attachment: Install the Hawse Fairlead, ensuring the synthetic rope passes smoothly through it without obstruction.

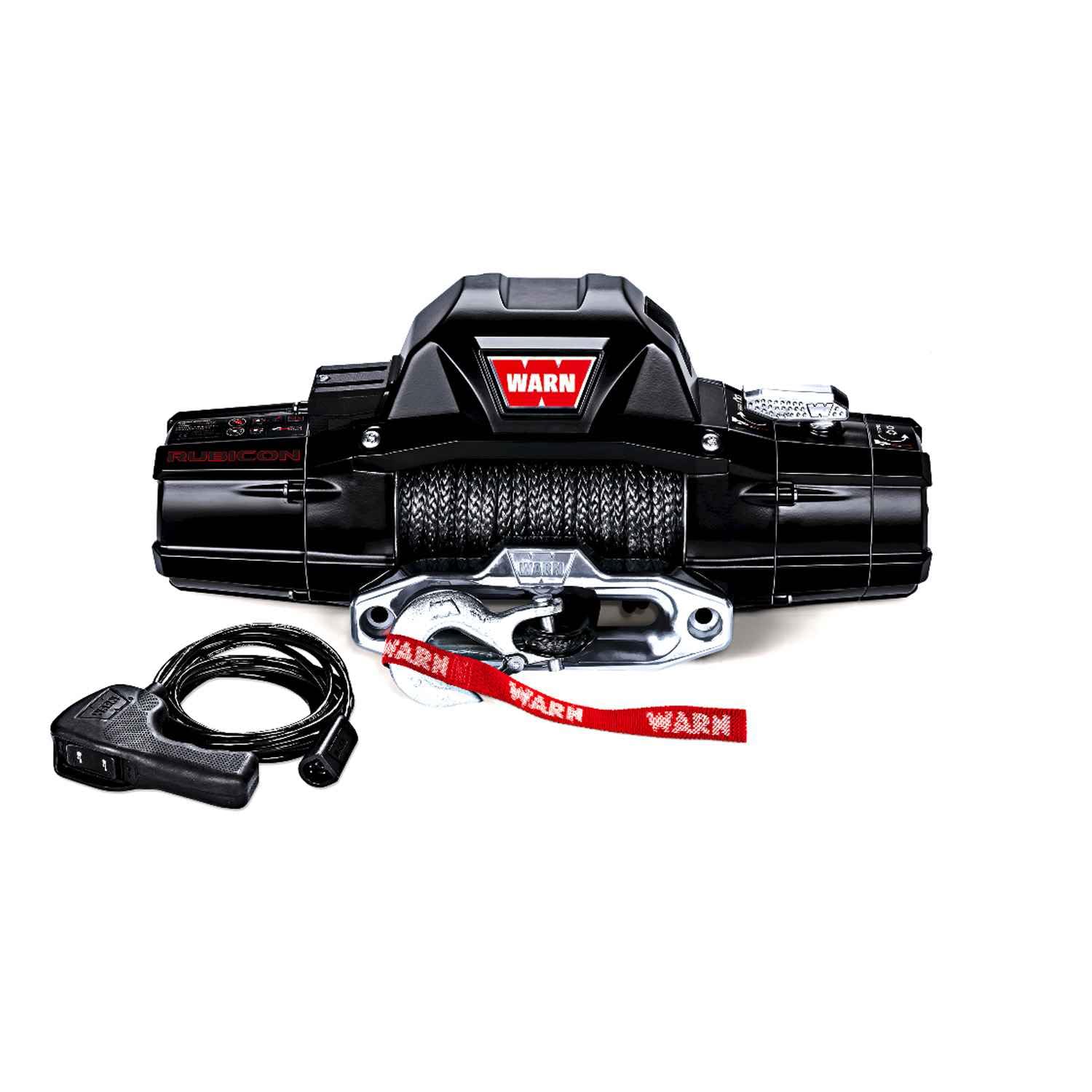

Image 1: Mopar P5160095AC Jeep Wrangler Winch. This image shows the winch assembly, highlighting its robust construction and integration into a vehicle's front bumper.

5. Operating Instructions

Follow these steps for safe and effective winch operation.

1. Prepare the Area: Clear the area around the vehicle and the winching path of any obstructions.
2. Anchor Point: Select a strong, secure anchor point (e.g., a tree, another vehicle, or a rock anchor). Use a tree saver strap if attaching to a tree.
3. Unspool Rope: Disengage the clutch and pull out enough Warn Spider Synthetic Rope to reach your anchor point.
4. Secure Connection: Attach the rope hook securely to the anchor point. Ensure the hook's safety latch is closed.
5. Engage Clutch: Re-engage the winch clutch.
6. Remote Control: Connect the remote control. Stand at a safe distance, clear of the rope and vehicle.
7. Winch In: Slowly press the "Winch In" button on the remote control. Observe the rope and vehicle carefully. The automatic load holding brake will maintain tension when the winch is stopped.
8. Spooling: Ensure the rope spools evenly onto the drum. If it begins to pile up on one side, stop winching and redistribute the rope.
9. Completion: Once the recovery is complete, disengage the clutch, disconnect the rope from the anchor, and carefully respool the rope under light tension. Disconnect the remote control.

6. Maintenance

Regular maintenance ensures the longevity and reliable performance of your Mopar winch.

• Cleaning: The winch is completely waterproof and submersible. After use, especially in harsh conditions (mud, salt water), rinse the winch thoroughly with fresh water.
• Rope Inspection: Regularly inspect the Warn Spider Synthetic Rope for fraying, cuts, or other damage. Replace the rope if any significant damage is found.
• Fastener Check: Periodically check all mounting fasteners for tightness. The fasteners are treated with anti-corrosive Magi 565 coating, but regular inspection is still recommended.
• Electrical Connections: Inspect electrical connections for corrosion or looseness. Clean and tighten as necessary.
• Finish Care: The winch features a durable three-stage zinc phosphate, e-coat, and powder coating. Clean with mild soap and water to maintain its finish. Avoid abrasive cleaners.

7. Troubleshooting

If you encounter issues with your winch, refer to the following common troubleshooting steps.

• Winch Not Operating:
  • Check all electrical connections for tightness and corrosion.
  • Ensure the vehicle's battery is fully charged.
  • Verify the remote control is properly connected and functioning.
  • Confirm the clutch is fully engaged.
• Slow Winch Speed:
  • Check for low battery voltage.
  • Ensure the load is within the winch's rated capacity.
  • Inspect for excessive friction in the fairlead or rope path.
• Rope Damage:
  • If the Warn Spider Synthetic Rope shows signs of significant damage, replace it immediately. Do not attempt to repair damaged rope.

For issues not resolved by these steps, contact Mopar customer support or a certified service center.

8. Specifications

9. Warranty and Support

As a genuine OEM part, this Mopar winch is backed by Mopar's commitment to quality and performance. For specific warranty details, please refer to the documentation included with your purchase or visit the official Mopar website.

For technical assistance, parts inquiries, or support, please contact Mopar customer service or your authorized Mopar dealer. When contacting support, please have your model number (P5160095AC) and purchase information readily available.

Mopar Official Website: www.mopar.com
