Naomi Home 7-Drawer Black Dresser (Model 17303C) Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Naomi Home 7-Drawer Black Dresser, Model 17303C. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figure 1: Naomi Home 7-Drawer Black Dresser

2. Safety Information

To ensure safe use and prevent damage, please observe the following:

• Always assemble the cabinet according to the provided instructions.
• Keep the cabinet on a stable surface and avoid overloading the drawers.
• Use caution when opening and closing the drawers to prevent pinch points.
• Keep the cabinet away from heat sources and do not use it for storing flammable materials.
• Always unplug the cabinet from any power source before performing any maintenance or cleaning (if applicable, though this unit is not electrical).

3. Product Dimensions and Features Overview

Figure 2: Product Dimensions

The dresser features 7 spacious drawers, smooth-gliding mechanisms, and lockable casters for mobility and stability. Its compact design is suitable for various environments including bedrooms, offices, and living spaces.

Figure 3: Key Features - Lockable Casters and Recessed Handles

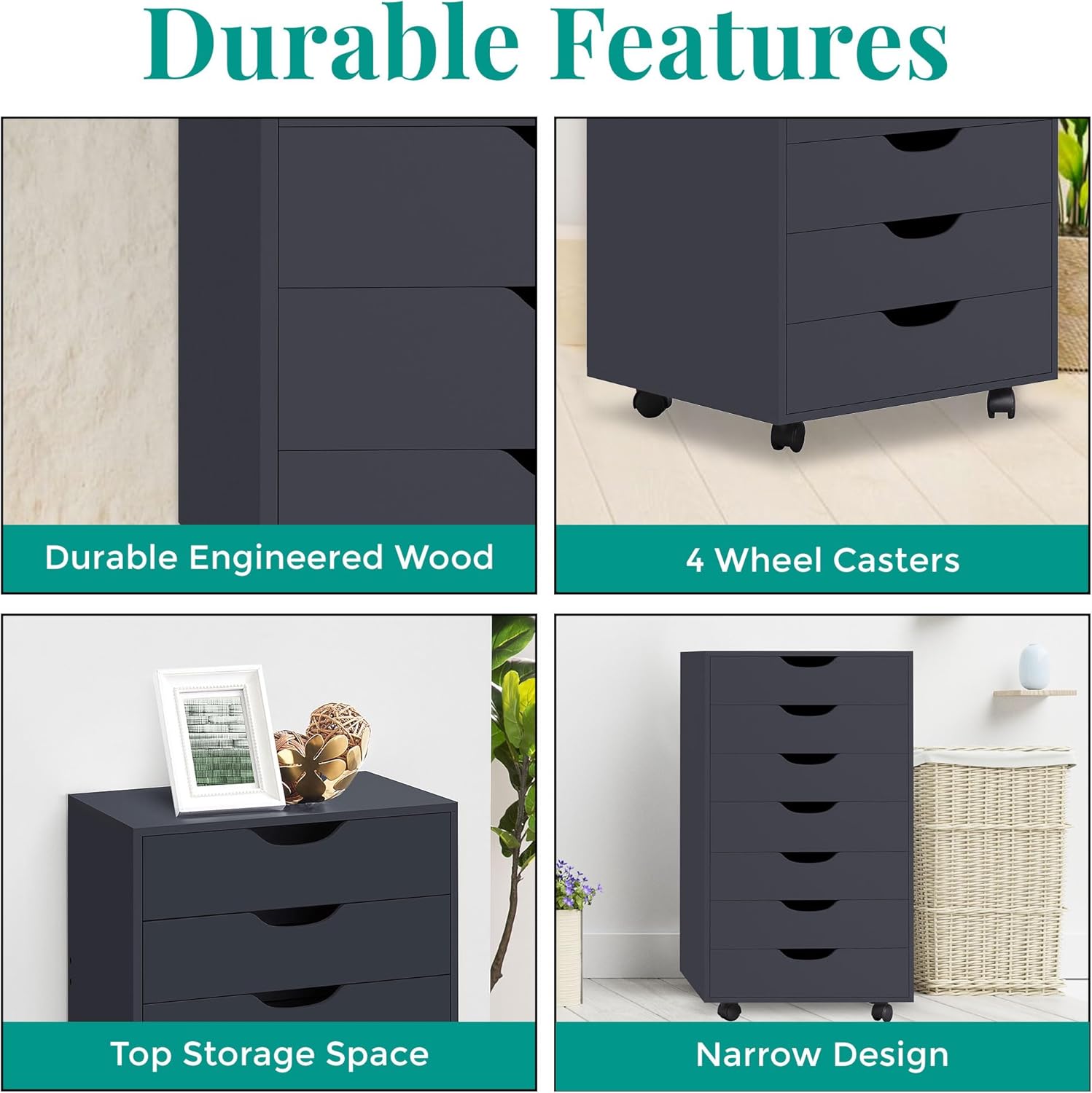

Figure 4: Durable Engineered Wood Construction and Narrow Design

4. Assembly Instructions

Assembly is required for this product. Please refer to the detailed assembly video provided by the manufacturer for step-by-step guidance. Ensure all parts are present before starting.

A general overview of the assembly process includes:

1. Separating inner and outer drawer sliders.
2. Attaching outer drawer sliders and cam bolts to side panels.
3. Connecting back panels and securing with cam locks.
4. Attaching the top panel.
5. Installing the front and rear wheels (casters) to the base.
6. Assembling each drawer box by connecting side, front, and back panels.
7. Attaching inner drawer sliders to the assembled drawer boxes.
8. Carefully inserting the completed drawer boxes into the cabinet frame.

5. Operating Instructions

5.1 Using the Drawers

The dresser features smooth-gliding drawers with recessed handles for easy access. To open, gently pull the recessed handle. To close, push the drawer back until it is fully seated within the cabinet.

Figure 5: Spacious Drawers for Organization

5.2 Utilizing Lockable Casters

The dresser is equipped with lockable casters for effortless mobility and stability. To move the dresser, unlock the casters by flipping the switch on each wheel upwards. Once in the desired position, push the switch downwards to lock the wheels and secure the dresser in place.

Figure 6: Lockable Casters for Mobility and Stability

6. Care and Maintenance

To maintain the appearance and functionality of your dresser:

• Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
• Avoid exposing the dresser to direct sunlight or extreme temperature changes to prevent warping or discoloration.
• Do not place hot items directly on the surface without protective padding.

7. Troubleshooting

7.1 Drawers Not Gliding Smoothly

If drawers do not open or close smoothly, check the following:

• Ensure the drawer slides are correctly aligned and securely attached to both the drawer box and the cabinet frame.
• Verify that no objects are obstructing the drawer's path or the slide mechanism.
• Confirm that the drawer box itself is assembled squarely and without any misalignment.
• Lightly lubricate the drawer slides with a silicone-based lubricant if friction persists.

7.2 Stability Issues

If the dresser feels wobbly:

• Ensure all cam locks and screws used during assembly are fully tightened.
• Verify that the dresser is placed on a flat, level surface.
• If using casters, ensure they are all locked when the dresser is stationary.

8. Specifications

9. Warranty and Support

This Naomi Home product is covered by a 90-day manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact Naomi Home customer service through their official website or the retailer where the product was purchased.
