Madd Gear Drift Trike Instruction Manual

Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and safety of your Madd Gear Drift Trike, Model 206-889. Please read this manual thoroughly before use to ensure safe and proper operation.

• Recommended Age: 5 years and up
• Maximum Rider Weight: 150 lbs
• Assembled Dimensions: Approximately 24" Tall, 42" Long, 27.5" Wide

Image showing the Madd Gear Drift Trike with recommended age and height guidelines.

Safety Information

The safe operation of the Drift Trike is paramount. Always adhere to the following safety guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Ensure all bolts and fasteners are securely tightened before each use.
• Ride in safe, open areas away from traffic, pedestrians, and other hazards.
• Avoid riding on steep inclines, uneven surfaces, or near water.
• Adult supervision is recommended for all riders, especially for younger children.
• Do not exceed the maximum rider weight of 150 lbs.
• The product includes a safety flag for increased visibility. Ensure it is properly attached before riding.

Important: Ride at your own risk. Failure to follow safety instructions may result in injury.

Package Contents

Verify that all components are present before beginning assembly:

• Drift Trike Frame (main body)
• Front Wheel Assembly
• Rear Drift Wheels (2)
• Seat
• Handlebars
• Pedals
• Safety Flag
• Assembly Tools
• Instruction Manual

Setup and Assembly

Assembly typically takes approximately 15 minutes. All necessary tools are supplied.

1. Attach Handlebars: Secure the handlebars to the front fork stem using the provided bolts and tools. Ensure they are centered and tightened firmly.
2. Install Front Wheel: Attach the 16-inch front wheel to the fork. Ensure the V-brake mechanism is correctly aligned and functional.
3. Mount Pedals: Screw the pedals into the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right, and thread in opposite directions (left pedal counter-clockwise, right pedal clockwise).
4. Attach Seat: Slide the adjustable bucket seat onto the frame and secure it at the desired length for the rider.
5. Install Rear Drift Wheels: Attach the two slick drift wheels to the rear axle.
6. Affix Safety Flag: Insert the safety flag into its designated slot on the rear of the trike for enhanced visibility.
7. Final Check: Before first use, double-check all connections, bolts, and moving parts to ensure they are secure and functioning correctly.

Image illustrating the overall dimensions of the Drift Trike.

Operating Instructions

Familiarize yourself with the trike's controls and features before riding.

• Riding Position: Adjust the seat so the rider can comfortably reach the pedals and handlebars.
• Pedaling: Propel the trike forward by pedaling the front wheel.
• Steering: Steer by turning the handlebars, which feature 120mm textured grips for control.
• Braking: The trike is equipped with an improved V-brake system. Squeeze the brake lever on the handlebar to reduce speed or stop. Practice braking at low speeds to understand its responsiveness.
• Drifting: The rear slick drift wheels are designed for controlled sliding. To initiate a drift, apply the brake lightly while turning, or shift your weight. Practice in a safe, open area.

Detail of the V-brake and rear drift wheels.

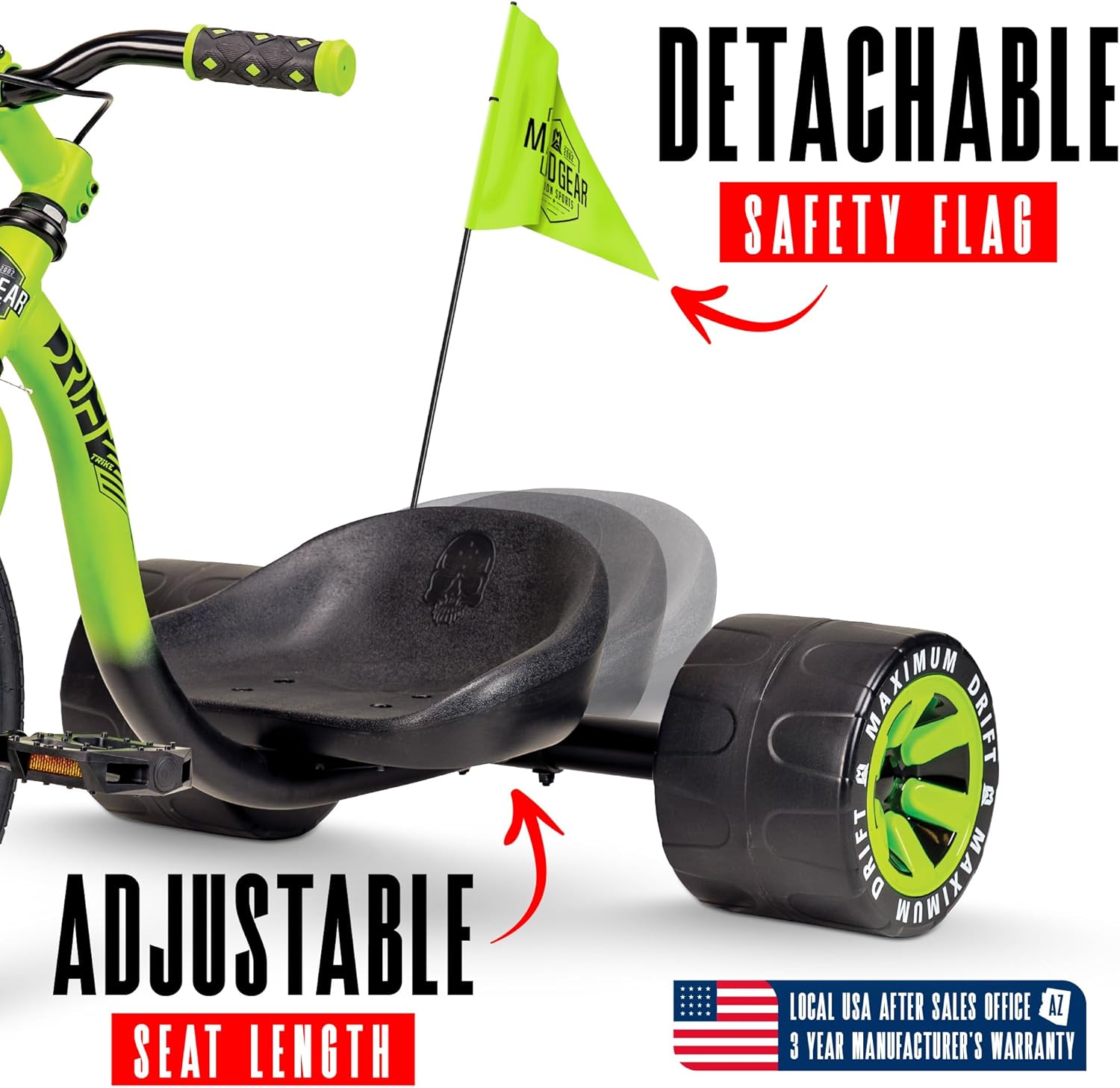

Adjustable seat and safety flag feature.

Handlebars with textured grips for enhanced control.

Video Demonstration:
No official product videos from the seller were found with relevant content for operation instructions.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Drift Trike.

• Cleaning: Wipe down the trike with a damp cloth after use. Avoid harsh chemicals.
• Tire Inspection: Regularly check the front tire for wear and proper inflation. The rear drift wheels are designed to wear over time and are replaceable.
• Brake Check: Ensure the V-brake is functioning correctly and the cable is not frayed or loose. Adjust as needed.
• Fastener Check: Periodically inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners.
• Storage: Store the trike in a dry, covered area to protect it from elements.

Madd Gear offers consumable replacement parts, such as drift wheels, to keep your trike in optimal condition.

Troubleshooting

This section addresses common issues you might encounter.

• Loose Parts: If any part feels loose, stop using the trike immediately and re-tighten all fasteners according to the assembly instructions.
• Brake Not Responsive: Check the brake cable for proper tension and ensure the brake pads are making full contact with the wheel rim. Adjust the cable tension if necessary.
• Difficulty Drifting: Ensure you are on a suitable smooth surface. The rear wheels are designed for drifting, but technique and surface conditions play a role.
• Unusual Noises: Inspect all moving parts for obstructions or wear. Lubricate moving components if squeaking occurs.

For issues not covered here, please contact Madd Gear customer support.

Specifications

Image of a child enjoying the Drift Trike.

Warranty and Support

All Madd Gear products are backed by a three-year manufacturer warranty when registered with your local USA support office. Madd Gear is committed to customer satisfaction.

For after-sales support, parts, or warranty inquiries, please contact:

• Madd Gear USA Customer Support
• Phone: 008-924-8644
• Further contact details may be available on the official Madd Gear website.

Image highlighting Madd Gear's local support and contact information.
