HZB-12/SA Portable Ice Maker Machine User Manual

1. Introduction

Thank you for purchasing the Decor Hut HZB-12/SA Portable Ice Maker Machine. This appliance is designed to produce bullet-shaped ice cubes quickly and efficiently, making it ideal for various settings such as home kitchens, parties, RVs, camping, and boat trips. Its compact design and durable stainless steel construction ensure reliable performance and longevity. Please read this manual thoroughly before operating your ice maker to ensure safe and optimal use.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not immerse cord, plug, or any part of the appliance in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Do not use outdoors. This appliance is for indoor household use only.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Ensure the appliance is placed on a stable, level surface to prevent tipping.
• Use only potable water in the ice maker.
• Unplug the appliance from the outlet when not in use and before cleaning.
• Do not block the ventilation openings. Ensure adequate air circulation around the unit.
• This appliance uses R600a refrigerant. Handle with care and ensure proper ventilation.

3. Package Contents

Verify that all items listed below are present and in good condition upon opening the package:

• 1 x HZB-12/SA Portable Ice Maker Machine
• 1 x Ice Scoop
• 1 x User Manual

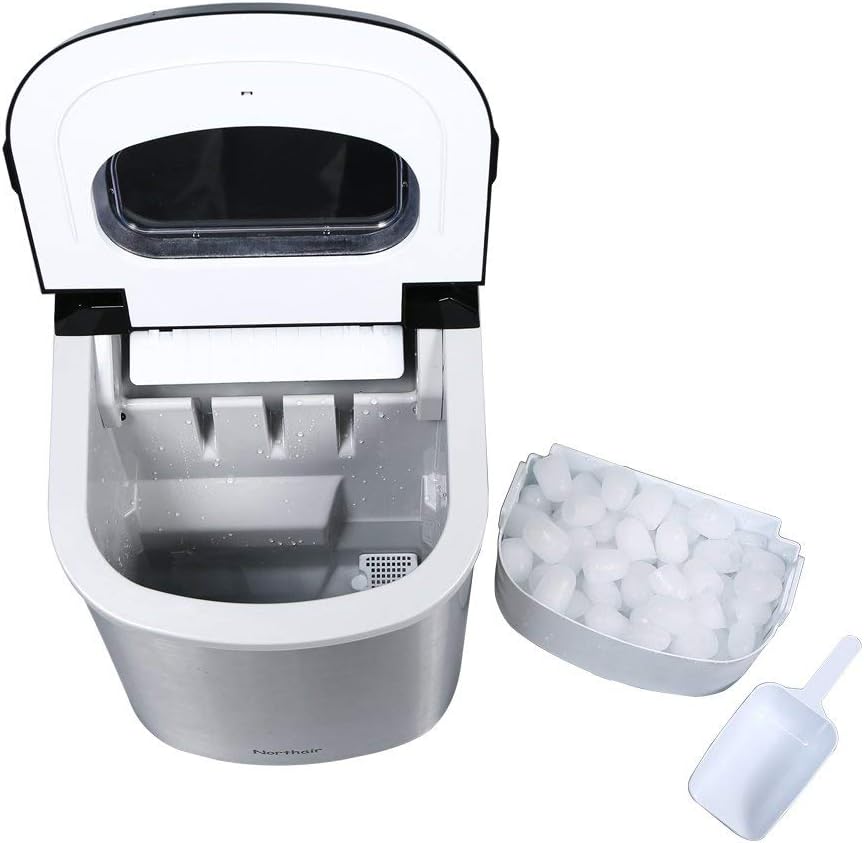

Image: The ice maker with its lid open, revealing the water reservoir and the removable ice basket. An ice scoop is shown next to the machine, indicating the complete package contents.

4. Product Overview

Components

Image: A front-angled view of the HZB-12/SA Portable Ice Maker, highlighting its stainless steel exterior and the control panel on top.

• Lid with Viewing Window: Allows you to see the ice production without opening the lid.
• Control Panel: Features LED indicators and soft-touch buttons for operation.
• Ice Basket: Removable basket for collecting and storing ice.
• Water Reservoir: Area where water is stored for ice production.
• Air Vent: Located on the side, essential for proper ventilation.
• Drain Plug: Located at the bottom for draining water.

Control Panel Functions

Image: A direct front view of the ice maker, clearly showing the control panel with its various indicator lights and buttons for operation.

• ADD WATER Indicator: Illuminates when the water reservoir needs refilling.
• ICE FULL Indicator: Illuminates when the ice basket is full.
• ON/OFF Button: Powers the unit on or off.
• POWER Indicator: Illuminates when the unit is powered on.
• SELECT Button: Used to choose between small (S) and large (L) ice cube sizes.
• S (Small) Indicator: Illuminates when small ice cube size is selected.
• L (Large) Indicator: Illuminates when large ice cube size is selected.

5. Setup

1. Unpacking: Carefully remove the ice maker from its packaging. Remove all packing materials, tape, and any protective film.
2. Placement: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources (e.g., stoves, furnaces, radiators). Ensure there is at least 6 inches (15 cm) of space around the unit for proper ventilation.
3. Initial Cleaning: Before first use, clean the interior of the ice maker. Refer to the "Maintenance and Cleaning" section for detailed instructions.
4. Power Connection: Plug the power cord into a grounded electrical outlet (115V/60Hz).

6. Operating Instructions

1. Add Water: Open the lid and remove the ice basket. Fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
2. Replace Ice Basket: Place the ice basket back into its position and close the lid.
3. Power On: Press the ON/OFF button to turn on the ice maker. The POWER indicator will illuminate.
4. Select Ice Size: Press the SELECT button to choose your desired ice cube size: Small (S) or Large (L). The corresponding indicator will light up.
5. Ice Production: The ice maker will begin the ice-making cycle. The first batch of ice will be ready in approximately 6-13 minutes, depending on the selected size and ambient temperature.
6. Ice Full Indicator: When the ice basket is full, the ICE FULL indicator will illuminate, and the ice maker will automatically stop production. Remove ice from the basket to resume production.
7. Add Water Indicator: If the water level in the reservoir is too low, the ADD WATER indicator will illuminate, and the ice maker will stop production. Add more water to the reservoir to resume.
8. Collecting Ice: Use the provided ice scoop to remove ice from the basket.
9. Automatic Recycling: Any unused ice that melts in the basket will drain back into the water reservoir and be recycled into fresh ice during subsequent cycles, minimizing waste.
10. Power Off: To turn off the ice maker, press the ON/OFF button again.

Image: A top-down view of the ice maker with its lid open, showcasing the ice basket filled with freshly made bullet-shaped ice cubes.

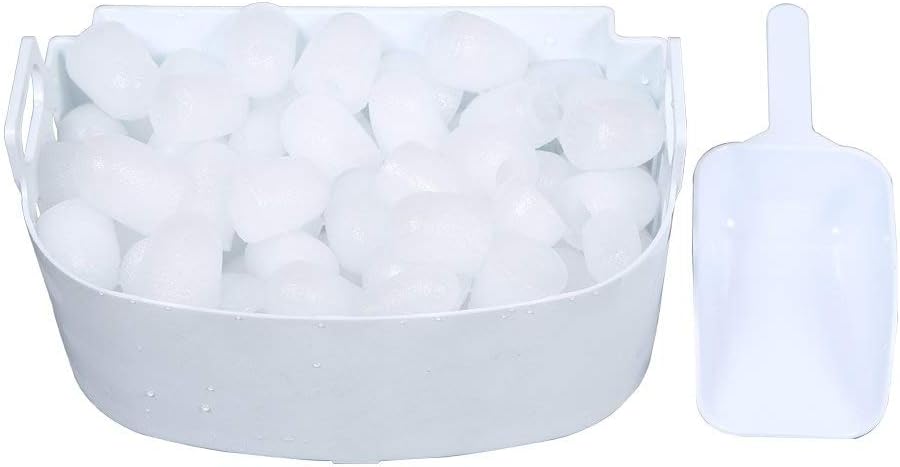

Image: A close-up shot of the removable ice basket, full of bullet-shaped ice cubes, with the accompanying ice scoop positioned beside it.

7. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your ice maker.

1. Daily Cleaning:
   • Unplug the ice maker before cleaning.
   • Remove the ice basket.
   • Drain any remaining water from the reservoir by removing the drain plug at the bottom of the unit.
   • Wipe the interior with a soft cloth dampened with warm water and a mild detergent. Rinse thoroughly.
   • Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
   • Dry all parts thoroughly before reassembling and storing.
2. Deep Cleaning (Monthly or as needed):
   • Prepare a cleaning solution of water and vinegar (1:1 ratio) or a commercial ice maker cleaner.
   • Pour the solution into the water reservoir.
   • Run the ice maker for a few cycles (without consuming the ice) to circulate the cleaning solution.
   • Drain the solution completely.
   • Rinse the reservoir multiple times with clean water, running a few cycles with fresh water to ensure all cleaning solution residue is removed.
   • Dry thoroughly.
3. Storage: If the ice maker will not be used for an extended period, drain all water, clean the unit thoroughly, and store it in a dry, well-ventilated area.

8. Troubleshooting

9. Product Specifications

10. Warranty and Support

Decor Hut products are manufactured to the highest quality standards. For specific warranty information, please refer to the warranty card included with your purchase or contact Decor Hut customer support.

If you encounter any issues or have questions regarding your HZB-12/SA Portable Ice Maker, please contact our customer support team for assistance. Have your model number (HZB-12/SA) and UPC (643303912627) ready when contacting support.

Customer Support: Please visit the Decor Hut official website or refer to your purchase documentation for contact details.
