1. Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your FSP iFP600 Uninterruptible Power Supply (UPS). Please read this manual thoroughly before installing or operating the unit to ensure proper function and safety. The FSP iFP600 is designed to provide reliable power backup and surge protection for your electronic devices.
Image 1.1: Front view of the FSP iFP600 UPS, showcasing its compact design and integrated LCD display.
2. Safety Instructions
Please adhere to these important safety guidelines during installation, operation, and maintenance of the UPS:
- Do not open the UPS casing. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.
- Do not connect appliances that could overload the UPS, such as laser printers, vacuum cleaners, or heaters.
- Ensure the UPS is connected to a grounded AC power outlet.
- Avoid placing the UPS in direct sunlight, near heat sources, or in environments with excessive dust, humidity, or corrosive substances.
- Position the UPS in a well-ventilated area to prevent overheating.
- In case of fire, use a dry chemical extinguisher. Water can be hazardous.
- The battery inside the UPS is not user-replaceable. Battery replacement should only be performed by qualified personnel.
3. Product Overview
The FSP iFP600 UPS provides reliable power protection for your critical electronics. It features a compact design and an intuitive LCD display for monitoring status.
3.1 Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- FSP iFP600 UPS Unit
- User Manual (this document)
- Power Cord
- USB Communication Cable

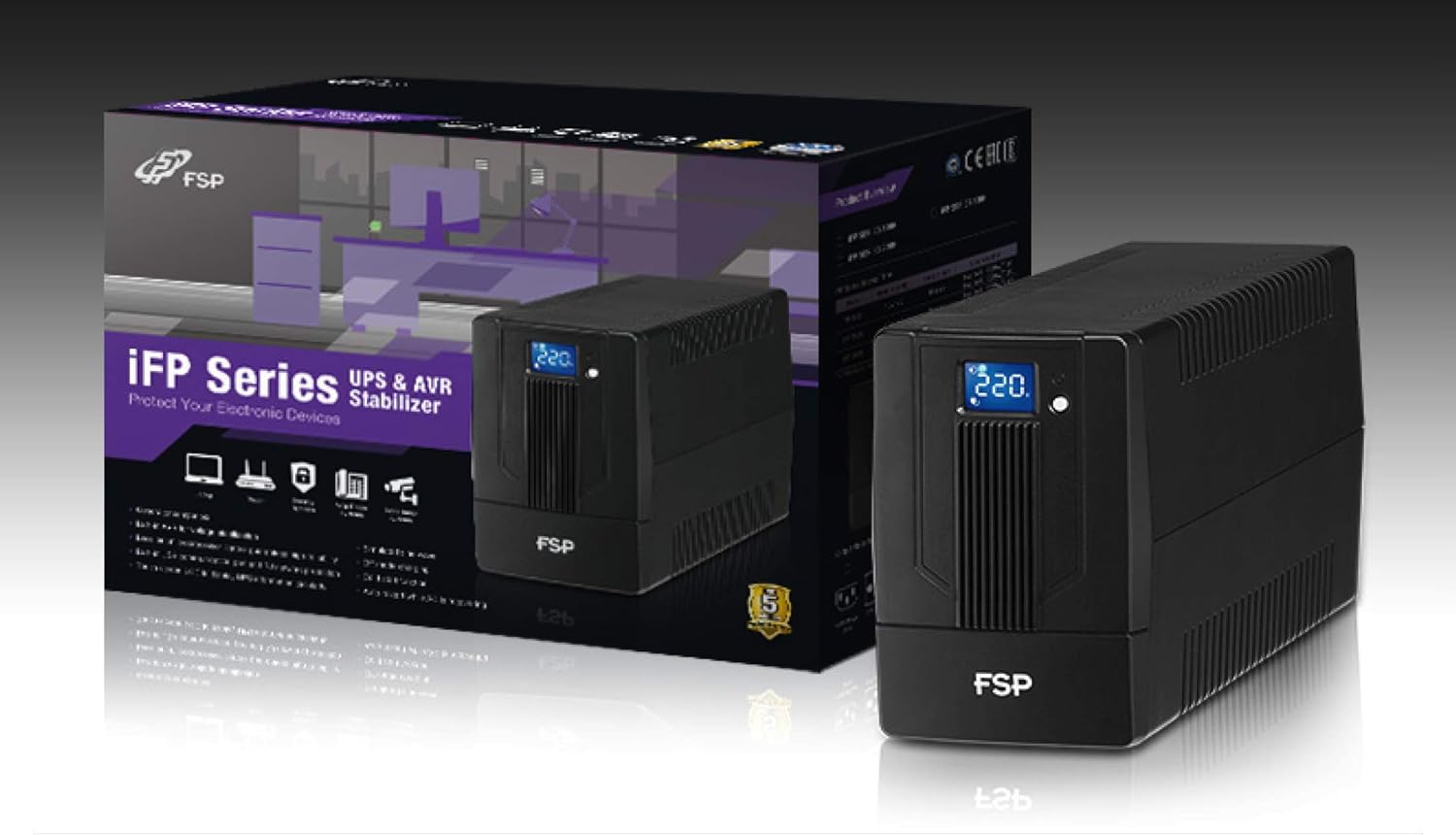

Image 3.1: The FSP iFP600 UPS shown alongside its retail packaging, illustrating the product's presentation.
3.2 Rear Panel Components
Familiarize yourself with the connections on the rear panel of the UPS:
Image 3.2: Detailed view of the FSP iFP600 UPS rear panel, highlighting connection points.
- Outlets: Two SCHUKO type outlets for connecting protected equipment.
- AC Input: Connects the UPS to the main utility power.
- Fuse/Breaker: Overcurrent protection for the UPS.
- USB Communication: Port for connecting to a computer for monitoring and management.
- Combo RJ11/RJ45 Surge Protection: Provides surge protection for telephone/network lines.
4. Setup and Installation
Follow these steps to set up your FSP iFP600 UPS:
- Unpacking: Carefully remove the UPS from its packaging. Inspect for any shipping damage.
- Placement: Place the UPS on a flat, stable surface in a clean, cool, and well-ventilated area. Ensure adequate clearance around the unit for airflow.
- Initial Charging: Connect the UPS to a standard grounded AC outlet using the provided power cord. Allow the unit to charge for at least 4-6 hours before initial use to ensure optimal battery performance. The UPS will charge whether it is turned on or off.
- Connecting Equipment: Plug your computer, monitor, and other critical electronic devices into the UPS outlets (A). Do not connect surge suppressors or power strips to the UPS outlets.
- USB Communication (Optional): Connect the USB cable from the UPS USB port (D) to your computer's USB port to enable power management software features (software not included, typically downloaded from manufacturer's website).
- RJ11/RJ45 Protection (Optional): For surge protection of your telephone or network line, connect the incoming line to the 'IN' port of the Combo RJ11/RJ45 (E) and connect the 'OUT' port to your device.
5. Operating Instructions
5.1 Powering On/Off
- To Power On: Press and hold the power button on the front panel for approximately 2 seconds until you hear a beep and the LCD display illuminates.
- To Power Off: Press and hold the power button for approximately 2 seconds until you hear a beep and the LCD display turns off.
5.2 LCD Display Information
The FSP iFP600 features an LCD display that provides real-time status information. The display is touch-sensitive for navigating information.

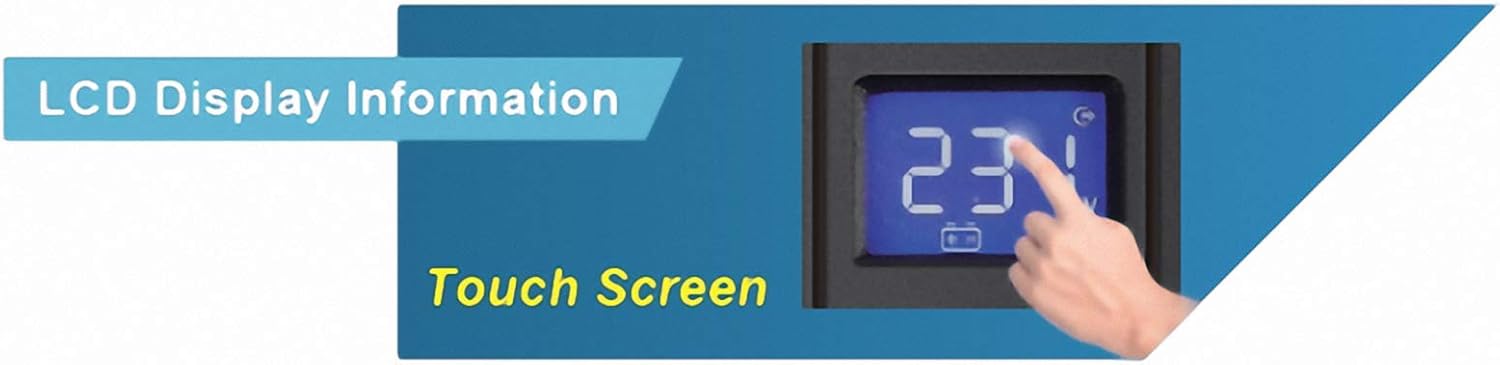

Image 5.1: The LCD display of the FSP iFP600 UPS, indicating voltage output and its touch-screen functionality.
The LCD display typically shows:
- Input Voltage
- Output Voltage
- Battery Charge Level
- Load Level
- Operating Mode (e.g., AC mode, Battery mode)
- Warning/Fault Indicators
5.3 Battery Mode Operation
When the utility power fails or fluctuates outside acceptable limits, the UPS will automatically switch to battery mode. During battery mode, the UPS will provide power to connected equipment from its internal battery. An audible alarm will sound to indicate battery operation.
6. Maintenance
Proper maintenance ensures the longevity and reliability of your UPS.
- Cleaning: Use a soft, dry cloth to clean the exterior of the UPS. Do not use liquid or aerosol cleaners.
- Battery Care: To maximize battery life, ensure the UPS is connected to AC power and fully charged. If the UPS is stored for an extended period, recharge it every three months to prevent battery degradation.
- Battery Replacement: The internal battery (12V / 7Ah x1) is not user-serviceable. Battery replacement should only be performed by FSP-certified service personnel or a qualified technician. Incorrect battery replacement can pose a risk of explosion or injury.
- Storage: Store the UPS in a cool, dry place with adequate ventilation. Ensure the battery is fully charged before storage.
7. Troubleshooting
Refer to the following table for common issues and their solutions. If the problem persists, contact FSP support.
| Symptom | Audible Alarm | Possible Cause | Solution |
|---|---|---|---|
| UPS operating on battery power | Beeps every 10 seconds | Utility power failure or fluctuation | Save work and shut down equipment if power outage is prolonged. UPS will return to AC mode when power is restored. |
| Low battery warning | Beeps every second | Battery charge is critically low | Immediately save work and shut down connected equipment. |
| Overload condition | Beeps every 0.5 second | Connected equipment exceeds UPS capacity | Disconnect non-essential equipment until the alarm stops. Ensure total load is within UPS capacity. |
| UPS fault | Continuously beeping | Internal fault or malfunction | Turn off the UPS and disconnect it from the AC outlet. Contact FSP technical support. |

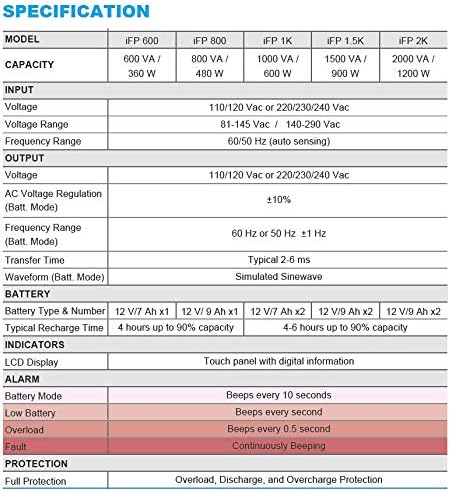

Image 7.1: Excerpt from the FSP iFP series specification table, detailing alarm indicators and their meanings.
8. Specifications
Detailed technical specifications for the FSP iFP600 UPS:
| Feature | Specification |
|---|---|
| Model | iFP 600 |
| Capacity | 600 VA / 360 W |
| Input Voltage | 110/120 Vac or 220/230/240 Vac |
| Input Voltage Range | 81-145 Vac / 140-290 Vac |
| Input Frequency Range | 60/50 Hz (auto sensing) |
| Output Voltage | 110/120 Vac or 220/230/240 Vac |
| AC Voltage Regulation (Batt. Mode) | ±10% |
| Output Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz |
| Transfer Time | Typical 2-6 ms |
| Waveform (Batt. Mode) | Simulated Sinewave |
| Battery Type & Number | 12V / 7Ah x1 |
| Typical Recharge Time | 4 hours up to 90% capacity |
| Indicators | LCD Display (Touch panel with digital information) |
| Protection | Overload, Discharge, and Overcharge Protection |
| Item Weight | 9.24 pounds (4.2 kg) |
| Product Dimensions (LxWxH) | 11.81 x 3.98 x 5.59 inches |
| Color | Black |
| Material | Metal |
9. Warranty and Support
FSP products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official FSP website. For technical support, troubleshooting assistance, or service inquiries, please contact FSP customer service through their official channels.
