Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your El Fuego Electric Barbecue Gardener AY578. This versatile grill can function as an electric barbecue or be converted for charcoal use, offering flexibility for various grilling preferences.
Important Safety Instructions
Please read all instructions carefully before using the barbecue. Failure to follow these instructions may result in fire, electric shock, or serious injury.
- Always use the barbecue on a stable, level, non-combustible surface.
- Do not use the electric barbecue in wet conditions or near water.
- Ensure the power cord is not damaged and is kept away from hot surfaces.
- Never leave the barbecue unattended during operation.
- Keep children and pets away from the hot barbecue.
- Allow the barbecue to cool completely before cleaning or storing.
- When using as a charcoal barbecue, ensure proper ventilation and never use indoors.
- Do not use lighter fluid or alcohol to ignite charcoal in the electric mode.
- Always disconnect from the power supply before cleaning or performing maintenance.
Components Overview
Familiarize yourself with the main components of your El Fuego barbecue:
- Barbecue Lid with Handle and Thermometer
- Grill Grate (Main)
- Warming Rack
- Electric Heating Element with Control Unit
- Charcoal Basin (removable)
- Barbecue Bowl
- Stand with Legs and Wheels
- Bottom Storage Shelf
- Ash/Drip Tray
Figure 1: The El Fuego Electric Barbecue Gardener AY578 with its lid closed, showcasing its compact design and integrated thermometer.
Figure 2: The barbecue with its lid open, revealing the main grill grate and the warming rack.
Figure 3: Front view of the barbecue, highlighting the convenient bottom storage shelf and the transport wheels.
Figure 4: A close-up view of the removable ash or drip tray located beneath the main barbecue bowl.
Setup and Assembly
The El Fuego Gardener AY578 barbecue requires assembly. Please follow the steps below. It is recommended to have two people for assembly.
- Unpack all components and verify against the parts list (not provided in this manual, refer to product packaging).
- Assemble the stand by attaching the legs to the base frame. Ensure the wheels are securely fastened.
- Attach the bottom storage shelf to the assembled stand.
- Place the barbecue bowl onto the top of the stand, ensuring it is stable and securely seated.
- Insert the ash/drip tray into its designated slot beneath the barbecue bowl.
- Install the electric heating element into the barbecue bowl. Ensure it is properly seated and the control unit is accessible.
- Place the main grill grate and warming rack into position.
- Attach the lid to the barbecue bowl using the provided hinges and fasteners.
Note: The product is designed for relatively quick assembly. Ensure all screws and fasteners are tightened securely before first use.
Operating Instructions
Electric Barbecue Mode
Figure 5: The interior of the barbecue, clearly showing the electric heating element in place.

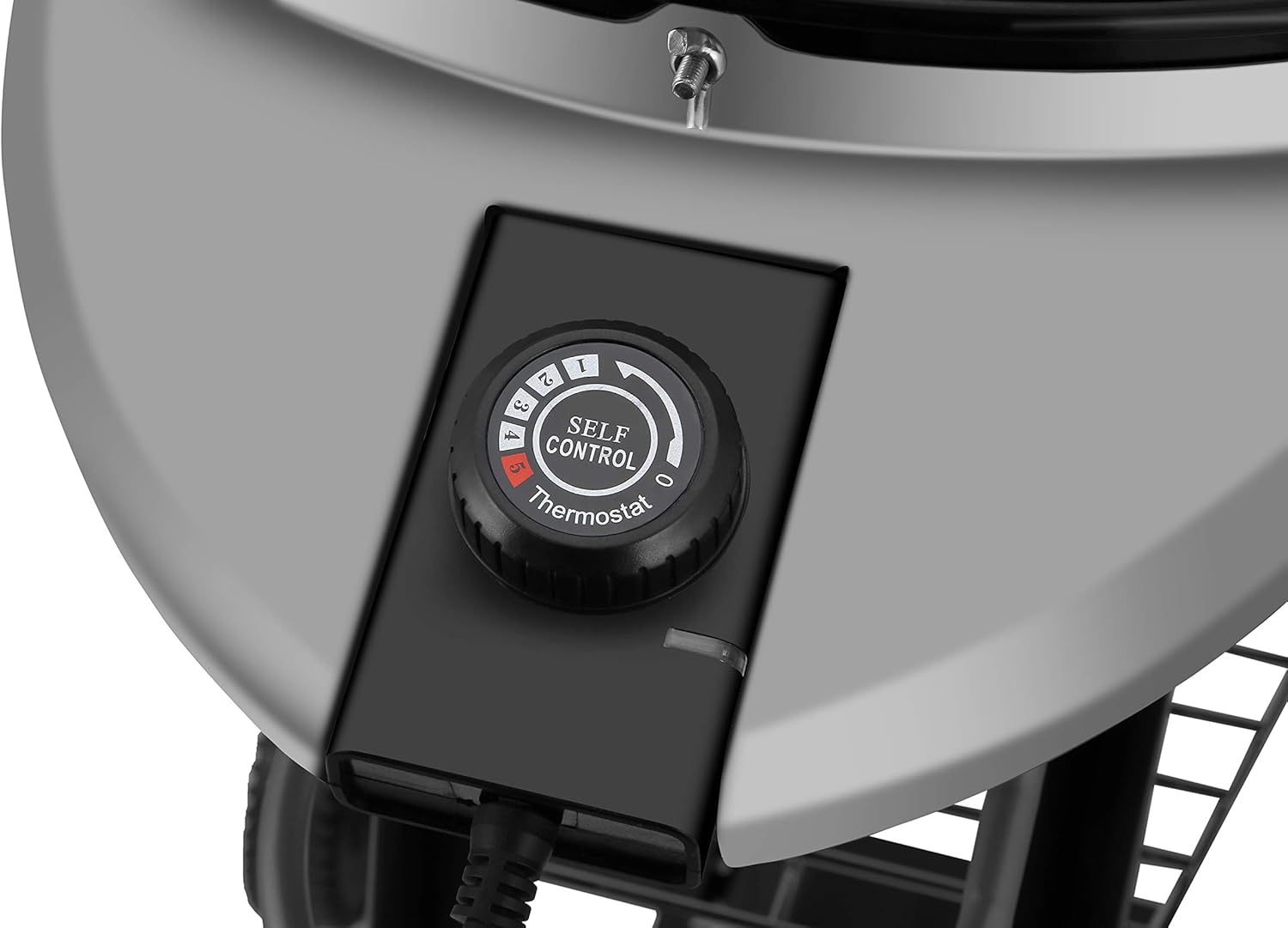

Figure 6: A detailed view of the thermostat control dial, allowing precise temperature adjustment for electric grilling.
- Ensure the electric heating element is correctly installed and the grill grates are in place.
- Plug the barbecue into a suitable grounded electrical outlet.
- Turn the thermostat control dial to the desired temperature setting. The indicator light will illuminate.
- Allow the barbecue to preheat for 10-15 minutes with the lid closed to reach the optimal cooking temperature. The integrated thermometer on the lid can assist in monitoring.
- Place food on the grill grate. Close the lid for faster and more even cooking, and to retain moisture.
- Adjust the temperature as needed during cooking.
- After use, turn the thermostat dial to "0" and unplug the barbecue from the power outlet.
Charcoal Barbecue Mode Conversion
Figure 7: The interior of the barbecue, showing the removable charcoal basin in place.
Figure 8: A visual comparison demonstrating the quick conversion between electric mode (left) and charcoal mode (right) by swapping the heating element with the charcoal basin.
A unique feature of this barbecue is its ability to convert to a charcoal grill. This is achieved by removing the electric heating element and inserting the charcoal basin.
- Ensure the barbecue is unplugged and completely cool.
- Carefully remove the electric heating element and its control unit from the barbecue bowl. Store it safely.
- Place the charcoal basin into the barbecue bowl.
- Add charcoal briquettes or lump charcoal to the basin. Do not overfill.
- Ignite the charcoal using appropriate charcoal starters. Never use gasoline or highly volatile liquids.
- Allow the charcoal to ash over before placing food on the grill grate.
- Adjust cooking temperature by controlling airflow (if applicable) and lid position.
- After grilling, allow charcoal to cool completely before disposing of ash.
Maintenance and Cleaning
Regular cleaning and maintenance will extend the life of your barbecue and ensure optimal performance.
- Before Cleaning: Always ensure the barbecue is unplugged (if electric) and completely cool.
- Grill Grates and Warming Rack: Clean with a grill brush after each use. For stubborn residue, wash with warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry.
- Electric Heating Element: Do not immerse the electric heating element or control unit in water. Wipe clean with a damp cloth.
- Charcoal Basin/Barbecue Bowl: Remove ash and debris. Wipe the interior and exterior with a damp cloth. For baked-on grease, use a mild degreaser.
- Ash/Drip Tray: Empty and clean regularly.
- Exterior Surfaces: Wipe with a soft, damp cloth. Avoid abrasive cleaners or scouring pads.
- Storage: Store the barbecue in a dry, sheltered area when not in use. If storing outdoors, use a protective cover.
Troubleshooting
If you encounter issues with your El Fuego barbecue, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Barbecue not heating (Electric Mode) | Not plugged in; power outlet issue; thermostat set to '0'; heating element not properly seated. | Check power connection; test outlet with another appliance; turn thermostat dial up; ensure heating element is fully inserted. |
| Temperature too low (Electric Mode) | Thermostat setting too low; lid not closed; windy conditions. | Increase thermostat setting; keep lid closed during preheating and cooking; position barbecue away from strong winds. |
| Smoke/Flare-ups (Charcoal Mode) | Excess fat dripping onto charcoal; too much charcoal. | Trim excess fat from meat; use indirect grilling method; reduce amount of charcoal. |
| Lid not closing properly | Hinges misaligned or damaged; obstruction. | Check hinge alignment and tighten fasteners; remove any obstructions. |
If the problem persists after attempting these solutions, please contact El Fuego customer support.
Specifications
| Feature | Detail |
|---|---|
| Model | Gardener AY578 |
| Brand | El Fuego |
| Dimensions (approx.) | 50 x 102 x 55 cm (Width x Height x Depth) |
| Grill Surface Diameter (approx.) | Ø 43 cm |
| Power (Electric Mode) | 2000 W (max.) |
| Material | Iron (Exterior and Interior) |
| Item Weight | 15 kg |
| Power Source | Corded Electric |
| Fuel Type (Convertible) | Electric, Charcoal |
| UPC | 718347299260 |
Warranty and Support
Information regarding the specific warranty period and customer support contact details for the El Fuego Electric Barbecue Gardener AY578 was not available in the provided product data. For warranty claims, technical assistance, or spare parts, please refer to the documentation included with your purchase or contact El Fuego directly through their official website or customer service channels.
