Product Overview
The INOX BD1023-32D Surface Jamb Mount Privacy Lock is designed for easy installation on various wall or jamb casing surfaces. This lock provides privacy for barn doors and similar applications, featuring a one-touch thumb lever and an emergency release key. It is constructed from durable stainless steel.
This model includes an ADA-compliant locking lever (1 9/16").
Installation Guide
Follow these steps for proper installation of your INOX Surface Jamb Mount Privacy Lock. For a visual guide, please refer to the installation video below.
Video Installation Guide
Video Description: This video demonstrates the complete installation process for the INOX BD1000 Series Surface Jamb Mount Privacy Lock. It covers wall and door preparation, mounting plate installation, lock body assembly, and dust-proof strike installation.
Step-by-Step Instructions
- Wall and Door Preparation:
- Ensure the door has at least a 1-inch overlap with the jamb.
- Retrieve the template from the packaging.
- Position the template on the jamb and mark the drilling locations.
- Prep on the Jamb:
- Pre-drill the marked locations on the jamb using a 1/8-inch drill bit.
- Install the mounting plate using four #2 Phillips head screws.
- Handling the Lock:
- Attach the thumb turn to the lever using two #2 Phillips head screws.
- Installation of the Lock:
- Mount the lock body to the installed mounting plate using four #2 Phillips head screws.
- Install the cover plate by sliding the tab over the bolt, pushing it towards the back, and pressing it firmly down. Secure with the #1 Phillips mounting screw. Do not use power tools for this step to avoid stripping the screw.
- Prep and Install Dust-Proof Strike with Emergency Release on Barn Door:
- Close the barn door completely to its stop position.
- Extend the lock bolt to mark its location on the door.
- Pre-drill the marked location with a 1/8-inch drill bit.
- Drill all the way through the door with a 1/4-inch drill bit.
- From the inside of the door, drill to a depth of 1 1/4 inches using a 1-inch hole saw.
- Install the strike with a mounting screw and a threaded washer.
- Install the decorative cap on the exterior side of the door.

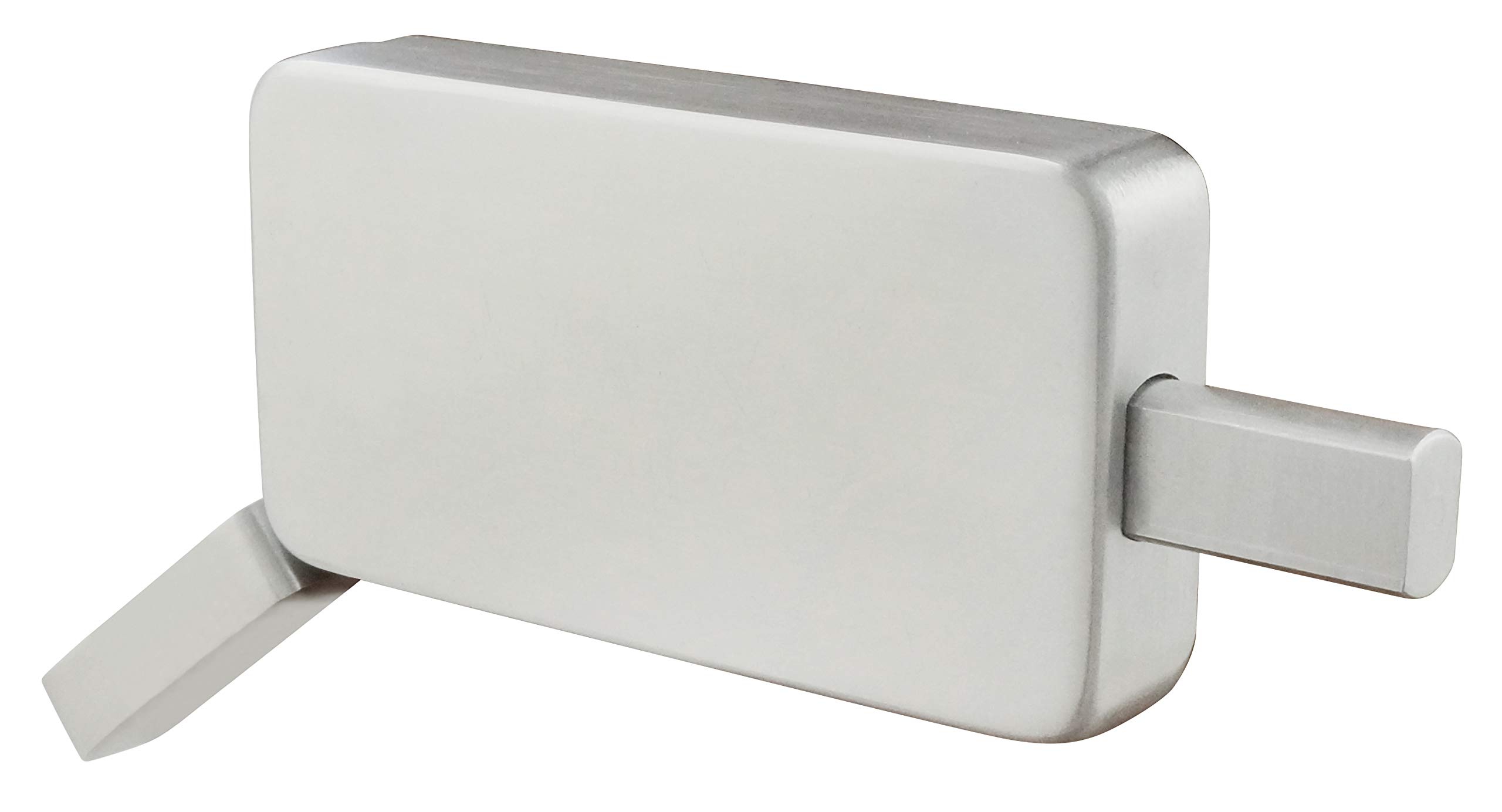

Image Description: The INOX BD1023-32D Surface Jamb Mount Privacy Lock in Satin Stainless Steel, shown installed on a dark wooden barn door, demonstrating its flush profile and functional thumb lever.
Image Description: A detailed diagram illustrating the dimensions, key features, application methods, material composition, available finishes, and different thumb-lever options for the INOX BD1000 Series Surface Jamb Mount Privacy Lock. This includes a visual representation of the lock's components and installation considerations.
Operation
The INOX BD1023-32D Privacy Lock is designed for simple operation:
- Locking: To engage the lock, simply use the one-touch thumb lever on the interior side of the door. This will extend the bolt into the dust-proof strike, securing the door.
- Unlocking: To unlock, retract the thumb lever.
- Emergency Release: An emergency release key is provided for access from the exterior side of the door, if needed. Insert the key into the small opening on the exterior decorative cap and turn to disengage the lock.
Maintenance
To ensure the longevity and smooth operation of your INOX Privacy Lock, consider the following maintenance tips:
- Cleaning: Wipe the lock surface with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Lubrication: Periodically apply a small amount of silicone-based lubricant to the moving parts of the lock mechanism to maintain smooth operation. Do not use oil-based lubricants.
- Inspection: Regularly check all screws and components for tightness. Tighten any loose screws to prevent misalignment or damage.
Troubleshooting
If you encounter issues with your INOX Privacy Lock, consider these common troubleshooting steps:
- Lock Not Engaging/Disengaging Smoothly: Check for any obstructions in the path of the bolt or strike. Ensure all mounting screws are properly tightened. Lubricate moving parts as described in the Maintenance section.
- Door Alignment Issues: Verify that the barn door is properly aligned and slides freely. Misalignment can prevent the lock from functioning correctly.
- Emergency Release Not Working: Ensure the emergency release key is fully inserted and turned correctly. Check for any debris obstructing the mechanism.
If problems persist after attempting these steps, please contact INOX customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | INOX |
| Model Name | Surface Jamb Mount |
| Part Number | BD1023-32D |
| Style | ADA Locking Lever (1 9/16") |
| Color | Satin Stainless Steel |
| Material | Stainless Steel |
| Finish Type | Stainless Steel |
| Special Feature | One-Touch Lock |
| Lock Type | Key Lock |
| Item Dimensions (L x W x H) | 6 x 2.5 x 1.4 inches |
| Item Weight | 1.14 pounds |
| Number of Pieces | 1 |
| Recommended Uses | Home/Office Doors, Internal Privacy |
| Controller Type | Hand Control |
| Control Method | Touch |
| Batteries Required? | No |
| UPC / GTIN | 638353283544 |
Warranty and Support
Warranty Description: This INOX product comes with a Limited Lifetime Warranty. Please refer to the official INOX warranty policy for full details regarding coverage and terms.
Customer Support: For technical assistance, replacement parts, or warranty claims, please visit the official INOX website or contact their customer service department. Keep your purchase receipt and model number (BD1023-32D) handy when contacting support.
