Introduction
Thank you for choosing the Casa Vieja Esperanza 56-inch Indoor Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Image: The Casa Vieja Esperanza 56-inch Indoor Ceiling Fan, showcasing its bronze and gold finish with teak blades and a scavo glass light dome.
Important Safety Information
Always follow basic safety precautions when installing and operating electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before installation.
- Ensure the installation site can support the fan's weight (approximately 36 pounds).
- Turn off power at the circuit breaker or fuse box before wiring.
- All wiring must be in accordance with national and local electrical codes.
- Do not connect the fan to a dimmer switch designed for incandescent lights; use the provided remote control for speed and light dimming.
- Ensure blades are at least 7 feet from the floor.
Setup and Installation
This section outlines the general steps for installing your ceiling fan. Professional installation is recommended if you are unfamiliar with electrical wiring.
Unpacking and Inspection
- Carefully remove all components from the packaging.
- Verify all parts are present according to the packing list.
- Inspect for any shipping damage. Do not proceed with installation if any parts are damaged.
Mounting the Fan
The fan is designed for semi-flush mount installation using a downrod. Two downrods are included: 4 1/2 inches and 10 inches. A minimum 9-foot ceiling is required when using the 10-inch downrod.
Image: Close-up view of the fan's canopy and downrod connection, showing the decorative scroll design.
- Securely attach the mounting bracket to the ceiling junction box. Ensure the junction box is rated for ceiling fan support.
- Assemble the downrod with the canopy and hang the fan motor assembly from the mounting bracket.
- Complete all electrical connections as per local codes. This fan is equipped with a DC motor and requires specific wiring.
Attaching Blades and Light Kit
The fan features five teak finish manufactured wood blades and a warm scavo glass dome light kit.
Image: The ceiling fan highlighting key features: 4 1/2" and 10" downrods, decorative scroll design, UL certified, 2 dimmable LED bulbs, and a 6-speed remote control.
- Attach the fan blades to the motor housing using the provided hardware. Ensure all screws are tightened securely.
- Install the light kit, including the two 6-watt candelabra base dimmable LED bulbs (400 lumens, 2700K color temperature, 90 CRI).
- Secure the scavo glass dome to the light kit.
Operating Instructions
Your Casa Vieja Esperanza ceiling fan is operated using the included 6-speed full-function hand-held remote control.
Image: The white hand-held remote control for the ceiling fan, featuring buttons for power, 6 fan speeds, reverse function, and light control.
Remote Control Functions
- Power Button: Turns the fan on or off.
- Fan Speed Buttons (1-6): Adjusts the fan speed from 1 (lowest) to 6 (highest).
- Reverse Function Button: Changes the direction of the fan blades for seasonal use (downward airflow for cooling, upward airflow for heat circulation).
- Light Button: Turns the LED light on or off. Press and hold to dim the light.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: To avoid scratching the finish, clean the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Cleaning: Dust fan blades regularly to prevent dust buildup, which can cause imbalance and noise.
- Tightening Screws: Periodically check all screws on the motor housing and blade attachments to ensure they are secure. Loose screws can cause noise and wobble.
- Light Bulb Replacement: Replace LED bulbs with the same type and wattage (6-watt candelabra base dimmable LED bulbs) to maintain proper function and dimming capabilities.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; loose wire connections; remote control not paired or batteries dead. | Check circuit breaker/fuses. Ensure all wire connections are secure. Replace remote batteries or re-pair the remote. |
| Fan wobbles | Loose blade screws; unbalanced blades; loose mounting bracket. | Tighten all blade screws. Check for bent blades. Ensure mounting bracket is securely fastened. |
| Fan is noisy | Loose screws; motor hum; blades hitting an obstruction. | Check and tighten all screws. Ensure no wires are rubbing against the motor. Verify blades are clear of obstructions. |
| Light does not work or flickers | Loose bulb; faulty wiring; incorrect dimmer switch. | Ensure bulbs are screwed in tightly. Check light kit wiring. Do not use with a wall dimmer switch not designed for LED fans; use the provided remote. |
Specifications

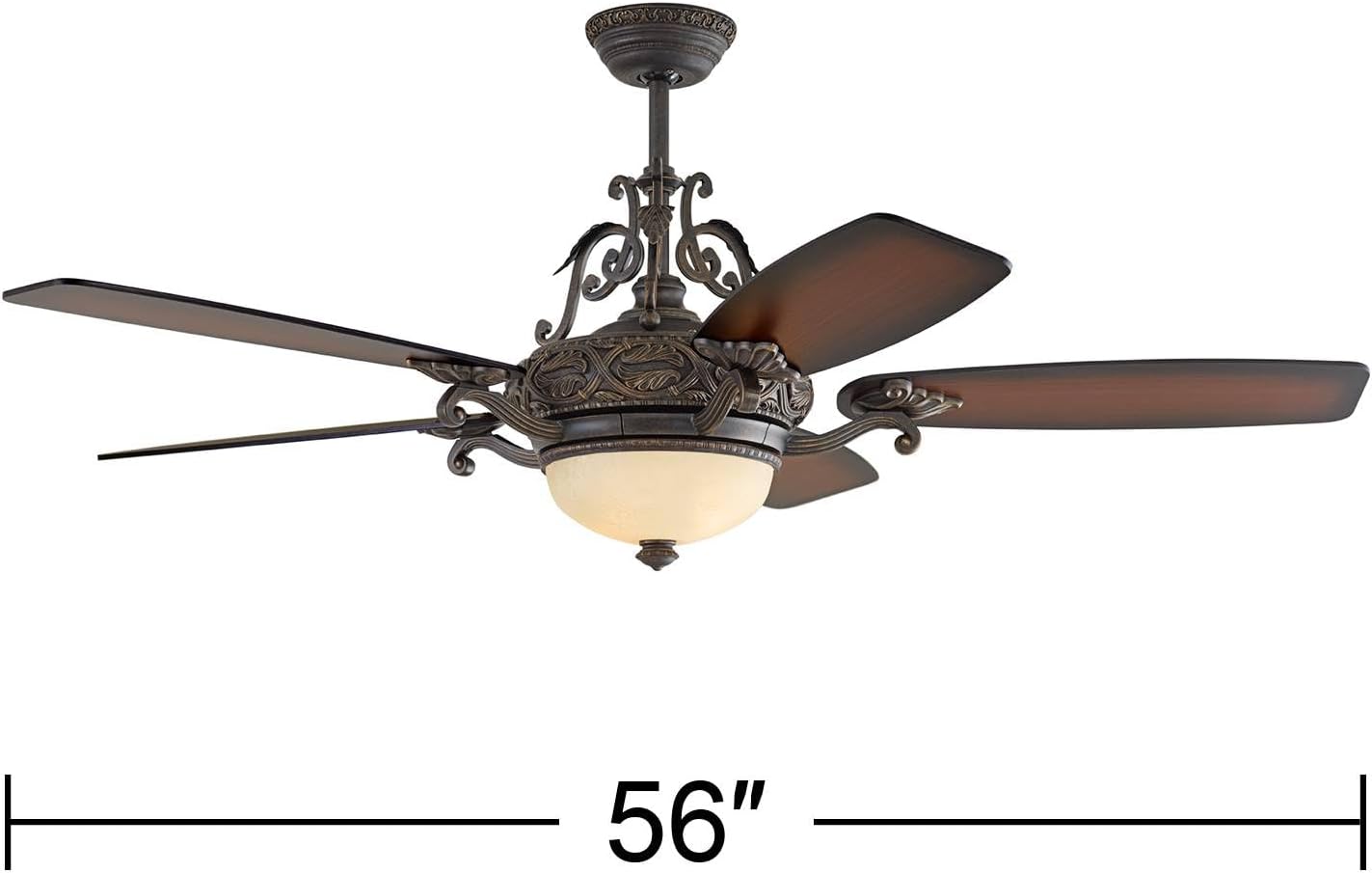

Image: The Casa Vieja Esperanza ceiling fan with a clear indication of its 56-inch blade span.
- Model Name: Casa Esperanza
- Model Number: 59E40
- Blade Span: 56 inches
- Blade Pitch: 14 degrees
- Motor: 120 x 20 mm DC motor, Brushless DC Motor
- Speeds: 6 (Remote Controlled)
- Light: Integrated LED light kit
- Bulbs: Two 6-watt candelabra base dimmable LED bulbs
- Light Output: 400 lumens
- Color Temperature: 2700K
- CRI: 90
- Canopy Dimensions: 2 1/2" high x 6 1/4" wide
- Downrods Included: 4 1/2" and 10"
- Minimum Ceiling Height (with 10" downrod): 9 feet
- Ceiling to Blades (with 10" downrod): 17 1/2"
- Ceiling to Bottom of Light (with 10" downrod): 21 3/4"
- Voltage: 120 volts
- Material: Bronze finish, Teak finish manufactured wood blades, Scavo glass dome
- Weight: 36 pounds
- Indoor/Outdoor Usage: Indoor
Warranty Information
The Casa Vieja Esperanza ceiling fan comes with a Limited 1-Year Warranty on parts and a Lifetime Motor Warranty. Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact Casa Vieja customer service. You can also visit the official Casa Vieja Store on Amazon for more information.
