ISOP Emergency Fire Escape Ladder

1. Introduction

The ISOP Emergency Fire Escape Ladder is designed to provide a reliable and convenient means of egress from multi-story buildings during emergency situations. This 25-foot (7.5 meter) rope ladder is lightweight, compact, and easy to store, yet robust enough to support up to 2000 pounds. It is an essential safety tool for homes, schools, or offices, offering a quick deployment solution when primary escape routes are compromised.

Figure 1: The ISOP Emergency Fire Escape Ladder, folded for storage, showing its compact design and integrated carabiners.

2. Safety Information

Your safety is paramount. Please read and understand all instructions before using this product. This ladder is intended for emergency use only. Regular practice drills are highly recommended to ensure familiarity and quick deployment in a real emergency.

• Load Capacity: The ladder is rated to support a maximum load of 2000 pounds (approximately 907 kg). Do not exceed this weight limit.
• Deployment Practice: Familiarize yourself with the deployment process in a non-emergency situation. Practice attaching the ladder and descending safely.
• Secure Attachment: Always ensure the ladder is securely attached to a stable anchor point capable of supporting the intended load. Refer to the "Setup" section for detailed attachment methods.
• Visibility: The ISOP ladder features patented reflective technology, allowing it to glow in the dark for enhanced visibility during nighttime or low-light emergency escapes.
• Inspection: Before each use, inspect the ladder for any signs of damage, wear, or deterioration. Do not use if any part is compromised.
• Children and Pets: Ensure children and pets are trained or assisted during an emergency escape. Consider additional safety harnesses for small children if applicable.

Figure 2: The ISOP ladder features reflective technology for improved visibility in low-light conditions, a critical safety feature during emergencies.

3. Setup and Deployment

The ISOP Emergency Fire Escape Ladder is designed for rapid deployment. Follow these steps for proper setup:

1. Unpack: Remove the ladder from its storage bag. The ladder is designed to unroll quickly.
2. Identify Anchor Point: Choose a strong, stable anchor point near your escape window or balcony. Suitable anchor points include:
   • Balcony railing
   • Sturdy beam or structural support
   • Window opening (using the provided hooks)
   • Pre-installed rock climbing anchors or similar secure fixtures.
3. Attach Carabiners: The ladder comes equipped with heavy-duty carabiners. Attach these carabiners to your chosen anchor point. Ensure the carabiners are fully closed and locked for maximum security.
4. Deploy Ladder: Once securely attached, carefully throw the coiled ladder out of the window or over the balcony, ensuring it unrolls completely to the ground. Verify that the ladder hangs freely and is not snagged on any obstacles.

Figure 3: Various secure attachment methods for the ISOP Emergency Fire Escape Ladder.

4. Operating Instructions (Emergency Use)

In an emergency, quick and calm action is vital. Follow these steps for safe descent:

1. Assess the Situation: If safe to do so, close the door to the room to contain smoke and fire.
2. Open Window/Access Point: Fully open the window or access point where the ladder is deployed.
3. Begin Descent:
   • Face the building, with your back to the ladder.
   • Place your feet on the rungs, one at a time, ensuring a firm grip.
   • Use your hands to grip the ropes or rungs for stability.
   • Descend slowly and deliberately, one rung at a time, maintaining three points of contact (two hands and one foot, or two feet and one hand) whenever possible.
4. Assist Others: If assisting others, guide them down the ladder. For children, consider practicing with them beforehand or using a child harness if available.
5. Reach Safety: Once on the ground, move away from the building to a safe assembly point.

Figure 4: Proper technique for descending the ISOP Emergency Fire Escape Ladder.

5. Maintenance and Storage

Proper maintenance and storage will ensure your ISOP Emergency Fire Escape Ladder remains in optimal condition for when it's needed most.

• Regular Inspection: Periodically inspect the entire ladder, including ropes, rungs, and carabiners, for any signs of fraying, cuts, cracks, corrosion, or other damage. Pay close attention to connection points.
• Cleaning: If the ladder becomes dirty, clean it with mild soap and water. Rinse thoroughly and allow it to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the ladder in its original compact, rolled-up state, preferably in the provided storage bag. Keep it in a cool, dry place, away from direct sunlight, extreme temperatures, and corrosive materials. Ensure it is easily accessible in an emergency.
• Avoid Obstructions: Do not store the ladder where it could be crushed, tangled, or obstructed by other items.

Figure 5: The ISOP ladder comes with professional carabiners and a design bag for convenient storage.

6. Troubleshooting

The ISOP Emergency Fire Escape Ladder is designed for simplicity and reliability. Most issues can be resolved by ensuring proper setup and inspection.

• Ladder Does Not Unroll Smoothly: Ensure the ladder is not tangled or obstructed within its storage bag or during deployment. Practice unrolling it to identify any snags.
• Carabiner Appears Loose: Double-check that the carabiner's locking mechanism is fully engaged. Ensure the attachment point is appropriate and the carabiner is securely fastened. If the carabiner's loop has a gap, ensure it is positioned such that it cannot detach from the ladder's rope loop.
• Difficulty Descending: Ensure you are facing the building and maintaining three points of contact. If the ladder is too close to the wall, consider using a support frame or ensuring the rungs are positioned to allow foot placement.

If you encounter any issues not covered here or have concerns about the ladder's integrity, discontinue use immediately and contact ISOP customer support.

7. Product Specifications

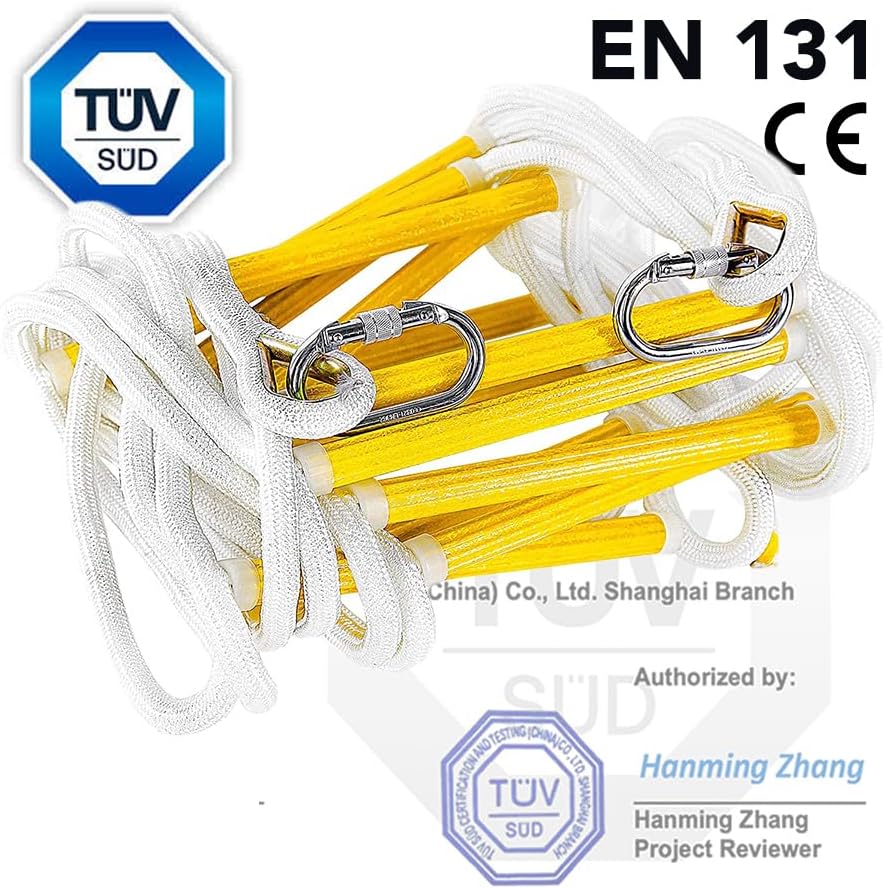

Figure 6: The ISOP ladder is certified by TÜV SÜD and meets EN 131 CE standards.

8. Warranty and Support

ISOP is committed to providing high-quality safety products. For any questions, concerns, or support needs regarding your Emergency Fire Escape Ladder, please contact us directly.

• Spare Part Availability: EU spare parts are available for a duration of 5 years.
• Contact Information: For direct support, please visit the official ISOP store on Amazon or contact ISOP customer service through the platform where you purchased the product.
