1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your TOPEMAI Ignition System Kit, Model Top-501. This kit is designed for 50cc, 70cc, 90cc, 110cc, and 125cc horizontal engines found in ATVs, Go Karts, Dirt Bikes, and Pit Bikes. It is important to note that this kit is not compatible with GY6 or CG engines.
Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.
2. Package Contents
Your TOPEMAI Ignition System Kit includes the following components:
- 1 x Ignition Coil
- 1 x 5-pin CDI Module
- 1 x 2-pin Male Plug Starter Solenoid Relay
- 1 x 12V 4-pin Voltage Regulator Rectifier
- 1 x Racing 3-electrode Spark Plug
3. Compatibility
This kit is specifically designed for horizontal engines with displacements of 50cc, 70cc, 90cc, 110cc, and 125cc. Common applications include:
- ATVs (All-Terrain Vehicles)
- Go Karts
- Dirt Bikes
- Pit Bikes
Important: This kit is NOT compatible with GY6 or CG engines.
4. Safety Information
Always prioritize safety when working with vehicle electrical systems. Failure to follow safety precautions can result in serious injury or damage to the vehicle.
- Disconnect Battery: Before beginning any installation, always disconnect the vehicle's battery to prevent electrical shock or short circuits.
- Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
- Consult a Professional: If you are unsure about any step of the installation process, consult a qualified mechanic.
- Engine Type Verification: Double-check your engine type to ensure compatibility before installation.
5. Setup and Installation
The installation process involves replacing existing ignition components. The following steps provide a general guide. Specific vehicle models may vary.
5.1. General Wiring Overview
The kit components are designed to integrate with your vehicle's existing wiring harness. Ensure all connections are secure and match the corresponding plugs.
5.2. Component-Specific Installation Notes
- Ignition Coil: Replace the old ignition coil with the new one. Ensure the spark plug wire is securely attached to both the coil and the spark plug.
- CDI Module: Locate the existing CDI module and replace it with the new 5-pin CDI. Ensure the connector is fully seated.

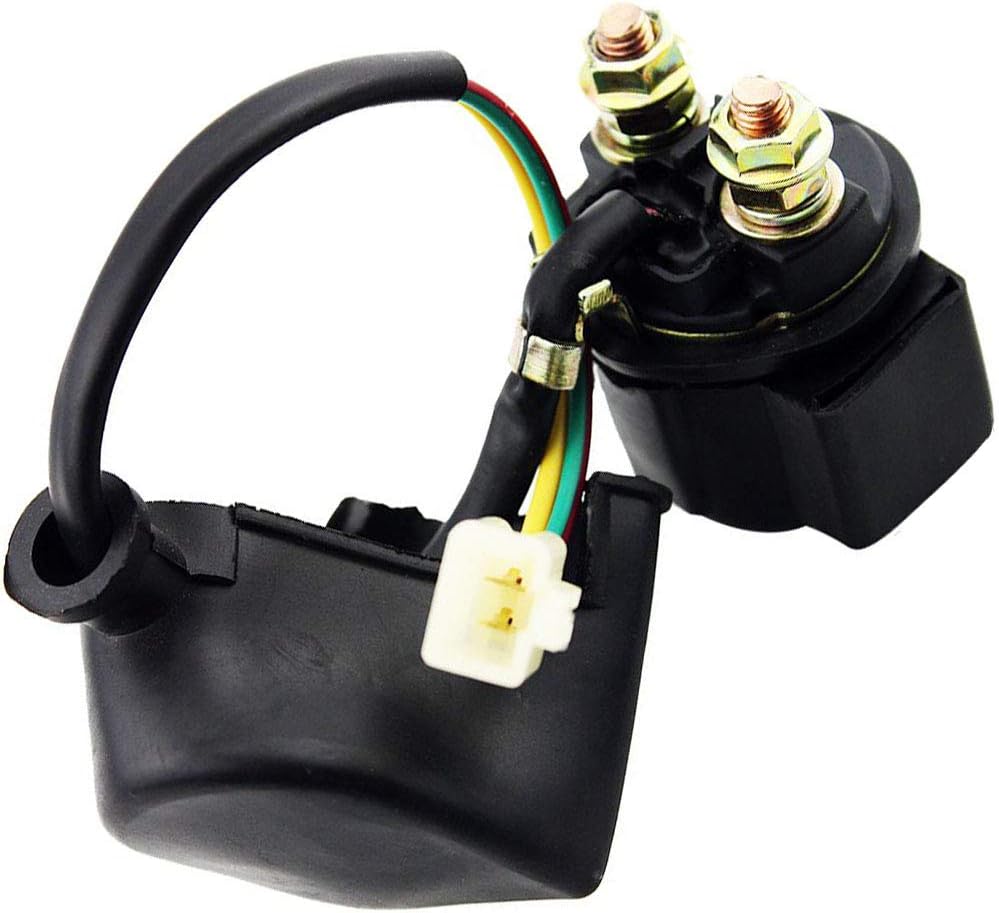

- Starter Solenoid Relay: Replace the old 2-pin relay. Connect the wires to the appropriate terminals.

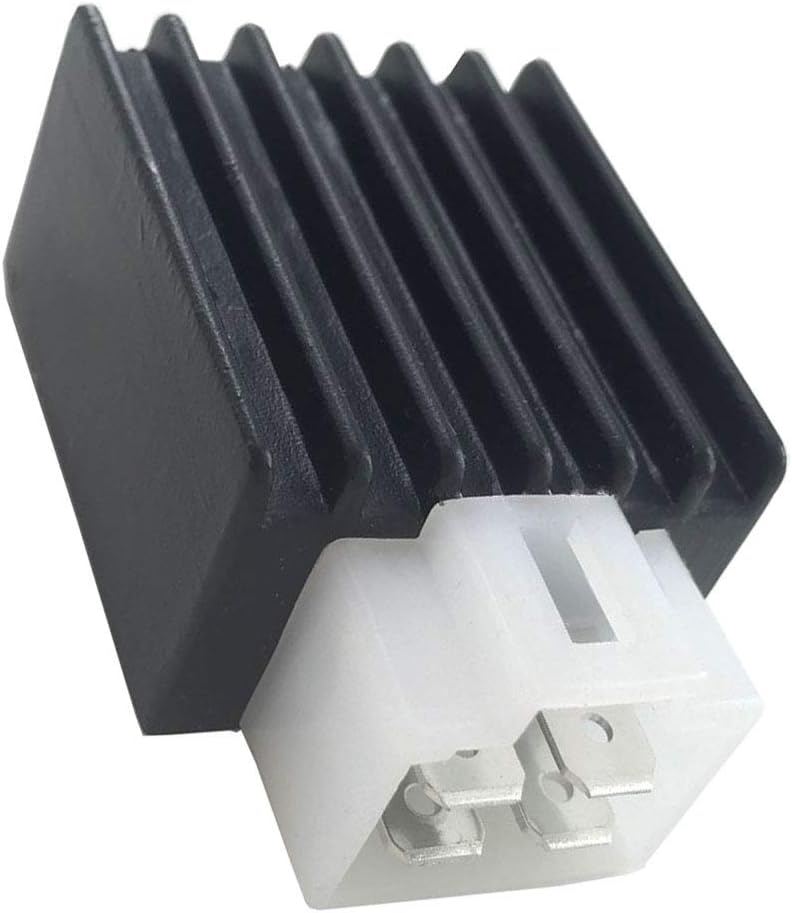

- Voltage Regulator Rectifier: Replace the old 4-pin voltage regulator. Ensure all wires are correctly connected to prevent electrical issues.
- Spark Plug: Carefully remove the old spark plug and install the new racing 3-electrode spark plug. Ensure it is tightened to the manufacturer's specifications for your engine.
6. Operating Instructions
Once all components of the TOPEMAI Ignition System Kit are correctly installed and secured, the system operates automatically with your vehicle's engine. Ensure all connections are tight and free from corrosion for optimal performance.
- Initial Start-up: After installation, reconnect the battery. Turn the ignition key to the "ON" position. Attempt to start the engine. If the engine does not start, refer to the Troubleshooting section.
- Regular Operation: The new components will manage the ignition timing, spark delivery, and electrical system regulation as designed by the vehicle manufacturer.
7. Maintenance
Proper maintenance ensures the longevity and reliable performance of your ignition system components.
- Regular Inspection: Periodically inspect all connections for tightness and signs of corrosion or damage.
- Spark Plug: Check the spark plug gap and condition according to your vehicle's service manual. Replace if worn or fouled.
- Wiring: Ensure all wiring is routed away from hot engine parts and moving components to prevent abrasion or melting.
- Cleanliness: Keep the components clean and free from dirt, oil, and moisture.
8. Troubleshooting
If you encounter issues after installing the kit, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start / No spark | Loose or incorrect wiring connections, faulty spark plug, incorrect CDI module. | Verify all connections are secure and correct. Check spark plug for proper gap and condition. Ensure the CDI module is the correct type for your engine. |
| Engine misfires or runs rough | Spark plug issue, loose ignition coil connection, fuel delivery problem (not kit related). | Inspect spark plug and ignition coil connections. Check for proper fuel flow (carburetor, fuel lines). |
| Battery not charging / Electrical issues | Faulty voltage regulator, loose connections to the regulator. | Check all connections to the voltage regulator. Test the regulator's output if possible. |
| Starter motor not engaging | Faulty starter solenoid relay, low battery, loose battery terminals. | Check battery charge and terminals. Verify starter solenoid relay connections. |
If these steps do not resolve the issue, it is recommended to seek assistance from a qualified mechanic.
9. Specifications
- Model Number: Top-501
- Brand: TOPEMAI
- Compatibility: 50cc, 70cc, 90cc, 110cc, 125cc Horizontal Engines (ATV, Go Kart, Dirt Bike, Pit Bike)
- CDI Type: 5-pin
- Voltage Regulator: 12V, 4-pin
- Starter Solenoid Relay: 2-pin Male Plug
- Spark Plug: Racing 3-electrode
- Item Weight: 13.1 ounces
- Product Dimensions: 4.1 x 2.6 x 1.4 inches
10. Warranty and Support
Specific warranty details for this product are not provided in the available information. For any product-related inquiries, technical assistance, or warranty claims, please contact TOPEMAI customer support directly through the retailer where the product was purchased or via the contact information provided by the manufacturer.
You can often find support contact details on the product packaging or the manufacturer's official website.
