ViaAqua VA-60UL Submersible Water Pump User Manual
Model: VA-60UL
1. Product Overview
The ViaAqua VA-60UL is an energy-efficient and versatile submersible water pump designed for various applications, including water circulation and desktop fountains. Its enhanced motor design and magnetic rotor technology ensure quiet, powerful, and reliable operation.
Key features include:
- Fully Submersible: Designed for complete submersion in water.
- Multi-Purpose: Suitable for water circulation and small fountain setups.
- Quiet Running: Engineered for silent operation.
- Oil-Free Motor: Ensures clean and safe operation for aquatic environments.
- For Fresh & Saltwater Environments: Versatile for various aquatic setups.

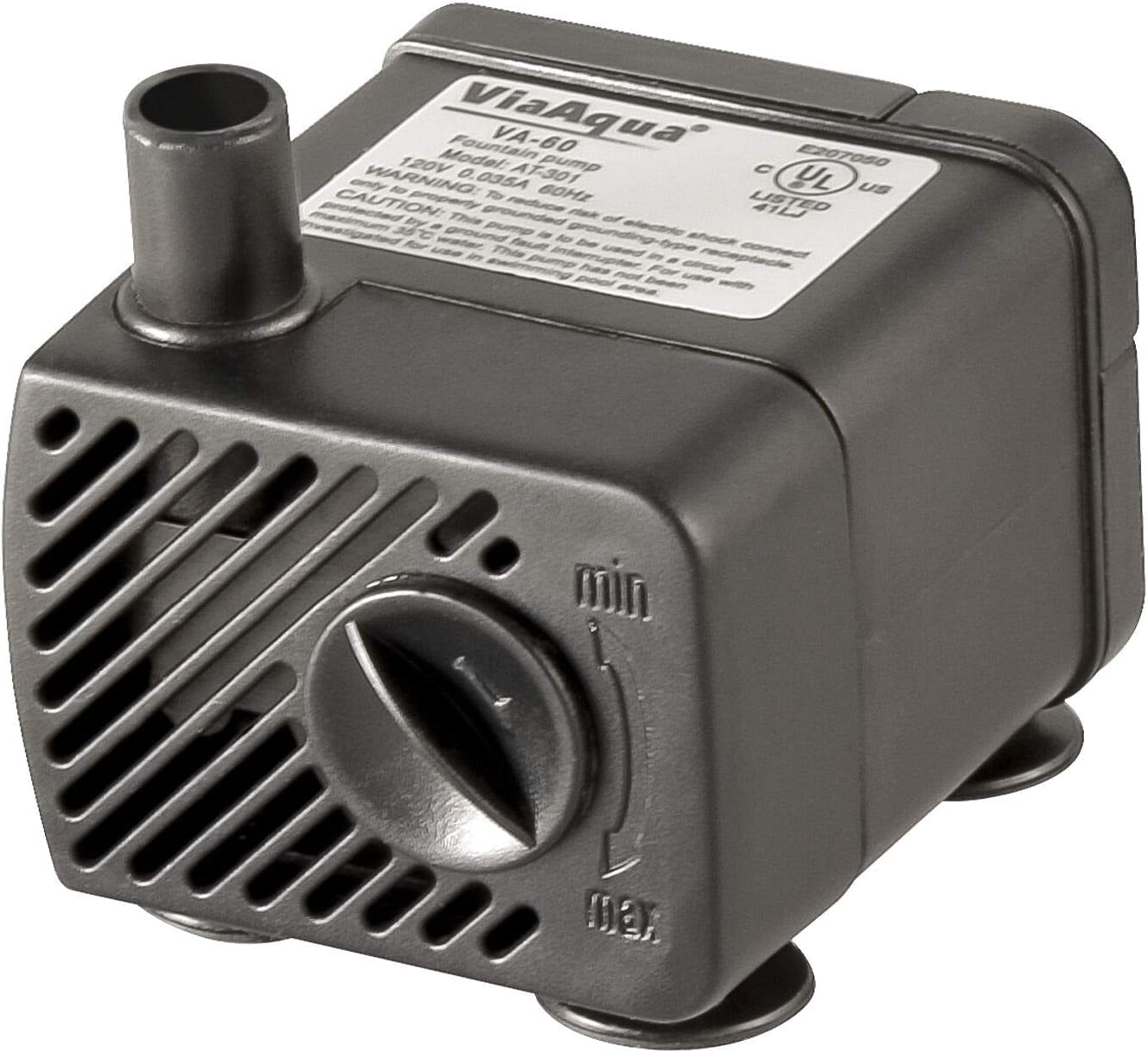

Figure 1: ViaAqua VA-60UL Submersible Water Pump. This image shows the compact design of the pump, highlighting its main body and outlet nozzle.
2. Safety Instructions
Please read all safety instructions carefully before operating the pump to prevent injury or damage.
- Electrical Safety: Always disconnect the pump from the power supply before handling, installing, or performing any maintenance. Ensure the power outlet is a properly grounded, ground-fault circuit interrupter (GFCI) protected receptacle.
- Submersion: This pump is designed for fully submersible use only. Do not operate the pump dry.
- Cord Integrity: Do not operate the pump if the power cord or plug is damaged. Do not cut or modify the power cord.
- Temperature: Do not use the pump in water exceeding 35°C (95°F).
- Children: Keep out of reach of children. This is not a toy.
- Intended Use: Use this pump only for its intended purpose as described in this manual.
3. Setup
- Unpack Components: Carefully remove the pump and all accessories from the packaging. Verify that all parts are present: 1x pump, 2x discharge adapters (for ½ inch ID and 3/8 inch ID tubing).
- Attach Tubing Adapter: Select the appropriate discharge adapter (½ inch or 3/8 inch) for your tubing and firmly attach it to the pump's outlet nozzle.
- Connect Tubing: Connect your desired tubing to the attached discharge adapter. Ensure a snug fit to prevent leaks.
- Positioning: Place the pump completely submerged in water at the desired location. The pump is equipped with suction cups on its base to secure it firmly to a smooth surface, such as the bottom of a pond or fountain basin.
- Power Connection: Ensure your hands are dry. Plug the 6-foot grounded power cord into a properly grounded electrical outlet with GFCI protection.

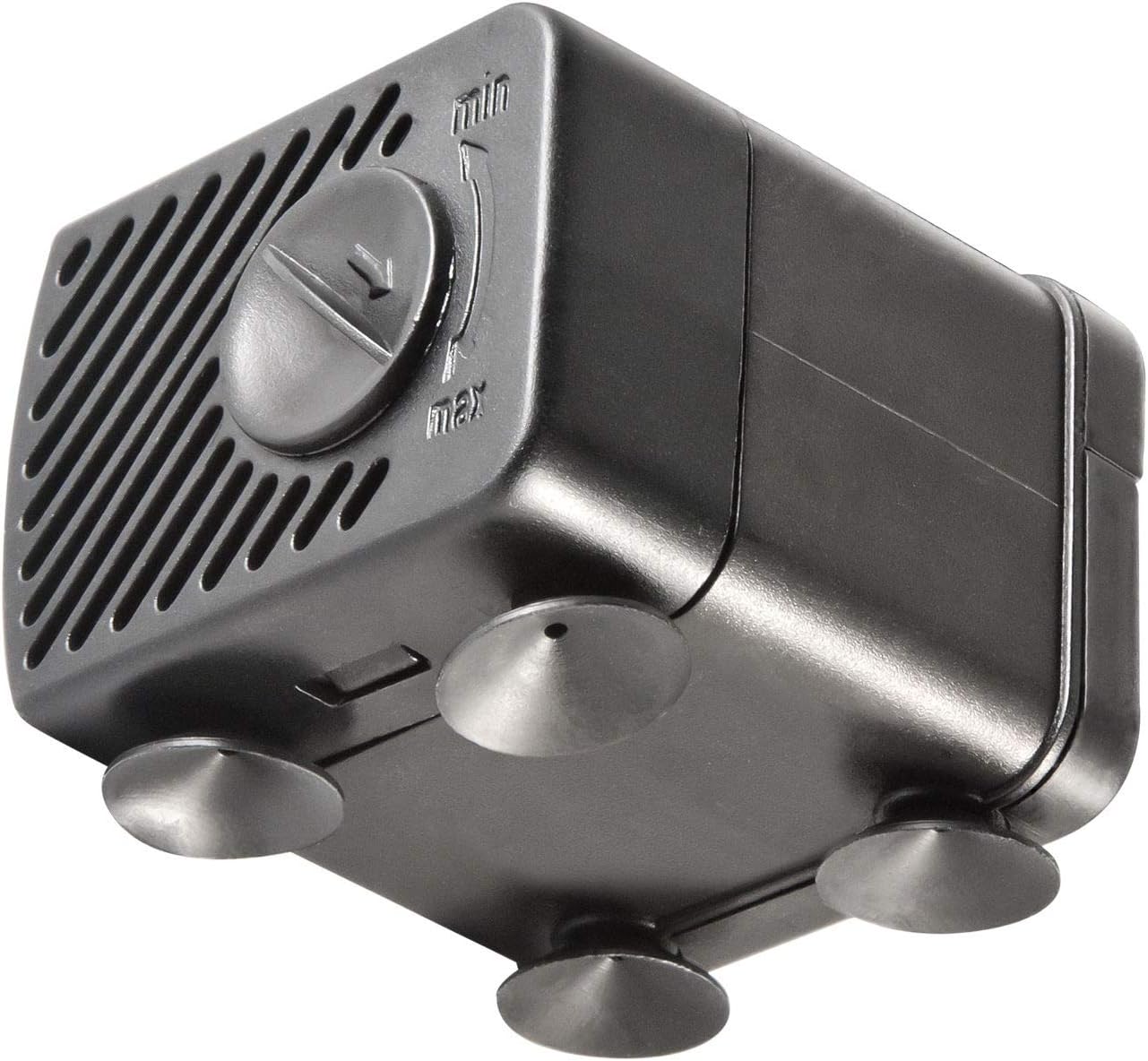

Figure 2: Bottom view of the pump showing the four suction cups. These cups provide stability and secure placement on smooth surfaces.
4. Operating Instructions
Once the pump is properly set up and submerged, it will begin to operate when plugged in.
4.1. Adjusting Water Flow
The ViaAqua VA-60UL pump features an adjustable flow control knob located on the front of the pump. This allows you to regulate the water output to suit your specific needs.
- Increase Flow: Rotate the knob towards the "MAX" indicator to increase the water flow rate.
- Decrease Flow: Rotate the knob towards the "MIN" indicator to decrease the water flow rate.

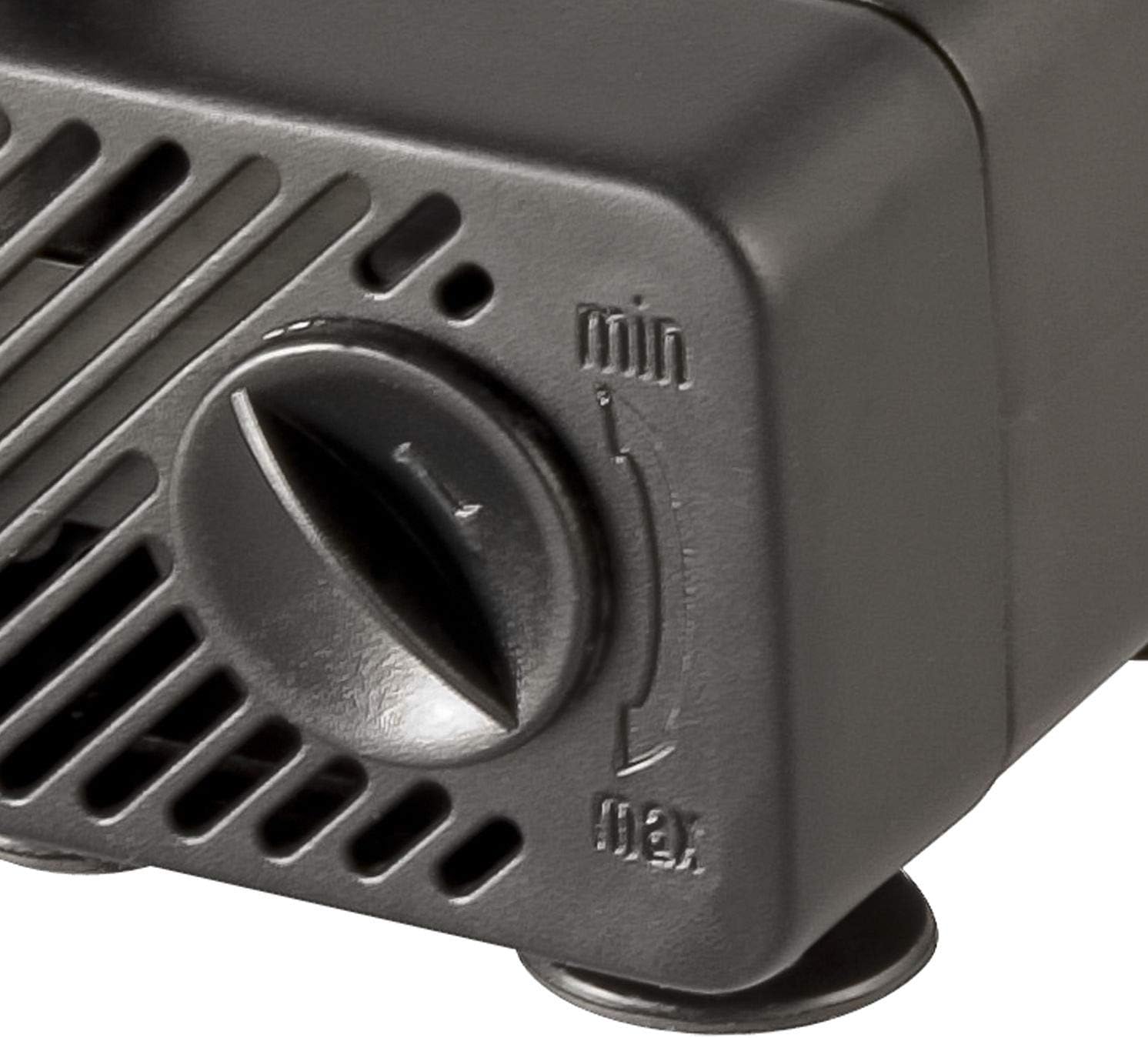

Figure 3: Close-up view of the adjustable flow control knob. The knob is clearly marked with "min" and "max" indicators to guide flow adjustment.
4.2. General Operation Tips
- Ensure the pump is always fully submerged during operation to prevent overheating and damage.
- Regularly check the water level in your pond or fountain to ensure adequate submersion.
5. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your ViaAqua VA-60UL pump.
- Disconnect Power: Always unplug the pump from the electrical outlet before performing any maintenance.
- Clean Impeller: Over time, debris can accumulate around the impeller, reducing pump efficiency.
- Remove the front cover of the pump (if applicable, usually by gently prying or unscrewing).
- Carefully remove the impeller assembly.
- Clean the impeller and its housing with a soft brush and clean water to remove any algae, mineral deposits, or debris.
- Rinse thoroughly and reassemble.
- Clean Suction Cups: Periodically clean the suction cups and the surface they adhere to for optimal grip.
- Check Tubing: Inspect tubing for kinks, blockages, or excessive algae growth that might impede water flow.
- Winterization (if applicable): If using outdoors in freezing climates, remove the pump from the water during winter months to prevent damage from ice expansion. Store in a dry, frost-free location.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not operate |
|
|
| Reduced water flow |
|
|
| Pump is noisy |
|
|
7. Specifications
| Attribute | Value |
|---|---|
| Model Number | VA-60UL |
| Brand | ViaAqua |
| Max. Flow Rate | 60 GPH (Gallons Per Hour) |
| Max. Head Height | 23 inches |
| Wattage | 4 watts |
| Tubing Compatibility | ½ inch ID or 3/8 inch ID |
| Power Cord Length | 6 feet (grounded plug) |
| Dimensions (LxWxH) | 1.75 x 1.25 x 1.75 inches |
| Power Source | AC/DC |
| Color | Grey |
| UPC | 690371000824 |
| Manufacturer | Commodity Axis |
| Date First Available | March 7, 2019 |

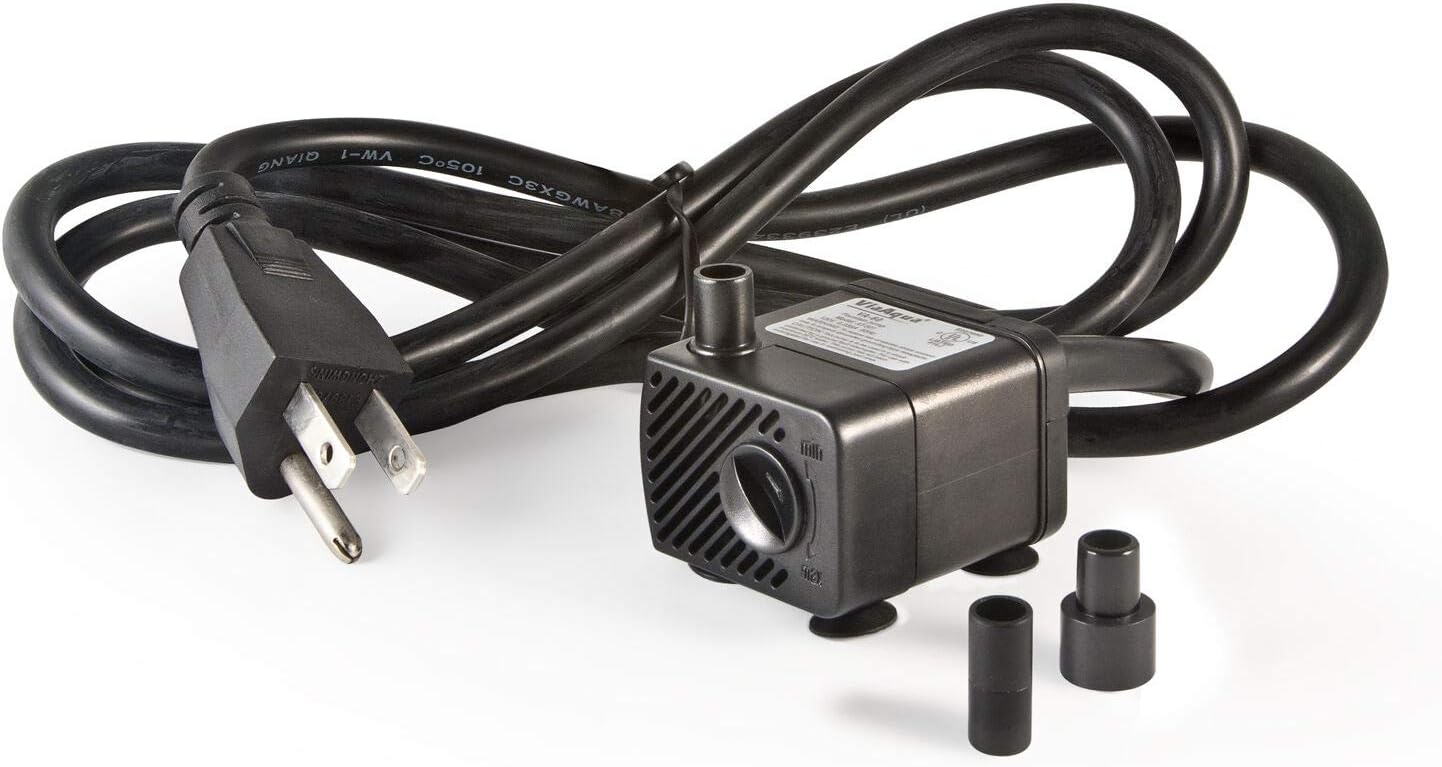

Figure 4: The ViaAqua VA-60UL pump shown with its power cord and the two included discharge adapters.
8. Warranty and Support
Specific warranty details for the ViaAqua VA-60UL pump are not provided in this manual. For warranty information, technical support, or replacement parts, please contact the manufacturer, Commodity Axis, or your point of purchase.
For further assistance, please refer to the contact information provided by ViaAqua or the retailer where the product was purchased.
