SuperPro KIT5238RK Rear Suspension Bushing Kit User Manual

1. Introduction

This manual provides essential information for the installation, maintenance, and general understanding of your SuperPro KIT5238RK Rear Suspension Bushing Kit. SuperPro polyurethane bushings are engineered to provide superior performance, durability, and handling characteristics compared to standard rubber components. This kit is designed for specific Audi and Volkswagen models from 2006 to 2023, enhancing the vehicle's rear suspension system.

For optimal results and safety, it is highly recommended that installation be performed by a qualified automotive technician.

2. Safety Information

Working on vehicle suspension systems can be hazardous. Always prioritize safety to prevent injury or damage to the vehicle. Adhere to the following safety guidelines:

• Professional Installation: Due to the complexity and critical nature of suspension components, professional installation by a certified mechanic is strongly advised.
• Vehicle Support: Always use appropriate jack stands to support the vehicle securely after lifting. Never rely solely on a jack.
• Personal Protective Equipment (PPE): Wear safety glasses, gloves, and appropriate work attire to protect against debris, chemicals, and sharp objects.
• Tool Usage: Use only the correct tools for each task. Ensure tools are in good working condition.
• Brake System: Be mindful of brake lines and components. Avoid putting stress on them.
• Alignment: After any suspension work, a professional wheel alignment is mandatory to ensure proper vehicle handling and tire wear.

3. Kit Contents

The SuperPro KIT5238RK includes a comprehensive set of polyurethane bushings and associated hardware designed for the rear suspension. The exact number and type of components may vary slightly, but typically include:

• Various sizes of blue polyurethane bushings for different suspension arms and mounting points.
• Metal crush tubes or sleeves designed to fit inside the bushings.
• Specific washers or spacers as required for proper fitment.

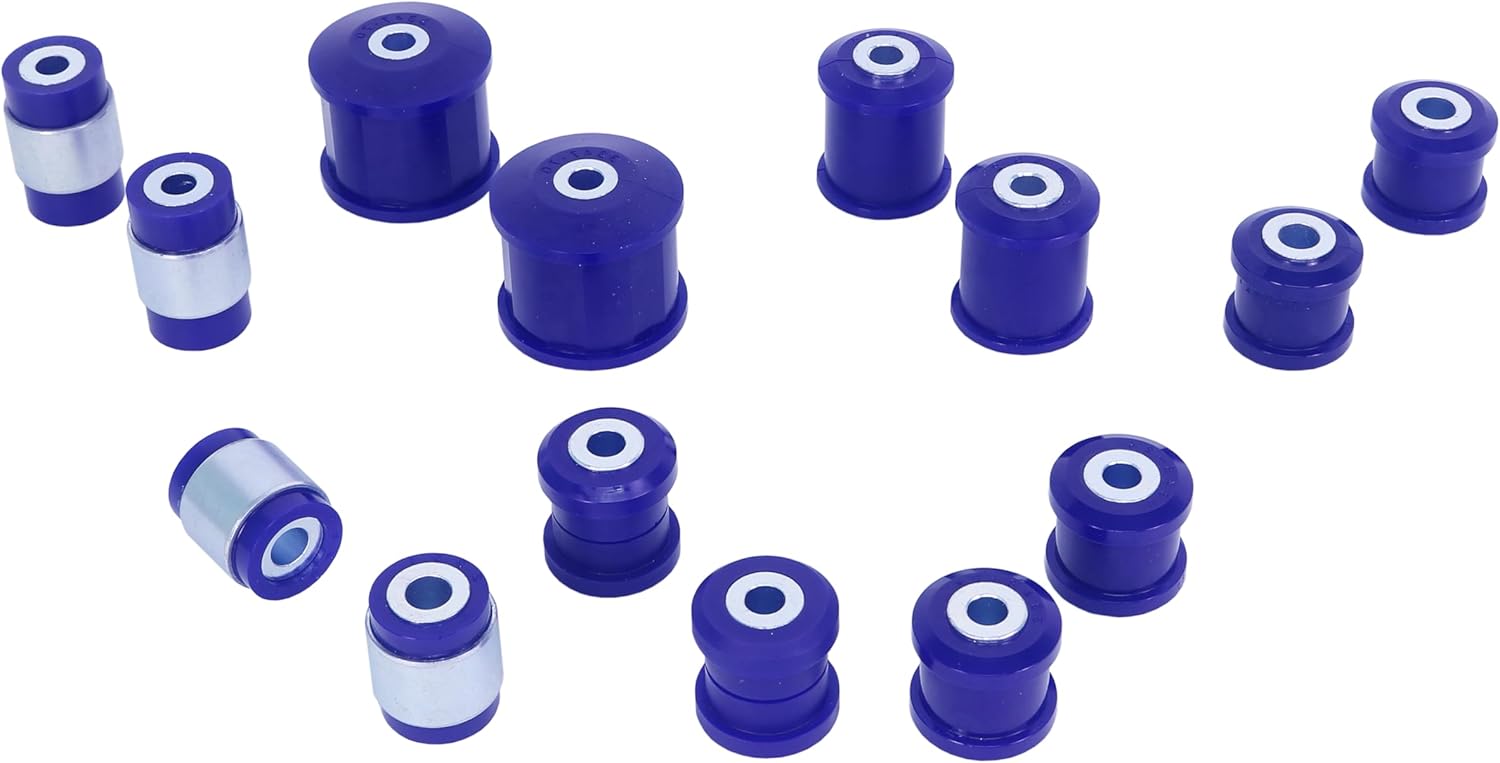

Figure 3.1: Overview of the SuperPro KIT5238RK components, showing various blue polyurethane bushings and silver metal sleeves.

Figure 3.2: A closer view of the SuperPro KIT5238RK components, illustrating the different sizes and shapes of bushings and their corresponding metal inserts.

Figure 3.3: A comprehensive layout of all components included in the SuperPro KIT5238RK, providing a complete visual reference for the kit's contents.

4. Setup and Installation

Installation of the SuperPro KIT5238RK requires specialized tools and mechanical expertise. The following is a general overview of the process. Refer to a vehicle-specific service manual for detailed instructions for your Audi or Volkswagen model.

General Installation Steps:

1. Preparation: Safely lift and support the vehicle. Remove the wheels. Identify the specific rear suspension components where the bushings will be replaced.
2. Disassembly: Carefully remove the bolts and nuts securing the suspension arms. Note the orientation of all components.
3. Bushing Removal: The old rubber bushings must be pressed out or carefully cut out from the suspension arms. This often requires a hydraulic press or specialized bushing removal tools.
4. Cleaning: Thoroughly clean the housing bores where the new SuperPro bushings will be installed. Remove any rust, dirt, or old rubber residue.
5. Lubrication: Apply the supplied SuperPro grease generously to both the outer surface of the polyurethane bushing and the inner bore of the suspension arm. Also, lubricate the inner surface of the bushing and the metal crush tube. This is critical for preventing squeaks and ensuring proper function.
6. Bushing Installation: Press the new SuperPro polyurethane bushings into the cleaned and lubricated housing bores. Ensure they are seated correctly and fully. Insert the metal crush tubes into the bushings.
7. Reassembly: Reinstall the suspension arms and components, ensuring all bolts are tightened to the manufacturer's specified torque settings. Do not fully tighten suspension bolts until the vehicle is at ride height (or suspension is loaded) to prevent premature bushing wear.
8. Final Checks: Double-check all fasteners for proper torque. Reinstall wheels.
9. Wheel Alignment: A professional wheel alignment is absolutely essential after installing new suspension bushings to correct camber, caster, and toe angles. Failure to do so can lead to poor handling and rapid tire wear.

5. Operating Characteristics

After installation, you may notice an immediate improvement in your vehicle's handling and responsiveness. SuperPro bushings are designed to:

• Provide more precise steering and suspension geometry.
• Reduce unwanted suspension deflection and movement.
• Improve tire wear by maintaining proper alignment under load.
• Offer a more direct and connected feel to the road.

While SuperPro bushings are firmer than OEM rubber, they are engineered to minimize harshness and noise, providing a balance between performance and comfort.

6. Maintenance

SuperPro polyurethane bushings are designed for long-term durability and typically require minimal maintenance. However, periodic inspection is recommended:

• Visual Inspection: During routine vehicle servicing, visually inspect the bushings for any signs of damage, cracking, or excessive wear.
• Cleaning: If operating in extremely dirty or dusty environments, occasionally clean the exposed surfaces of the bushings to prevent abrasive wear.
• Re-lubrication (if necessary): In rare cases, if a squeak develops over time, it may indicate a need for re-lubrication. This involves disassembling the joint, cleaning, and re-applying SuperPro grease.

7. Troubleshooting

Most issues after installation are related to incorrect installation or insufficient lubrication.

• Squeaking Noise: This is the most common issue and is almost always due to insufficient or incorrect lubrication. Ensure genuine SuperPro grease is used and applied generously to all contact surfaces during installation. If squeaking occurs, the bushing may need to be removed, cleaned, and re-lubricated.
• Poor Handling/Uneven Tire Wear: This indicates an issue with wheel alignment. A professional alignment is crucial after any suspension component replacement. If alignment was performed, re-check it.
• Excessive Vibration/Harshness: While SuperPro bushings are firmer, excessive vibration might suggest an issue with installation, such as incorrect torque settings, or a problem with other suspension components.

If you experience persistent issues, consult with a qualified automotive technician who specializes in suspension systems.

8. Specifications

9. Warranty

The SuperPro KIT5238RK Rear Suspension Bushing Kit is backed by a 3-Year Warranty. This warranty covers manufacturing defects and material failures under normal operating conditions. For specific warranty terms and conditions, please refer to the official SuperPro warranty documentation or contact SuperPro customer support.

10. Support

For technical assistance, installation queries, or warranty claims, please contact SuperPro customer support directly through their official website or authorized distributors. Always provide your product model number (KIT5238RK) and details of your vehicle (make, model, year) when seeking support.

It is also advisable to consult with a certified automotive technician for any complex installation or troubleshooting needs.
