1. Introduction
This manual provides essential information for the assembly, operation, and maintenance of your COSTWAY Outdoor Steel Frame Retractable Canopy Pergola. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of the product.

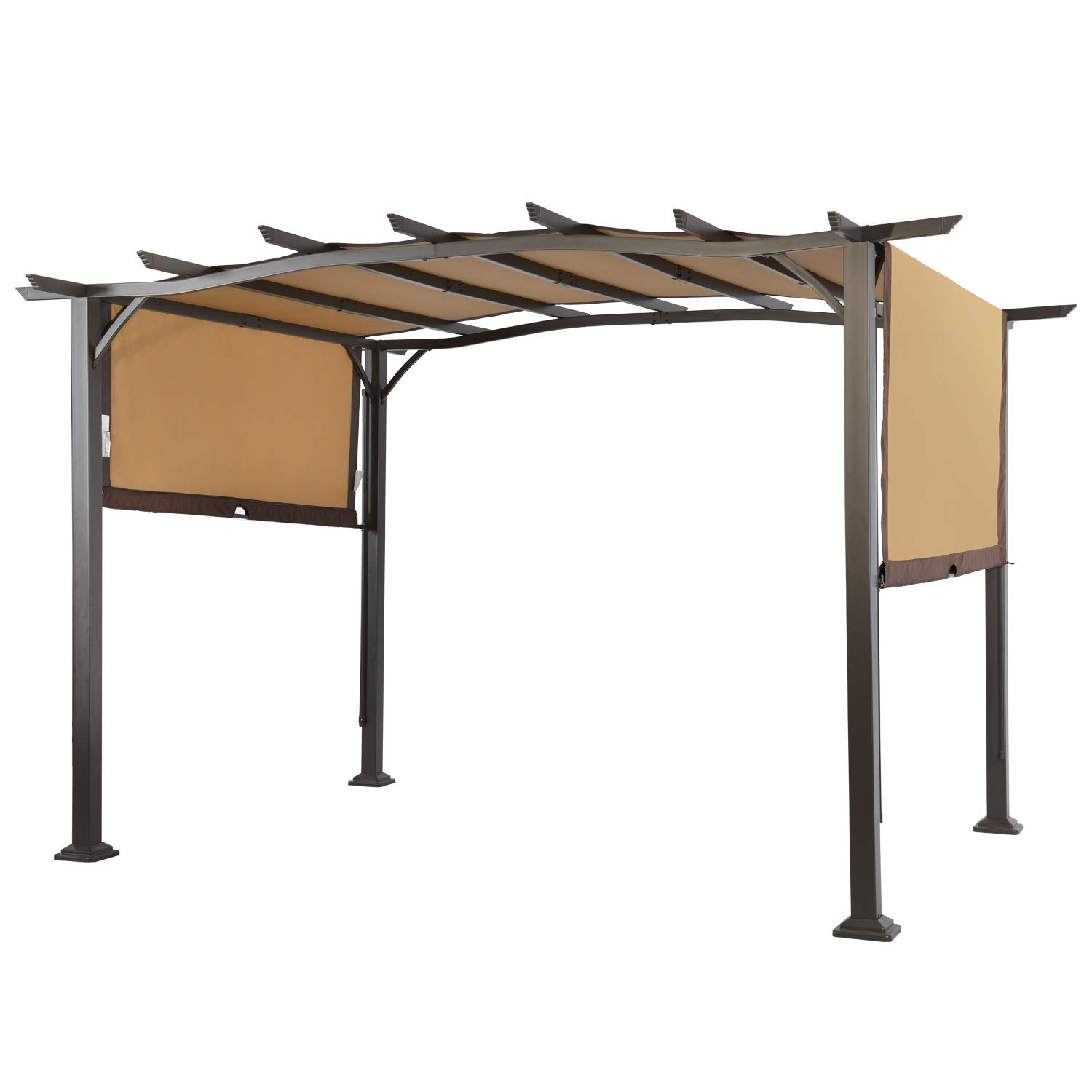

Image 1.1: The COSTWAY Pergola provides a shaded outdoor area, featuring a retractable canopy and a durable steel frame.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and damage to the product:
- Secure Installation: Always secure the shelter to a stable foundation using the drilled pole feet. Failure to do so may result in instability and collapse.
- Assembly: Follow the assembly instructions carefully. Incorrect assembly can compromise the structural integrity of the pergola.
- Weather Conditions: Do not use the shelter in high winds, heavy rain, snow, or during severe weather conditions. Retract the canopy during such events to prevent damage.
- Regular Inspection: Periodically check all connections and components for tightness and signs of wear or damage. Replace any damaged parts immediately.
- Clearance: Ensure the area around the pergola is clear of obstructions during assembly and use.
3. Setup and Assembly
Assembly of the COSTWAY Pergola is required. It is recommended that at least two adults participate in the assembly process. Refer to the separate assembly guide for detailed step-by-step instructions and a complete parts list.
3.1 Foundation and Anchoring
The pergola features drilled pole feet designed for secure anchoring. It is essential to anchor the pergola to a concrete slab or other solid ground to ensure stability.
Image 3.1: Detail of the drilled column foot, designed for secure anchoring to a stable surface.
3.2 Dimensions
Before assembly, ensure you have adequate space for the pergola. The overall dimensions are crucial for planning your installation area.
Image 3.2: Dimensional diagram of the pergola, indicating a width of 11.5 ft, depth of 7.8 ft, and height of 7.4 ft.
4. Operating Instructions
The COSTWAY Pergola features an adjustable fabric screen for sun protection. The canopy can be retracted or extended as needed using the sliding rails located on both sides of the structure.
4.1 Retracting and Extending the Canopy
- To extend the canopy, gently pull the fabric screen along the sliding rails until it reaches the desired position.
- To retract the canopy, push the fabric screen back along the rails.
- Ensure the canopy is fully retracted during strong winds or adverse weather conditions to prevent damage.
Image 4.1: Detail of the adjustable function, illustrating the sliding mechanism for the canopy.
4.2 Optional Vine Integration
The pergola structure is designed to allow climbing plants, such as vines, to grow along its frame, enhancing its aesthetic appeal.
Image 4.2: The pergola's design allows for vines to climb and integrate with the structure.
5. Maintenance
Regular maintenance will help preserve the appearance and functionality of your pergola.
- Cleaning: The steel frame and polyester canopy are designed for easy maintenance and cleaning. Use a mild soap and water solution with a soft cloth to clean surfaces. Avoid harsh chemicals or abrasive cleaners.
- Debris Removal: Keep the shelter clear of debris, such as leaves and branches, especially on the canopy. Accumulated debris can cause damage or pooling of water.
- Inspection: Periodically inspect the frame for any signs of rust, corrosion, or structural damage. Check the canopy fabric for tears or excessive wear.
- Fasteners: Ensure all bolts, screws, and connections remain tight. Re-tighten as necessary.
6. Troubleshooting
If you encounter any issues with your COSTWAY Pergola, please review the assembly instructions to ensure all steps were followed correctly. For persistent problems or missing parts, contact COSTWAY customer support for assistance.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | COSTWAY |
| Model Number | Pergola |
| Frame Material | Stainless Steel |
| Canopy Material | 180g/m² Solid Color Polyester |
| Water Resistance Level | Water Resistant |
| UV Protection | Yes |
| Assembly Required | Yes |
| Product Dimensions | 138 x 93.6 x 88.8 inches (11.5 x 7.8 x 7.4 feet) |
| Item Weight | 126.7 pounds |
| UPC | 608565131032 |
8. Warranty and Support
COSTWAY offers a free replacement or refund for any quality problems within 30 days of purchase. Free replacement for damaged or defective parts is available for up to 1 year from the purchase date.
For warranty claims, technical support, or inquiries regarding parts, please contact COSTWAY customer service. Refer to your purchase documentation or the official COSTWAY website for contact information.
