Mitsubishi Electric Linea Smart MSZ-HR25VF Air Conditioner User Manual
Model: MSZ-HR25VF
1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Mitsubishi Electric Linea Smart MSZ-HR25VF Air Conditioner. This split-system unit is designed to provide cooling, heating (heat pump), and dehumidification functions for optimal indoor comfort. Please read this manual thoroughly before operating the unit and keep it for future reference.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Consult a qualified installer or service agency for all work.
- Ensure the unit is installed by a qualified professional in accordance with local and national electrical and refrigeration codes.
- Do not attempt to repair or modify the unit yourself. Contact authorized service personnel.
- Keep the area around the outdoor unit clear of obstructions to ensure proper airflow.
- Do not insert fingers or objects into the air inlet or outlet.
- Turn off the power supply before performing any cleaning or maintenance.
- This appliance uses R-32 refrigerant. Handle with care and ensure proper ventilation during installation and servicing.
3. Product Features
The Mitsubishi Electric Linea Smart MSZ-HR25VF Air Conditioner offers advanced features for superior comfort and efficiency:
- Inverter Compressor: Provides precise temperature control, energy efficiency, and quiet operation.
- Cooling and Heating Function: Offers year-round comfort with both cooling and heat pump capabilities.
- Dehumidifier: Reduces indoor humidity levels for enhanced comfort.
- Ultra-Quiet Operation: Designed for minimal noise output, ensuring a peaceful environment (as low as 21 dB).
- R-32 Refrigerant: Utilizes an environmentally friendly refrigerant with lower global warming potential.
- Optional WiFi Connectivity: Compatible with MELCloud system for remote control and power consumption monitoring.
- Compact Design: Space-saving indoor unit suitable for various room aesthetics.
- High Seasonal Efficiency: Rated A++/A+ for energy efficiency.
4. Components Overview
Indoor Unit (MSZ-HR25VF)
The sleek, white indoor unit of the Mitsubishi Electric Linea Smart MSZ-HR25VF air conditioner, designed for wall mounting. This unit is responsible for circulating conditioned air within the room.
Outdoor Unit (MUZ-HR25VF)
The compact outdoor unit of the Mitsubishi Electric Linea Smart air conditioner, featuring a protective grille over the fan. This unit dissipates heat during cooling and absorbs heat during heating.
Outdoor Unit with Dimensions

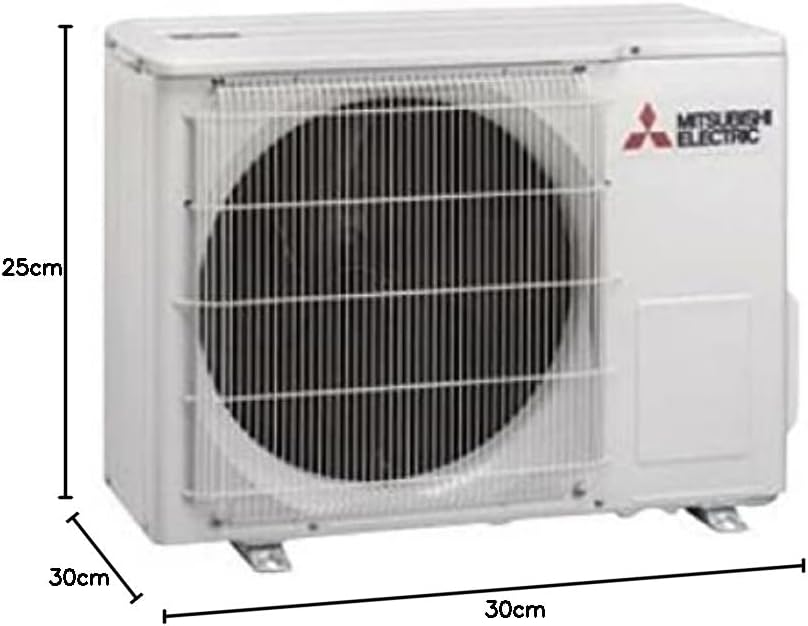

A view of the Mitsubishi Electric outdoor unit, illustrating its approximate dimensions: 30cm in width, 30cm in depth, and 25cm in height. These dimensions are indicative for installation planning.
5. Setup and Installation
Installation of the Mitsubishi Electric MSZ-HR25VF split-system air conditioner requires specialized knowledge and tools. It must be performed by a certified HVAC technician. The following is a general overview of the installation process and is not a substitute for professional installation instructions.
- Site Selection: Choose appropriate locations for both the indoor and outdoor units, considering airflow, drainage, and structural support.
- Mounting: Securely mount the indoor unit to the wall and the outdoor unit on a stable, level surface or wall bracket.
- Refrigerant Piping: Connect the refrigerant lines between the indoor and outdoor units, ensuring proper insulation and leak-free connections.
- Drainage: Install the condensate drain line from the indoor unit to ensure proper water removal.
- Electrical Wiring: Connect the power supply and communication wiring according to the wiring diagram provided with the unit. Ensure all electrical work complies with local codes.
- Vacuuming and Charging: Evacuate the refrigerant lines to remove air and moisture, then charge the system with the correct amount of R-32 refrigerant.
- Test Run: Perform a test run to verify proper operation, check for leaks, and ensure all functions are working correctly.
For detailed installation instructions, refer to the dedicated installation manual provided with the product or consult a qualified technician.
6. Operating Instructions
Your Mitsubishi Electric MSZ-HR25VF air conditioner is controlled via a remote controller (sold separately or included with the outdoor unit).
6.1. Basic Operation Modes
- COOL Mode: For cooling the room. Set your desired temperature.
- HEAT Mode: For heating the room (heat pump function). Set your desired temperature.
- DRY Mode (Dehumidifier): For reducing humidity without significant temperature change.
- FAN Mode: Circulates air without heating or cooling.
- AUTO Mode: The unit automatically selects the appropriate mode (Cool, Heat, or Dry) based on the room temperature and your set temperature.
6.2. Temperature Setting
Use the TEMP UP and TEMP DOWN buttons on your remote controller to adjust the desired temperature. The typical operating range is 16°C to 31°C (61°F to 88°F).
6.3. Fan Speed Adjustment
Press the FAN SPEED button to cycle through available fan speeds (e.g., Low, Medium, High, Auto).
6.4. Timer Functions
Refer to your remote controller manual for setting ON/OFF timers, which allow the unit to start or stop automatically at pre-set times.
6.5. MELCloud (Optional WiFi)
If equipped with the optional MELCloud WiFi interface, you can control your air conditioner remotely via a smartphone or tablet app. This also enables power consumption monitoring. Follow the instructions provided with the MELCloud adapter for setup.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner. Always turn off the power supply to the unit before performing any maintenance.
7.1. Air Filter Cleaning
Clean the air filters every two weeks or more frequently depending on usage and air quality.
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters using a vacuum cleaner or wash them gently with water and a mild detergent.
- Allow filters to dry completely in a shaded area before reinserting them.
- Close the front panel.
7.2. Outdoor Unit Cleaning
Periodically check the outdoor unit for debris, leaves, or other obstructions that may block the airflow. Gently remove any blockages. Do not spray water directly onto the electrical components.
7.3. Professional Servicing
It is recommended to have your air conditioner professionally serviced by a qualified technician at least once a year to check refrigerant levels, clean coils, and ensure all components are functioning correctly.
8. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate. | No power; circuit breaker tripped; remote controller batteries dead. | Check power supply; reset circuit breaker; replace remote controller batteries. |
| Insufficient cooling/heating. | Dirty air filters; blocked outdoor unit; wrong mode selected; temperature setting too high/low. | Clean air filters; clear obstructions from outdoor unit; select correct mode; adjust temperature setting. |
| Water dripping from indoor unit. | Clogged drain pipe; unit not level. | Check and clear drain pipe; ensure unit is level (professional assistance may be required). |
| Unusual noise. | Loose parts; foreign object in fan; normal operating sounds (e.g., refrigerant flow). | If noise is persistent or loud, turn off unit and contact service. Distinguish from normal sounds. |
If the problem persists after checking these points, please contact your authorized Mitsubishi Electric service provider.
9. Specifications
| Specification | Value |
|---|---|
| Model Number | MSZ-HR25VF |
| Manufacturer | Mitsubishi Electric |
| Type | Split System Air Conditioner |
| Cooling Capacity | 2.5 kW (approx. 9,000 BTU) |
| Power Source | Electric |
| Voltage | 230V AC |
| Refrigerant | R-32 |
| Sound Level (Indoor Unit) | As low as 21 dB |
| Seasonal Energy Efficiency Ratio (SEER) | 18 |
| Energy Efficiency Class | A++/A+ |
| Product Dimensions (Indoor Unit) | Approx. 30 x 30 x 25 cm (H x W x D) - Note: This is based on the general product dimensions, specific indoor unit dimensions may vary slightly. |
| Item Weight | 54 kg (Total system weight) |
| Special Features | Inverter Compressor, Heating and Cooling Function, Dehumidifier, WiFi Enabled (Optional) |
10. Warranty and Support
For information regarding your product's warranty, please refer to the warranty card included with your purchase or contact your local Mitsubishi Electric dealer or authorized service center. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or service requests, please contact Mitsubishi Electric customer service or your authorized installer.
