SIKY 12.5 Ft Aluminum Telescopic Extension Ladder User Manual

Introduction

Thank you for choosing the SIKY 12.5 Ft Aluminum Telescopic Extension Ladder. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your ladder. Please read all instructions carefully before first use and retain this manual for future reference.

Important Safety Instructions

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.

• Always inspect the ladder before each use. Ensure all locking mechanisms are functioning correctly and that there is no damage to the ladder components.
• Place the ladder on a firm, level, and non-slip surface. Do not use on unstable ground.
• Maintain a 75-degree angle when leaning the ladder against a wall (approximately a 1:4 ratio of distance from base to wall height).
• Do not exceed the maximum load capacity of 150 kg (330 lbs). This includes the user and any tools or materials.
• Ensure all rungs are fully extended and locked before climbing. Verify the red/green indicators (if present) show a locked state.
• Always face the ladder when ascending or descending. Maintain three points of contact (two hands and one foot, or two feet and one hand) at all times.
• Do not stand on the top three rungs of the ladder.
• Avoid overreaching. Reposition the ladder instead of stretching.
• Do not use the ladder in strong winds, during storms, or near live electrical wires. Aluminum conducts electricity.
• Keep children and pets away from the ladder during use.
• Wear appropriate footwear with good grip.
• When retracting the ladder, ensure hands and fingers are clear of the collapsing sections to prevent pinching.

Image: Close-up of anti-slip striped pedals with warning labels. The labels indicate important safety warnings regarding hand placement and proper use.

Product Components

The SIKY Telescopic Extension Ladder consists of the following key components:

• Aluminum Alloy Frame: Lightweight yet durable construction.
• Telescoping Rungs: Individual steps that extend and retract.
• Spring-Load Locking Mechanisms: Securely lock each rung into place when extended.
• Non-Slip Rubber Feet: Provide stability and prevent slipping on various surfaces.
• Anti-Slip Striped Pedals: Textured rungs for enhanced foot grip.
• Stabilizer Bar (if included): Provides additional base stability.

Image: Close-up view of the non-slip rubber feet, designed to enhance stability and prevent movement during use.

Image: Detailed view of the thickened fasteners and the spring-load locking mechanism. A finger is shown nudging the unlock button.

Setup and Unfolding the Ladder

1. Place the ladder on a flat, stable surface.
2. Hold the bottom section of the ladder firmly.
3. Gently pull up the top section of the ladder until it extends and locks into place. You should hear an audible "click" and see the locking indicators engage.
4. Continue extending each subsequent rung, one by one, from the top downwards, ensuring each section locks securely before proceeding.
5. Verify that all extended rungs are fully locked before climbing.

Image: A person wearing a hard hat is shown climbing the fully extended SIKY telescopic ladder, demonstrating its use against a building.

Operating the Ladder

Extending the Ladder

To extend the ladder to your desired height:

1. Follow the unfolding steps above, extending only the necessary number of rungs.
2. Always extend from the top rung downwards.
3. Ensure each section is fully locked before applying weight.

Retracting the Ladder

To retract the ladder for storage:

1. Ensure the ladder is on a stable surface and no one is on it.
2. Starting from the bottom-most extended rung, simultaneously press the two locking buttons on either side of the rung.
3. The section will slowly retract. Keep hands and fingers clear of the collapsing sections.
4. Repeat this process for each extended rung until the ladder is fully collapsed.
5. The ladder is designed with a slow-down system to prevent rapid collapse and finger pinching, but caution is still advised.

Storage

When not in use, store the SIKY telescopic ladder in a dry, secure location, away from direct sunlight and extreme temperatures. Its compact design allows for easy storage in small spaces.

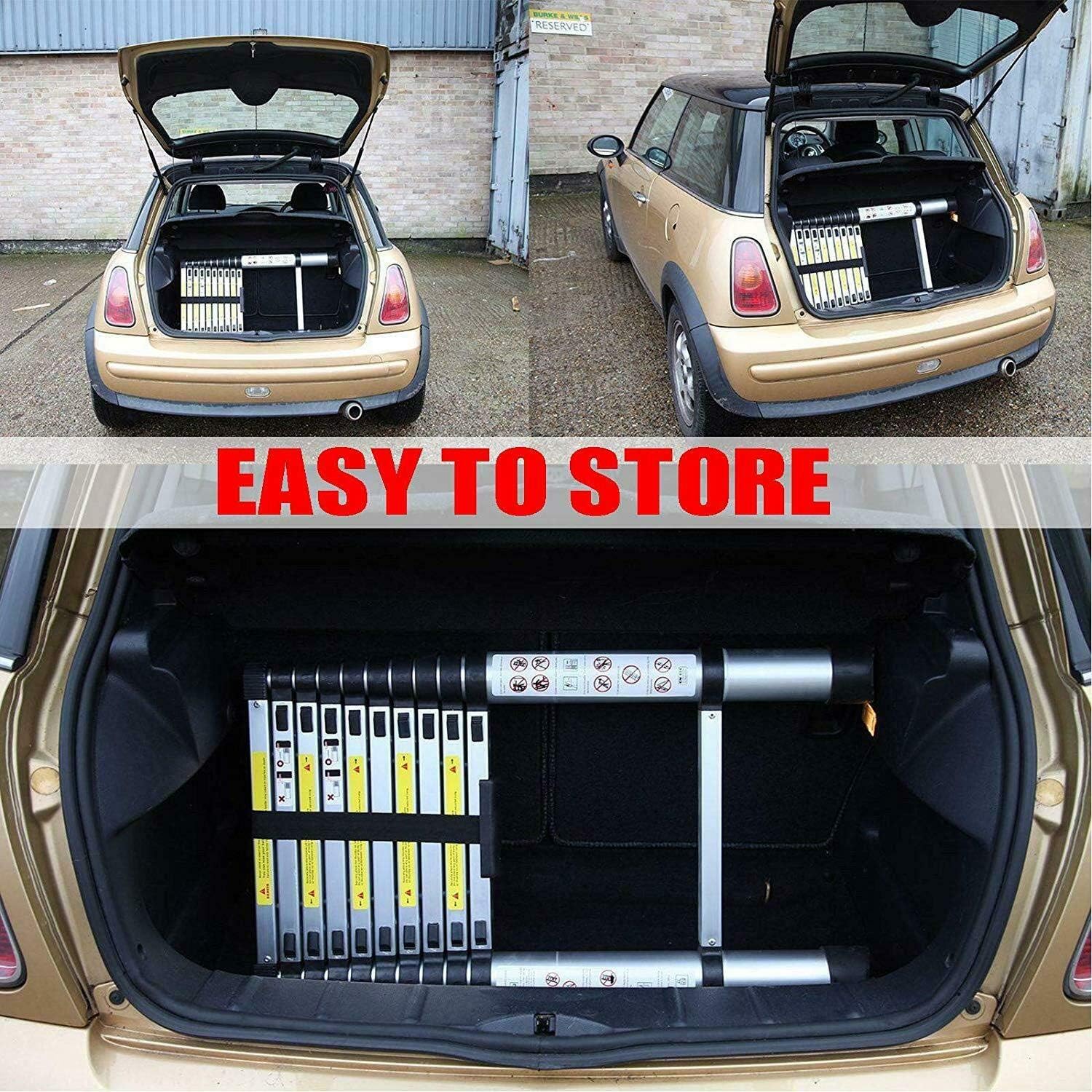

Image: The SIKY telescopic ladder is shown compactly stored in the trunk of a small car, highlighting its portability and ease of storage.

Maintenance

• Cleaning: Wipe the ladder clean with a damp cloth after use. Avoid abrasive cleaners or solvents that could damage the aluminum or rubber components.
• Lubrication: Periodically check the locking mechanisms. If they become stiff, apply a small amount of silicone-based lubricant to the moving parts.
• Inspection: Regularly inspect the ladder for any signs of damage, wear, or deformation. Pay close attention to the rungs, locking pins, and rubber feet. Do not use a damaged ladder.
• Storage: Store in a dry place to prevent corrosion.

Troubleshooting

Ladder Rungs Not Locking

Ensure each rung is fully extended until an audible "click" is heard and the locking indicators are visible. If a rung still does not lock, inspect for obstructions or damage to the locking mechanism. Do not use the ladder if any rung fails to lock securely.

Ladder Difficult to Retract

Ensure all weight is removed from the ladder. Check for any dirt or debris that might be hindering the retraction mechanism. A small amount of silicone lubricant can be applied to the sliding parts if stiffness persists. Always retract one rung at a time, starting from the bottom.

Specifications

Image: Diagram illustrating the key dimensions of the SIKY telescopic ladder, including folded height (85cm), unfolded height (3.8m), step interval (30cm), maximum capacity (150kg), and net weight (11kg).

Warranty and Support

For warranty information, technical support, or inquiries regarding your SIKY Telescopic Extension Ladder, please refer to the product packaging or contact the retailer from whom you purchased the product. Please have your model number (W-SSTZ-3.8M US SY16) and purchase date available when contacting support.
