Outsunny 11' x 3' x 2.5' Mini Greenhouse Instruction Manual

1. Introduction

This manual provides instructions for the assembly, operation, and maintenance of your Outsunny 11' x 3' x 2.5' Mini Greenhouse. This portable tunnel greenhouse is designed to protect your plants from various weather conditions and extend your growing season. Please read this manual thoroughly before use to ensure proper setup and safe operation.

2. Safety Information

Read all instructions carefully before assembly and use. Keep this manual for future reference.

Warnings

• WARNING: This greenhouse contains sharp edges and heavy components. Always use caution when handling and assembling the product.
• The greenhouse is designed to be buried in the soil for stability. Be sure to follow proper soil preparation and safety guidelines to prevent soil contamination or damage to the greenhouse.
• This greenhouse is intended for outdoor use and may be exposed to various weather conditions. Always ensure proper ventilation and anchoring to prevent damage or injury.
• Always follow the manufacturer's instructions for proper assembly, use, and maintenance of the greenhouse.
• Ensure the greenhouse is securely anchored to prevent wind damage. High winds can cause the structure to lift or collapse.
• Do not use abrasive cleaners or tools that could damage the PVC cover.
• Keep children and pets away from the assembly area.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Steel Frame Components (various poles and connectors)
• UV Waterproof PVC Cover
• Roll-Up Zippered Doors (integrated into cover)
• Assembly Hardware (e.g., ties, clips)

Image: Diagram showing the steel frame structure of the mini greenhouse.

4. Setup Instructions

Step 1: Site Selection

Choose a level, well-drained area for your greenhouse. Ensure it receives adequate sunlight for your plants. Consider wind exposure and proximity to water sources.

Step 2: Assemble the Steel Frame

Connect the steel poles using the provided connectors to form the base and arched structure. Refer to the diagram for correct orientation. Ensure all connections are secure.

Image: Illustration demonstrating the quick assembly joints for the steel frame.

Step 3: Install the PVC Cover

Carefully drape the UV waterproof PVC cover over the assembled steel frame. Align the zippered doors with the intended access points.

Image: The Outsunny Mini Greenhouse fully assembled with its clear PVC cover over plants.

Step 4: Secure the Greenhouse

The cover features an extra 4-inch edge designed to be buried in the soil. This helps to seal the greenhouse and increase its stability against wind. Bury this edge deeply into the surrounding soil. For additional stability, especially in windy areas, consider placing heavy objects like pavers on the bottom frame or using ground stakes (not included).

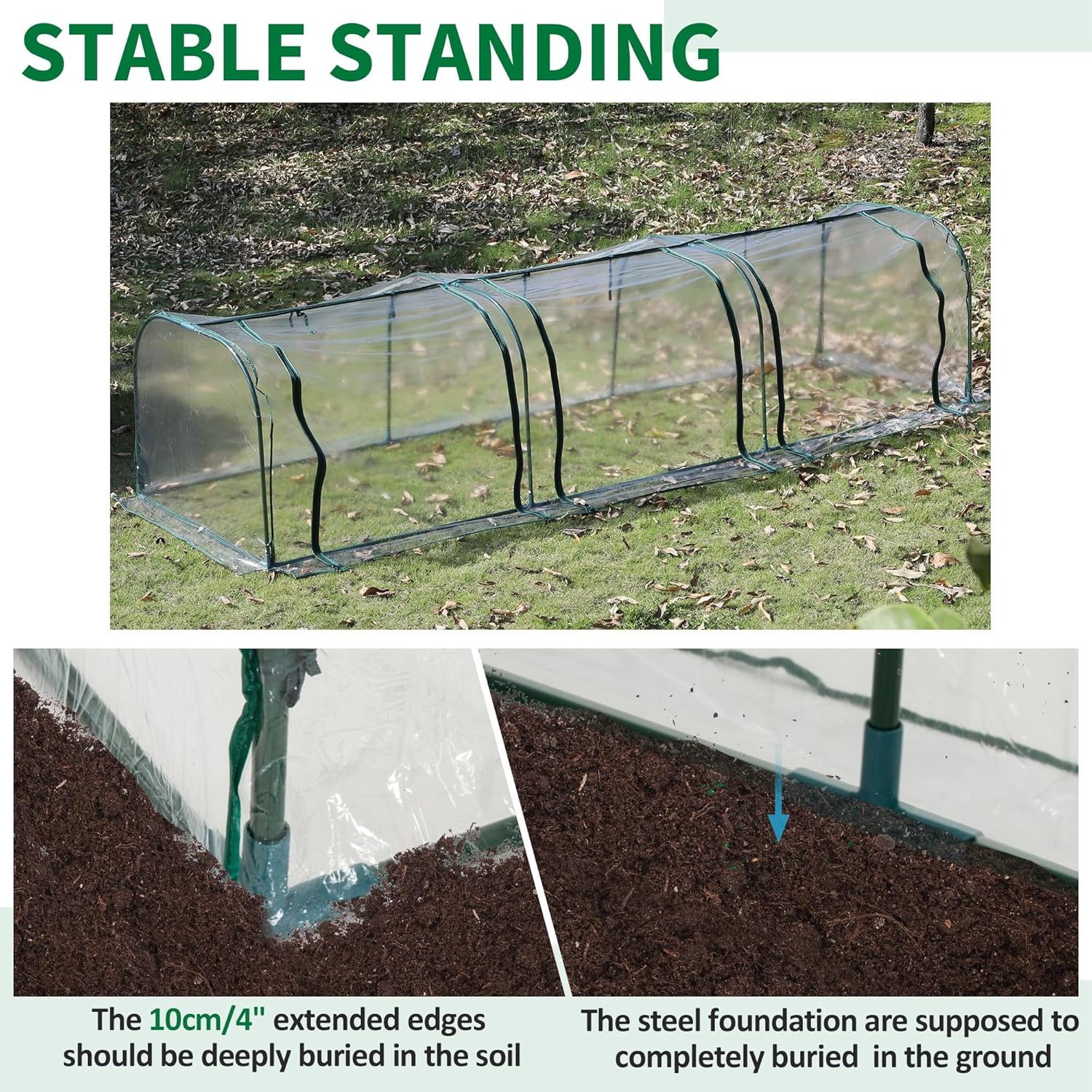

Image: Close-up showing the 4-inch extended edge of the greenhouse cover buried in the soil for enhanced stability.

Image: Detail showing the steel foundation of the greenhouse buried in the ground.

5. Operating Instructions

Ventilation

The greenhouse features three roll-up zippered doors. Open these doors to provide ventilation and allow fresh air to circulate, preventing excessive heat buildup and humidity. This is crucial for plant health, especially on warm days.

Image: The greenhouse showing its three roll-up zippered doors, designed for easy access and ventilation.

Plant Care

The clear PVC cover allows sunlight to reach your plants while blocking harmful UV rays. Monitor the temperature and humidity inside the greenhouse regularly. Water plants as needed, considering the reduced evaporation rate inside the enclosed space.

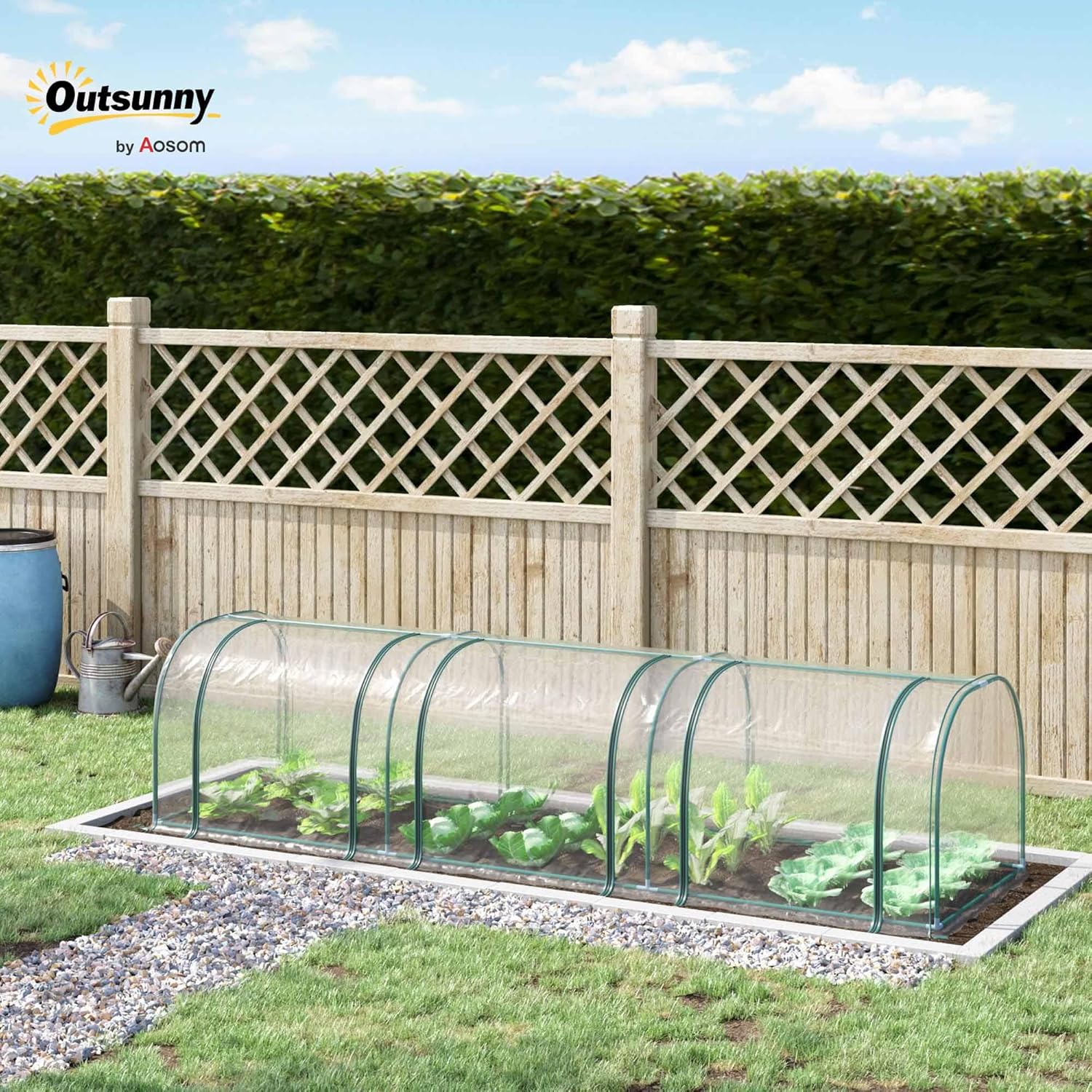

Image: A view of the Outsunny Mini Greenhouse covering a row of young plants in a garden bed.

6. Maintenance

Cleaning

Clean the PVC cover periodically with a soft cloth and mild soapy water to ensure maximum light transmission. Avoid harsh chemicals or abrasive materials that could damage the cover.

Inspection

Regularly inspect the steel frame for any signs of rust or damage. Check the zippers and ties on the cover for wear and tear. Repair or replace damaged components promptly to maintain the greenhouse's integrity.

Seasonal Storage

If storing the greenhouse for the off-season, clean the cover and frame thoroughly. Disassemble the frame if desired for compact storage. Store the components in a dry, protected area away from direct sunlight to prolong their lifespan.

7. Troubleshooting

Greenhouse is unstable or blows away in wind.

• Solution: Ensure the 4-inch extended edges of the cover are deeply buried in the soil. Place heavy objects like pavers or sandbags on the bottom frame for added weight. Consider using additional ground stakes or anchors (not included) to secure the frame to the ground.

Cover does not fit properly or tears during assembly.

• Solution: Double-check that the frame is assembled correctly and all pipes are fully seated into their connectors. The cover should be stretched gently over the frame. If the cover is too tight, ensure the frame dimensions match the product specifications. Contact customer support if the cover is defective.

Zippers are not working smoothly or break.

• Solution: Apply a silicone-based lubricant to the zipper teeth to improve movement. Avoid forcing stuck zippers. If a zipper breaks, it may require repair or replacement of the cover.

8. Specifications

Image: Dimensional diagram of the Outsunny Mini Greenhouse, showing length, width, and height.

9. Warranty and Support

Warranty Information

This product comes with a standard manufacturer's warranty. Please refer to the product packaging or contact the retailer for specific warranty terms and conditions.

Customer Support

For assistance with assembly, missing parts, or any other inquiries, please contact Outsunny customer support. Visit the official Outsunny website or refer to your purchase documentation for contact details.
