Goplus Rolling Garden Work Seat (Model GT3449) Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Goplus Rolling Garden Work Seat, Model GT3449. Please read all instructions carefully before use to ensure safe and efficient operation.

Safety Guidelines

To prevent accidents and ensure safe use of your garden work seat, please observe the following:

• Do not exceed the maximum weight capacity of 330 lbs.
• Ensure the work seat is placed on a stable, level surface before sitting to prevent tipping.
• Keep hands and feet clear of moving parts, especially during assembly and when adjusting the seat height.
• Do not use the work seat as a toy or for purposes other than its intended use.

Package Contents

Before assembly, verify that all components listed below are present:

• Frame (1)
• Seat (1)
• Plastic Tool Tray (1)
• Storage Basket (1)
• Wheels (4)
• Axles (2)
• Axle Brackets (4)
• Tray Reinforcing Plates (2)
• Basket Reinforcing Plates (1)
• Assorted Washers, Nuts, and Bolts (as per hardware list in assembly video)

Assembly Instructions

Follow these steps to assemble your Goplus Rolling Garden Work Seat. A visual guide is provided in the assembly video below.

Step 1: Attach Wheels

1. Insert an axle through the designated holes in the frame.
2. Slide an axle bracket onto each end of the axle.
3. Place a wheel onto each end of the axle.
4. Secure each wheel with a 12mm washer and a cotter pin. Repeat for the second axle and remaining two wheels.

Image Description: A full view of the assembled Goplus Rolling Garden Work Seat, showcasing its green frame, black wheels, and green tractor-style seat. This image provides an overview of the final product.

Step 2: Install Seat

1. Align the seat with the adjustable height mechanism on the frame.
2. Secure the seat using the provided 10x15mm bolts, 10mm washers, and 10mm nuts. Tighten with a wrench for stability.

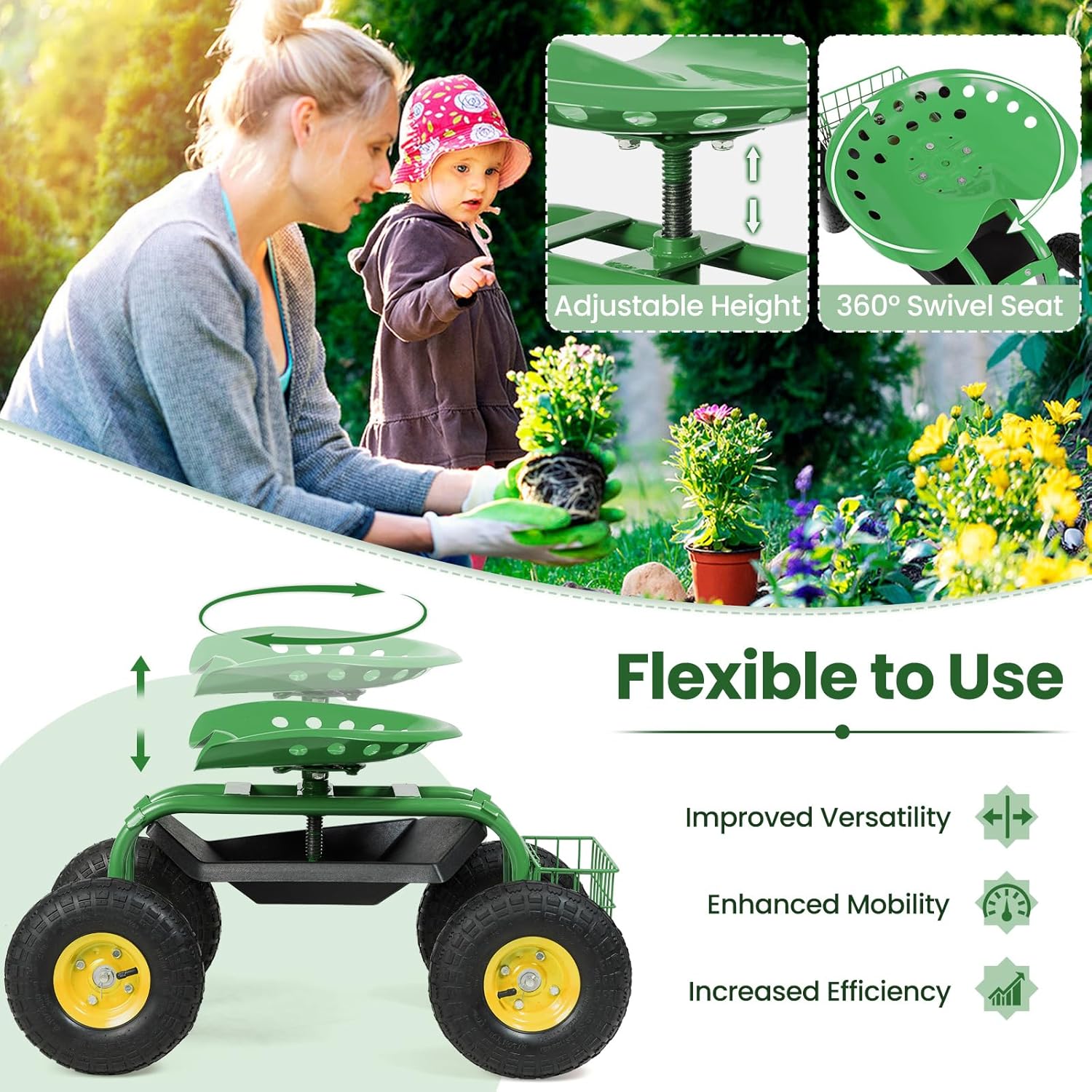

Image Description: A close-up view illustrating the adjustable height and 360-degree swivel features of the seat. Arrows indicate the upward and downward adjustment, and the rotational movement.

Step 3: Attach Plastic Tool Tray

1. Position the plastic tool tray under the seat, aligning it with the frame's attachment points.
2. Use the tray reinforcing plates, 6x15mm bolts, 6mm washers, and 6mm nuts to secure the tray to the frame. Tighten with a wrench.

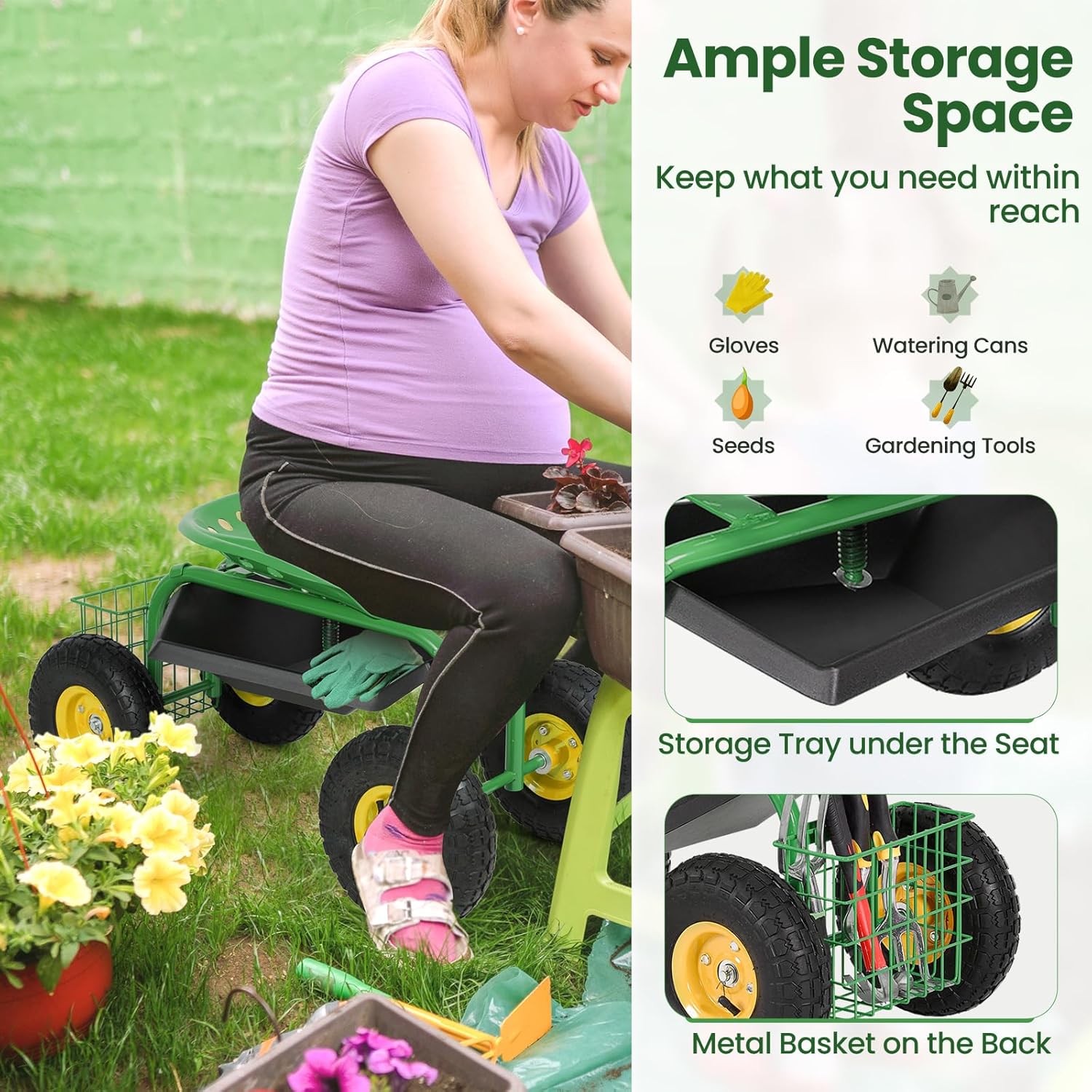

Image Description: This image highlights the storage capabilities of the garden seat, showing the plastic tool tray located under the seat and a metal basket attached to the rear, both designed to hold gardening tools and supplies.

Step 4: Install Storage Basket

1. Attach the storage basket to the rear of the frame using the basket reinforcing plate.
2. Secure the basket with the provided 8x20mm bolts, 8mm washers, and 8mm nuts. Tighten with a wrench.

Image Description: The garden seat is shown from a rear-side angle, with various gardening tools neatly stored within its metal basket, demonstrating its practical storage function.

Operating Instructions

Adjustable Seat and Swivel Function

The Goplus Garden Work Seat features an adjustable height seat, allowing you to customize it for different tasks and body statures. The seat can also rotate 360 degrees, providing flexibility and ease of movement while working in your garden or other areas.

Image Description: A person is seated on the wide, ergonomic seat of the garden work seat, illustrating its comfortable design and highlighting its 330 lbs weight capacity.

Storage Features

The work seat is equipped with a plastic tool tray located directly under the seat and a metal basket at the rear. These storage compartments are designed to keep your essential gardening tools, gloves, and other small items conveniently within reach.

Movement and Terrain

The four 10-inch inflatable rubber wheels are designed for smooth movement across various surfaces, including asphalt, brick, gravel, and grass. The gripping surface pattern enhances stability and helps prevent unintended directional changes.

Image Description: This image focuses on the 10-inch inflatable rubber wheels, emphasizing their quiet, smooth, and wear-resistant qualities. It also shows examples of different road surfaces (asphalt, brick, gravel, grassland) where the wheels perform effectively.

Maintenance

To ensure the longevity and optimal performance of your garden work seat, follow these simple maintenance guidelines:

• Cleaning: Wipe the product with a dry cloth to remove dirt and debris after each use.
• Storage: Store the work seat in a dry, covered area to protect it from harsh weather conditions when not in use.
• Fasteners: Periodically check all bolts, nuts, and pins to ensure they are securely tightened. Re-tighten as necessary.

Troubleshooting

Wheels Detaching

If the wheels frequently detach or become loose, inspect the cotter pins that secure them to the axles. Ensure they are properly inserted and bent to prevent slippage. For enhanced security, some users have found success replacing the standard cotter pins with heavy-duty keyrings, which can offer a more robust fastening solution. Ensure the keyring is spread slightly with pliers to fit securely.

Product Specifications

Image Description: A diagram illustrating the key dimensions of the Goplus Rolling Garden Work Seat, including length, width, and adjustable height range (18-21 inches), along with measurements for the basket and tray.

Warranty and Support

Specific warranty details and direct customer support contact information are not provided within this instruction manual. For warranty inquiries or technical assistance, please refer to the product packaging or contact the retailer where the product was purchased.
