BRISHINE 3157/3156 Brilliant Red LED Bulbs

Introduction

This manual provides essential information for the installation, operation, and maintenance of your BRISHINE 3157/3156 Brilliant Red LED Bulbs. These bulbs are designed to replace standard incandescent bulbs in various automotive lighting applications, offering enhanced brightness and a longer lifespan. Please read these instructions carefully before installation to ensure proper function and safety.

Safety Information

• Ensure the vehicle's ignition is off and the battery is disconnected before attempting any electrical work.
• Wear appropriate safety gear, including gloves and eye protection.
• Handle LED bulbs by their base to avoid touching the LED chips directly.
• Verify bulb compatibility with your vehicle's specific make and model before installation.
• If unsure about any step, consult a qualified automotive technician.

Package Contents

• 4 x BRISHINE 3157/3156 Brilliant Red LED Bulbs

Image: Four BRISHINE 3157/3156 Brilliant Red LED bulbs, shown both individually and in their product packaging.

Specifications

Image: A graphic displaying the detailed specifications and physical dimensions of the BRISHINE 3157/3156 LED bulb.

Image: An exploded view highlighting the internal components and features of the LED bulb, such as the 24-piece 2835 SMD LED chips, constant current IC, and standard 3157/3156 wedge base.

Installation

1. Locate the Bulb: Identify the incandescent bulb you wish to replace (e.g., brake light, tail light, turn signal light). Refer to your vehicle's owner's manual for specific bulb locations and access procedures.
2. Remove the Old Bulb: Carefully twist and pull out the old incandescent bulb from its socket.
3. Insert the LED Bulb: Insert the BRISHINE LED bulb into the socket. Due to its non-polarity design, it will function regardless of insertion direction.
4. Test Functionality: Before reassembling, test the new LED bulb to ensure it illuminates correctly for its intended function (brake, tail, turn signal).
5. Address Hyper Flash (if applicable): If installing for turn signal lights and experiencing rapid flashing (hyper flash), a load resistor or flash relay may be required. This is a common characteristic when replacing incandescent turn signal bulbs with LEDs due to lower power draw.
6. Secure Assembly: Once confirmed working, reassemble any removed components (e.g., taillight housing).

The BRISHINE LED bulbs are designed for a direct plug-and-play installation, matching the size of original incandescent bulbs for a perfect fit within the lamp housing.

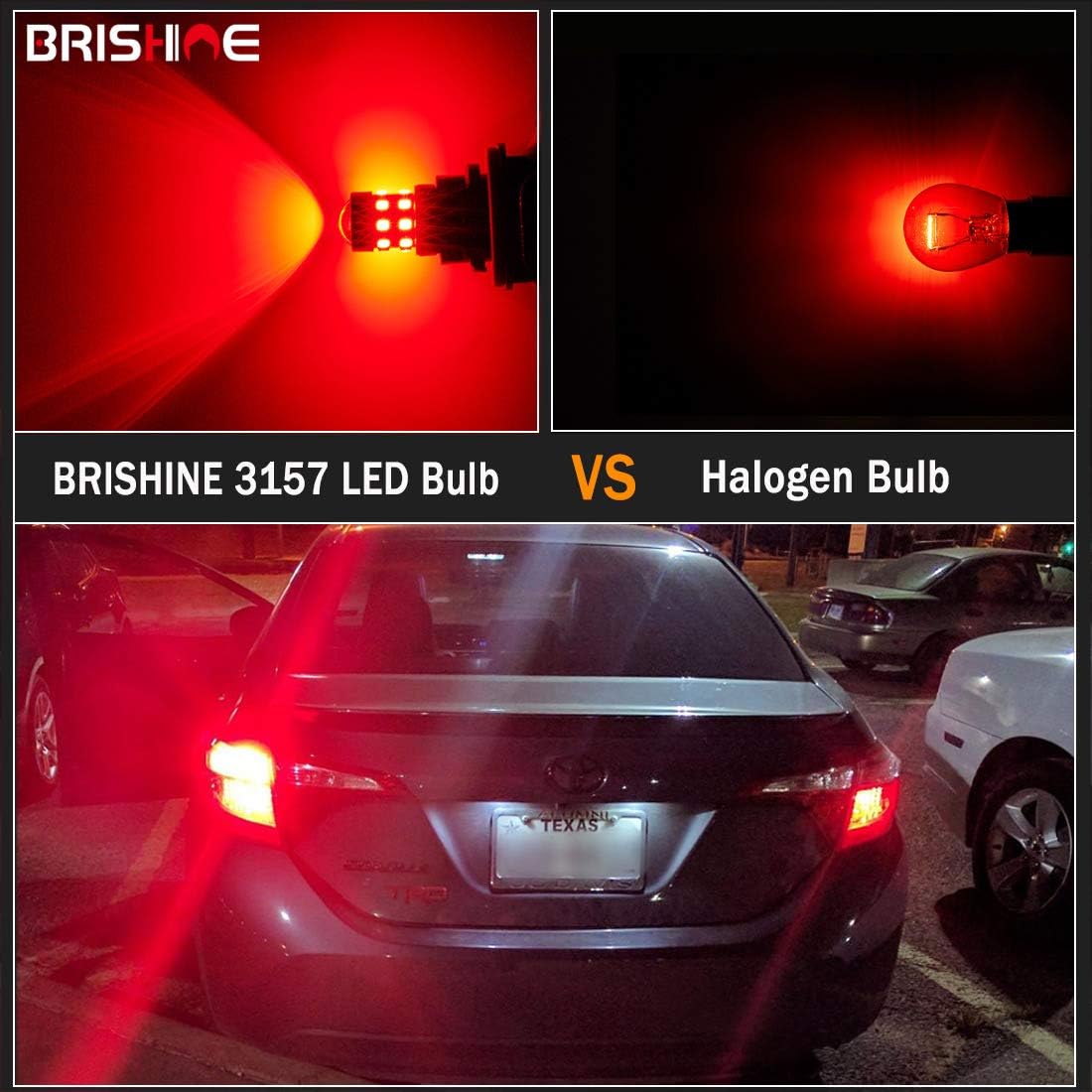

Image: A visual comparison demonstrating the enhanced brightness and vibrant red color of the BRISHINE 3157 LED bulb compared to a traditional halogen bulb.

Image: A nighttime photograph of a vehicle's rear, illustrating the clear and bright illumination provided by the BRISHINE LED tail lights.

Operating Instructions

These LED bulbs are suitable for various automotive applications including brake lights, tail lights, turn signal lights, and the center high mount stop (3rd brake) light. They feature a dual-function capability with a high intensity of 3.5W for brake lights and a lower intensity of 0.9W for tail lights, providing a significant brightness difference for clear signaling.

The 360-degree beam pattern ensures uniform light distribution, making your vehicle more visible to other drivers and enhancing overall driving safety.

Maintenance

BRISHINE LED bulbs are designed for long-term performance with a lifespan exceeding 30,000 working hours. This significantly surpasses the typical lifespan of incandescent bulbs, reducing the need for frequent replacements. The full aluminum housing and built-in Constant Current IC Driver contribute to quicker heat dissipation and stable performance, minimizing maintenance requirements.

No specific routine maintenance is required for the bulbs themselves beyond ensuring they are free from dirt or debris that might obstruct light output. Periodically check for proper illumination of all lights.

Troubleshooting

• Hyper Flash: If your turn signals flash rapidly after installing LED bulbs, this is a common issue due to the lower power draw of LEDs compared to incandescent bulbs. To resolve this, install a compatible load resistor or an LED-specific flash relay. Consult your vehicle's service manual or an automotive professional for guidance on selecting and installing these components.
• Bulb Not Lighting Up: Ensure the bulb is correctly seated in the socket. Due to the non-polarity design, incorrect orientation is unlikely, but re-seating can sometimes resolve connection issues. Verify that the vehicle's electrical system is providing power to the socket.
• Dim or Flickering Light: Check for loose connections or corrosion in the socket. Ensure the vehicle's voltage is within the operating range of 9-30 VDC.

Official Product Videos

Warranty and Support

BRISHINE offers a 1-year warranty on item(s) confirmed to have a manufacturer defect. For any questions or support requests, please contact customer service. Responses are typically provided within 24 hours.
