1. Product Overview
This document provides instructions for the Pioneer Carrozzeria AVIC-MRZ02 Genuine Antenna Cord Booster Base. This component is a genuine replacement part designed to ensure the proper function of your car navigation system's terrestrial digital antenna.
The booster base is crucial for maintaining signal integrity and is intended for replacement if the original antenna cord base becomes damaged, particularly during the process of replacing or servicing your car navigation system.

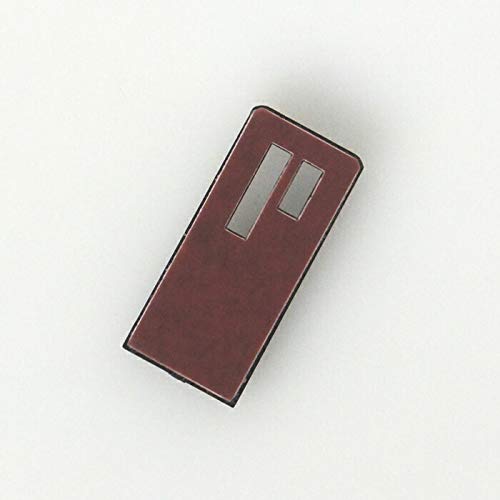

Image 1.1: Pioneer Carrozzeria AVIC-MRZ02 Antenna Cord Booster Base. This image shows the compact, rectangular booster base with adhesive backing, designed for secure attachment.
2. Safety Information
- Always disconnect the vehicle's battery before performing any electrical work to prevent short circuits or electrical shock.
- Ensure all connections are secure to prevent signal loss or electrical issues.
- Do not attempt to modify the booster base. Unauthorized modifications can lead to malfunction or damage.
- Keep the product out of reach of children.
- If you are unsure about the installation process, consult a qualified professional.
3. Package Contents
Verify that your package contains the following item:
- One (1) Pioneer Carrozzeria Genuine Antenna Cord Booster Base.
Note: The antenna cord itself is not included with this booster base and must be purchased separately if needed.
4. Setup and Installation
This booster base is designed for replacement of a damaged original unit. Follow these general guidelines for installation:
- Preparation: Ensure the vehicle's ignition is off and the battery is disconnected. Carefully remove the existing car navigation unit and access the antenna cord connection point.
- Inspection: Before replacing, inspect the antenna cord and the connection area for any signs of damage or corrosion.
- Removal of Old Base: Gently detach the damaged antenna cord base from the antenna cord. Be careful not to damage the cord itself.
- Cleaning: Clean the surface where the new booster base will be attached. Ensure it is free of dust, grease, and moisture for optimal adhesion.
- Attachment: Connect the new Pioneer Carrozzeria AVIC-MRZ02 Genuine Antenna Cord Booster Base to the antenna cord. Ensure a firm and secure connection.
- Mounting: If the booster base has an adhesive backing, remove the protective film and firmly press the base onto the designated clean surface.
- Reassembly: Reconnect the car navigation unit and the vehicle's battery.
Always refer to your car navigation system's specific installation manual for detailed instructions regarding antenna connections and unit reassembly.
5. Operating Principles
The Pioneer Carrozzeria AVIC-MRZ02 Antenna Cord Booster Base is a passive component that facilitates the connection between the antenna cord and the car navigation system. Its primary function is to provide a stable and secure electrical and physical interface, ensuring efficient signal transfer from the antenna to the navigation unit. It does not require any user operation once correctly installed.
6. Maintenance
The booster base requires minimal maintenance. Regular inspection is recommended:
- Periodically check the connection between the booster base and the antenna cord to ensure it remains secure.
- Inspect the booster base for any visible signs of physical damage or corrosion.
- Keep the area around the booster base clean and free from excessive dust or moisture. Use a soft, dry cloth for cleaning.
7. Troubleshooting
If you experience issues with your car navigation system's terrestrial digital signal after installing or replacing the booster base, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor or no terrestrial digital signal | Loose connection at the booster base or antenna cord. | Check and secure all connections. |
| Poor or no terrestrial digital signal | Damaged antenna cord or antenna. | Inspect the antenna cord and antenna for damage. Replace if necessary. |
| Poor or no terrestrial digital signal | Improper installation of the booster base. | Review the installation steps in Section 4 and ensure correct attachment. |
If issues persist, it is recommended to consult a professional car audio installer or Pioneer customer support.
8. Specifications
- Manufacturer: Pioneer
- Brand: Pioneer
- Model Number: AVIC-MRZ02 (Manufacturer Reference: 120-CP17AVIC-MRZ02)
- ASIN: B07NCMF88Q
- First Available Date: February 3, 2019
9. Warranty and Support
For information regarding warranty coverage and customer support for your Pioneer Carrozzeria AVIC-MRZ02 Genuine Antenna Cord Booster Base, please refer to the official Pioneer website or contact your authorized Pioneer dealer. Keep your purchase receipt as proof of purchase.
