1. Product Overview
This document provides instructions for the Pioneer Carrozzeria AVIC-ZH0007 Genuine Antenna Cord Booster Base. This product is a replacement part designed for use with Pioneer Carrozzeria car navigation systems. It serves as a booster base for the terrestrial digital antenna cord.
When replacing your car navigation system, it is crucial to inspect the tip base of the antenna cord for any damage. If damage is present, this genuine booster base is intended for replacement to ensure optimal performance and signal reception.

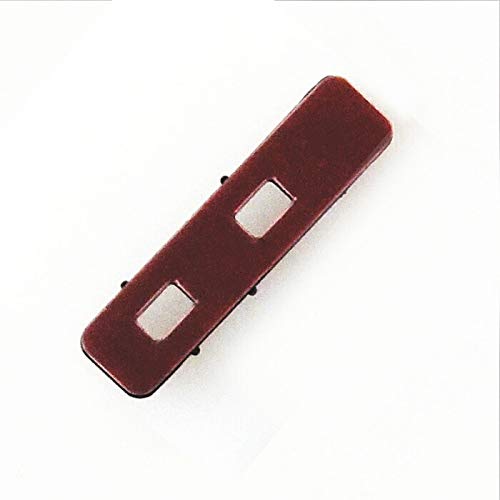

Image 1.1: Pioneer Carrozzeria AVIC-ZH0007 Antenna Cord Booster Base. This image shows the compact, rectangular booster base with two connection points.
Key Features:
- Genuine Carrozzeria booster base for reliable performance.
- Designed for replacement of damaged antenna cord tip bases.
- Ensures proper function of terrestrial digital antenna cords with compatible navigation systems.
- Note: The antenna cord itself is not included with this booster base. Please purchase the necessary quantity of booster bases.
2. Setup and Installation
Installation of the antenna cord booster base requires careful handling. If you are unsure about any steps, it is recommended to seek professional assistance to avoid damage to your equipment.
Installation Steps:
- Preparation: Ensure the car navigation system is powered off and disconnected from the vehicle's power supply before beginning installation.
- Inspect Existing Base: Carefully examine the existing antenna cord tip base for any signs of damage, such as cracks, corrosion, or loose connections.
- Remove Old Base (if applicable): If replacing a damaged base, gently detach the old booster base from the antenna cord tip. Be cautious not to damage the antenna cord itself.
- Attach New Booster Base: Align the new Pioneer Carrozzeria AVIC-ZH0007 booster base with the tip of the terrestrial digital antenna cord. Press firmly to ensure a secure and flush connection. The base should click or fit snugly into place.
- Verify Connection: Double-check that the booster base is properly seated and that there are no gaps or loose points in the connection. A secure connection is vital for optimal signal reception.
- Reinstall Navigation System: Once the booster base is securely attached, proceed with reinstalling your car navigation system according to its specific instructions.
Image 2.1: Close-up view of the antenna cord booster base, highlighting the connection points. This image provides a detailed look at the component's structure.
3. Operating Instructions
The Pioneer Carrozzeria AVIC-ZH0007 Antenna Cord Booster Base is a passive component designed to facilitate signal reception for your terrestrial digital antenna. Once correctly installed, it operates automatically as part of your car navigation system's antenna assembly.
No user interaction or specific operational steps are required for the booster base itself. Its function is to provide a stable and secure connection for the antenna cord, contributing to clear signal reception for your car navigation system's TV tuner.
4. Maintenance
The booster base requires minimal maintenance. Follow these guidelines to ensure its longevity and continued performance:
- Periodic Inspection: Periodically inspect the booster base and its connection to the antenna cord for any visible signs of wear, damage, or corrosion.
- Cleaning: If necessary, gently clean the exterior of the booster base with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Environmental Protection: Ensure the booster base and its connections are protected from excessive moisture, extreme temperatures, and physical impact, which can lead to damage.
5. Troubleshooting
If you experience issues with your terrestrial digital TV reception after installing the booster base, consider the following troubleshooting steps:
- Check Connections: Verify that the booster base is securely and correctly attached to the antenna cord tip. A loose connection can lead to signal loss or degradation.
- Inspect Antenna Cord: Ensure the antenna cord itself is not damaged (e.g., pinched, cut, or frayed). Damage to the cord will affect signal transmission regardless of the booster base.
- Verify Navigation System Settings: Confirm that your car navigation system's TV tuner settings are correctly configured. Refer to your navigation system's manual for specific instructions.
- Environmental Factors: Poor signal reception can sometimes be due to external factors such as geographical location, obstructions, or weak broadcast signals.
- Professional Assistance: If problems persist after performing these checks, it is advisable to consult with a qualified car audio technician or Pioneer service center.
6. Specifications
| Specification | Detail |
|---|---|
| Brand | Pioneer |
| Manufacturer | Pioneer |
| Antenna Type | TV |
| Model Number | AVIC-ZH0007 (compatible with) |
| ASIN | B07NCLRXCN |
7. Warranty and Support
As a genuine Pioneer Carrozzeria product, this booster base is manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your original Pioneer Carrozzeria car navigation system or contact Pioneer customer support directly.
For technical assistance, troubleshooting beyond the scope of this manual, or inquiries regarding genuine replacement parts, please visit the official Pioneer website or contact their authorized service centers.
Pioneer Official Website: https://www.pioneer.jp/
