KALORIK Digital Air Fryer 3.5 Quart User Manual

1. Important Safety Information

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For a comprehensive guide, please refer to the official User Manual (PDF).

2. Product Overview

The KALORIK Digital Air Fryer 3.5 Quart utilizes rapid hot air circulation technology to cook food with little to no added oil. It is a versatile appliance capable of frying, baking, grilling, and roasting, offering a healthier alternative to traditional deep frying.

Figure 2.1: Front view of the KALORIK Digital Air Fryer 3.5 Quart.

Key Features:

• Powerful air frying technology with rapid hot air circulation.
• Multi-functional for frying, baking, grilling, and roasting.
• 3.3L / 3.5 quart capacity.
• 8 preset menus for various dishes.
• Digital temperature control up to 400°F.
• Timer up to 60 minutes.
• Removable parts are dishwasher safe for easy cleaning.

Components:

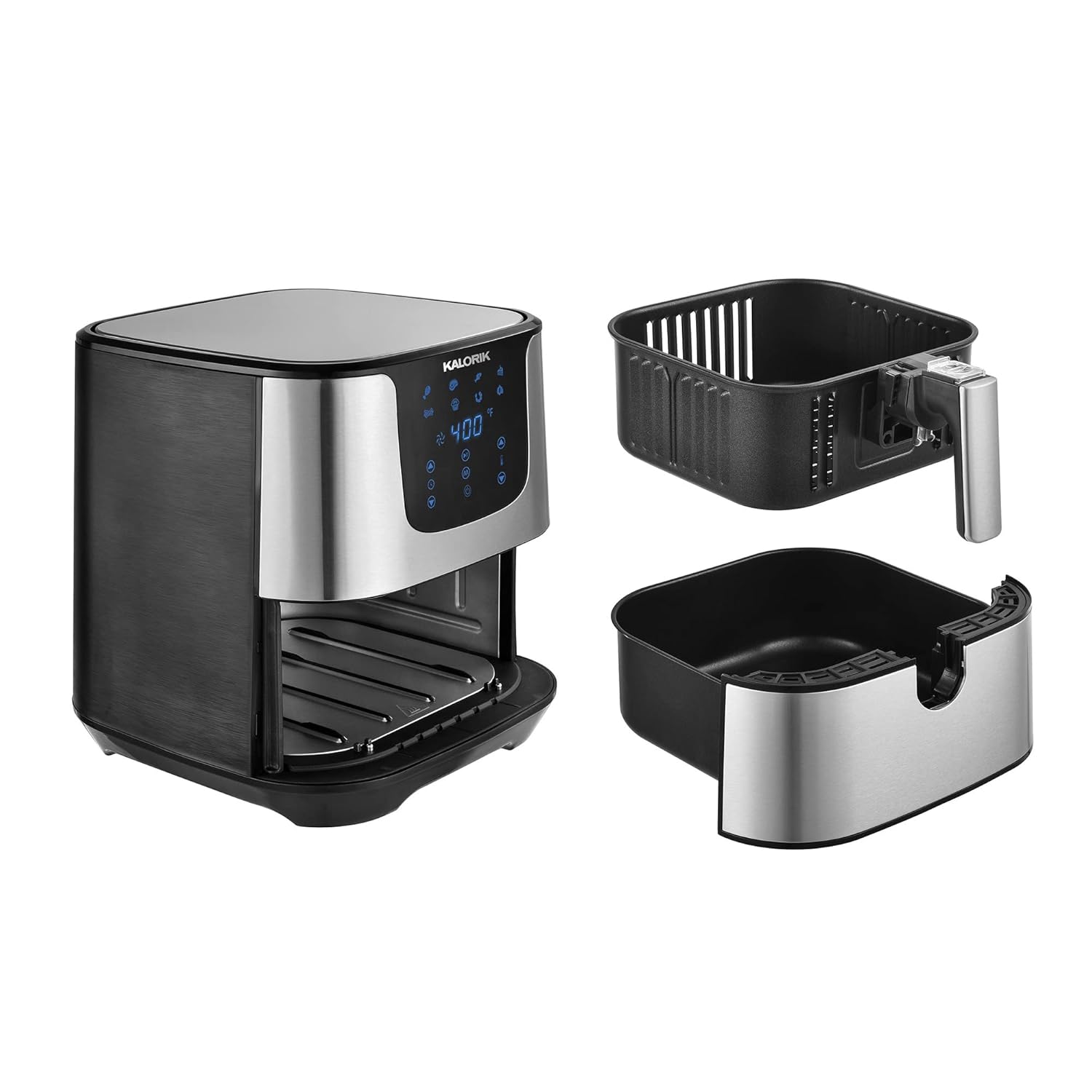

Figure 2.2: Main components include the air fryer unit, frying basket, and outer pan.

The appliance consists of a main unit, a removable frying basket, and an outer pan. The frying basket fits inside the outer pan, which then slides into the main unit.

3. Setup

Before First Use:

1. Remove all packaging materials, stickers, and labels from the appliance.
2. Wash the frying basket and outer pan thoroughly with hot water, dish soap, and a non-abrasive sponge.
3. Wipe the inside and outside of the appliance with a damp cloth.
4. Ensure all parts are completely dry before assembly.

Placement:

Place the air fryer on a stable, level, heat-resistant surface. Ensure there is adequate space (at least 6 inches) around the appliance for proper air circulation.

4. Operating Instructions

The KALORIK Digital Air Fryer is designed for ease of use with its intuitive digital control panel and preset functions.

Figure 4.1: Digital control panel with temperature and time display, and preset icons.

Basic Operation:

1. Prepare Food: Place your ingredients into the frying basket. For best results, do not overfill the basket.
2. Insert Basket: Slide the frying basket and outer pan assembly back into the air fryer unit until it clicks into place.
3. Power On: Plug the appliance into a grounded wall outlet. The power button will illuminate. Press the power button to turn on the display.
4. Set Temperature and Time:
   • Use the temperature control arrows (up/down) to adjust the cooking temperature (up to 400°F).
   • Use the timer control arrows (up/down) to set the cooking time (up to 60 minutes).
5. Use Presets: Alternatively, select one of the 8 preset menus by pressing the 'M' button to cycle through options. Each preset has a default time and temperature for common foods.
6. Start Cooking: Press the play/pause button to begin the cooking cycle. The fan and heating element will activate.
7. Shake Basket (Optional): For even cooking, especially with items like fries or chicken wings, pull out the basket halfway through the cooking time and gently shake it. Then, reinsert the basket to resume cooking.
8. Food Ready: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and remove the cooked food using tongs.
9. Power Off: Press the power button to turn off the appliance. Unplug from the wall outlet when not in use.

Figure 4.2: The removable basket allows for easy access to food during and after cooking.

Official Product Demonstration:

5. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your air fryer.

Cleaning Instructions:

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Basket and Pan: The frying basket and outer pan are dishwasher safe. For manual cleaning, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in hot water with dish soap for about 10 minutes.
3. Clean Interior: Wipe the inside of the appliance with a damp cloth. Do not immerse the main unit in water.
4. Clean Exterior: Wipe the exterior of the air fryer with a soft, damp cloth. Avoid using abrasive cleaners or scouring pads, as they may damage the stainless steel finish.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling and storing the appliance.

Storage:

Store the air fryer in a cool, dry place. Ensure the power cord is neatly wrapped and not kinked.

6. Troubleshooting

If you encounter issues with your KALORIK Digital Air Fryer, refer to the common problems and solutions below:

If the problem persists after trying these solutions, please contact customer support.

7. Specifications

Figure 7.1: Product dimensions for the KALORIK Digital Air Fryer.

• Model Number: FT 44844 SS
• Brand: Kalorik
• Capacity: 3.5 Quarts (3.3 Liters)
• Color: Stainless Steel
• Material: Stainless Steel
• Product Dimensions: 11.1"D x 12.9"W x 12.9"H (28.19 cm D x 32.77 cm W x 32.77 cm H)
• Item Weight: 10.6 Pounds
• UPC: 848052005082
• Special Feature: Temperature Control

8. Warranty and Support

Kalorik products are manufactured to high quality standards. For information regarding warranty coverage and customer support, please refer to the warranty card included with your product or visit the official Kalorik website.

For further assistance, you may also visit the Kalorik Store on Amazon.
