Introduction
Thank you for purchasing the SVBONY SV106 60mm F4 Guidescope. This manual provides essential information for the proper setup, operation, and maintenance of your guidescope. Please read it thoroughly before use to ensure optimal performance and longevity of your equipment.
Image: SVBONY SV106 60mm F4 Guidescope with mounting rings and dust cap.
Product Overview
The SVBONY SV106 guidescope is designed for precise star guiding in astrophotography, offering a wide 60mm aperture and a fast F4 focal ratio. Its robust construction and advanced optical features ensure clear and stable imaging.
Key Features:
- 60mm Aperture: Provides a wide field of view for locating potential guide stars.
- Fully Multi-Coated Optics: Green multi-coated lenses and internal baffling ensure sharp, high-contrast images.
- Helical Focuser: Features a 35mm back focus length and a 0.05mm scale fine helical focusing system with 8mm focus travel for rigid, zero-flexure performance.
- Wide Compatibility: Compatible with 1.25-inch PL/SPL eyepieces, ZWO QHY SV305pro auto-guiding cameras, and other cameras with an additional T-ring.
- Durable Construction: Made from all-metal materials with a stable, scratch-resistant brass compression ring and nylon-tipped thumbscrews.
Components:

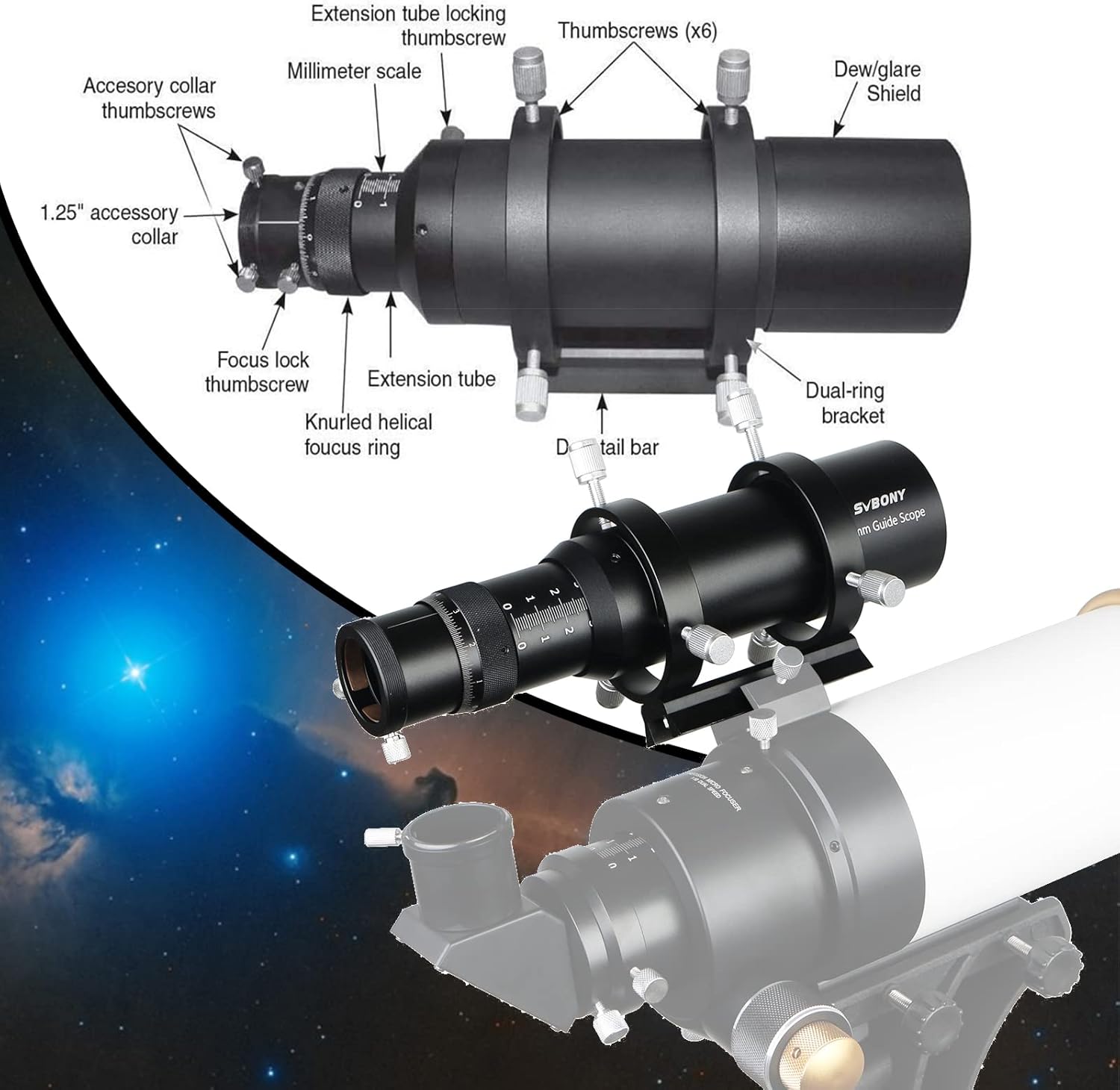

Image: Detailed diagram of the SVBONY SV106 guidescope components, including accessory collar thumbscrews, extension tube locking thumbscrew, millimeter scale, thumbscrews (x6), dew/glare shield, 1.25" accessory collar, focus lock thumbscrew, knurled helical focus ring, extension tube, dovetail bar, and dual-ring bracket.

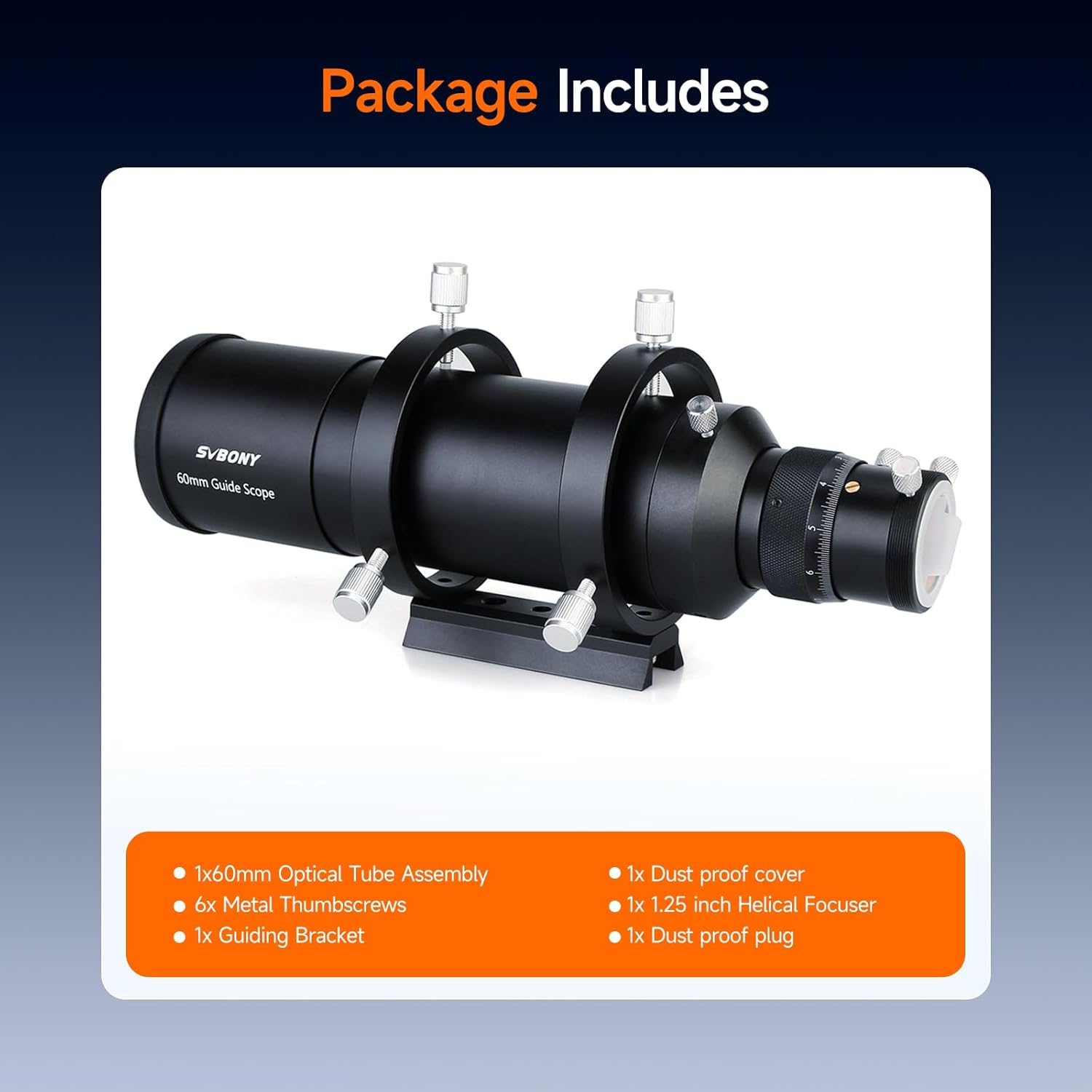

Image: Package contents of the SVBONY SV106 guidescope, showing the 60mm optical tube assembly, 6 metal thumbscrews, guiding bracket, dust-proof cover, 1.25-inch helical focuser, and dust-proof plug.
Setup
Proper setup is crucial for the performance of your guidescope. Follow these general guidelines for mounting and initial configuration.
Mounting the Guidescope:
The SV106 guidescope comes with a guiding bracket and dovetail plate for secure attachment to your main telescope setup. Ensure all connections are firm to prevent flexure during long exposures.

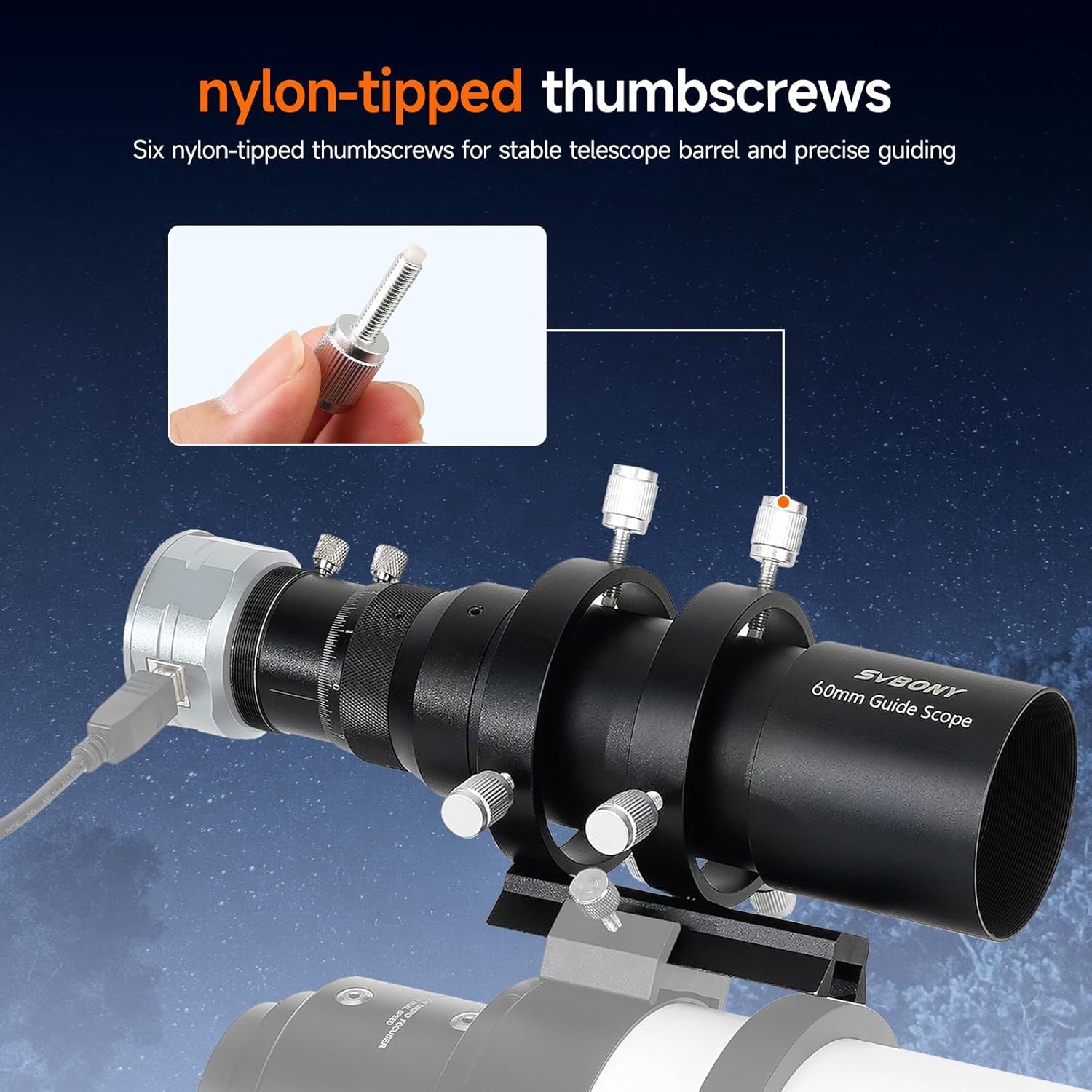

Image: Nylon-tipped thumbscrews provide stable mounting for the guidescope.
Connecting Cameras and Eyepieces:
The guidescope features a 1.25-inch standard connector and M42x0.75 male thread for various accessories. Use appropriate adapters (not included) for specific camera models.
Image: The 1.25-inch standard connector and M42x0.75 male thread on the SVBONY SV106 guidescope for attaching accessories like eyepieces or cameras.

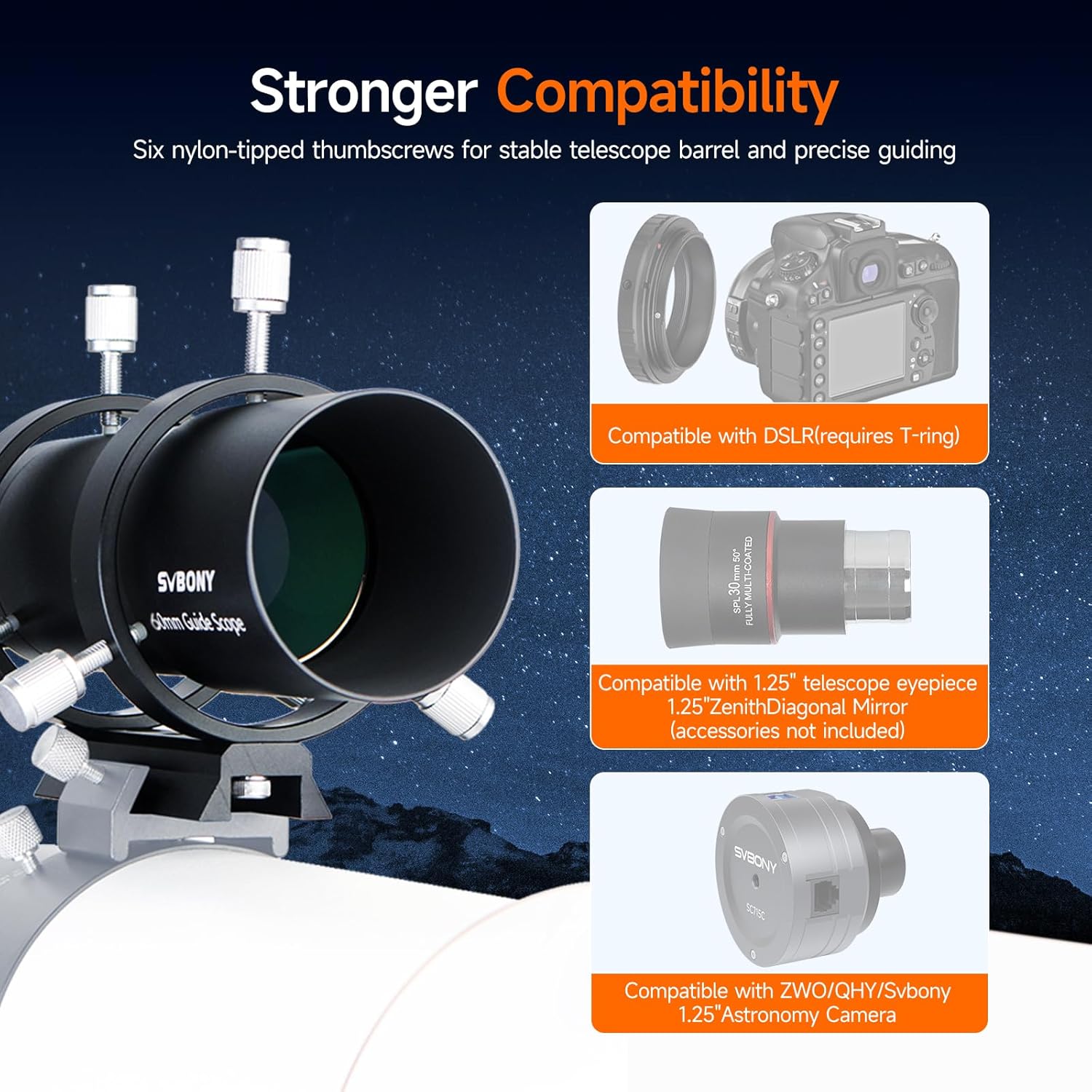

Image: Compatibility diagram showing the SV106 guidescope with a DSLR (requires T-ring), 1.25" telescope eyepiece, and ZWO/QHY/SVBONY 1.25" astronomy camera.
Video Guide: General Telescope Setup
Video: This video demonstrates the general installation and usage of a telescope, including mounting on a tripod and attaching an eyepiece. While not specific to the SV106 guidescope, it provides useful visual guidance for basic telescope assembly.
Video Guide: Astro Camera Lens Installation (Reference for Guidescope Mounting)
Video: This video illustrates the installation process for an SVBONY SV555 Astro Camera Lens, including attaching mounting accessories like dovetail plates and rings. This can serve as a helpful reference for mounting your SV106 guidescope, as similar hardware and procedures may apply.
Operating Instructions
Operating your SV106 guidescope involves focusing and ensuring proper alignment with your main telescope.
Focusing:
The helical focuser allows for precise adjustments. Use the coarse adjustment for initial focus and the fine adjustment for critical sharpness. The 0.05mm scale ensures accurate and repeatable focus settings.

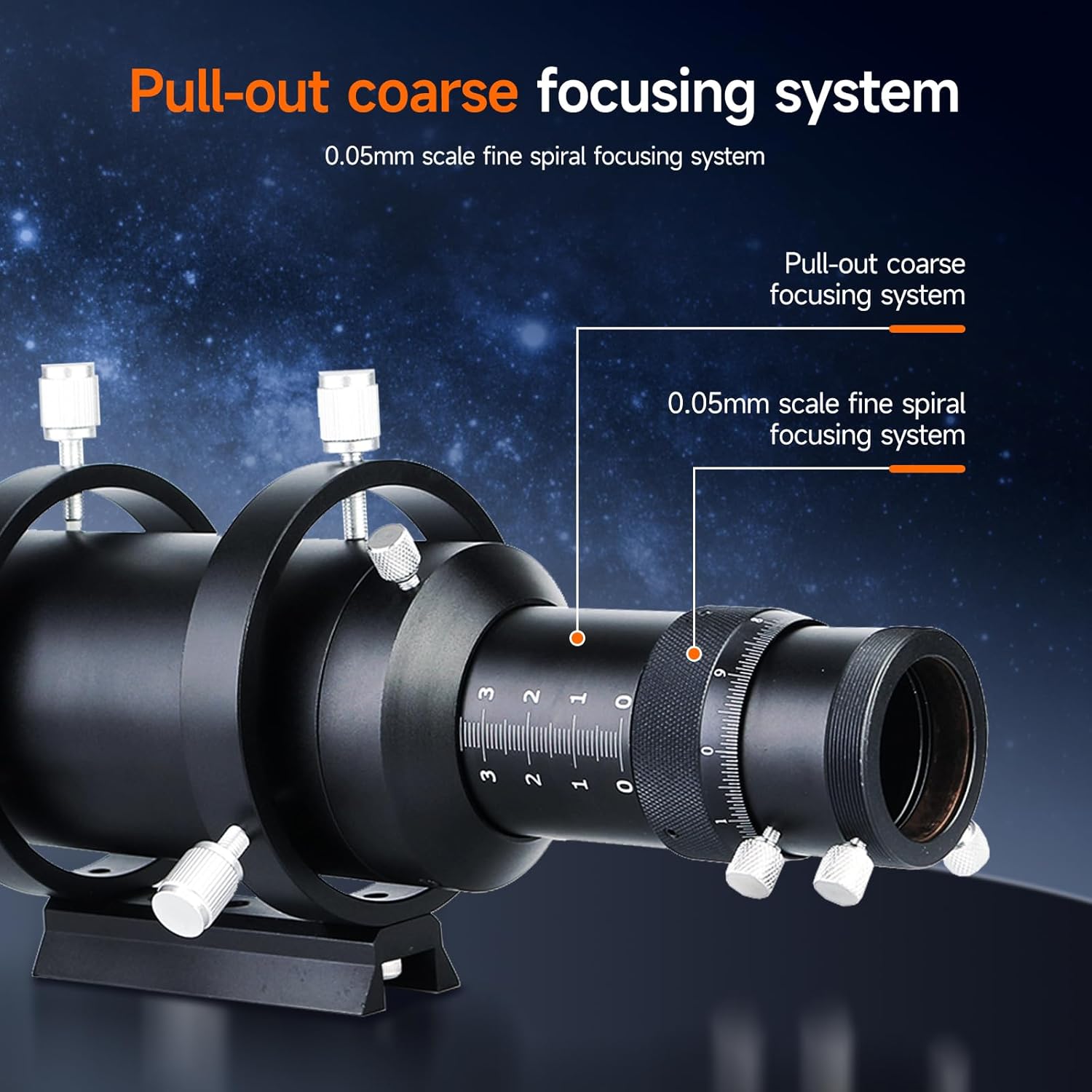

Image: Close-up of the helical focuser, highlighting the coarse and fine adjustment mechanisms with a 0.05mm scale.
Optical Alignment (Collimation):
For optimal guiding performance, your main telescope and guidescope should be properly collimated. If you are using a Newtonian telescope, a laser collimator can assist in this process.
Video Guide: How to Collimat a Collimator Telescope
Video: This video provides instructions on how to use a laser collimator to align a telescope. Proper collimation is essential for achieving sharp images and effective guiding.
Maintenance
Regular maintenance will help preserve the performance and appearance of your SV106 guidescope.
Cleaning the Optics:
- Use a soft brush or compressed air to remove loose dust particles.
- For stubborn smudges or fingerprints, use a clean, soft microfiber cloth specifically designed for optics, along with a few drops of optical cleaning fluid.
- Apply gentle, circular motions from the center outwards. Avoid excessive pressure.
- Ensure the lens is completely dry before replacing the dust caps.
General Care:
- Store the guidescope in a dry, dust-free environment, preferably in its original packaging or a padded case.
- Avoid exposing the guidescope to extreme temperatures or sudden temperature changes.
- Keep the guidescope away from direct sunlight when not in use.
Troubleshooting
If you encounter issues with your guidescope, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Blurry Image / Difficulty Focusing | Incorrect focus setting; dirty optics. | Adjust the helical focuser carefully. Clean the objective lens and eyepiece if necessary. |
| Stars appear elongated or trailed | Poor polar alignment of the main mount; flexure in the guidescope setup; insufficient guiding camera sensitivity. | Ensure accurate polar alignment. Check all mounting screws for tightness. Consider increasing guiding camera exposure or gain. |
| Guidescope not detecting stars | Guidescope not focused; guiding camera settings incorrect (exposure, gain); guidescope pointed at a star-poor region. | Verify focus. Adjust guiding camera settings. Reposition the guidescope to an area with brighter stars. |
Specifications
Detailed technical specifications for the SVBONY SV106 60mm F4 Guidescope.
| Feature | Specification |
|---|---|
| Model Name | Svbony SV106 Teleskop Guiders |
| Model Number | EUF9177B |
| Objective Lens Diameter | 60 Millimeters |
| Optical Tube Length | 240 Millimeters |
| Eyepiece Lens Description | FMC (Fully Multi-Coated) |
| Focus Type | Manual Focus (Helical Focuser) |
| Field of View | 3.8 Degrees |
| Zoom Ratio | 4 |
| Compatible Devices | ZWO QHY Auto-Guiding Camera, PL SPL Eyepiece, Camera with T-ring |
| Mount Description | Tripod Mount (via guiding bracket) |
| Product Dimensions | 3.5 x 0.04 x 2.36 cm; 990 g (approx. 60mm x 1mm x 1mm for item dimensions) |
| Country of Origin | China |
Warranty and Support
SVBONY offers a 1-year warranty for accessories and a 30-day no-reason return policy. Beyond the warranty period, maintenance services are available, with buyers responsible for associated costs. For any inquiries or support, please contact us on Amazon. We aim to respond within 12 hours.
