HOMCOM Model 833-621 Relax Chair User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your HOMCOM Model 833-621 Relax Chair. Please read these instructions carefully before assembly and operation, and retain them for future reference.

The HOMCOM Model 833-621 Relax Chair is designed for comfort and relaxation, featuring a 360° swivel base, a 145° adjustable recline function, and a manual footrest. Its robust wooden construction and durable leatherette upholstery ensure both stability and ease of maintenance.

2. Safety Warnings

• Maximum Load Capacity: The maximum load capacity for this product is 120 kg (264 lbs). Do not exceed this weight limit to prevent damage or injury.
• Assembly: Ensure the product is correctly assembled and stable with its wood-based construction before use. Improper assembly can lead to instability and potential hazards.
• Children and Pets: Keep children and pets away from the chair during assembly.
• Moving Parts: Be cautious of moving parts, especially during recline and footrest adjustment, to avoid pinching or injury.
• Stability: Always ensure the chair is on a flat, stable surface. Avoid standing on the chair or using it as a step stool.
• Cleaning: Use only recommended cleaning methods and products to avoid damage to the upholstery and frame.

3. Setup and Assembly

The HOMCOM Relax Chair requires assembly. Please follow these general steps. Refer to the included assembly diagram for detailed instructions and component identification.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches. Verify all components listed in the assembly diagram are present.
2. Assemble Base: Attach the wooden base components as per the diagram. Ensure all screws and fasteners are securely tightened.
3. Attach Seat and Backrest: Connect the seat and backrest sections. Pay attention to the alignment of the reclining mechanism.
4. Install Armrests: Secure the armrests to the main chair frame.
5. Final Check: Once assembled, gently test the chair's stability and all moving parts (swivel, recline, footrest) to ensure correct function and secure connections.

Figure 3.1: Fully assembled HOMCOM Relax Chair. This image shows the chair's overall appearance with its black leatherette upholstery and wooden base.

Figure 3.2: The HOMCOM Relax Chair integrated into a home environment, demonstrating its aesthetic appeal.

4. Operating Instructions

Your HOMCOM Relax Chair offers several features for enhanced comfort:

4.1. Recline Function

The backrest can be adjusted up to 145 degrees. To recline, lean back gently. The chair uses your body weight to adjust the recline angle. To return to an upright position, lean forward.

A side knob is provided to adjust the resistance of the reclining mechanism. Turn the knob clockwise to increase resistance (making it harder to recline) and counter-clockwise to decrease resistance (making it easier to recline).

Figure 4.1: Illustration of the 145° recline function and the side knob for adjusting recline resistance.

4.2. Footrest Adjustment

The integrated footrest can be manually adjusted. To extend the footrest, locate the side knob or lever (depending on model variation) and operate it to release and extend the footrest. To retract, push the footrest back into its stored position while operating the knob/lever.

Figure 4.2: The footrest in its extended position, showing the mechanism for adjustment.

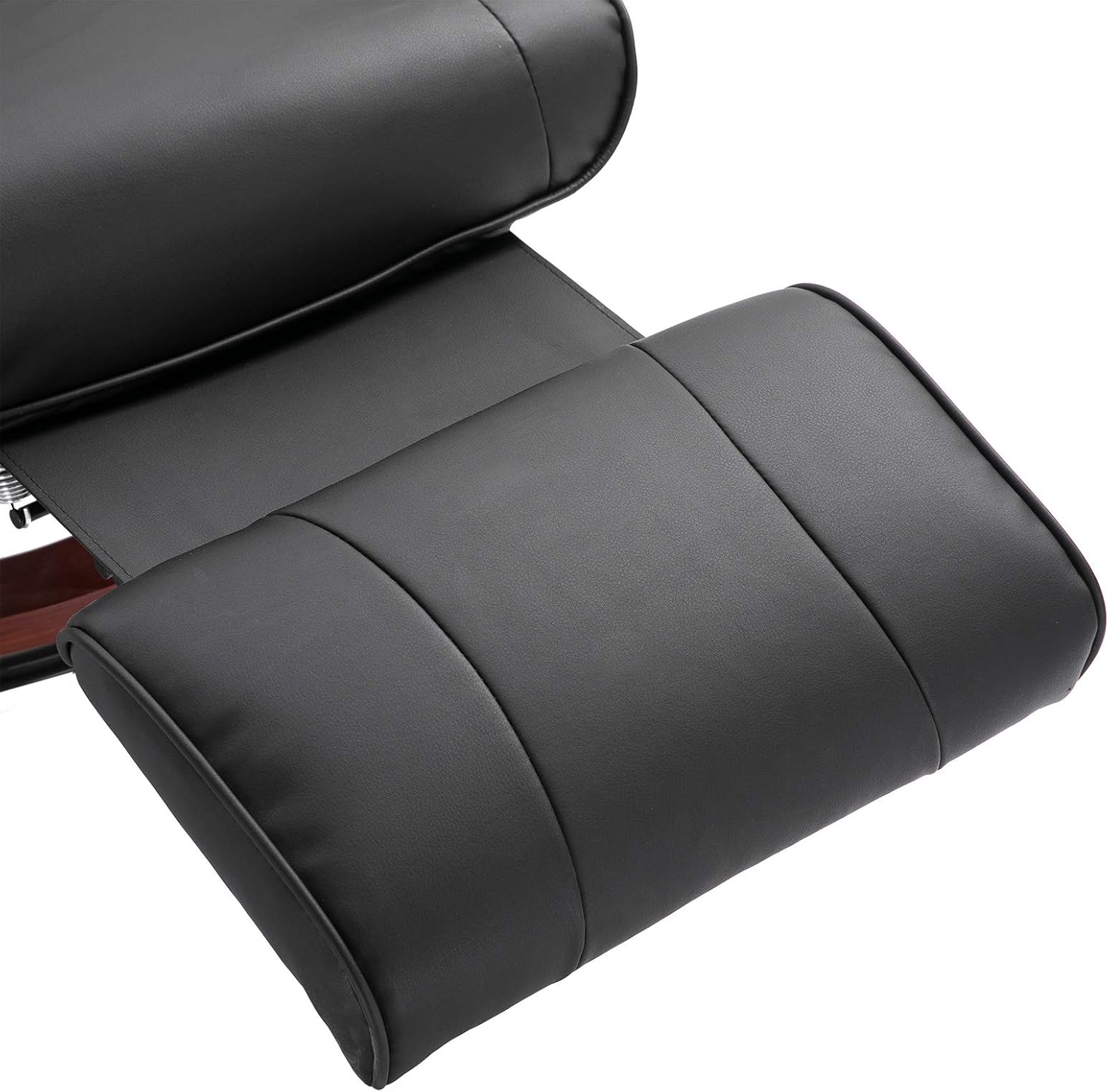

Figure 4.3: A detailed view of the footrest's padded surface, designed for comfort.

4.3. 360° Swivel Function

The chair is equipped with a 360° swivel base, allowing for full rotation without moving the entire chair. Simply rotate the chair in the desired direction.

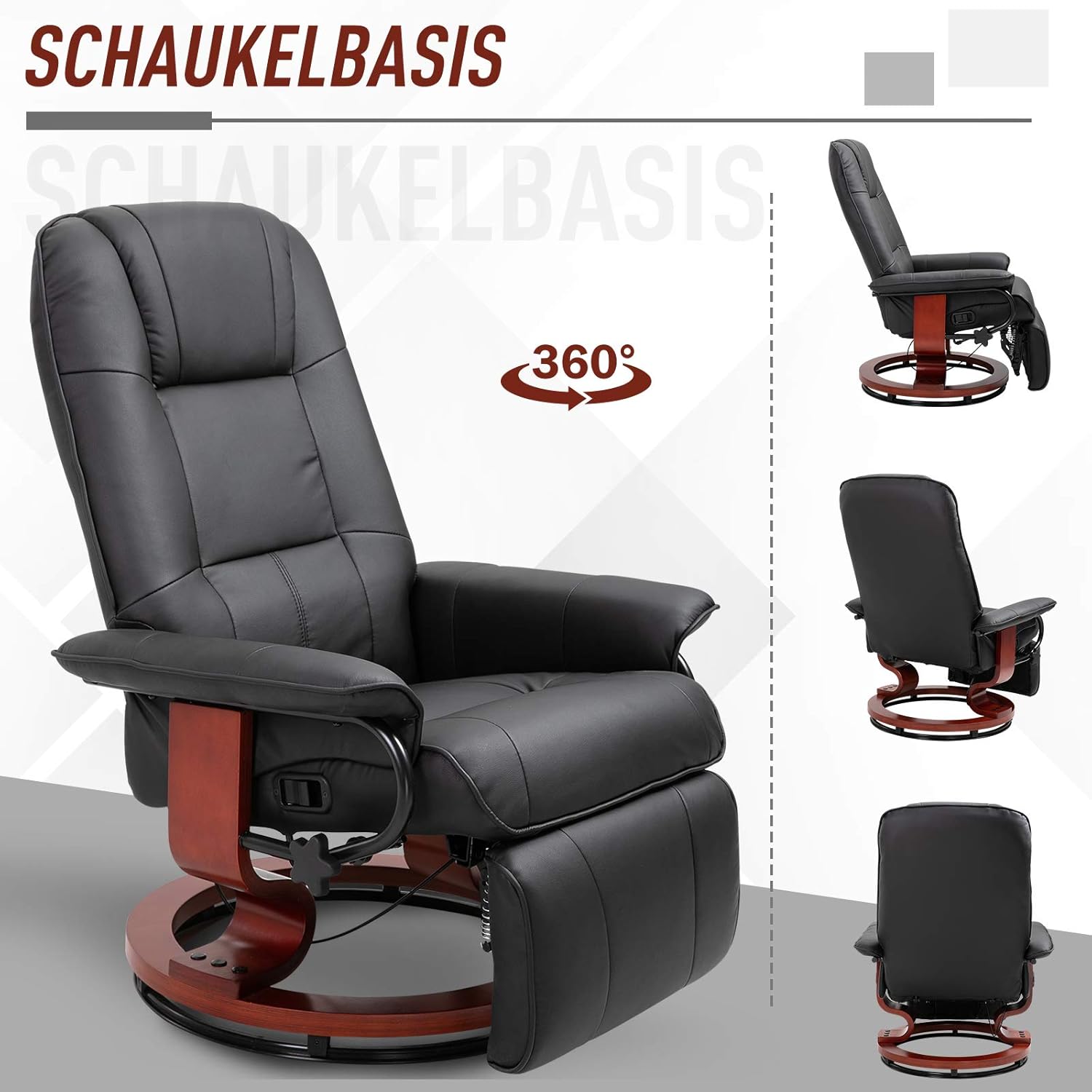

Figure 4.4: Visual representation of the chair's 360° swivel capability, showing different rotational angles.

5. Maintenance and Care

Proper maintenance will extend the life and appearance of your HOMCOM Relax Chair.

• Cleaning Upholstery: The faux leather upholstery is water-repellent and scratch-resistant. For general cleaning, wipe the surface with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners or solvents, as these can damage the material.
• Cleaning Wood Base: Wipe the wooden base with a dry or slightly damp cloth. Avoid excessive moisture.
• Regular Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the upholstery to fade or crack. Position the chair away from direct sunlight when possible.
• Avoid Sharp Objects: Prevent contact with sharp objects to avoid punctures or tears in the leatherette.

Figure 5.1: Detail showing the PU leather material and foam padding, highlighting its skin-friendly and easy-to-clean properties.

6. Troubleshooting

If you encounter any issues with your HOMCOM Relax Chair, refer to the following common problems and solutions:

• Chair is unstable/wobbly:
  • Ensure all assembly screws and bolts are securely tightened.
  • Verify the chair is placed on a flat, even surface.
• Recline mechanism is stiff or too loose:
  • Adjust the resistance knob located on the side of the chair (refer to Section 4.1).
  • Check for any obstructions in the reclining mechanism.
• Footrest does not extend/retract smoothly:
  • Ensure the adjustment knob/lever is fully engaged.
  • Check for any obstructions preventing smooth movement.
• Squeaking noises:
  • Apply a small amount of silicone-based lubricant to moving metal parts, avoiding contact with upholstery.
  • Ensure all connections are tight.

If the issue persists, please contact customer support.

7. Specifications

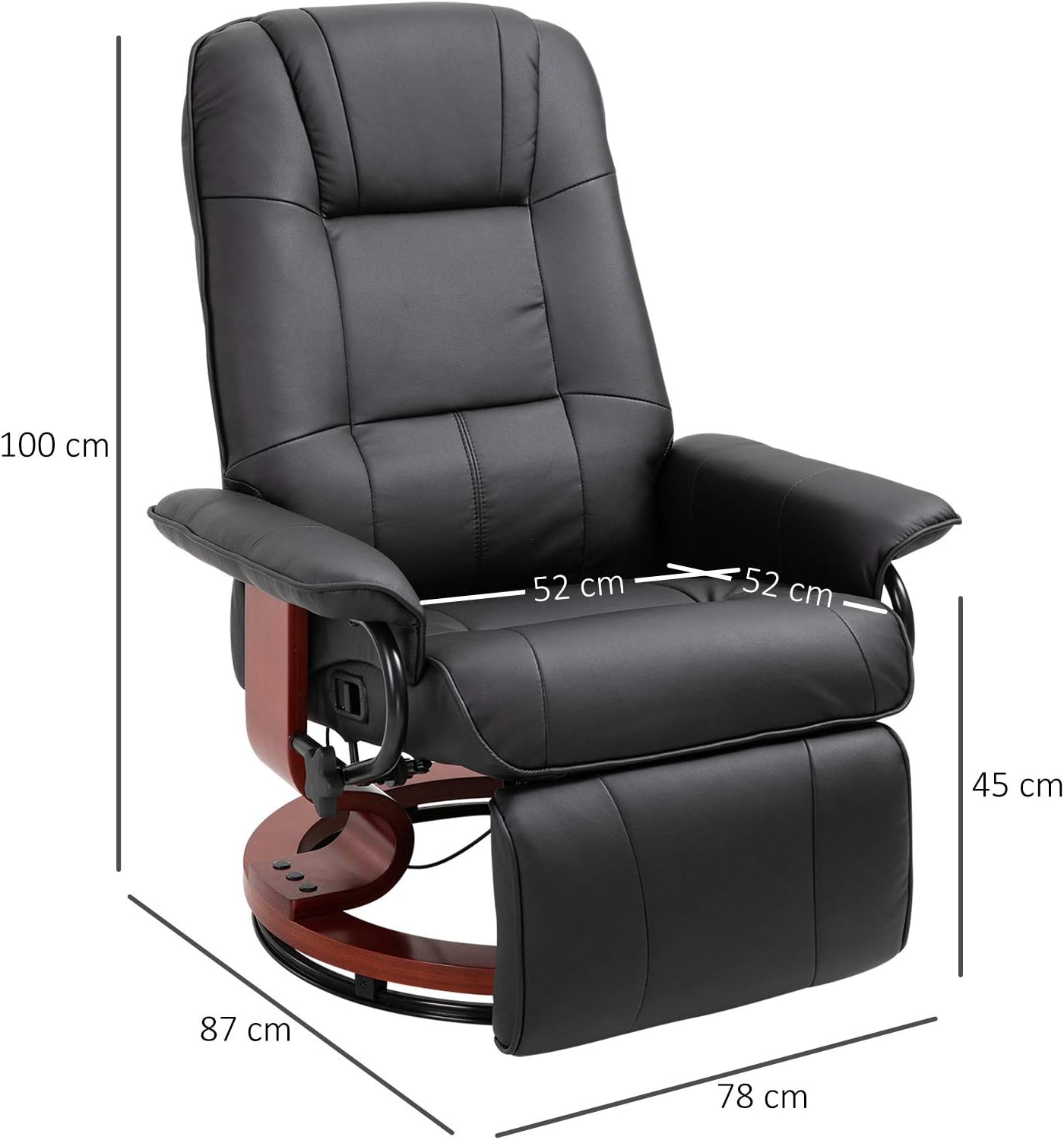

Figure 7.1: Dimensional diagram of the HOMCOM Relax Chair, indicating height, width, and depth measurements.

8. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. HOMCOM products are designed for quality and durability.

If you require further assistance, have questions about assembly, operation, or encounter any issues not covered in this manual, please contact HOMCOM customer support. Contact details can typically be found on the manufacturer's website or your purchase receipt.

Manufacturer: MH Handel GmbH
