Giantex Metal Bed Frame Twin Size Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, usage, and maintenance of your Giantex Metal Bed Frame Twin Size. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Exercise caution around sharp edges during assembly and handling.
• Do not exceed the maximum weight capacity of 330 pounds.
• Ensure all connections are securely tightened before use.
• Keep small parts away from children during assembly to prevent choking hazards.
• Assemble the bed frame on a soft, clean surface to prevent damage to the product or your floor.

Package Contents

Before assembly, verify that all components are present. If any parts are missing or damaged, contact customer support.

• Headboard Section
• Footboard Section
• Side Rails (2)
• Metal Slats
• Support Legs
• Assembly Hardware (bolts, washers, nuts, Allen wrench)
• Instruction Manual

Setup and Assembly Instructions

Follow these steps to assemble your Giantex Metal Bed Frame. It is recommended to have two people for assembly.

Step 1: Unpack and Identify Parts

Carefully remove all components from the packaging. Lay them out on a clean, soft surface to prevent scratches. Identify each part by comparing it with the parts list (if provided in physical manual) or the general description above.

Image 1: Dimensions of the Giantex Twin Size Metal Bed Frame. The frame measures 77.5 inches in length, 41 inches in width, and 35.5 inches in height at the headboard. The footboard height is 23.5 inches, and there is 12 inches of clearance under the bed for storage.

Step 2: Assemble Headboard and Footboard

Attach the horizontal bars to the vertical posts of the headboard and footboard sections using the provided bolts and Allen wrench. Do not fully tighten bolts until all sections are connected.

Image 2: Detailed view of bed frame components, including the headboard design, metal slats, connection points, and metal legs. This image illustrates the structural elements that contribute to the frame's stability.

Step 3: Connect Side Rails

Attach the two side rails to the assembled headboard and footboard sections. Ensure the connection points align correctly. Secure with bolts, but keep them slightly loose for now.

Step 4: Install Metal Slats

Place the metal slats across the side rails. The slats are designed to fit into designated slots or attach with specific hardware. Ensure all slats are evenly spaced and securely fastened to provide proper mattress support.

Step 5: Tighten All Connections

Once all components are in place, systematically tighten all bolts using the Allen wrench. Ensure all connections are firm and secure. Do not overtighten.

Step 6: Attach Foot Caps

Verify that the protective foot caps are securely attached to the bottom of each leg. These caps help protect your floor from scratches and reduce noise when moving the bed.

Usage

Mattress Placement

Place your twin-size mattress directly onto the metal slats. A box spring is not required for this platform bed frame. The headboard and footboard are designed to help keep the mattress in place.

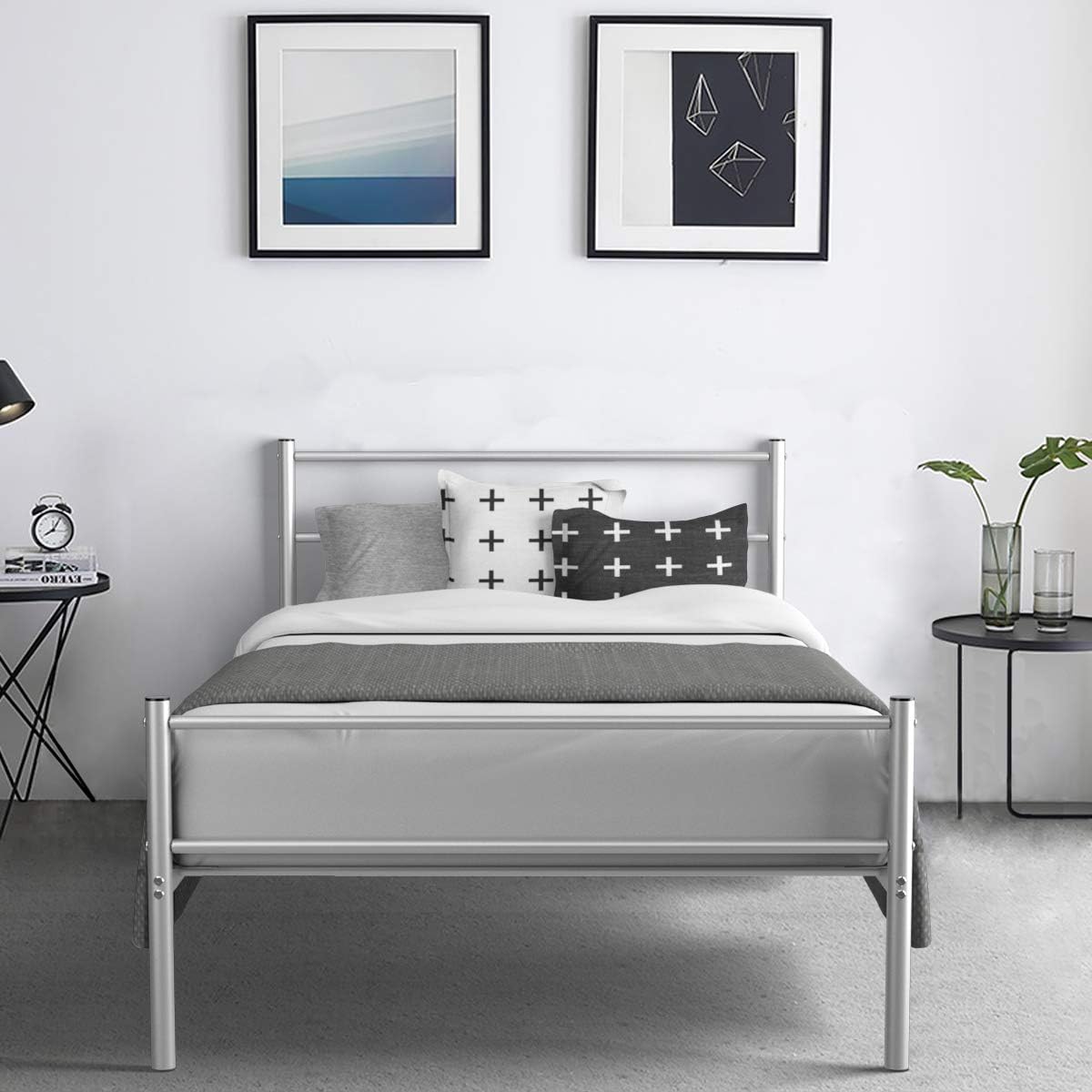

Image 3: The Giantex Twin Size Metal Bed Frame fully assembled with a mattress and bedding, demonstrating its appearance in a bedroom environment.

Under-Bed Storage

The bed frame provides 12 inches of clearance underneath, offering space for storage containers or other items.

Image 4: Illustration of the 12-inch under-bed storage space, highlighting its utility for organizing items beneath the bed.

Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Periodic Check: Periodically check all bolts and connections to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaking.
• Weight Distribution: Ensure weight is distributed evenly across the bed frame to prevent stress on individual components.

Troubleshooting

Specifications

• Model: GT59406SLHW-New
• Size: Twin
• Product Dimensions (L x W x H): 77.5" x 41" x 35.5"
• Under-bed Clearance: 12"
• Color: Silver
• Material: Steel
• Assembly Required: Yes
• Maximum Weight Capacity: 330 lbs
• Item Weight: 29 pounds

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact Giantex customer service directly. Keep your purchase receipt and model number (GT59406SLHW-New) handy for faster service.

You can visit the official Giantex store for more information: Giantex Store
